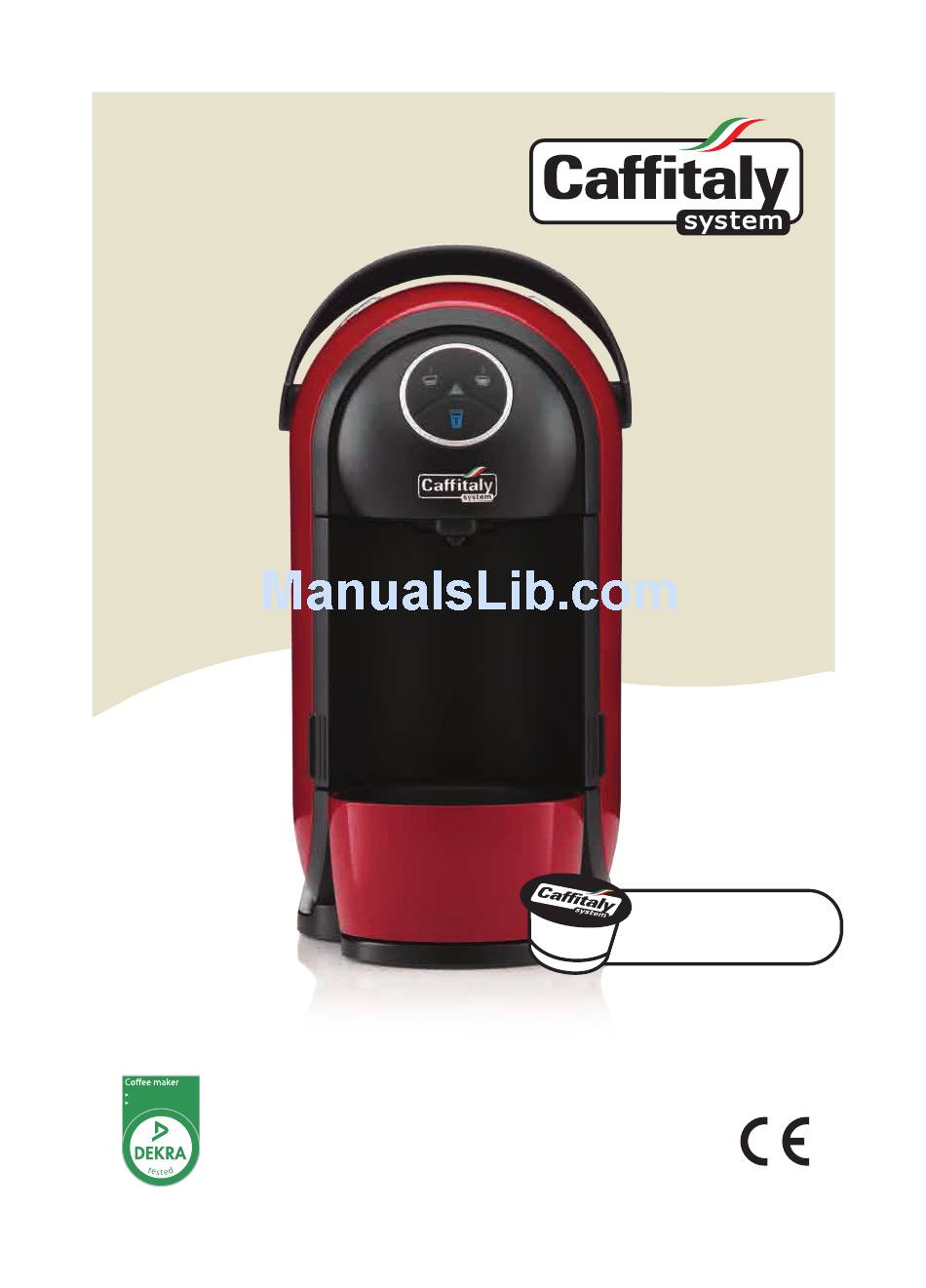

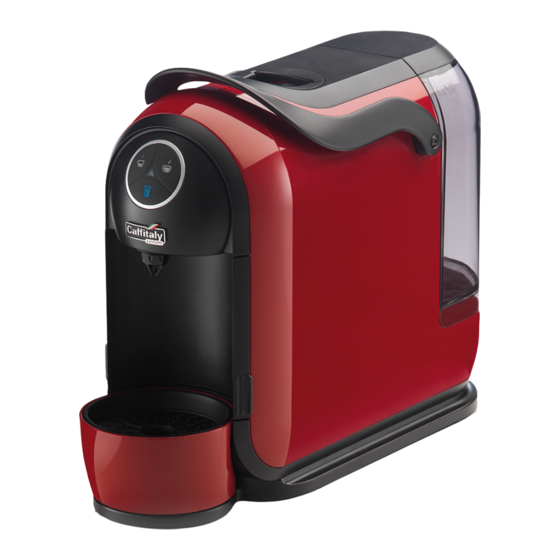

S21
MODEL
ONLY USE WITH
Caffitaly System
Capsules
INSTRUCTION MANUAL
Roasting Australia Holdings Pty Limited
11 Hoyle Avenue, Castle Hill, NSW 2154
Safety
EMC
Phone: AU 02 9846 0307
NZ 0800 450 894
E-Mail: caffitalysystem@rfg.com.au
www.caffitalysystem.com.au
S21 Capsule Machine Instruction Manual
3/09/15
Advertisement
Table of Contents
Related Manuals for Caffitaly System S 21
Summary of Contents for Caffitaly System S 21
-
Page 1: Instruction Manual
MODEL ONLY USE WITH Caffitaly System Capsules INSTRUCTION MANUAL Roasting Australia Holdings Pty Limited 11 Hoyle Avenue, Castle Hill, NSW 2154 Safety Phone: AU 02 9846 0307 NZ 0800 450 894 E-Mail: caffitalysystem@rfg.com.au www.caffitalysystem.com.au S21 Capsule Machine Instruction Manual 3/09/15... -
Page 2: Table Of Contents
• Daily Maintenance • Descaling • Saving Energy Miscellaneous: • Restore Original Settings (RESET) • Troubleshooting • Technical Data • Instructions for Use and Disposal • Caffitaly System Care Contact • Notes 1. 1. S21 Capsule Machine Instruction Manual 3/09/15... -
Page 3: Welcome
Capsule Machine providing lightly frothed milk and if you like a Flat White, the Caffitaly System Milk Frother will also heat and texturise your milk so it is the perfect temperature for you to drink. -
Page 4: Safety Warnings
(unusual noise or odours), or if any other problem is detected inside the appliance, do not use it and contact the Caffitaly System Customer Service Line on AU 02 9846 0307 | NZ 0800 450 894. -
Page 5: Symbols Guide
SAFETY WARNINGS - Continued • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 6: Machine Components
MACHINE COMPONENTS Single Espresso Diagram 1: Button 30ml (White) Double Espresso Button 60ml (White) Indicator Light Orange=Descale Red=Check System TEA Button-120ml (Tea & Hot Water) (Blue) Rinse Capsule PLEASE NOTE: The Rinse Capsule is to be used when you: • Dispense Hot Water Only •... -
Page 7: Correct Use Of The Buttons
CORRECT USE OF BUTTONS Diagram 3: Single Espresso Button - 30ml (Lit in WHITE). Use for dispensing a single espresso shot. Double Espresso Button - 60ml (Lit in WHITE). Use for dispensing a double espresso coffee for a stronger beverage. Also suitable for Hot Chocolate, Chai Latte and similar beverages (NOT TEA). -
Page 8: First Time Use
FIRST TIME USE ONLY USE WITH Please ensure you only use Caffitaly Caffitaly System System Capsules which can be Capsules identified by the Caffitaly logo. We recommend following these steps after not having used the machine for a long period of time. - Page 9 FIRST TIME USE - Continued Press the Double Place a large Espresso button. empty container Water will be cycled (at least 250 ml) through the system. under the Coffee (This will take about Dispensing Spout. 30 sec.) When done the Red Indicator Light will switch off.
-
Page 10: Turning On The Appliance
TURNING ON THE APPLIANCE - DAILY USE Switch the Fill the Water machine Tank with fresh, ON using the still water. On/Off Switch. When all the When all the button lights blink button lights are continuously, lit steadily, your the machine is machine is ready warming up. -
Page 11: Dispensing Beverages - Using Factory Settings
DISPENSING BEVERAGES - Using Factory Settings MAINTENANCE TIP: Traces of the previous product dispensed may remain in the circuit of the machine. To maintain the maximum beverage flavour, please cycle (rinse) water through the machine after every use. Ensure you insert the Rinse Capsule into the Capsule Compartment before commencing the rinse cycle. -
Page 12: Programming The Quantity Of Beverage In A Cup
PROGRAMMING THE QUANTITY OF BEVERAGE IN A CUP NOTE: The quantity of coffee dispensed may be programmed, from a minimum of 30ml to a maximum of 250ml. NOTE: Recommended Programming/Factory Programming: - 30ml: Single Espresso Shot - 60ml: Double Espresso Shot - 120ml: Tea (&... -
Page 13: General Operating Indications
GENERAL OPERATING INDICATIONS DESCALING SIGNAL: When the Indicator Light blinks ORANGE (after which it will remain lit) and the machine beeps, it is advisable to perform the Descaling Cycle. See section: Descaling on Page 14. HEATING: When all the button lights continuously blink, the machine is warming up. -
Page 14: Daily Maintenance
GENERAL OPERATING INDICATIONS - Continued IF THE LEVER IS RAISED: The Indicator If the Lever is light blinks RED raised during and beeps. the delivery of a product, the The appliance will machine can emit immediately jets of hot water. stop dispensing. -
Page 15: Descaling
DESCALING INSTRUCTIONS DESCALING SIGNAL: When the Indicator Light blinks ORANGE and the machine beeps, it is advisable to perform the descaling cycle, as illustrated below. PLEASE DO NOT LEAVE THE MACHINE DURING THE DESCALING PROCESS NOTE: Descaling refers to the removal of the natural mineral build up within the pipes of the machine. - Page 16 DESCALING INSTRUCTIONS - Continued Place a container (at Close the Lever least 1L) under the fully and remove Coffee Dispensing the Drip Tray. Spout. NB: Do not leave machine as you may have to empty the container as it cycles through the descaling process.
- Page 17 DESCALING INSTRUCTIONS - Continued Press the During this step, Double Espresso the Indicator button to start the Light will blink rinse cycle. RED and ORANGE Fresh water will be alternatively. run through the appliance to rinse (about 500ml). When the rinse Rinse the Water cycle is complete, Tank and fill it...
-
Page 18: Saving Energy
NOTE: Now that the machine has been RESET it is in First Use Mode. We recommend following the 'First Time Use' steps on Page 7. If you have RESET the machine and the problem still continues, you should contact the Caffitaly System Customer Service Line on AU 02 9846 0307 | NZ 0800 450 894. -
Page 19: Troubleshooting
Page 17. and steadily lit in RED. Water comes out cold. - If the problem persists please contact the Caffitaly System Customer Service Line on AU 02 9846 0307 NZ 0800 450 894 S21 Capsule Machine Instruction Manual... - Page 20 Used Capsule Drawer. If any of the above solutions are not correcting your problem or you have any further questions/enquiries, please contact the Caffitaly System Customer Service line on: AU 02 9846 0307 | NZ 0800 450 894. S21 Capsule Machine Instruction Manual...
-
Page 21: Technical Data
Dispose of the appliance in a suitable waste collection centre. All materials and objects in contact with food products comply with the requirements of European Regulation 1935/2004. CAFFITALY SYSTEM CARE CONTACT For more information on the machine operation, available capsules and other useful www.caffitalysystem.com.au... -
Page 22: Notes
NOTES: S21 Capsule Machine Instruction Manual 3/09/15... - Page 23 NOTES: S21 Capsule Machine Instruction Manual 3/09/15...
- Page 24 This unique design is why other capsules on the market do not work with the Caffitaly System Machine. Only use capsules displaying the Caffitaly System logo with this machine.
Need help?
Do you have a question about the S 21 and is the answer not in the manual?
Questions and answers
Come si pulisce erogatore modello S21?
To clean the Caffitaly System S21 dispenser:
1. Empty and Rinse Components:
- Lift the used capsule container (Fig. 11), empty and rinse it.
- Remove the drip grid and its support (Fig. 12), then lift the drip tray, empty and rinse it.
- Remove the water tank (Fig. 5), empty and rinse it.
2. Rinse the Internal Circuit:
- There may be product residue in the machine.
- After dispensing milk, chocolate, or soluble drinks, rinse quickly.
- Use the provided cleaning capsule and press any button (A, B, or C).
- Perform this at least once a week.
3. Surface Cleaning:
- Use a soft cloth and a neutral detergent.
- Do not use water jets or clean components in a dishwasher.
For descaling:
1. Fill the water tank with about 750 cc of water and descaling solution.
2. Insert the cleaning capsule and close the lever.
3. Remove the drip tray and place a container (at least 500 ml) under the dispenser.
4. Hold buttons A and B while turning on the machine.
5. When button B lights up and indicator D blinks yellow and red, press button B to start descaling.
6. The machine dispenses the solution in intervals over 25 minutes.
7. Empty the container if needed.
Perform these steps regularly to maintain the machine.
This answer is automatically generated
I am using the correct capsules for my S21 Caffitaly machine but the water is not dispensing - only a slight tricle at first then nothing. No orange or red lights flashing and the machine is filled with clean water. I have tried to reset the machine several times but this does not help either.
