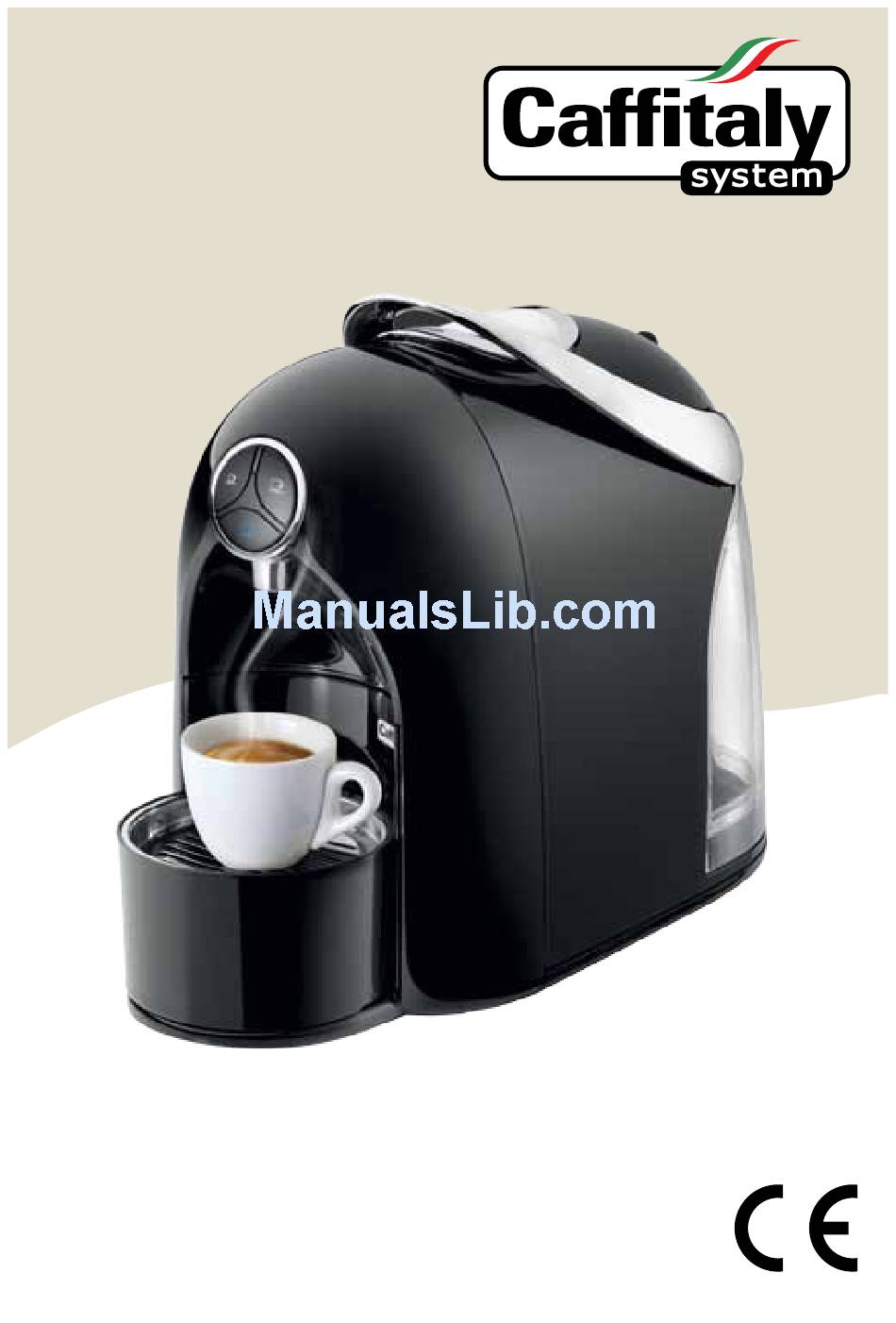

Page 1: Instruction Manual
MODEL INSTRUCTION MANUAL Imported by Maranatha Import Export Pty Limited 13 Hoyle Avenue, Castle Hill, NSW 2154 Phone: 02 9846 0307 E-Mail: info@maranathaimport.com.au www.caffitalysystem.com.au... -
Page 2: Table Of Contents
Programming The Quantity Of Beverage In A Cup • General Operating Indications Cleaning and Maintenance: • Daily Maintenance • Descaling • Saving Energy Miscellaneous: • Restore Original Settings (RESET) • Troubleshooting • Technical Data • Instructions for Use and Disposal • Caffitaly System Care Contact... -
Page 3: Welcome
CONGRATULATIONS on the purchase of your New Caffitaly System S14 Machine. Thank you for having chosen our product and for your confidence in our company. You can savour your favourite hot beverages at any time of the day with our appliance by choosing one of the capsules that Caffitaly System offers you. -
Page 4: Safety Warnings
• This appliance is intended to be used in domestic environments. Not suitable for Professional use. • Use ONLY Caffitaly System compatible capsules. Damage caused by using incorrect capsules will void the guarantee. • Use the TEA button (Blue) for Tea and Hot Water ONLY! Incorrect use of this button will cause damage to the machine and void the guarantee. -
Page 5: Symbols Guide
SAFETY WARNINGS - Continued • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 6: Machine Components
MACHINE COMPONENTS Indicator Light Orange=Descale Red=Check System Single Espresso Double Espresso Button Button 30ml (White) 60ml (White) TEA Button-120ml (Tea & Hot Water) (Blue) Dispensing Spout Diagram 1: Capsule Water Tank Compartment Cover Lever for opening and closing Capsule Compartment Water Tank Used Capsule Drawer... -
Page 7: First Time Use
FIRST TIME USE We would also recommend following these steps after not having used the machine for a long period of time. Fill the tank with Plug in fresh, still water appliance. (either by filling Switch machine through the on using the water tank cover On/Off Switch. -
Page 8: Correct Use Of The Buttons
BEFORE FIRST USE - Continued At the end of this When all the button lights operation, pull remain steadily draw forward and lit, rinse by empty any water pressing the Tea from the used Button. Press capsule draw. again to repeat rinse cycle. -
Page 9: Dispensing Beverages - Using Factory Settings
DISPENSING BEVERAGES - Using Factory Settings Switch the Raise the lever to machine on open the capsule using the On/ compartment. Off Switch. Wait about 1 min for machine to warm up. Insert the Close the lever capsule, pressing fully and place it gently into a cup or mug place. -
Page 10: Turning On The Appliance
TURNING ON THE APPLIANCE - DAILY USE Switch the Fill the tank with machine on fresh, still water. using the On/Off Switch. Wait about 1 min for machine to warm up. When all the When all the button lights blink button lights are continuously, lit steadily, your... -
Page 11: Programming The Quantity Of Beverage In A Cup
PROGRAMMING THE QUANTITY OF BEVERAGE IN A CUP Switch the Raise the machine on lever to open using the On/ the capsule Off Switch. compartment. Wait about 1 min for machine to warm up. Close the lever Insert the fully. capsule, pressing it gently into place. -
Page 12: General Operating Indications
GENERAL OPERATING INDICATIONS DESCALING SIGNAL: 3 Beeps When the Indicator Light blinks ORANGE and the machine emits 3 beeps (after which it will remain lit), it is advisable to perform the descaling cycle. See section: Descaling on Page 13 HEATING: When all the button lights continuously blink, the machine is warming up. -
Page 13: Daily Maintenance
GENERAL OPERATING INDICATIONS - Continued IF THE LEVER IS RAISED: 1 Beep The Indicator light If the lever is raised during blinks RED and a the delivery of beep is emitted. a product, the The appliance will machine can emit immediately jets of hot water. -
Page 14: Descaling
DESCALING INSTRUCTIONS DESCALING SIGNAL: When the Indicator Light blinks ORANGE and the machine emits 3 beeps, it is advisable to perform the descaling cycle, as illustrated below. PLEASE DO NOT LEAVE THE MACHINE DURUNG THE DESCALING PROCESS NOTE: Descaling refers to the removal of the natural mineral build up within the pipes of the machine. - Page 15 DESCALING INSTRUCTIONS - Continued Place a container Replace water (at least 1L) under tank and pour the coffee dispensing 1 litre descaling spout. NB: Do not solution into it. leave machine as you may have to empty the container as it cycles through the Descaling process.
-
Page 16: Saving Energy
DESCALING INSTRUCTIONS - Continued 1 Beep When the rinse Rinse water cycle is complete, tank and fill the machine it with fresh beeps and all still water. the buttons will blink at the same time (machine is warming up). When the buttons Remove, empty, turn on and rinse and then... -
Page 17: Restore Original Settings (Reset)
RESTORE ORIGINAL SETTINGS (RESET) These instructions, allow you to reset the machine back to its factory settings – helpful if you experience an issue with the machine, or you have changed the pour levels for example and cannot change them back to their original levels. Hold down the Switch off using Single Espresso... -
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION No beverage is brewed. - The water tank is empty. - Fill the tank with fresh water. The Indicator light and/or Press Single Espresso button. blinks RED. - Incorrect use of the When the buttons remain steadily Tea button. -
Page 19: Technical Data
All materials and objects in contact with food products comply with the requirements of European Regulation 1935/2004. CAFFITALY SYSTEM CARE CONTACT Phone: 02 9846 0307 E-Mail: info@maranathaimport.com.au For more information on the machine operation, available capsules and other useful hints and tips go to the Caffitaly website: www.caffitalysystem.com.au... - Page 20 For more information on the machine operation, available capsules and other useful hints and tips go to the Caffitaly website: www.caffitalysystem.com.au...
