  • Page 1: Instruction Manual

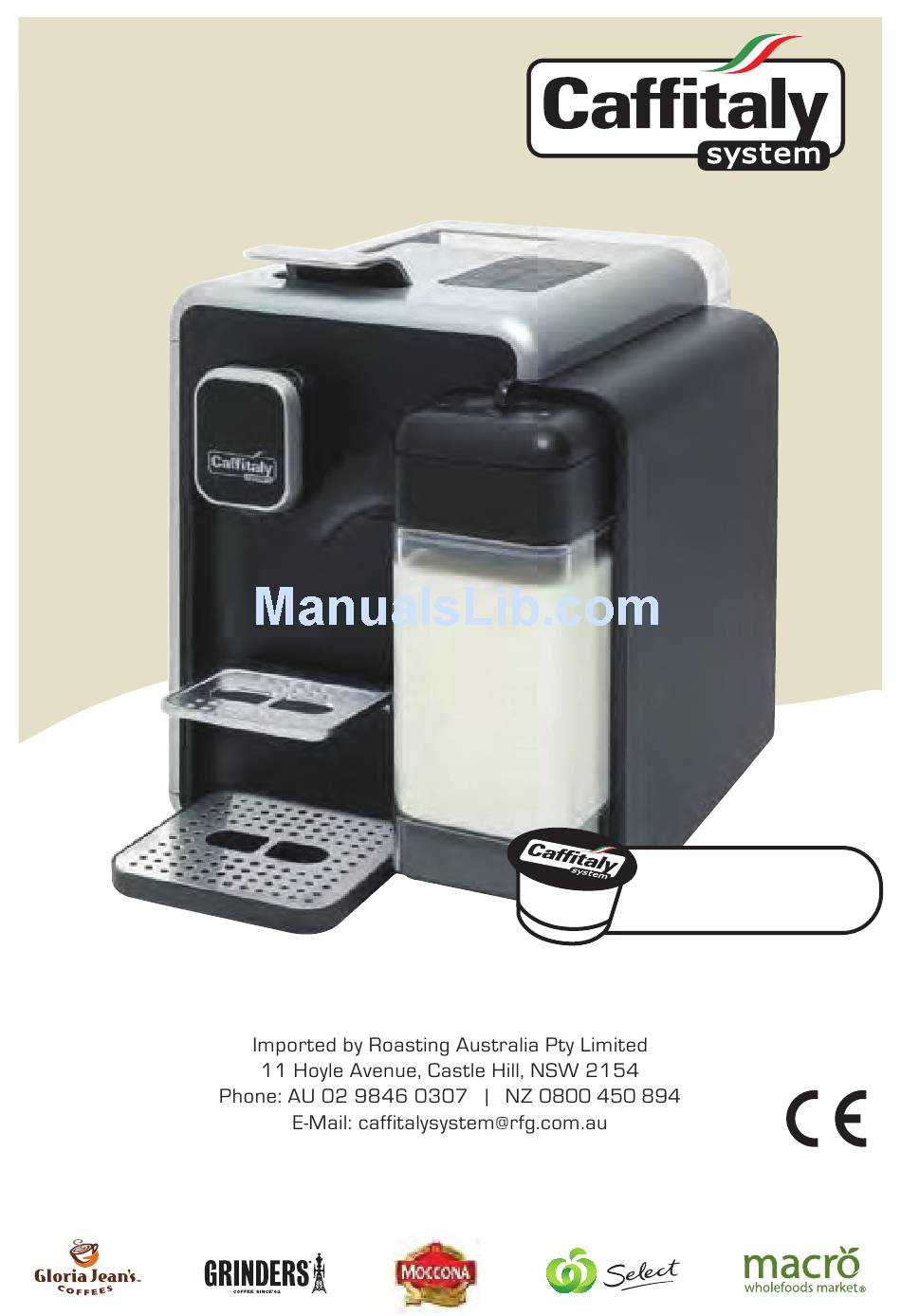

    MODEL ONLY USE WITH Caffitaly System Capsules INSTRUCTION MANUAL www.caffitalysystem.com.au YOUR TASTE... YOUR CHOICE...
  • Page 2: Table Of Contents

    INDEX Introduction: • Safety Warnings • Symbols Guide Instructions: • General Operating Indications Cleaning and Maintenance: • Daily Maintenance • Cleaning - Rinse Cycle • Cleaning - Milk Jug Rinse Cycle • Cleaning - Milk Jug Dispenser • Cleaning - The Coffee Dispenser •...
  • Page 3 CONGRATULATIONS Caffitaly System S22 Capsule Machine. YOUR TASTE... YOUR CHOICE Imported by Roasting Australia, proudly part of...
  • Page 4: Safety Warnings

    • Use the TEA button (Blue) for Tea and Hot Water ONLY! V O I D Caffitaly System Customer Service Line AU: 02 9846 0307 | NZ: 0800 450 894. Contact the Caffitaly System Customer Service Line on AU: 02 9846 0307 | NZ: 0800 450 894...
  • Page 5: Symbols Guide

    SAFETY WARNINGS - Continued Children should be supervised to ensure that they do not play with the appliance Do not open the lever while the appliance is operating. If the lever is raised during the delivery of a product, the machine can emit jets of hot water. Risk of Burns! Please contact Caffitaly System Customer Service Line...
  • Page 6: Machine Components

    MACHINE COMPONENTS Diagram 1: Diagram 2: On/Off button Multifunction Descaling indicator indicator TEA button Milk Only button Double Espresso Café Latte button Coffee button Single Espresso Cappuccino button Coffee button...
  • Page 7 MILK JUG LEVER SETTINGS Diagram 3: Figure 3: Figure 1: Figure 2: CORRECT USE OF BUTTONS Diagram 4: Tea or Hot Water Button When in doubt follow - 120ml the directions on the Caffitaly branded capsule box regarding required button use. Do not use the Tea Button to extract espresso coffee or any...
  • Page 8: Instructions

    Please read these instructions in full before you switch IMPORTANT INFORMATION the machine on. Failure to do so could void your Warranty Ensure the Milk Jug is in position on the machine before switching the machine ON using the ON/OFF button for First Time Use and if the machine hasn’t been used for an extended period of time.
  • Page 9 Tea button Milk Milk buttons Water Milk buttons Milk Jug Milk Only button. Milk Jug Milk Milk Jug Please ensure you only use Caffitaly ONLY USE WITH Caffitaly System System Capsules which can be Capsules identified by the Caffitaly logo...
  • Page 10: Dispensing Coffee

    DISPENSING COFFEE Lever Capsule Compartment. Lever Single Espresso Double Espresso Coffee button Dispensing Spout WARNING!!! button Lever Lever Used Capsule Drawer Double Espresso button NOTE:...
  • Page 11 DISPENSING TEA On/Off button Lever Capsule Compartment. Lever button button Coffee Dispensing Spout WARNING!!! button Lever Lever Used Capsule Drawer Double Espresso button NOTE: Page 14...
  • Page 12 DISPENSING MILK BASED DRINKS On/Off button Lever Capsule Compartment. Lever Milk Jug Coffee Dispensing Spout Milk Jug Milk Jug Lever Cappuccino, Café Latte or Milk Only button...
  • Page 13 DISPENSING MILK BASED DRINKS - Continued Single Espresso button Milk Only button Please Note: To maintain the freshness of the milk, the Milk Jug should be removed and stored in the refrigerator between uses. Please ensure a ‘Milk Jug Rinse Cycle’ on Page 18 is completed before removing and storing in the refrigerator.
  • Page 14: Programming The Quantity Of Beverage In A Cup

    PROGRAMMING THE QUANTITY OF BEVERAGE IN A CUP Please Note: The Recommended Programming/Factory Programming is: 30ml: Single Espresso Shot 60ml: Double Espresso Shot 120ml: Tea (& Hot Water Button) Note: The quantity of coffee dispensed may be programmed from a minimumof 30ml to a maximum of 250ml. Lever Capsule Compartment...
  • Page 15: General Operating Indications

    GENERAL OPERATING INDICATIONS DESCALING SIGNAL: HEATING: Descaling Indicator Light Page 20. WHEN THE WATER RUNS OUT DURING OPERATION: Water Tank Water Tank Indicator Light Single Milk Double Espresso button NOTE: Step 3...
  • Page 16: Daily Maintenance

    GENERAL OPERATING INDICATIONS - Continued IF THE LEVER IS RAISED: Lever Indicator light Risk of burns! Single Lever Double Espresso button DAILY MAINTENANCE - Incorrect Correct Water Tank Water Tank Incorrect Correct Milk Dispenser Milk Lever,...
  • Page 17: Cleaning - Rinse Cycle

    DAILY MAINTENANCE Drip Tray Used Capsule Drawer Water Tank Water Tank Water Tank Drip Tray Used Capsule Drawer The Water Tank is NOT dishwasher safe. NOT dishwasher safe DANGER: Never submerge the appliance in water. Water and electricity together constitute a risk of electrocution. CLEANING - RINSE CYCLE Lever Capsule...
  • Page 18: Cleaning - Milk Jug Rinse Cycle

    CLEANING - MILK JUG RINSE CYCLE Milk Jug Lever Milk buttons Milk Jug Lever CLEANING - THE MILK JUG DISPENSER Milk Milk Jug Jug Lever Milk Jug Lever...
  • Page 19: Cleaning - The Coffee Dispenser

    CLEANING - THE MILK JUG DISPENSER Milk Jug Lever Milk Jug Lever Incorrect Correct Milk Dispenser CLEANING - THE COFFEE DISPENSER Coffee Coffee Dispensing Head Dispensing Head Coffee Dispensing Head Coffee Dispensing Head...
  • Page 20: Descaling Instructions

    DESCALING INSTRUCTIONS IMPORTANT – PLEASE READ BEFORE COMMENCING THE DESCALING CYCLE DESCALING SIGNAL: Indicator Light PLEASE DO NOT LEAVE THE MACHINE DURING THE DESCALING PROCESS NOTE: CAREFULLY Don’t use vinegar: it could damage your appliance. Drip Switch Off Tray Used Capsule On/Off Drawer Switch...
  • Page 21 DESCALING INSTRUCTIONS - Continued PLEASE NOTE: Coffee If you do not correctly fit Dispensing Spout the “Descaling Coupling” in the jug seat, the descaling cycle Descaling Coupling will not run. Lever Press and hold The Double Espresso button Single Double Espresso buttons Multifunction Descaling Indicator...
  • Page 22 DESCALING INSTRUCTIONS - Continued Double Espresso Coffee button Dispensing Spout Descaling Coupling Lever Rinse Cycle Multifunction Descaling Indicator lights YELLOW Milk Jug Milk Milk Jug Note: Used Water Tank Capsule Drawer Drip Tray button Coffee Dispensing Red Multi- Spout function Indicator...
  • Page 23: Energy Saving

    DESCALING INSTRUCTIONS - Continued Step 25 Tea button Multifunction Indicator Light ENERGY SAVING Power ON/ OFF button NOTE:...
  • Page 24: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE SOLUTION First Use PLEASE NOTE: Capsule Compartment First Time Use Page 8. Water Tank Water Tank Indicator light Single Double Espresso button Tea button Tea button Indicator Light Caffitaly Customer Service Line 02 9846 0307 NZ Service Line 0800 450 894...
  • Page 25 TROUBLESHOOTING - Continued PROBLEM CAUSE SOLUTION Page 14. Milk Lever Slot Page 16. Milk Jug Indicator Light Page 20 Descaling exactly 500ml Descaled Water Tank. Water Tank. Rinse Off/On Cycle Power Button Indicator Light Rinse Cycle Tea Button 5 times Note: Water Tank...
  • Page 26 Double Espresso button Page 20 If any of the above solutions are not correcting your problem or you have any further questions/enquiries, please contact the Caffitaly System Customer Service Line on: AU: 02 9846 0307 | NZ: 0800 450 894...
  • Page 27: Technical Data

    TECHNICAL DATA CAFFITALY SYSTEM CARE CONTACT www.caffitalysystem.com.au AU 02 9846 0307 | NZ 0800 450 894...
  • Page 28 WHAT SETS US APART FROM THE REST? OUR UNIQUE FILTERED CAPSULE DESIGN Top Film Top Film Upper Filter Upper Filter Product Product Bottom Filter Bottom Filter Capsule Capsule Only use capsules displaying the Caffitaly System logo with this machine. ONLY USE WITH Caffitaly System Capsules www.caffitalysystem.com.au...
