Winnov VIDEUM User Manual page 7

Video Camera
Connecting the Video Camera
Only analog color video cameras (PAL or NTSC) may be
connected to the Videum AV and VO.
•
composite video input: connects to normal cameras and
camcorders. Audio connects to the Line/Mic input.
•
S-Video input: connects to S-VHS or Hi-8 camcorders.
Please connect audio to the Line/Mic input.
•
MXC input: connects to the Winnov Video Camera or other
cameras via special interface cable. This input combines
audio, video and power for the camera.
To connect the Winnov Video Camera, follow these steps:
1. Set the camera base on top of the monitor.
Place the camera so that
the power light is on the
right and the microphone
is on the left.

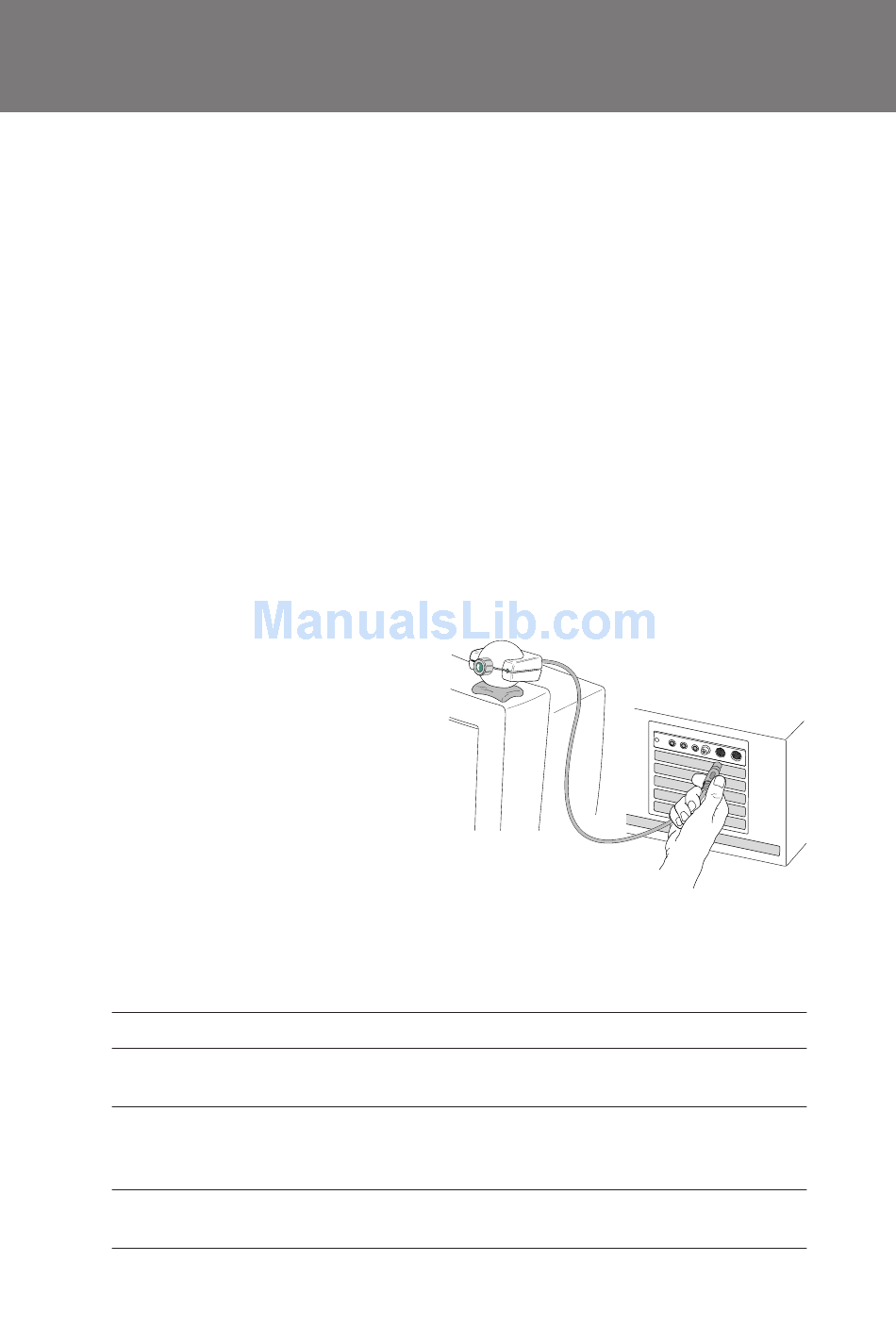

2. Connect the camera
cable to the Multimedia
Extension Connector
(MXC).
3. Turn the camera on, if necessary, using the Power
switch on the back of the camera.
Switch Default Setting
BLC On
WB Fixed (Freeze Mode) Sets the white balance for color reproduction.
Image Positive/Negative
Description
Sets backlight compensation to prevent under
exposed or overexposed images
Should be in Fixed mode when you have a
colored scene and stable lighting conditions
Positive shows the image normally, negative
shows the photographic negative of the image
7
