Summary of Contents for audiophony CR80A-COMBO

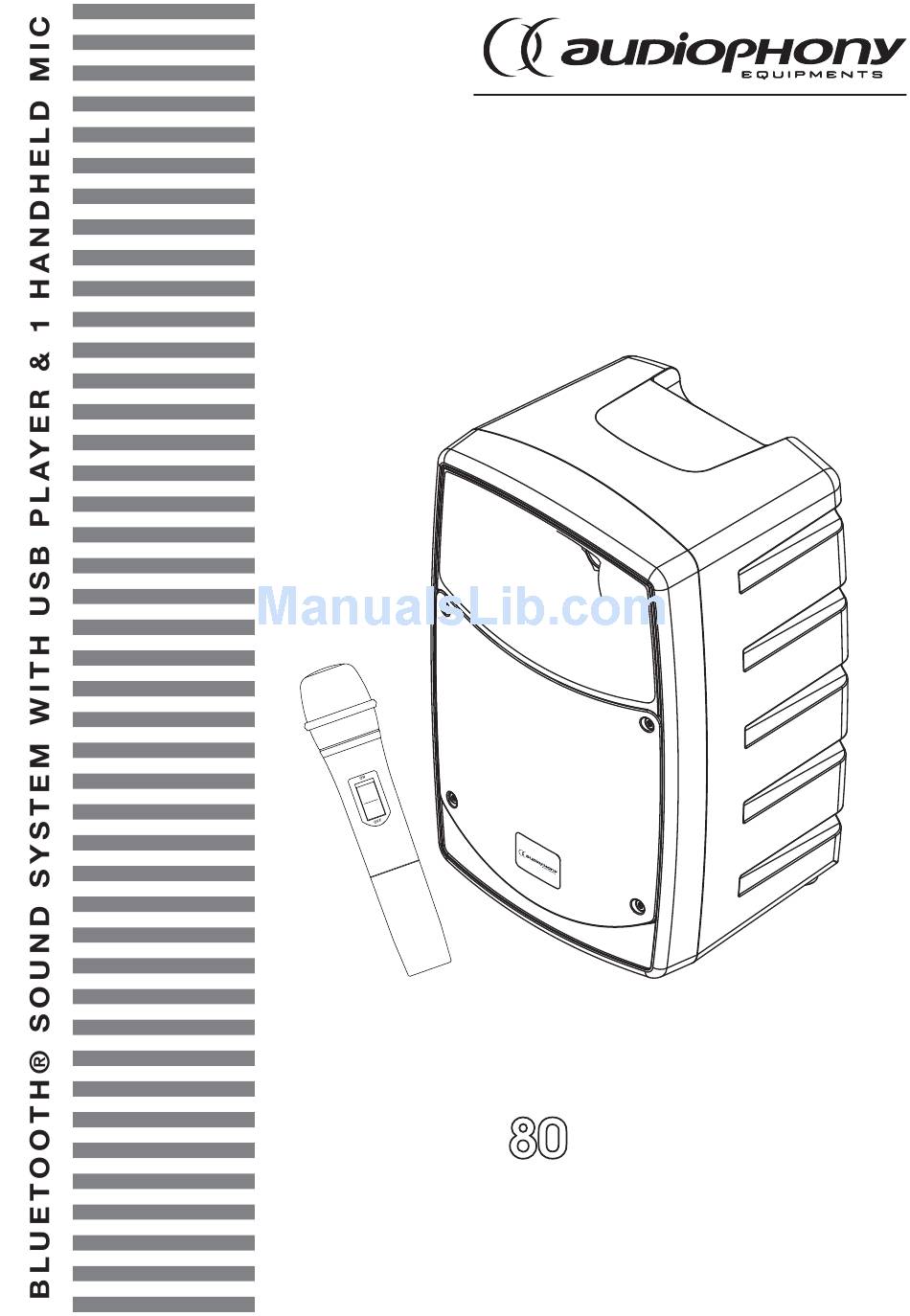

- Page 1 A-COMBO USER GUIDE 10313 - Version 1 / 12-2014...
-
Page 2: Safety Information
English ® Bluetooth sound system with USB player & 1 handheld mic CR80A-COMBO - 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. - Page 3 English ® Bluetooth sound system with USB player & 1 handheld mic CR80A-COMBO - Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation.
- Page 4 - All-in-one solution - High performance and sound quality - Media player and 1 UHF microphone The CR80A-COMBO is a powerful all-in-one sound system producing a high-quality sound output, adapted to any mobile installation. It features a USB/SD reader, a Bluetooth ®...
- Page 5 English ® Bluetooth sound system with USB player & 1 handheld mic CR80A-COMBO - 3 - The modules A - UHF receiving module ® B - USB/SD/Bluetooth module C - Mixing zone Master zone Power supply socket Page 5...
-
Page 6: Description Of The Modules
The display will indicate «BT NOT LINK», then «connecting...» for a few seconds. ® Turn your Bluetooth source ON and scan for devices. Select «Bluetooth» in the list, and accept the peering. The CR80A-COMBO display should indicate the name of the connected device. Page 6... - Page 7 English ® Bluetooth sound system with USB player & 1 handheld mic CR80A-COMBO - 4 - 3 : Remote control The infrared remote control of your reader allows you to remotely control ® CHANNEL PLAY/PAUSE some fonctions for your SD/USB or Bluetooth sources.
- Page 8 English ® Bluetooth sound system with USB player & 1 handheld mic CR80A-COMBO - 4 - 5 : Master D1 - TONE control knob. Adjusts basses and trebles levels by +/-6 dB. Turn on the left to increase basses. Turn on the right to increase trebles.
- Page 9 English ® Bluetooth sound system with USB player & 1 handheld mic CR80A-COMBO - Note about batteries : Please only use 12V / 5Ah NP batteries with the following dimensions: (width x height x depth): 90x100x70 mm. Use a product with the same characteristics if you have to change the batteries.
- Page 10 English ® Bluetooth sound system with USB player & 1 handheld mic CR80A-COMBO - 4 - 7 : Handheld microphone 1 - Grille: Protects the capsule. 2 - ON/OFF Power switch 3 - LR06 x 2 battery compartment. Please respect the polarities when changing batteries.
-
Page 11: Power Management
3 - The built-in power management system indicates if the batteries need to be charged. 4 - If the batteries level gets too low, the «LOW» will turn on. Connect your CR80A-COMBO to an electrical outlet or replace the batteries. -
Page 12: Technical Specifications
English ® Bluetooth sound system with USB player & 1 handheld mic CR80A-COMBO - 8 - Technical specifications Loudspeaker 6.5" loudspeaker + 1" titanium driver, total impedance: 4 Ohms Power 80W RMS / 160 max Class D amplifier Response curve... - Page 13 English ® Bluetooth sound system with USB player & 1 handheld mic CR80A-COMBO - Page 13...
- Page 14 Because AUDIOPHONY® takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.
