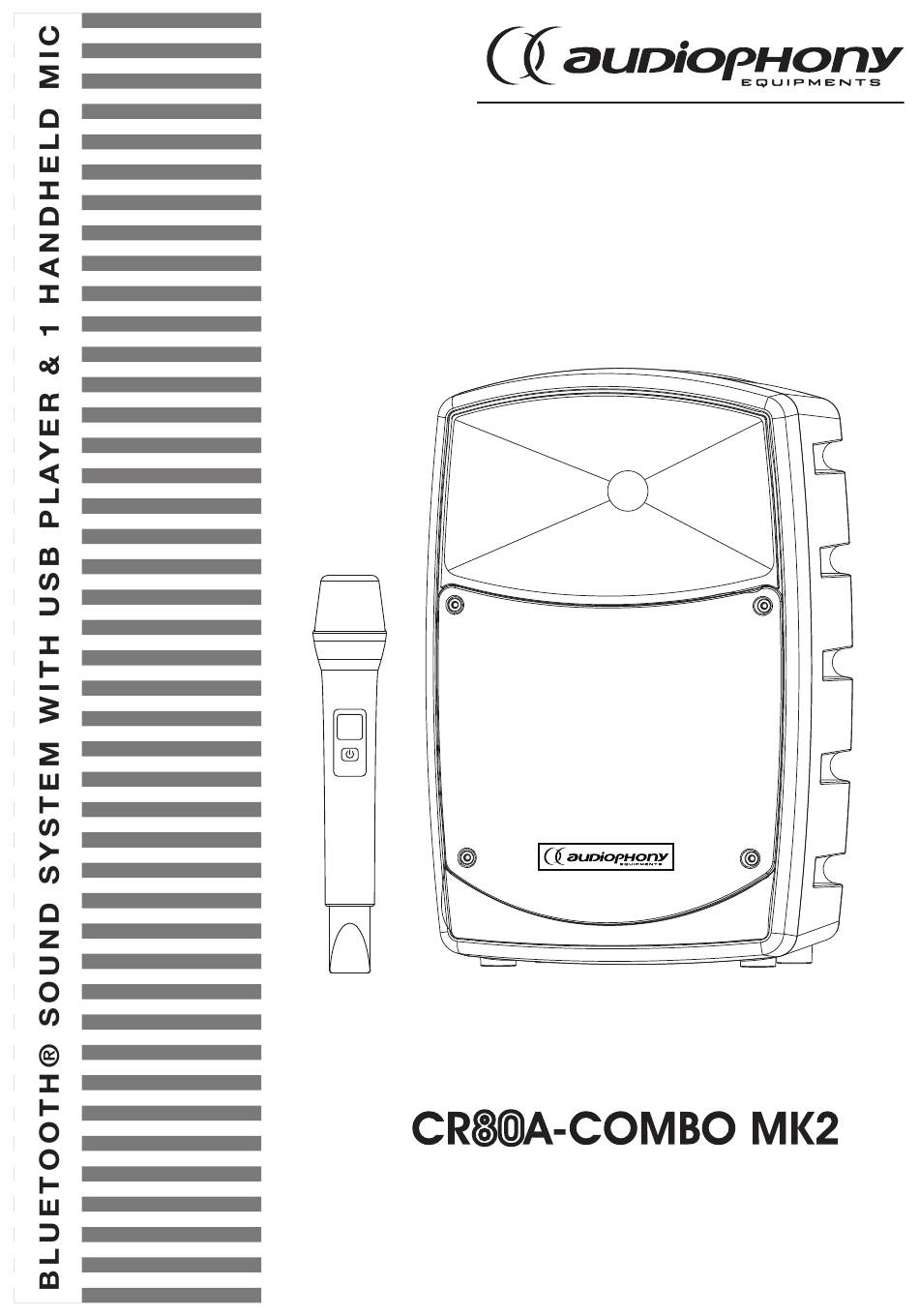

- Page 1 USER GUIDE H10983 - Version 1.0 jully 2019...
- Page 2 ® English CR80A-COMBO MKII - ORTABLE AUDIO SYSTEM WITH BLUETOOTH PLAYER AND Page 2...
-
Page 3: Important Safety Information
® CR80A-COMBO MKII - English ORTABLE AUDIO SYSTEM WITH BLUETOOTH PLAYER AND 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, or extremely cold/hot locations. Failure to follow these safety ins- tructions could result in fire, electric shock, injury, or damage to this product or other property. - Page 4 ® English CR80A-COMBO MKII - ORTABLE AUDIO SYSTEM WITH BLUETOOTH PLAYER AND 2 - Introduction Thank you for purchasing the CR80A-COMBO MKII. - All-in-one solution - High performance and sound quality - Media player and 1 UHF microphone with 8 channels The CR80A-COMBO MKII is a powerful all-in-one sound system producing a high-quality sound output, adapted to any mobile installation.
- Page 5 ® CR80A-COMBO MKII - English ORTABLE AUDIO SYSTEM WITH BLUETOOTH PLAYER AND 3 - The modules A - UHF receiving module B - Mixing zone ® C - USB/Bluetooth module Master zone Power supply socket Page 5...
-
Page 6: Description Of The Modules
® English CR80A-COMBO MKII - ORTABLE AUDIO SYSTEM WITH BLUETOOTH PLAYER AND 4 -Description of the modules 4 - 1 : UHF receiving module A1 - Volume control knob for the HF module. From OFF to full power (clockwise). A2 - Control display for the channel and frequency A3 - Channel selector allow you to choose one of the 8 channels available A4 - IR diode to synchronize the mic and the receiver... - Page 7 ® CR80A-COMBO MKII - English ORTABLE AUDIO SYSTEM WITH BLUETOOTH PLAYER AND 4 - 3 : Remote control The infrared remote control of your reader allows you to remotely control ® CHANNEL PLAY/PAUSE some functions for your USB or Bluetooth sources.
- Page 8 ® English CR80A-COMBO MKII - ORTABLE AUDIO SYSTEM WITH BLUETOOTH PLAYER AND 4 - 5 : Master D1 - ECHO effect control knob for the wire and wireless mic. D2 - DELAY effect control knob for the wire and wireless mic. D3 - POWER/LIMIT indicator.
- Page 9 ® CR80A-COMBO MKII - English ORTABLE AUDIO SYSTEM WITH BLUETOOTH PLAYER AND Note about batteries : Please only use original DC22,2V 2,2AH Li-ion battery New battery should be charged before being used. The CR80A COMBO MKII has been designed to charge it’s battery only.
- Page 10 ® English CR80A-COMBO MKII - ORTABLE AUDIO SYSTEM WITH BLUETOOTH PLAYER AND 4 - 7 : Handheld microphone 1 - Grille: Protects the capsule. 2 - ON/OFF Power switch and display 3 - LR06 x 2 battery compartment. Please respect the polarities when changing batteries. Page 10...
-
Page 11: Technical Specifications
® CR80A-COMBO MKII - English ORTABLE AUDIO SYSTEM WITH BLUETOOTH PLAYER AND 5 - Technical specifications Loudspeaker 6.5’’ loudspeaker + 1’’ titanium driver, total impedance: 4 Ohms Power 80W RMS / 160 max Class D amplifier Response curve 80 - 20k Hz Sound pressure level 113 dB SPL max 8 channel UHF... - Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. Make sure you get the latest news and updates about the AUDIOPHONY ®...
