audiophony CR12A-Combo User Manual

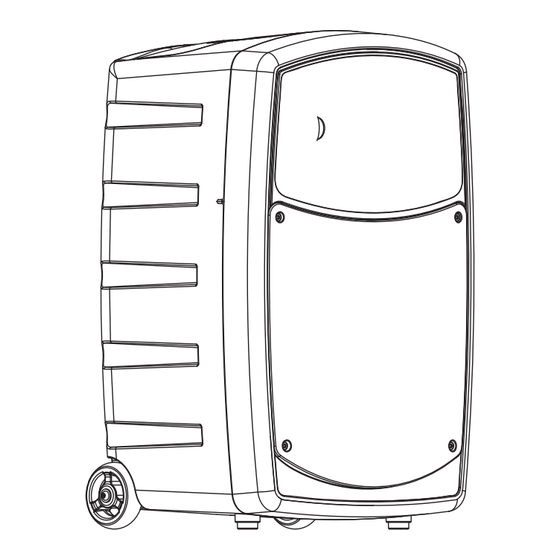

120w bluetooth sound system with usb player and 2 uhf handheld mic
Hide thumbs
Table of Contents

Advertisement

Quick Links

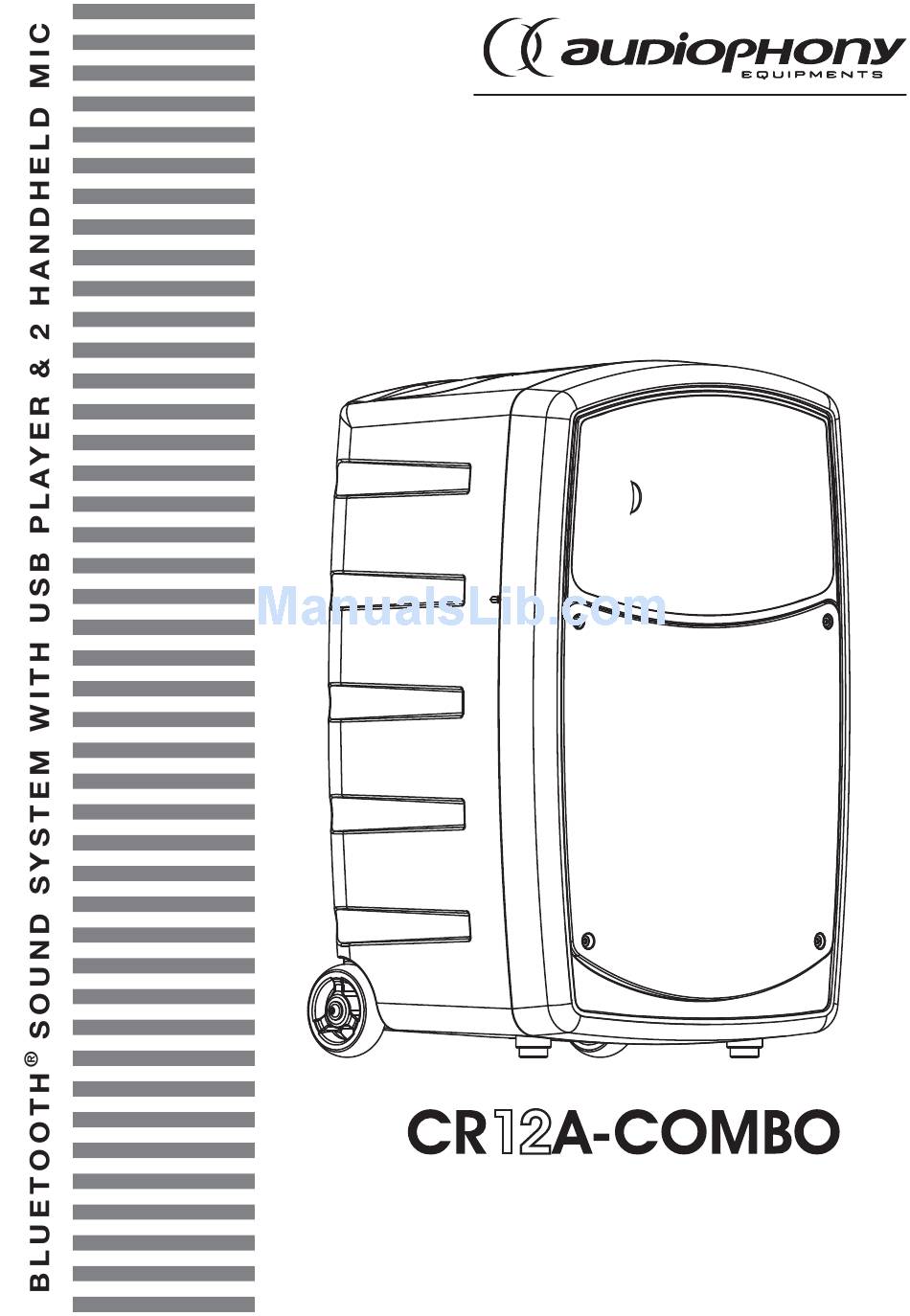

USER GUIDE
10209 - December 2014 Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR12A-Combo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for audiophony CR12A-Combo

Summary of Contents for audiophony CR12A-Combo

  • Page 1 USER GUIDE 10209 - December 2014 Version 1.0...

  • Page 2: Safety Information

    English ® 120W B CR120A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations.
  • Page 3 English ® 120W B CR12A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation.
  • Page 4 High performance and sound quality • Media player and 2 UHF microphones The CR12A-COMBO is a powerful all-in-one sound system producing a high-quality sound output, adapted to any mobile installation. It features a USB/SD reader, a Bluetooth receiver, two UHF handheld microphone and a mixer allowing you ®...
  • Page 5 English ® 120W B CR12A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 3 - The modules Back A - UHF receiving module B - USB/SD/Bluetooth module ® C - Mixing zone Master zone Power supply socket 1 - Integral transport handle...

  • Page 6: Description Of The Modules

    The display will indicate «BT NOT LINK», then «connecting...» for a few seconds. ® Turn your Bluetooth source ON and scan for devices. ® Select «Bluetooth» in the list, and accept the pairing. The CR12A-COMBO display should indicate the name of the connected device. Page 6...
  • Page 7 English ® 120W B CR12A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 4 - 3 : Remote control The infrared remote control of your reader allows you to remotely control CHANNEL PLAY/PAUSE some fonctions for your SD/USB or Bluetooth sources.
  • Page 8 Please make sure to replace the fuse only with the exact same model. Fuse: T1,6AL 250V E4 - Input voltage selector. Allows you to switch from 100-120V AC to 220-240V AC. Please check the line voltage of your installation before plugging the CR12A-COMBO. Page 8...
  • Page 9 (width x height x depth): 90x100x70 mm. Use a product with the same characteristics if you are to change the batteries. New batteries should be charged before being used. The CR12A-COMBO has been designed to charge two batteries at the same time.
  • Page 10 English ® 120W B CR120A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 4 - 7 : Handheld microphone GAIN BATT 1 - Grille: Protects the capsule. 2 - Gain control: Allows you to configure the microphone sensitivity. The factory settings are optimal, but you can increase/decrease the sensitivity by turning it to the left (decreases) or right (increases).
  • Page 11 English ® 120W B CR12A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 4 - 8 : Optional headband transmitter system: 1 - Jack 3.5 input to connect the microphone 2 - Input level selector. MIC is the standard configuration for the headband microphone.

  • Page 12: Power Management

    3 - The built-in power management system indicates if the batteries need to be charged. 4 - If the batteries level gets too low, the «LOW» will turn on. Connect your CR12A-COMBO to an electrical outlet or replace the batteries.

  • Page 13: Technical Specifications

    English ® 120W B CR12A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 8 - Technical specifications Loudspeaker 10’’ loudspeaker + 1’’ titanium driver, total impedance: 4 Ohms Power 120W RMS / 240 max Class D amplifier Response curve...
  • Page 14 Because AUDIOPHONY® takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.
