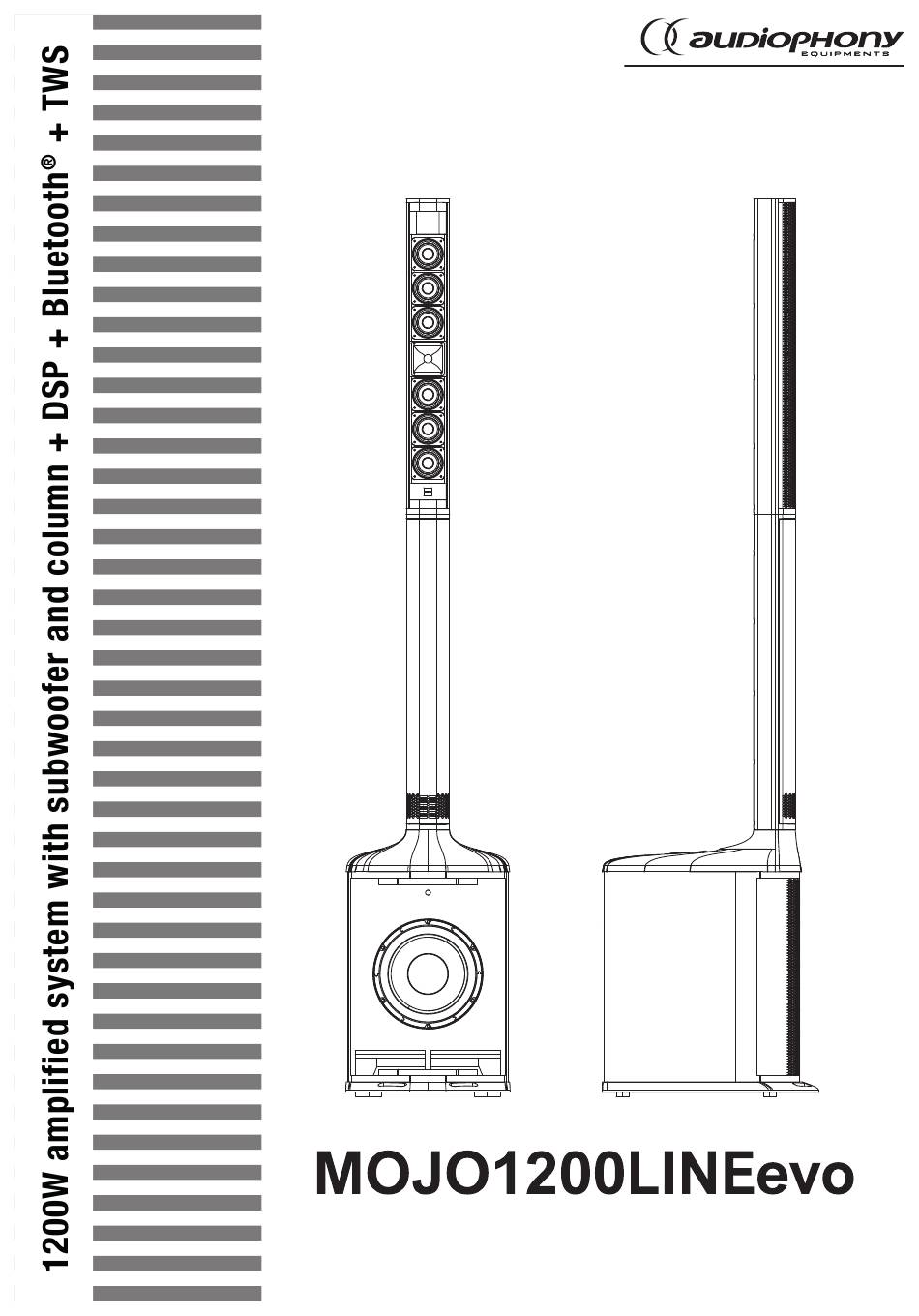

- Page 1 USER GUIDE H11174 - Version 1 / 10-2020...
-
Page 2: Important Safety Information
English ® MOJO1200LINEevo - Amplified system with subwoofer and column + DSP + Bluetooth + TWS 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, or extremely cold/hot locations. Failure to follow these safety ins-... -
Page 3: Technical Specifications
English ® MOJO1200LINEevo - Amplified system with subwoofer and column + DSP + Bluetooth + TWS 2 - Technical specifications COLUMN Power 180W RMS - 360W max Nominal impedance 6 Ohms Boomer 6 X 3" Tweeter 1 x 1" Dispersion 120°... - Page 4 English ® MOJO1200LINEevo - Amplified system with subwoofer and column + DSP + Bluetooth + TWS 3 - Presentation A- Rear view CH 1 CH 2 CH 3 CH 4/5 AC INPUT 100-240V / 50-60Hz FUSE : 8A 250V Page 4...
- Page 5 English ® MOJO1200LINEevo - Amplified system with subwoofer and column + DSP + Bluetooth + TWS Power input socket and Fuse Allows you to connect the speaker to an electrical outlet. Use the supplied IEC cord, and make sure the voltage delivered by the outlet is in adequation with the value indicated by the voltage selector before turning on the built-in amplifier.
- Page 6 English ® MOJO1200LINEevo - Amplified system with subwoofer and column + DSP + Bluetooth + TWS 4 - DSP 4.1 - Level bargraph : Max level zone Master level and Channel level Limiter display The display show the of each 4 channels and of the Master.
- Page 7 Bluetooth source (phone, tablet, ... etc). Switching on the TWS mode : 1 - If you have already paired one of the two MOJO1200LINEevo, go to the Bluetooth management of your source and deactivate Bluetooth. 2 - On both MOJO1200LINEevo, activate the TWS mode. A "Left Channel" or "Right Channel" voice message will be emitted to confirm that the TWS mode is active.
- Page 8 English ® MOJO1200LINEevo - Amplified system with subwoofer and column + DSP + Bluetooth + TWS 5 - Column 5.1 - How to plug the column on the subwoofer The MOJO1200LINEevo column is directly mounted above the subwoofer thanks to its contact slot.
- Page 9 English ® MOJO1200LINEevo - Amplified system with subwoofer and column + DSP + Bluetooth + TWS 6 - Connections CH2 : MIC CH1 : LINE CH4/5 : Bluetooth ® Please make sure to properly configure the sound levels of your system. In addition to being unpleasant for the audience, improper settings can damage your whole sound system.
- Page 10 That is why technical specifications and the products physical configuration might differ from the illustrations. Make sure you get the latest news and updates about the AUDIOPHONY ® products on www.audiophony.com ®...
