Summary of Contents for Mitsubishi LDT521V (MT819)

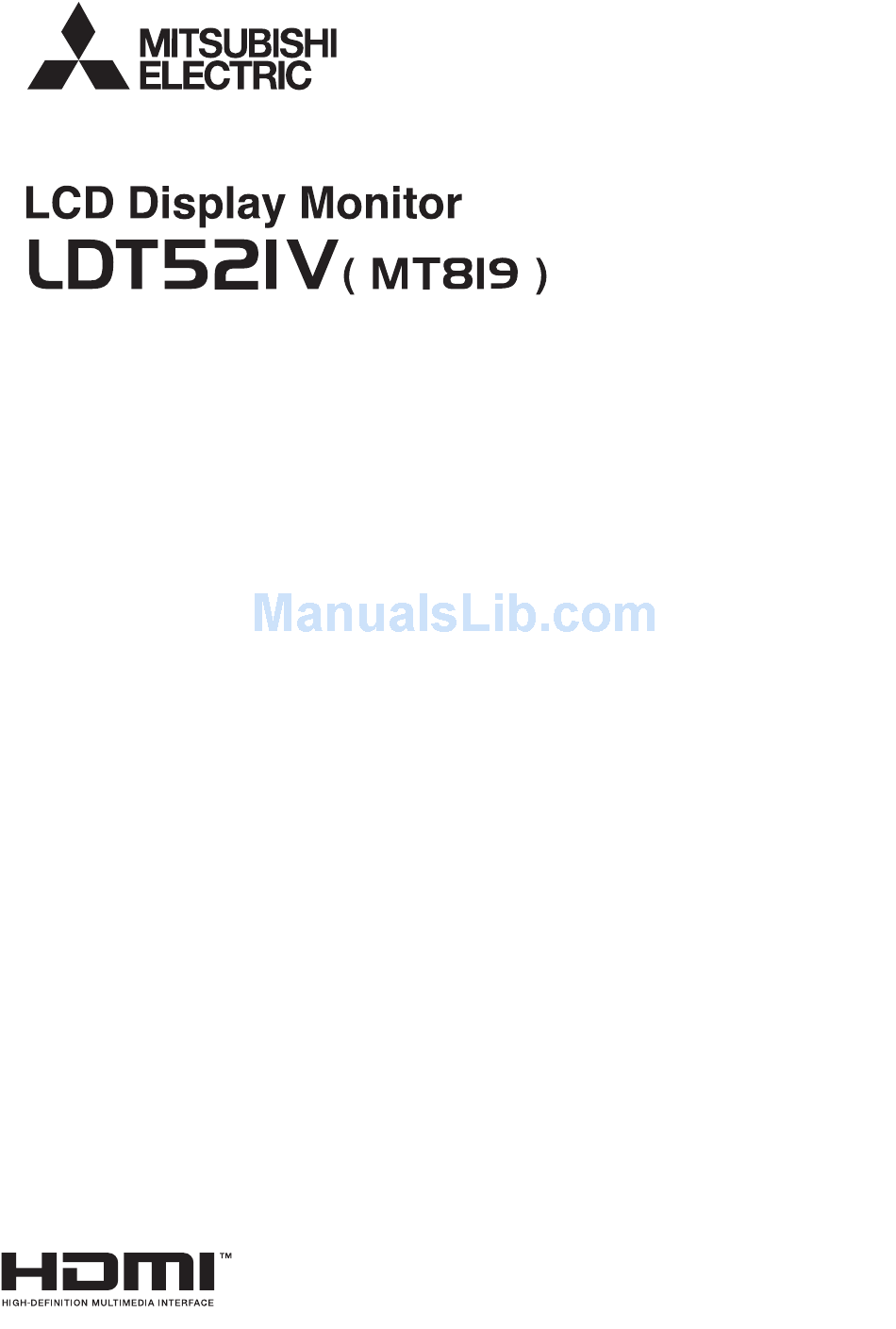

  • Page 1 OPERATION MANUAL...
  • Page 2: Declaration Of Conformity

    This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. U.S. Responsible Party: Mitsubishi Digital Electronics America, Inc. Address: 9351 Jeronimo Road, Irvine, California 92618 U.S.A.
  • Page 3: Important Information

    IMPORTANT INFORMATION FOR CUSTOMERS IN U.K. IMPORTANT The wires in this mains lead are coloured in accordance with the following code: GREEN-AND-YELLOW : Earth BLUE : Neutral BROWN : Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: •...
  • Page 4: Declaration Of The Manufacturer

    This symbol mark is according to the directive 2002/96/EC Article 10 Information for users and Annex IV, and/or to the directive 2006/66/EC Article 20 Information for end-users and Annex II. Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality ma- terials and components which can be recycled and/or reused.
  • Page 5: Dear Mitsubishi Customer

    DEAR MITSUBISHI CUSTOMER Thank you for your purchase of a MITSUBISHI LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product. SAFETY PRECAUTIONS Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled.
  • Page 6 SAFETY PRECAUTIONS (Continued) 14. Repair — If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualifi ed service person to perform repairs. a. When the power cord or plug is damaged. b.
  • Page 7: Tips And Safety Instructions

    - Never rub or tap the monitor with hard objects. - Unplug the power cord if it is not used for a long time. - Please understand that MITSUBISHI ELECTRIC CORPORATION bears no responsibility for errors made - Do not attempt to repair the power cord if it is broken or malfunctioning.
  • Page 8: Table Of Contents

    Contents IMPORTANT INFORMATION ..........1 Connecting the Power Cord .........12 DEAR MITSUBISHI CUSTOMER ........3 Mounting the Temporary Stands ........12 SAFETY PRECAUTIONS ..........3 Binding Cables ...............13 TIPS AND SAFETY INSTRUCTIONS .......5 Preparing the Remote Control Unit ......13 Supplied Accessories ............7 Installing the batteries ..........13 Part Names ...............7...
  • Page 9: Supplied Accessories

    Power cord unit: 1 clamp: 1 * MITSUBISHI ELECTRIC CORPORATION holds authorship rights to the Utility Disk program. Do not reproduce it without permission. * For environmental protection! Do not dispose of batteries in household waste. Follow the disposal instructions for your area.
  • Page 10: Rear View

    Part Names Rear view 1. Main power switch (See page 14.) 2. AC input terminal (See page 12.) 3. PC/AV output terminal (DVI-D) (See page 11.) 4. PC1 input terminal (DVI-D) (See page 10.) AV1 input terminal (DVI-D) (See page 10.) 5.
  • Page 11: How To Install The Monitor

    • Be sure to use a stand or a wall-mount/ceiling bracket MITSUBISHI dealer. You should never attempt to perform designed or designated for mounting the monitor. any of this work yourself. Our company will bear no •...
  • Page 12: Connecting Peripheral Equipment

    Connecting Peripheral Equipment Connection with AV equipment Caution • Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/ disconnecting cables. Also, read the manual of the equipment to be connected. Cr/Pr Cb/Pb AV1 input...
  • Page 13: Other Terminals

    Connecting Peripheral Equipment Other terminals Connecting multiple monitors PC/AV audio output terminals You can connect multiple monitors (up to 5 monitors) in a • Audio from the equipment connected to the AV audio input daisy chain by using the PC1/AV1 input terminals and PC/AV terminals or PC audio input terminal is output.
  • Page 14: Connecting The Power Cord

    Connecting the Power Cord Caution • Do not use a power cord other than the one supplied with the monitor. 1. Turn off the main power switch. 2. Plug the power cord (supplied) into the AC input terminal. 3. Plug the power cord (supplied) into the AC power outlet. For power Main power switch outlet...
  • Page 15: Binding Cables

    Binding Cables Attaching the cable clamp Cable clamp The cables connected to the terminals on the back of the positions monitor can be neatly bundled using the supplied cable clamps as shown in the illustration. Insert the cable clamp into a hole. Cable clamp Caution (any hole available)
  • Page 16: Turning Power On/Off

    Turning Power On/Off Caution TIPS • Turn on the monitor fi rst before turning on the PC or • If the monitor is in the input signal standby mode and you playback device. press the POWER button on the remote control unit, the monitor enters standby mode.
  • Page 17: Troubleshooting

    - Internal temperature rises quickly if dust accumulates • Is the input signal compatible with this monitor? (See pages inside the monitor or around the vents. Remove dust if 10 and 17.) possible. Ask MITSUBISHI dealer about removing internal dust.
  • Page 18: Specifi Cations

    When STANDBY MODE is set to LOW POWER, LAN and SCHEDULE are not used. When STANDBY MODE is set to STANDARD, 12W. As a part of our policy of continuous improvement, MITSUBISHI reserves the right to make design and specifi cation changes for product improvement without prior notice.
  • Page 19: Dimensional Drawings

    When mounting the monitor, be sure to use a wall-mount/ceiling-mount bracket they comply with the VESA-compatible mounting method. MITSUBISHI recommends using M6 screws and tighten the screws. Note that screw hole depth of the monitor is 3/8 inch (10 mm). Loose holding may cause the product to fall, resulting in serious personal injuries as well as damage to the product.
  • Page 20 Specifi cations DDC (plug and play) The monitor supports the VESA DDC (Display Data Channel) standard. DDC is a signal standard for plug and play between monitors and computers. Information about resolution and other parameters is exchanged between the two. This function can be used if the computer supports DDC and it has been confi gured to detect plug-and-play monitors.
  • Page 21 M E M O...
  • Page 22 M E M O (TINSE1132MPZZ)
  • Page 23 M E M O...
  • Page 24 :projector.info@meuk.mee.com Technical Phone :+44 (870) 606 5008 :+44 (1506) 431927 E-mail :projector.info@meuk.mee.com Russia (Mitsubishi Electric Europe B.V Moscow Representative Office) 52, bldg.5, Kosmodamianskaya Nab, 113054, Moscow, Russian Federation Sales Phone :+7 (095) 721 2070 :+7 (095) 721 2071 Technical Phone...
