Summary of Contents for Mitsubishi LDT46IV

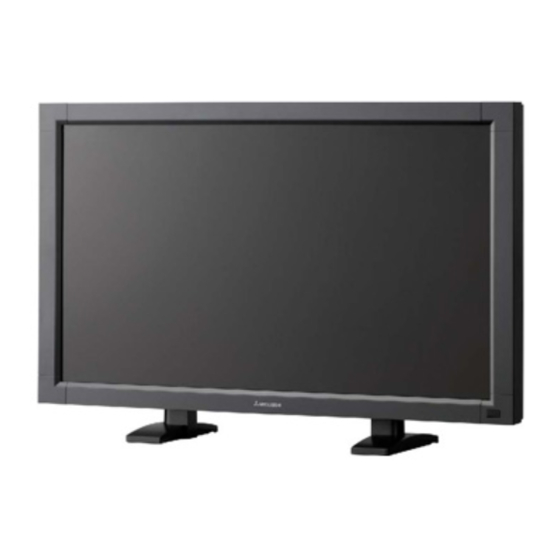

- Page 1 46" LCD Display Monitor USER’S MANUAL BEDIENERHANDBUCH MANUAL DEL USUARIO MANUEL UTILISATEUR MANUALE UTENTE GEBRUIKERSHANDLEIDING...
-
Page 2: Table Of Contents
Index Important Information ... Safety Precautions, Maintenance & Recommended Use ... Contents ... Parts Name and Functions ... Control Panel ... Terminal Panel ... Wireless Remote Control ... Operating Range for the Remote Control ... Handling the remote control ... Setup Procedure ... -
Page 3: Important Information
The user may Ä nd the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing OfÄ ce, Washington, D.C., 20402, Stock No. 004-000-00345-4. 9351 Jeronimo Road, Irvine, California 92618 U.S.A. +1 - (949) 465-6000 Computer Monitor LDT461V (DL660) English-2... -
Page 4: English
Important Information TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. -
Page 5: Safety Precautions, Maintenance & Recommended Use
Safety Precautions, Maintenance & Recommended Use FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE LCD COLOR MONITOR: • DO NOT REMOVE MONITOR BACK COVER. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. -
Page 6: Contents
Contents Your new LDT461V monitor box* should contain the following: • LCD monitor • Power Cord (3 m) • Video Signal Cable (4 m) • User’s Manual • Wireless Remote Control and AAA Batteries • Clamper x 2 (To prevent from falling) •... -
Page 7: Parts Name And Functions
Parts Name and Functions Control Panel EXIT POWER button ( ) Switches the power on/off. See also page 19. MUTE button Switches the audio mute ON/OFF. INPUT button Acts as SET button with OSD menu. (Toggle switches between [RGB1], [RGB2], [RGB3], [RGB4], [DVD/HD], [VIDEO<S>] and [VIDEO] .) PLUS (+) button Acts as (+) button to increase the adjustment with OSD menu. -
Page 8: Terminal Panel
Terminal Panel (OUT) (IN) (IN) (OUT) AUDIO IN 1, 2, 3 To input audio signal from external equipment such as a com- puter, VCR or DVD player. AUDIO OUT To output the audio signal from the AUDIO IN 1,2 and 3 jack. EXTERNAL CONTROL (mini D-Sub 9 pin) Connect the IN connector with the RS-232C OUT connector of the computer or a multi-connected LDT461V monitor. -
Page 9: Wireless Remote Control
Wireless Remote Control POWER button Switches the power on/off. * If Power Indicator is not glowing, then no controls will work. PICTURE MODE button Selects from picture mode, [HIGHBRIGHT], [STANDARD], [sRGB], [CINEMA]. See page 20. HIGHBRIGHT: for moving image such as DVD STANDARD: for images (Factory setting) sRGB: for text based images CINEMA: for movies. -
Page 10: Operating Range For The Remote Control
Operating Range for the Remote Control Point the top of the remote control toward the LCD monitor's remote sensor during button operation. Use the remote control within a distance of about 7 m/23 ft. from the front of the LCD monitor's remote control sensor and at a horizontal and vertical angle of within 30°... -
Page 11: Setup Procedure
Setup Procedure 1. Determine the installation location CAUTION: DO NOT ATTEMPT TO INSTALL THE LCD MONITOR BY YOURSELF. Installing your LCD display must be done by a qualiÄ ed technician. Contact your dealer for more information. CAUTION: MOVING OR INSTALLING THE LCD MONITOR MUST BE DONE BY TWO OR MORE PEOPLE. -
Page 12: English
7. Adjust the sound Make adjustments when adjustment of the volume is required. 8. Adjust the screen (See pages 23-31) Make adjustments when adjustment of the screen display position or distortion is required. 9. Adjust the image (See page 23-31) Make adjustments when adjustment such as the brightness or contrast is required. - Page 13 14. When LDT461V is installed in portrait position Conditions LDT461V can be installed in portrait position, under the following conditions: Caution: Portrait position is effective only when wall-mounted or ceiling-mounted. The stands(legs) can not be Ä tted to the monitor in portrait position. Placing the monitor in portrait position, will shorten the average life of the LCD backlight.
-
Page 14: How To Mount And Attach Options To The Lcd Monitor
How to Mount and Attach Options to the LCD Monitor You can attach mounting accessories to the LCD monitor in one of the following two ways: 1. In the upright position 2. Lay the screen face down 100 100 100 100 Tabletop Stand Table Lay the protective sheet on a table, which was wrapped... -
Page 15: Connections
Connections Before making connections: First turn off the power of all the attached equipment and make connections. Refer to the user manual included with each separate piece of equipment. Wiring Diagram English-14... -
Page 16: Connecting A Personal Computer
Connecting a Personal Computer Connecting your computer to your LCD monitor will enable you to display your computer's screen image. Some video cards may not display an image correctly. Connect the LCD Monitor to a Personal Computer • To connect the RGB 3 IN connector (mini D-sub 15 pin) on the LCD monitor, use the supplied PC - Video RGB signal cable (mini D-sub 15 pin to mini D-sub 15 pin). -
Page 17: Connecting With Digital Interface Equipment
Connecting with Digital Interface Equipment Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual Interface) standard. Connect the LCD Monitor to a Computer with a Digital Output • The RGB 1, RGB 2 IN connector accepts a HDMI cable. •... -
Page 18: Connecting A Dvd Player With Component Out
Connecting a DVD Player with component out Connecting your DVD player to your LCD monitor will enable you to display DVD video. Refer to your DVD player owner’s manual for more information. Connect the LCD Monitor to a DVD Player •... -
Page 19: Connecting To A Stereo Ampliä Er
Connecting to a Stereo AmpliÄ er You can connect your stereo ampliÄ er to your LCD monitor. Refer to your ampliÄ er owner's manual for more information. Connect the LCD Monitor to a Stereo AmpliÄ er • Turn on the LCD monitor and the ampliÄ er only after all connections have been made. •... -
Page 20: Basic Operation
Basic Operation Power ON and OFF Modes The LCD monitor power indicator will turn green while powered on or red in off mode. The monitor can be powered on or off using the following three options: Main Power Switch Power Button 1. -
Page 21: Power Indicator
Power Indicator Status Power ON Green Power OFF Power Standby when Red On “SCHEDULE” is enable Green Blinking Power Standby Red, Green Red Blinking Diagnosis See troubleshooting on (Detecting failure) page 35 Using Power Management The LCD monitor follows the VESA approved DPM Power Management function. -
Page 22: Information Osd
Information OSD RGB1, 2, 3, 4 RGB3 Video Input mode 1024 x 768 Input signal Information 48kHz 60Hz AUDIO : 1 Audio input mode SIZE : FULL Picture Size mode DVD/HD DVD/HD Video Input mode AUDIO : 3 Audio input mode SIZE : FULL Picture Size mode VIDEO<S>, VIDEO... -
Page 23: Osd (On-Screen-Display) Controls
OSD (On-Screen-Display) Controls Press MENU button to open Main menu. Press UP or DOWN button to select sub-menu. Remote Control Press EXIT button to open Main menu. Press UP or DOWN button to select. Control Panel UP or DOWN button OSD screen Press SET button Press UP or DOWN, and PLUS or... -
Page 24: Picture
Main-Menu PICTURE BRIGHTNESS Adjusts the overall image and background screen brightness. Press + button to increase brightness. Press - button to decrease brightness. CONTRAST Adjusts the image brightness in relation to the input signal. Press + button to increase contrast. Press - button to decrease contrast. -
Page 25: Screen
Main-Menu SCREEN H POSITION Controls Horizontal Image position within the display area of the LCD. Press + button to move screen to right. Press - button to move screen to left. V POSITION Controls Vertical Image position within the display area of the LCD. Press + button to move screen to UP. -
Page 26: Audio
Main-Menu AUDIO BALANCE Adjust the balance of L/R volume. Press + button to move the stereo sound image to right. Sound of the left side will be small. Press - button to move the stereo sound image to left. TREBLE To accentuate or reduce the high frequency sound. -
Page 27: Configuration 1
Main-Menu CONFIGURATION 1 AUTO SETUP * : INPUT RGB3,4 only Press "SET" button to automatically adjust screen size, horizontal position, vertical position, clock, clock phase, white level and black level. Press "EXIT" button to cancel execution AUTO SETUP and then will return to the previous menu. AUTO ADJUST * : INPUT RGB3,4 only Selecting the auto adjust ON/OFF. -
Page 28: Configuration 2
Main-Menu CONFIGURATION 2 OSD TURN OFF The OSD control menu will stay on as long as it is use. In the OSD Turn Off submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSD control menu. The preset choices are 5 -120 seconds. -
Page 29: Advanced Option
Main-Menu ADVANCED OPTION INPUT RESOLUTION * : INPUT RGB3,4 only Selects to decision of input signal about below timings, 1024x768, 1280x768 and 1360x768. AUTO: Determines the resolution automatically. 1024x768: Determines the resolution as 1024x768 1280x768: Determines the resolution as 1280x768 1360x768: Determines the resolution as 1360x768 This function is available when POWER ON/OFF after setting. -
Page 30: English
TILING TILING demonstrates multiple screens. This feature provides a single large screen using up to 16 monitors. It will be able to divide up to 4 each H and V. This requires you to feed the PC output into each of the monitors through a distributor. H MONITORS: Select number of horizontal divide. -
Page 31: For Long Life Use Of Public Display
NOTE 1: IMAGE PERSISTENCE Please be aware that LCD Technology may experience a phenomena known as Image Persistence. Image Persistence occurs when residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. -
Page 32: English
NOTE 3: “PIP”, “POP” and “SIDE BY SIDE” The following table shows the combination of signal inputs under which the “PIP” and “POP” modes function. These modes do not function, however, when the screen size is “CUSTOM” or “REAL”. RGB2 RGB1 RGB1 RGB2... -
Page 33: Note
Controlling the LCD monitor via RS-232C Remote Control This LCD monitor can be controlled by connecting a personal computer with a RS-232C terminal. Functions that can be controlled by a personal computer are: • Power ON or OFF • Switching between input signals Connection LCD Monitor + PC To RS-232C connector... -
Page 34: English
3) Control sequence (1) The command from a computer to the LCD monitor will be sent in 600 ms. (2) The LCD monitor will send a return command 600 ms* after it has received and encoded. If the command isn’t received correctly, the LCD monitor will not send the return command. -
Page 35: Features
Features Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The monitor’s small footprint and low weight allow it to be moved or transported easily from one location to another. Color Control Systems: Allows you to adjust the colors on your screen and customize the color accuracy of your monitor to a variety of standards. -
Page 36: Troubleshooting
Troubleshooting No picture • The signal cable should be completely connected to the display card/computer. • The display card should be completely seated in its slot. • Front Power Switch and computer power switch should be in the ON position. •... -
Page 37: English
No Sound • Check to see if speaker cable is properly connected. • Check to see if mute is activated. • Check to see if volume is set at minimum. Remote Control is not available • Check the Remote Control’s batteries status. •... -
Page 38: Speciä Cations
SpeciÄ cations SpeciÄ cations (LDT461V) Product Specifications LCD Module Diagonal: Pixel Pitch: Resolution: Color: Brightness: Contrast Ratio: Response time: View Angle: Design View Distance: Frequency Horizontal: Vertical: Pixel Clock Viewable Size Input Signal PC-Input: Video: Sync: Input-terminal: VIDEO Input: AUDIO Input: RS-232C: Output Signal PC-Output:... -
Page 39: Pin Assignment
Pin Assignment 1) Analog RGB input (Mini D-SUB 15P): R G B 3 Pin No Name Video Signal Red Video Signal Green Video Signal Blue DDC-GND Red-GND Green-GND Blue-GND +5V (DDC) SYNC-GND DDC-SDA H-SYNC V-SYNC DDC-SCL 2) S-VIDEO input (MINI DIN 4P): V I D E O <S> Pin No Name Y (Luminance) - Page 40 MITSUBISHI Contact Information North America MESCA (Mitsubishi Electric Sales Canada Inc.) http://www.mitsubishielectric.ca Information Technologies Group, 4299 14th Avenue, Markham, Ontario L3R 0J2, Canada Sales Phone :+1-(905) 475-7728 :+1-(905) 475-7958 E-mail :projectors@mitsubishielectric.ca Technical Phone :+1-(905) 475-7728 :+1-(905) 475-7958 Customer Care E-mail :support@mitsubishielectric.ca MDEA (Mitsubishi Digital Electronics America, Inc.) (Warranty Registration)
