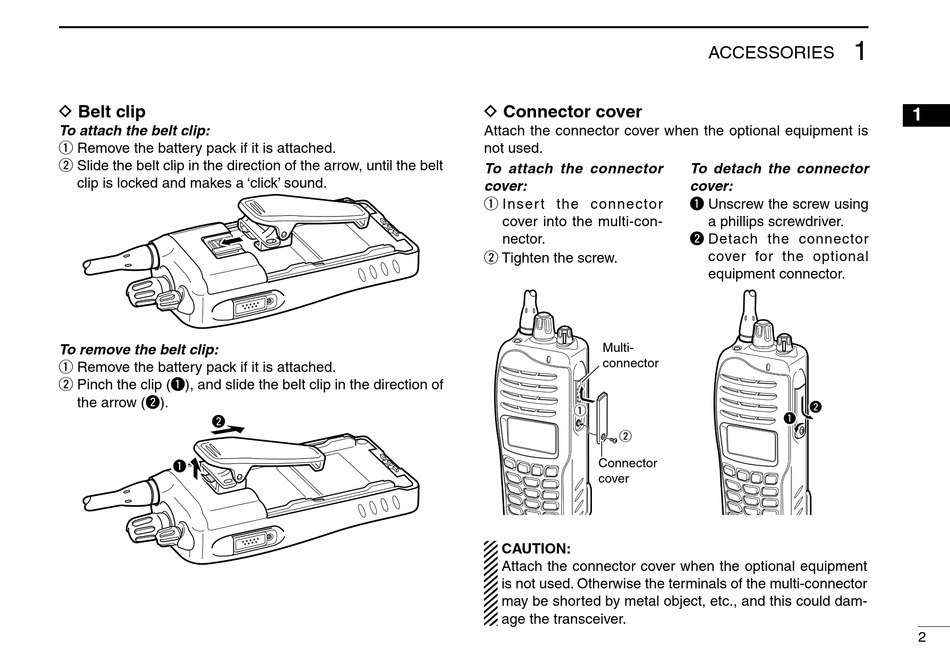

D Belt clip
To attach the belt clip:
q Remove the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow, until the belt
clip is locked and makes a 'click' sound.
To remove the belt clip:
q Remove the battery pack if it is attached.
w Pinch the clip (q), and slide the belt clip in the direction of
the arrow (w).
w
q
D Connector cover
Attach the connector cover when the optional equipment is
not used.
To attach the connector
cover:
q Inser t the connector
cover into the multi-con-
nector.
w Tighten the screw.
Multi-
connector
q
w
Connector
cover
CAUTION:
Attach the connector cover when the optional equipment
is not used. Otherwise the terminals of the multi-connector
may be shorted by metal object, etc., and this could dam-
age the transceiver.
1

ACCESSORIES

To detach the connector
cover:
q Unscrew the screw using
a phillips screwdriver.
w Detach the connector
cover for the optional
equipment connector.
w
q
