Summary of Contents for VTEL 6000
-

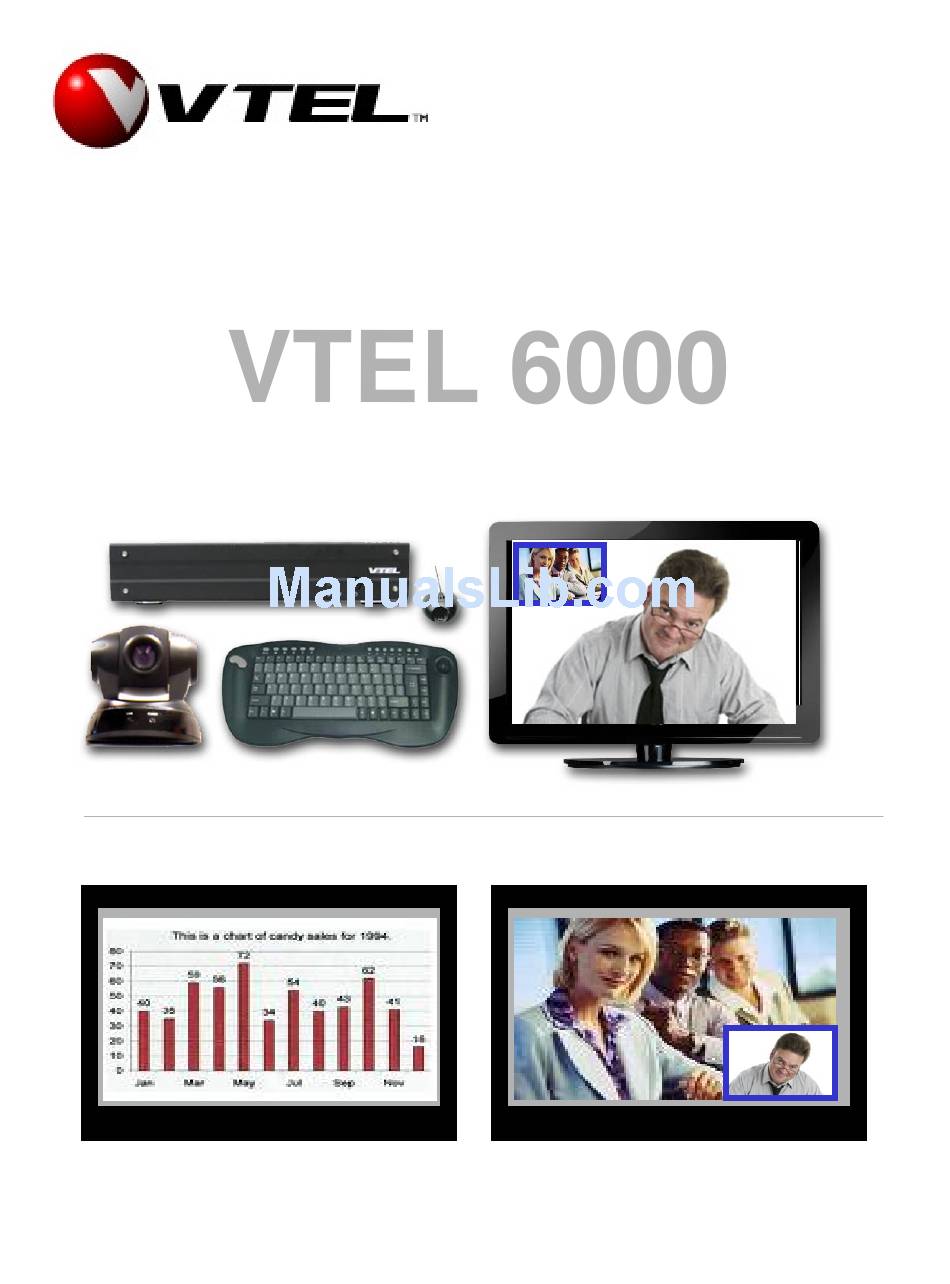

Page 1: User Guide
VCS 6.0 User Guide Single monitor configuration Dual monitor configuration... -
Page 2: Cable Assembly
Cable Assembly 1) Attach Power supply to PC 2) Two monitor setup: Attach HDMI-HDMI cable from PC to PC monitor. Not used in a single monitor setup. 3) Attach keyboard dongle (RF receiver) into any USB port on PC 4) Attach speaker cable to TV that displays videoconference 5) Attach LAN connector to PC 6) The keyboard and the dongle receiver are synchronized at the factory. - Page 3 Cable Assembly (continued) 9. Connect the S-Video cable to the camera and to the PC 10. Connect the VGA control cable (camera motion) to the camera and to the PC 11. Connect the external power supply 12. Connect wireless charger/receiver to blue audio input 13.
-
Page 4: Starting Up The System
This launches the videoconferencing software. E. After a brief loading process, a large VTEL “V Ball” appears on the lower right of the single monitor or the lower right of the video monitor (two monitor setup). This says that the video-... - Page 5 Select (click on) “Place a Call” and the address book Video Mute (section 4A ) appears Volume Control Local Video My IP Address Exit VTEL Now Cancel 4. NORMAL Videoconferencing Dual Monitor Mode The left monitor is your local PC. The right monitor is the videoconferencing section.
-
Page 6: Managing The Address Book
4A. Videoconferencing Menu – Placing a call Managing the address book Use tabs to toggle between hand dialer and address book 1. Call Rate 2. IP Address 192 or 256 is a good Enter the IP address rate for the Internet you are calling 3. - Page 7 My IP Address your VC screen showing screen. status of audio and video mute Exit VTEL Now Cancel Volume: put your cursor where you want the volume to go and left click. Slide bar appears on PC side of screen 4C.
- Page 8 To Cancel remedy this problem, just Exit VCS (by selecting Exit VTEL Now), and then launch VCS 6.0 again. 4E. Videoconferencing Menu – Local Video Local Video shows what your local camera is seeing. It normally goes into a PIP (Picture In Picture) window in the videoconferencing section.
- Page 9 4F. Single Monitor Mode --Toggling between Video and PC during a videoconference VIDEO During a videoconference you can toggle between seeing the other people or seeing what is on your PC. Hold “Alt” and push “PgUp” to see them, Hold “Alt” and push “PgDn” to see your PC PgUp (VIDEO) PgDn (PC) 4G.
- Page 10 4G. Single Monitor Mode -- Videoconferencing and Send PC Them What you see What they see Videoconference (no PC sharing) Videoconference You are sending a PowerPoint slide (or any PC content) They see your slide and they see you in a window and they see themselves in a window.
- Page 11 4F. Dual Monitor Mode – Send PC During a videoconference you can present PowerPoint slides (or any other PC application) to the other participants. For PowerPoint: • Start your PowerPoint application in the left Hang Up (PC) side. Maximize the size of the slides locally. Address Book Audio Mute •...
- Page 12 5. IPanel Network Setup for Public Internet • The IPanel is designed to videoconference over the public Internet. The initial setup may involve your local IT (computer network) support person to configure your IP network parameters-- especially your network firewall and some internal IPanel settings. •...
- Page 13 Connection 2") is on the right. It's perfectly ok to set-up both adapters with the same information. Load VTEL's System Configuration. Under the Network tab, check the "Enable NAT" box and enter your public/external IP address in the box (you may have to ask your ISP/Network Administrator for this address).
