E3913i / E3914i
Induction Ranges
USER INSTRUCTIONS
CAUTION - READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE!
Section 1 – GENERAL DESCRIPTION
Section 2 – SAFETY and OPERATION
Section 3 – COOKING HINTS
Section 4 – INDUCTION ERROR CODES
Section 5 – CLEANING and MAINTENANCE
Section 6 – TROUBLESHOOTING
Section 7 – SPECIFICATION
This appliance has been CE-marked on the basis of compliance with the Low Voltage and
EMC Directives for the voltages stated on the data plate.
The appliance MUST BE installed by a competent person in compliance with the INSTALLATION AND
SERVICING INSTRUCTIONS and National Regulations in force at the time.
UK regulations are listed on the front of the Installation and Servicing Instructions.
Regular servicing by a qualified person is recommended to ensure the continued safe and efficient
performance of the appliance.
WARNING - THE APPLIANCE MUST BE EARTHED.
WARNING - PERSONS WITH PACEMAKERS SHOULD CONSULT THEIR G.P. BEFORE
OPERATING THIS APPLIANCE. THIS UNIT OPERATES AT 18 - 22KHz AND THIS MAY AFFECT
OLDER TYPES OF PACEMAKER.
ENSURE ALL POT/PAN BASES ARE FLAT AND CLEAN PRIOR TO USE.
THE AIR INTAKE FILTER MUST BE CLEANED REGULARLY TO REMOVE POTENTIAL
OBSTRUCTIONS.
THIS APPLIANCE CAN BE USED BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR
MENTAL CAPABILITIES OR LACK OF EXPERIENCE/KNOWLEDGE. PROVIDED SUCH
INDIVIDUALS HAVE BEEN GIVEN INSTRUCTION CONCERNING USE OF THE APPLIANCE IN
A SAFE WAY AND THAT THEY UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL
NOT PLAY WITH THE APPLIANCE AND CLEANING/USER MAINTENANCE WILL NOT BE
CARRIED OUT BY CHILDREN WITHOUT SUPERVISION.
Upon receipt of the User's Instruction manual, the installer should instruct the responsible person(s)
of the correct operation and maintenance of the unit.
WEEE Directive Registration No. WEE/DC0059TT/PRO
At end of unit life, dispose of appliance and any replacement
parts in a safe manner, via a licenced waste handler.
Units are designed to be dismantled easily and recycling of all
material is encouraged whenever practicable.
Falcon Foodservice Equipment
HEAD OFFICE AND WORKS
Wallace View, Hillfoots Road, Stirling. FK9 5PY. Scotland.
SERVICELINE CONTACT
Phone: 01438 363 000
Fax: 01438 369 900
T100767 Ref. 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E3913i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Falcon E3913i

Summary of Contents for Falcon E3913i

  • Page 1 E3913i / E3914i Induction Ranges USER INSTRUCTIONS CAUTION - READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE! Section 1 – GENERAL DESCRIPTION Section 2 – SAFETY and OPERATION Section 3 – COOKING HINTS Section 4 – INDUCTION ERROR CODES Section 5 – CLEANING and MAINTENANCE Section 6 –...

  • Page 2: Section 1 - General Description

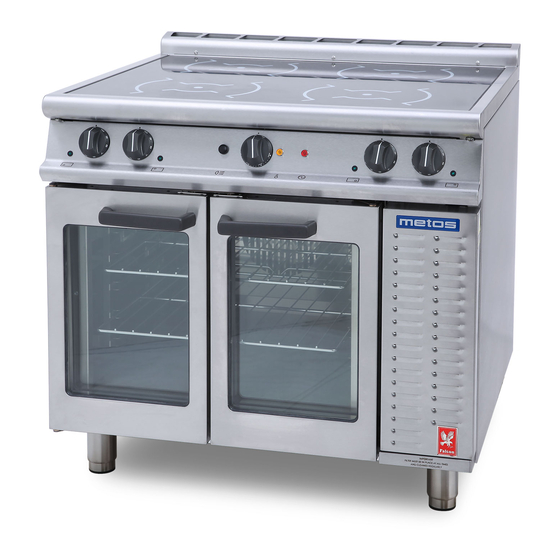

    SECTION 1 - GENERAL DESCRIPTION SECTION 2 - SAFETY and OPERATION 4 x 5kW, individually controlled, marked cooking zones WARNING - IF GLASS-CERAMIC TOP IS CRACKED on a glass-ceramic cooktop. Mounted upon 6.4kW BROKEN, IMMEDIATELY DISCONNECT twin-fan convection oven with 5 shelf positions. APPLIANCE FROM POWER SUPPLY AND CONTACT YOUR SERVICE AGENT.
  • Page 3 Each cooking zone is controlled by a marked, variable control from 1 (lowest) to 10 (highest). The ideal setting control knob for simmering or fast boiling pans of varying size will quickly be established through experience. Each control has a green LED indicator. When a cooking zone is switched on, the LED indicator will light and stay lit during heating/cooking.
  • Page 4  Figure 4 Zone will not Operate Ø110mm pan - If inner circle markings can be seen, pan is too small. Detection will prevent cooking using this size of pan.  Figure 5 Zone will Operate Ø120mm pan - Ideal, positioned centrally. Inner circle markings cannot be seen.

  • Page 5: Pot Type And Condition Guide

    POT TYPE and CONDITION GUIDE Note: A suitable pan is made of ferrous material.   This being magnetic, it will react to the induction field. Ensure pots are magnetic or induction approved. If pan base is damaged or warped, ie concave or convex, discontinue use or replace as this could seriously affect performance, refer to diagrams below.

  • Page 6: Section 3 - Cooking Hints

    SECTION 3 - COOKING HINTS SECTION 4 - INDUCTION ERROR CODES 1. Before use, ensure hob surface is clean, dry and free DO NOT remove or attempt to repair/replace ANY of grease. Remove any burnt on food debris. component or part of this unit other than the air filter. 2.

  • Page 7: Error Code Table

    ERROR CODE TABLE Code Error Cause Action by user Unsuitable pan material Use suitable pan Hardware over coil Wrong or defective coil Call Service Engineer. No inductor Inductor connection failure Call Service Engineer. current Heat sink Air routes blocked. Fan filter Clear air routes.

  • Page 8: Section 6 - Cleaning And Maintenance

    SECTION 6 - CLEANING and MAINTENANCE SECTION 7 - SPECIFICATION It is important to clean air intake filter regularly. E3913i Range The filter is located below body of appliance at front and Dimensions (w x d x h mm) 900 x 770 x 890 RH side.
