Hardware Overview
Quad Channel Video Capture
Channel
1
2
3
4
Audio Capture
•
Embedded audio support across all four channels.
Datapath Vision Performance Driver
•
Multiple cards per system, 16 streams per card
•
Frame sync and time stamping
•
Automatic signal detection
•
Direct Show interface
•
Datapath RGBEasy API
Models

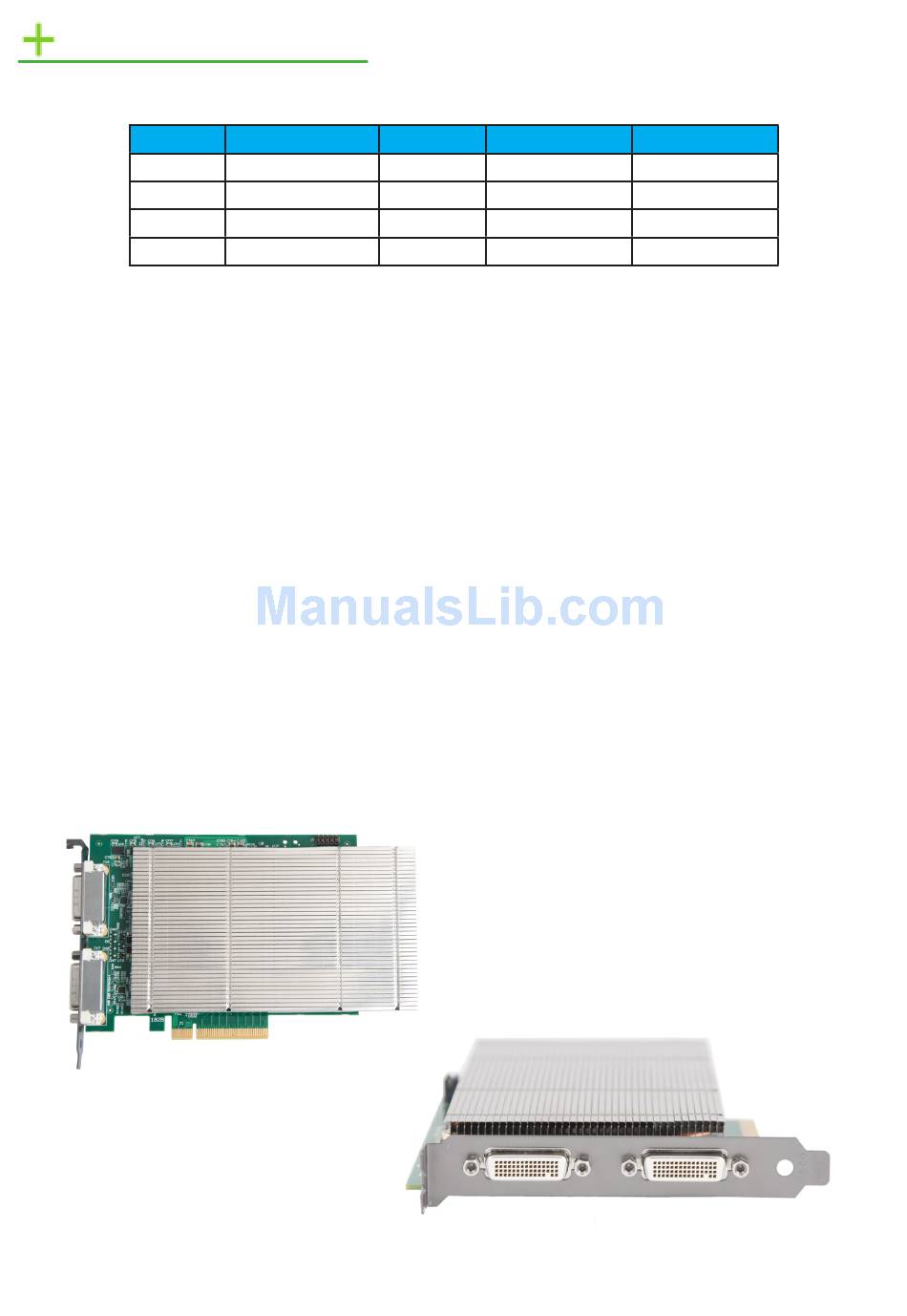

VisionSC-HD4+/H - Capture card with 2 x HDMI splitter cables.
VisionSC-HD4+/D - Capture card with 2 x DVI splitter cables.
TDMS Signalling
HDMI 1.4a
HDMI 1.4a
HDMI 1.4a
HDMI 1.4a
Fig.1
HDCP
Max Resolution Pixel Clock MHz
HDCP 1.4
4096x2160
HDCP 1.4
2096x2096
HDCP 1.4
4096x2160
HDCP 1.4
2096x2096
4
297
165
297
165
