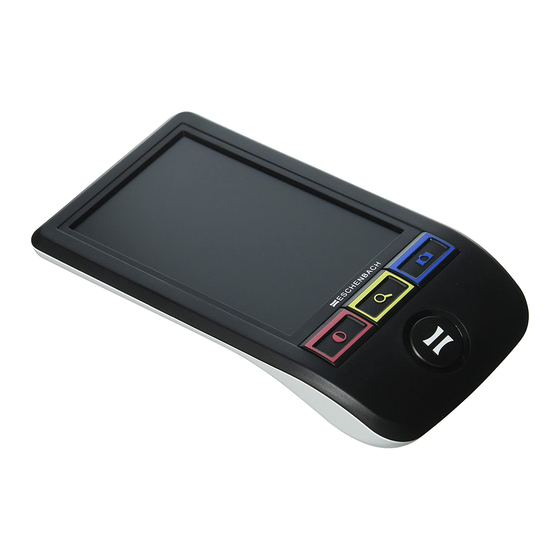

Eschenbach Smartlux Digital User Manual

Electronic magnifying glass
Hide thumbs Also See for Smartlux Digital:

Advertisement

Quick Links

Download this manual See also: User Manual
Bedienungsanleitung
User Manual
Mode d'emploi
Istruzioni d'uso
Manual de instrucciones
Gebruiksaanwijzing
Betjeningsvejledning
Bruksanvisning
Käyttöopas
Instrukcja obsługi
Provozní návod
BDA_smartlux_DIGITAL_final_multi.indd 1
06.11.2012 18:53:37

Advertisement

loading
Need help?

Need help?

Do you have a question about the Smartlux Digital and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eschenbach Smartlux Digital

Summary of Contents for Eschenbach Smartlux Digital

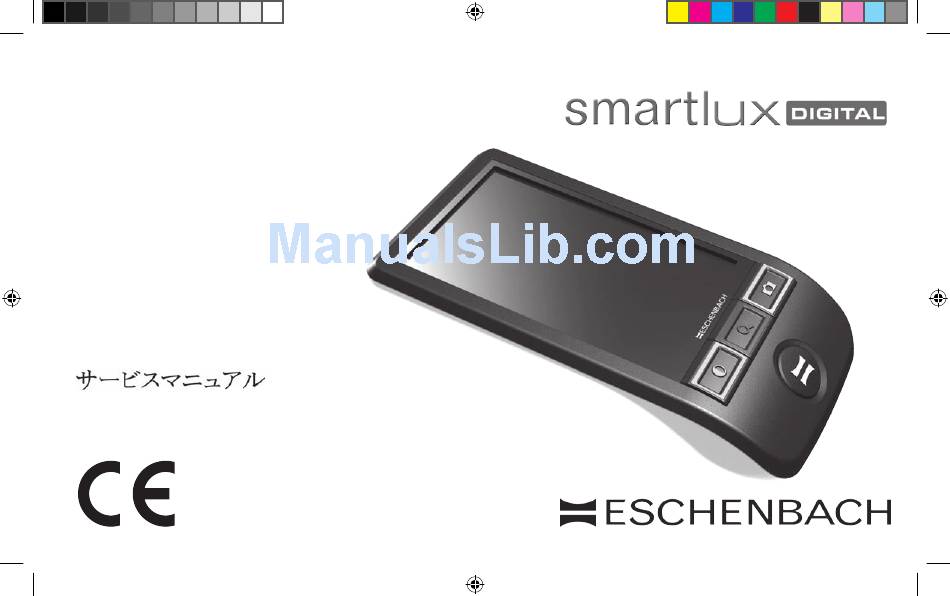

  • Page 1 Bedienungsanleitung User Manual Mode d'emploi Istruzioni d'uso Manual de instrucciones Gebruiksaanwijzing Betjeningsvejledning Bruksanvisning Käyttöopas Instrukcja obsługi Provozní návod BDA_smartlux_DIGITAL_final_multi.indd 1 06.11.2012 18:53:37...
  • Page 2 English Dear.customer, we.congratulate.you.on.the.purchase.of.this.electronic.magnifying.glass.for.hand-held.or.contact. use.-.a.quality.product.made.by.Eschenbach.-.and.we.hope.you.enjoy.using.the.device.on.a.daily. basis. As.the.market.leader.for.magnifying.glasses.and.reading.glasses,.we.at.Eschenbach.are.able.to. look.back.on.many.years.of.experience.which.are.mirrored.in.the.quality,.handling.and.design.of. our.products. Before initial use Before..using.the.device.for.the.first.time,.please.read.the.entire.manual..carefully.so.that.you.can. get.to.know.all.the..functions.of.the.device. - 17 - BDA_smartlux_DIGITAL_final_multi.indd 17 06.11.2012 18:53:39...
  • Page 3 Safety instructions X Risk.of.dazzling.and.injury!.Do.not.look.at.the.light.source.on.the.underside.of.the.housing. for.long.periods!.Risk.group.1.in.accordance.with.EN.62471:2008..Exposure.hazard. value.(EHV):.2200.seconds.at.800.mm..The.free.group.limit.values.are.complied.with.at.a.. distance.of1.8.m...Retina.hazard.due.to.blue.light.400.nm.to.780.nm. X Do.not.allow.children.to.handle.electronic.devices.without.supervision. X Only.charge.the.device.with.the.mains.adapter.supplied! X Check.the.device.and.the.mains.adapter.with.power.cable.for.visible.damage..If.the.device,.the. mains.adapter.or.its.cable.are.damaged,.disconnect.the.mains.adapter.from.the.mains.power. immediately..Ask.a.qualified.specialist.to.check.the.product.before.you.use.it.again. X Never.open.the.smartlux.DIGITAL.housing..There.are.no.serviceable.parts.whatsoever.inside.. The.guarantee.will.be.void.if.the.device.is.opened. X Never.expose.the.smartlux.DIGITAL.to.moisture. X Protect.the.smartlux.DIGITAL.from.knocks.or.blows.and.excessive.heat!.Never.place.the.smartlux. DIGITAL.on.heating.devices.or.in.direct.sunlight! X Ensure.that.other.people,.particularly.children,.are.aware.of.these.risks! - 18 - BDA_smartlux_DIGITAL_final_multi.indd 18 06.11.2012 18:53:39...
  • Page 4 - 3 - BDA_smartlux_DIGITAL_final_multi.indd 3 06.11.2012 18:53:37...

  • Page 5: Lcd.(Liquid.crystal.display)

    Items supplied X smartlux.DIGITAL.electronic.reading.device X Case.with.cleaning.cloth X Mains.cable.(with.plugs.for.EU,.GB,.US,.AUS) X Operating.Instructions Function elements 1..LCD.(Liquid.Crystal.Display) . •. On/off.switch.for.LED.illumination 2..Photo.button . •. Deleting.saved.images . •. Freeze/save.the.image.displayed.on.the.. 5..On/off.button . screen 6..Stand 3..Magnifying.button 7..Camera . •. Adjusting.the.magnification 8..LED.illumination . •. Adjusting.the.display.brightness 9..Charging.socket 4..Contrast.button 10..LED.charging.indicator . •. Selection.of.display.modus.(true.colour,.. .
  • Page 6 Operation/application modes You.can.use.the.device.either.by.holding.it.in.your.hand,.placed.on.the.subject.material.(contact). or.in.the.writing.position. Hand-held operation: If.you.are.using.the.device.in.hand-held.operation,.fold. the.stand.in.and.move.the.device.at.a.suitable.distance. above.the.subject.material. Contact operation: For.contact.operation,.fold.the.stand.on.the.underside.of. the.device.out.completely..Place.the.smartlux.DIGITAL. on.the.subject.material.which.is.to.be.magnified.. - 20 - BDA_smartlux_DIGITAL_final_multi.indd 20 06.11.2012 18:53:39...
  • Page 7 Writing position: You.can.also.use.the.smartlux.DIGITAL.for.writing.under- neath.it..To.do.this,.fold.the.stand.out.as.far.as.the.first. snap-in.position.and.position.the.device.vertically. Charging the internal battery: Before using the smartlux DIGITAL for the first time, you need to fully charge the internal battery! To.charge.it,.connect.the.cable.from.the.mains.adapter.supplied.to.the.charging.socket.(o).on. the.smartlux.DIGITAL..Now.plug.the.mains.adapter.into.a.suitable.mains.socket.using.the.relevant. mains.plug.type..Charging.takes.about.2.hours..The.charging.indicator.LED.(a).will.illuminate. red.during.the.charging.process..The.charging.check.LED.goes.out.once.the.charging.process.is. complete..When.charging.is.complete,.disconnect.the.mains.adapter.from.the.plug.and.from.the. smartlux.DIGITAL..You.can.use.the.device.during.the.charging.process..This.will.extend.the.charg- ing.time. - 21 - BDA_smartlux_DIGITAL_final_multi.indd 21 06.11.2012 18:53:39...
  • Page 8 The.charging.status.of.the.internal.battery.is.shown.at.the.top.screen.border.when.the.device.is. switched.on. . Battery.completely.charged. . Capacity.75.%.. . Capacity.50.% . Residual.capacity.25%,.the.symbol.is.displayed.in.red.at.the.top.screen.border.for. 5.seconds. . Residual.operation.time.approx..3.min,.the.symbol.is.displayed.in.red.at.the.top.screen border.permanently Switching on/off Press.the.on/off.button.(t),.to.switch.the.smartlux.DIGITAL.on.and.to.go.to.live.image.mode.. The.magnified.image.of.the.subject.material.is.shown.on.the.display.(q)..Symbols.display.the. battery.charging.status,.the.magnification.last.set.and.the.screen.brightness.for.5.seconds.at.the. top.screen.border.. The.smartlux.DIGITAL.switches.itself.off.automatically.if.it.is.not.used.for.more.than.3.minutes.in. order.to.save.the.internal.battery.charging.status..If.you.want.touse.the.device.again,.switch.it.on. again. To.switch.the.device.off,.press.the.on/off.button..The.current.settings.for.magnification,.display. mode.and.display.brightness.will.be.saved. - 22 - BDA_smartlux_DIGITAL_final_multi.indd 22 06.11.2012 18:53:40...
  • Page 9 Adjusting the Magnification The.smartlux.DIGITAL.can.provide.4.magnification.levels.during.contact.operation:.5×,.7×,.9×. and.12×..The.available.magnification.is.lower.when.the.device.is.being.held.in.the.hand... If.you.raise.the.smartlux.DIGITAL.5.cm.from.the.subject,.the.resulting.magnification.levels.are.. approximately.1.9×,.2.6×,.3.4×.und.4.5×. In.the.writing.position:. If.you.press.the.magnification.button.(e).briefly,.the.next.highest.magnification.will.be.set.. The.magnification.currently.set.will.be.displayed.at.the.top.screen.border.for.5.seconds. Adjusting the display brightness If.the.display.appears.to.be.too.bright,.you.can.dim.the.brightness..To.do.this,.press.and.hold. the.magnification.button.(e).down..The.display.will.dim.to.75%.after.3.seconds,.and.then.to.a. brightness.of.50%.after.a.further.3.seconds,.before.it.repeats.the.cycle.from.100%.brightness..To. save.the.setting,.simply.release.the.magnification.button.at.the.display.brightness.which.appears. comfortable.to.you..The.brightness.currently.set.will.be.displayed.at.the.top.screen.border.for.5. seconds. . 100%.display.brightness.. . 75%.display.brightness.. . 50%.display.brightness - 23 - BDA_smartlux_DIGITAL_final_multi.indd 23 06.11.2012 18:53:40...
  • Page 10 Setting the display mode The.smartlux.DIGITAL.is.equipped.with.a.range.of.display.modes.so.that.you.can.achieve.the.best. possible.image..If.you.press.the.contrast.button.(r).briefly.and.repeatedly,.you.will.run.through. the.various.display.modes.from.true.colour.mode.through.increased.contrast.mode.black/white. and.white/black.up.to.false.colour.display.black/yellow.and.yellow/black. Switching the LED illumination on/off There.are.two.LEDs.(i).on.the.underside.of.the.smartlux.DIGITAL.which.illuminate.the.subject. material.to.enable.optimum.contrasting.and.true-colour.images..Under.certain.circumstances. (e.g..glossy.subject.material).it.may.be.necessary.to.switch.the.LED.illumination.off.to.avoid.point. reflections.. To.do.this,.press.and.hold.the.contrast.button.(r).for.3.seconds. If.you.want.to.switch.the.LED.illumination.on.again,.press.and.hold.the.contrast.button.for.a.further.3. seconds..The.LED.illumination.status.currently.set.will.be.displayed.at.the.top.screen.border.for.5. seconds. LED.illumination.switched.on. .LED.illumination.switched.off - 24 - BDA_smartlux_DIGITAL_final_multi.indd 24 06.11.2012 18:53:40...
  • Page 11 Freezing and saving images The.smartlux.DIGITAL.is.equipped.with.a.photo.button.(w).which.enables.you.to.temporarily. freeze.images.and.then.save.them.permanently.on.the.device.(photo.mode). Temporarily.freezing.images:. To.freeze.an.image,.press.the.photo.button.(w).briefly..The.frozen.image.will.be.shown.on.the. display..You.can.further.edit.it.by.using.the.magnification.button.(e).and.the.contrast.button.(t). If.you.press.the.photo.button.(w).again.briefly,.you.will.return.to.live.image.mode. Saving.images.permanently:. Once.you.have.frozen.an.image,.you.can.save.it.permanently.by.pressing.and.holding.the.photo. button.(w,. ).for.at.least.3.seconds..The.image.will.be.saved.at.position.1.in.the.smartlux. DIGITAL.memory..The.memory.location.is.displayed.using.a.diskette.symbol.at.the.top.screen. border..Images.already.saved.are.moved.up.by.one.position..Up.to.20.images.can.be.permanently. saved..Once.the.maximum.memory.capacity.has.been.reached,.a.red.diskette.symbol.is.displayed. at.the.top.screen.border..In.this.case,.you.should.delete.some.saved.images.in.order.to.create. more.memory.capacity.(see.managing.saved.images). - 25 - BDA_smartlux_DIGITAL_final_multi.indd 25 06.11.2012 18:53:40...
  • Page 12 If.you.switch.the.smartlux.DIGITAL.on.and.there.is.no.memory.capacity.available.for.images,.this. will.be.shown.on.the.start.screen.top.border.by.a.red,.crossed-out.diskette.symbol. . Image.has.been.saved.in.Position.1.of.20. . . I mage.memory.is.full.(symbol.is.then.shown.red)..Images.must.be.deleted.before.you.can. save.new.images. . Display.when.the.smartlux.DIGITAL.is.switched.on.and.the.image.memory.is.full... No.more.images.can.be.saved. Managing saved images You.can.manage.your.saved.images.in.photo.mode..Hold.the.photo.button.(w).pressed.for.3. seconds.to.change.from.live.image.mode.to.the.image.saved.in.Position.1..If.you.continue.to.hold. the.photo.button.(w).pressed,.the.images.saved.in.Positions.2.to.20.will.be.displayed.at.3.second. intervals..Release.the.photo.button.(w).once.the.image.you.wish.to.manage.is.displayed. - 26 - BDA_smartlux_DIGITAL_final_multi.indd 26 06.11.2012 18:53:40...
  • Page 13 Magnifying.saved.images:. If.you.press.the.magnifying.button.(e).briefly,.you.can.change.the.magnification.of.the.selected. image.(see.also."Adjusting.magnification"). Changing.the.display.mode.for.the.saved.image: You.can.select.the.display.mode.most.suitable.for.the.image.by.pressing.the.contrast.button.(r). briefly.(see.also."Adjusting.the.display.mode"). Deleting.saved.images:. To.delete.a.saved.image,.press.and.hold.the.contrast.button.(r).for.3.seconds..A.waste.bin.( will.be.displayed.as.a.query.in.order.to.ask.you.to.confirm.whether.you.really.wish.to.delete.the. image..Confirm.the.deletion.by.pressing.the.contrast.button.(r,. ).again. If.you.do.not.want.to.delete.the.image,.cancel.the.deletion.process.by.pressing.the.magnification. button.(e,. ).or.the.photo.button.(w,. - 27 - BDA_smartlux_DIGITAL_final_multi.indd 27 06.11.2012 18:53:40...
  • Page 14 Technical data Display.size:. 12.7.cm.(5˝) Magnification.range:. Contact.operation:. . .5×,.7×,.9×,.12× Hand-held.at.approx..5.cm:.1.9×,.2.6×,.3.4×,.4.5× Writing.position:. .1.7×,.2.4×,.3.1×,.4.2× Operating.time:. . Approx..3.hours Charging.time:. . Approx..2.hours Mains.adapter.voltage:. AC.100.V.—.240.V~,.50.—.60.Hz Temperature.range:. . 10.°C.—.40.°C Weight:. 220.g Care Instructions X When.cleaning.the.smartlux.DIGITAL.do.not.use.any.soap.solutions.that.contain.softening. agents,.alcoholic.or.organic.solvents,.and.do.not.use.abrasive.detergents! X Do.not.clean.the.smartlux.DIGITAL.in.an.ultrasonic.bath.or.under.flowing.water! X Only.clean.the.smartlux.DIGITAL.with.a.soft,.dry.cloth..For.heavier.soiling.(e.g..fingerprints),. moisten.the.cloth.slightly. X If.you.are.not.using.the.smartlux.DIGITAL,.always.keep.it.in.the.hard.foam.case.supplied. - 28 - BDA_smartlux_DIGITAL_final_multi.indd 28 06.11.2012 18:53:40...
  • Page 15 Warranty Within.the.parameters.of.the.applicable.statutory.provisions,.we.provide.a.warranty.for.the.func- tioning.of.the.product.described.in.this.manual.with.regard.to.faults.arising.in.connection.with. manufacturing.defects.or.material.defects..In.event.of.damage.due.to.improper.handling,.including. damage.from.a.fall.or.impact,.no.warranty.claims.can.be.made..Warranty.claims.are.only.accept- ed.upon.presentation.of.the.sales.receipt! Disposal X When.the.device.reaches.the.end.of.its.useful.life,.do.not.dispose.of.it.with.the.normal.house- hold.waste..This.product.is.subject.to.the.European.directive.2002/96/EC. X Dispose.of.the.product.or.parts.of.the.product.through.a.certified.disposal.facility.or.your.mu- nicipal.disposal.facility..Observe.the.currently.applicable.regulations..In.case.of.doubt,.contact. your.disposal.facility..Dispose.of.all.packaging.materials.in.an.environmentally.friendly.manner. - 29 - BDA_smartlux_DIGITAL_final_multi.indd 29 06.11.2012 18:53:40...
