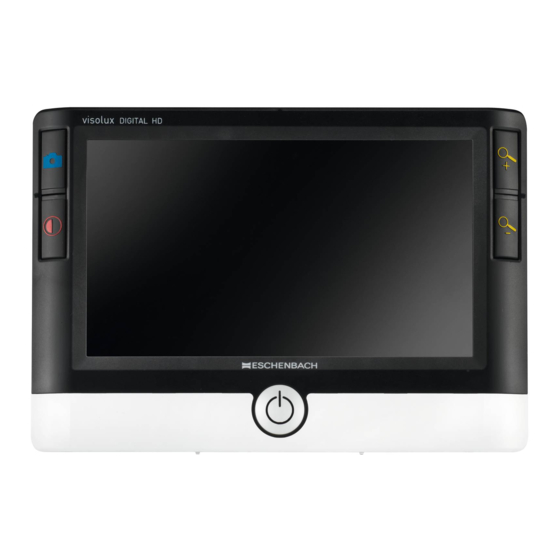

Eschenbach visolux DIGITAL HD Operating Instructions Manual
7" portable video magnifier
Hide thumbs
Also See for visolux DIGITAL HD:
- Operating instructions manual (234 pages) ,
- Operating instructions manual (257 pages) ,
- Operating instructions manual (242 pages)
Subscribe to Our Youtube Channel
Related Manuals for Eschenbach visolux DIGITAL HD
Summary of Contents for Eschenbach visolux DIGITAL HD

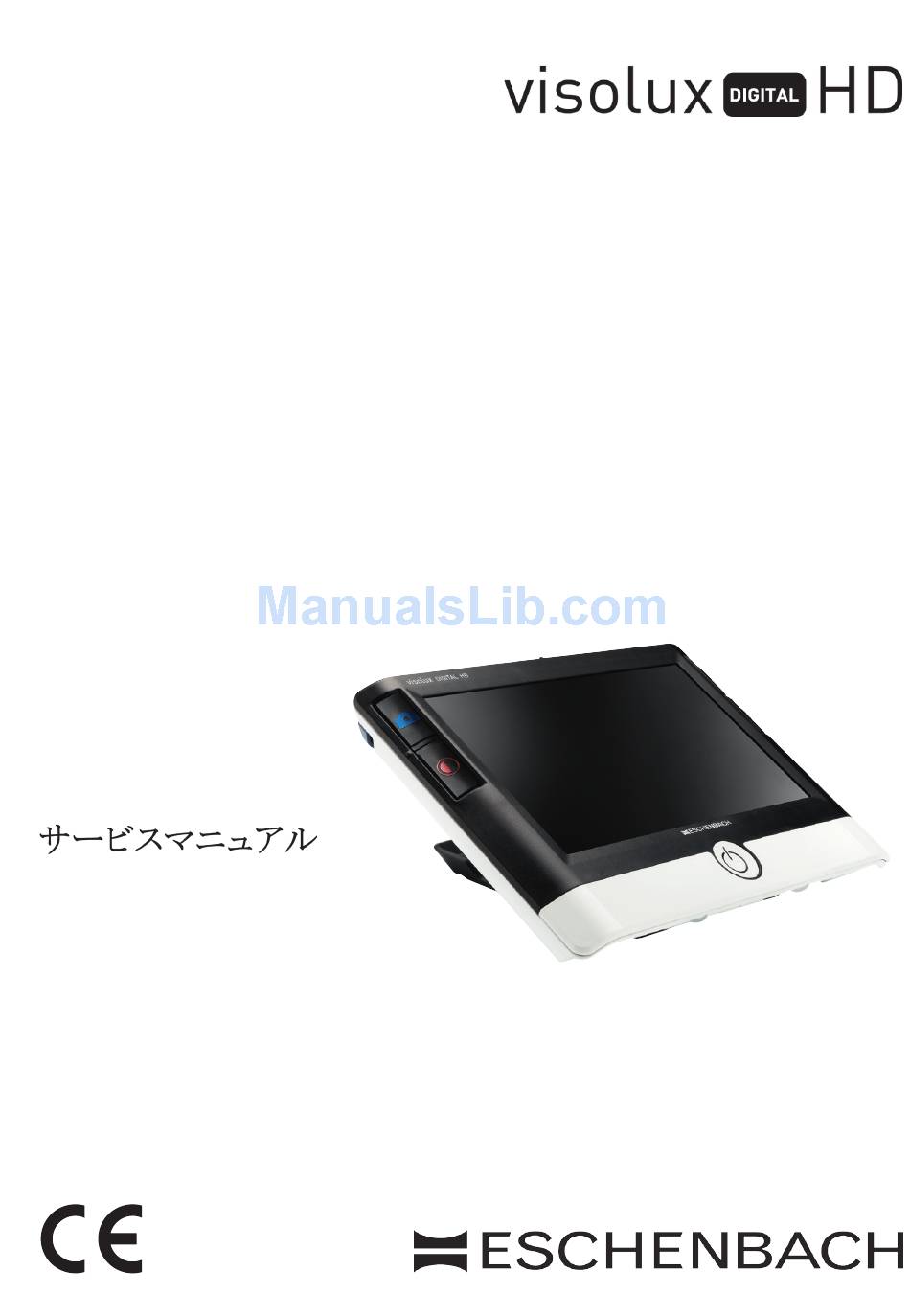

- Page 1 Bedienungsanleitung Operating instructions Mode d'emploi Manual de instrucciones Istruzioni d'uso Gebruiksaanwijzing Betjeningsvejledning Bruksanvisning Käyttöopas Instrukcja obsługi Návod k obsluze...
-
Page 2: Firmware Version
Eschenbach. As the market leader for magnifying glasses and reading aids, we at Eschenbach can look back over many years of experience and this is reflected in the quality, usability and design of our products. Firmware version These instructions apply to the firmware version "VD7_fw_v1.0.0"... -
Page 3: Package Contents
X Check your visolux DIGITAL HD and the mains adapter and its power cable for visible damage. If the visolux DIGITAL HD, the mains adapter or its cable are damaged, disconnect the mains adapter from the mains power immediately. Ask a qualified specialist to check the product before you use it again. -
Page 5: Operating Elements
Operating elements (Illustrations see fold-out page) 1. Right-hand scrolling button 2. Charging check LED 3. Connection for mains adapter 4. USB connection 5. "MENU" button for opening menu control 6. HDMI output 7. Fold-out stand foot 8. Left-hand scrolling button 9. -
Page 6: Operation
Charging the internal battery: You must completely charge the internal batteries before you can use the visolux DIGITAL HD for the first time independently of the mains power supply! To charge, insert the charging cable plug into the connection for the mains adapter (e) on the visolux DIGITAL HD. - Page 7 If you want to use the reader again after this time, switch it on again. Reading with the device Switch the visolux DIGITAL HD on, fold the stand foot (u) out and place the device over the reading material. The image of the area below the camera (s) is shown on the display (g).
- Page 8 Tips to improve orientation: The stand foot is provided with notches (A) which are arranged in align- ment with the camera axis. You can use these notches to place the device over round objects more easily, for example to read ingredient information on tins etc.
- Page 9 Adjusting the zoom factor When switched on, the camera image will be shown with the zoom fac- tor you used the previous time you switched the device on. Press and hold the button to increase the zoom up to factor 22×. Press and hold the button to decrease the zoom down to factor 2×.
- Page 10 Calling up images from the SD card To display images previously saved to the SD card, press and hold the button for 3 seconds or open the settings menu for this purpose described below using the MENU button (t) and the symbol.
- Page 11 You can move a zoomed-in image section to the side on the display using the two scroll buttons (q, i). If the zoom factor is set to 1× you can use the left-hand scroll button to jump to the previous image file and the right-hand scroll button to jump to the next image file.
- Page 12 You can use the two scroll buttons (q, i) to select the individual sym- bols which have the functions described below: The symbol for the selected function is always shown slightly larger and sometimes with a colour marking. To switch the selected function on or off, or to call up a hidden submenu, press the button (k).
- Page 13 - only the bottom LED row is switched on - the top LEDs right and left light up with half power - the top LEDs right and left light up with full power Confirm the selected lighting with the button. You can use the symbol and confirm it with the button to return...
- Page 14 Switching split screen function on/off Select this symbol and then press the button to turn the split screen function on or off. This allows you to determine whether the built-in display is also shown if an HDMI device is connected. If the function is switched on, the symbol is displayed, if the function is switched off symbol is displayed.
- Page 15 Select the symbol and then press the button to call up the sec- ond level of the settings menu: Setting the reading guideline/line Select this symbol and then press the button to adjust the details of the reading guideline or reading line using the following symbols: - Move the reading guideline upwards or zoom the reading line in - Move the reading guideline downwards or zoom the reading line - Switch the reading guideline/line on/off...
- Page 16 To update the firmware, please proceed as follows: 1. Connect the visolux DIGITAL HD to a PC using the USB cable sup- plied. Ensure that the SD card is located in the card slot (l). 2. Switch the visolux DIGITAL HD on. The contents of the SD card will now be displayed on the PC as the "ESCHENBACH"...
- Page 17 During the firmware update, the "During Fw update. . . " message appears on the display. If the update has been successful, the visolux DIGITAL HD switches off automatically. Never switch the device off and never remove the SD card from the device during a firmware update. Otherwise, the visolux DIGITAL HD could be irreparably damaged.
-
Page 18: Technical Data
201 × 138 × 29 mm Weight: 460 g This manual is also available on the Internet at http://www.eschenbach-optik.com/ ® is a registered trademark of USB Implementers Forum, Inc. HDMI and the HDMI logo are trademarks or registered trademarks of the HDMI Licensing LLC in the USA and other countries. -
Page 19: Care Instructions
X Do not clean the visolux DIGITAL HD in an ultrasonic bath or under flowing water! X Only use a soft, dry cloth to clean the visolux DIGITAL HD. For heavier soiling (e.g. fingerprints), moisten the cloth slightly. Disposal X When the reader reaches the end of its useful life, do not dispose of it with the normal household waste.
