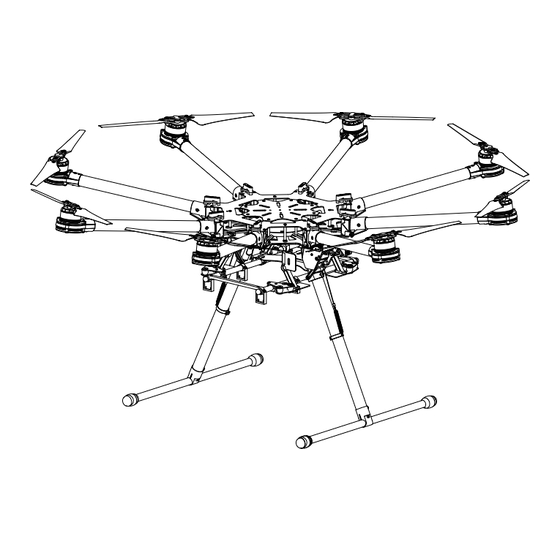

Spreading Wings S1000+
User Manual
V1.2
2014.12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spreading Wings S1000+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dji Spreading Wings S1000+

Summary of Contents for dji Spreading Wings S1000+

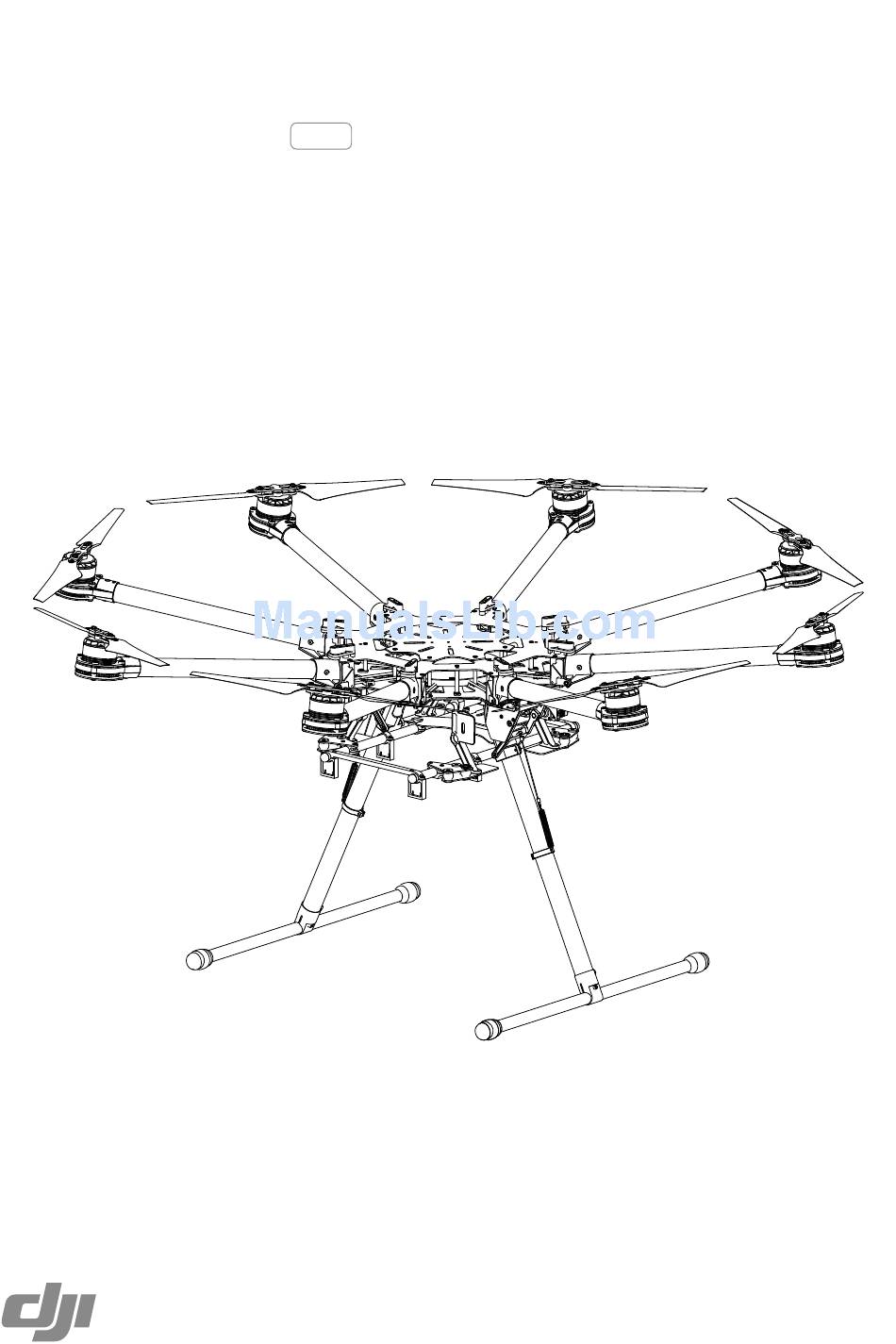

  • Page 1 Spreading Wings S1000+ User Manual V1.2 2014.12...

  • Page 2: Disclaimer

    This product and manual are copyrighted by DJI with all rights reserved. No part of this product or manual shall be reproduced in any form without the prior written consent or authorization of DJI.

  • Page 3: Table Of Contents

    ESC LED Specifications Gain Value Settings Soldering the ESC Remounting the Propellers Propeller Precautions Using the Propeller Holder Assembling Motor Vibration Absorbers Remounting the Landing Gear Servo Recalibrating Servo Travel Part List FCC Statements © 2014 DJI. All Rights Reserved.

  • Page 4: Cautions

    7. Use only 6S LiPo batteries for the power supply. 8. Ensure all output signals from M1 to M8 are in proper working order when using the DJI A2 flight control system to avoid damage or injury.

  • Page 5: In The Box

    Usage 2.0mm Hex Wrench, 2.5mm Hex Wrench Mounting screws. Thread Locker Fastening screws. Nylon Cable Tie, Scissors, Cutting Pliers/Dykes Binding devices and wires. Foam Double Sided Adhesive Tape Mounting receiver, controller and other modules. © 2014 DJI. All Rights Reserved.

  • Page 6: Mounting The Landing Gear

    3. Connect both springs on the legs to the center frame. M2.5x8 (socket cap) Note the springs are 58.5mm before connecting to the center frame, and are stretched to 70mm when mounting is completed. 70mm © 2014 DJI. All Rights Reserved.

  • Page 7: Mounting Frame Arms

    4. Insert the M4x35 screw from the right of the frame arm (the thread is located on the left of the screw mount). Tighten each screw correctly. Over tightening may lead to connector abrasion. © 2014 DJI. All Rights Reserved.
  • Page 8 Then unscrew the 4 screws (M3x8 self-tapping, found under the center frame) of the round cover and remove it to gain access to the ESC and power cable installation area. 8. Plug each ESC signal cable into the slot near each arm on the center frame. © 2014 DJI. All Rights Reserved.
  • Page 9 10. To ensure a reliable connection, rotate the screw until it is both tight and parallel to the connecting bracket. 11. Ensure all ESC cables, and power cables are correctly installed onto the center frame. ESC cables power cables © 2014 DJI. All Rights Reserved.
  • Page 10 13. Double check all frame arms. Arms M1 and M2 are the forward facing (nose), arms M5 and M6 are the tail. Seen from the top, motors on arms M1, M3, M5 and M7 rotate counter clockwise while those on arms M2, M4, M6 and M8 rotate clockwise. © 2014 DJI. All Rights Reserved.

  • Page 11: Mounting Electronics And Wiring

    Eight positions are reserved for mounting a flight control system, wireless video transmission module, receiver, and other accessories. The DJI A2 flight control system has been used here as an example. If using an A2, follow mounting and wiring instructions found in the A2 flight control system user manual. If using the DJI WK-M flight control system, please refer to the WK-M user manual for connections.
  • Page 12 6. The other reserved positions are indicated in the diagram below and can be used for mounting a receiver, LED flight indicator, iOSD module and wireless video transmission module. © 2014 DJI. All Rights Reserved.
  • Page 13 Once the Anti-drop Kit is installed and the pin is inserted into the washer, the Anti-drop Kit cannot be disconnected and reused. Always test motors using the Assistant after installation. Refer to your flight control system user manual for details. © 2014 DJI. All Rights Reserved.
  • Page 14 LINK CONTROLLER UNIT A2 Flight Controller the ESC Signal Outlet Using the 3-pin connection cable: M1 through M8 correspond to each motor number. LINK CONTROLLER UNIT the ESC Signal Outlet A2 Flight Controller © 2014 DJI. All Rights Reserved.
  • Page 15 User Manual If using a DJI WK-M flight control system, you must use the wires that came with the WK-M. M1 through M6 correspond to each motor number. M7 corresponds to F1 and M8 corresponds to F2 on the WK-M.

  • Page 16: Connecting Xt60 Ports On The Center Frame

    1. Connect the PMU power cable to the XT60 connector on top of the bottom board. 2. Connect the landing gear control board cable to the XT60 connector on the bottom of the bottom board. 3. Other connectors can supply power for other DJI devices, as required. V-SEN...
  • Page 17 1. Attach battery to battery tray. Do not use an oversized battery. Maximum installation dimension is 80mm×120mm×200mm. 2. Connect the black connector and then the red connector to power on. Disconnect the red connector then black connector to power off. © 2014 DJI. All Rights Reserved.

  • Page 18: Setting Up The Landing Gear

    If it flashes green slowly, re-calibrate the system according to instructions in “Recalibrating Servo Travel”. 5. Toggle the switch to the [Upper] position ONLY AFTER takeoff. 6. Toggle the switch to the [Lower] position for landing. © 2014 DJI. All Rights Reserved.
  • Page 19 Input Signal PWM (High-Pulse Width 800us~2200us) Working Current Max 1A@6S Output Signal PWM (Mid Position is 1520us) in 90Hz Working Temperature -20~70° C Output Voltage Total Weight 875g Servo Travel 150° (Minimum 120° ) © 2014 DJI. All Rights Reserved.

  • Page 20: Mounting The Gimbal

    Before assembling the gimbal, install the GCU as shown below. Be sure to install on the side as shown below. A DJI Z15-5D MARK III (HD) gimbal has been used as an example in the following diagrams. The connectors on gimbal should be removed for better performance, then the gimbal can be mounted to the lower connection points.
  • Page 21 Spreading Wings S1000 + User Manual Check that the system’s center of gravity is on the line as shown in the diagram below. © 2014 DJI. All Rights Reserved.

  • Page 22: Appendix

    Motor rotating Solid Red or Green On Motor rotating at full throttle position Solid Yellow On DJI ESCs are specifically designed for multi-rotors. When used with DJI autopilot systems parameters and travel ranges do not have to be calibrated. Specifications Frame...

  • Page 23: Gain Value Settings

    15min (@15000mAh & 9.5Kg Takeoff Weight) Working Environment Temperature -10° C ~ 40° C Gain Value Settings Basic Attitude Flight Control Pitch Roll Pitch Roll Vertical 120% 120% 170% 170% 120% 120% 130% 130% 100% 180% 180% 100% WooKong-M © 2014 DJI. All Rights Reserved.

  • Page 24: Faq

    Loose screws cannot be securely locked with thread locker. Propeller Precautions Torque markers on the screws and propeller covers will give you a visual cue to check whether the propellers are loose. Check the torque markers before every flight. © 2014 DJI. All Rights Reserved.

  • Page 25: Using The Propeller Holder

    After tightening the screws, the vibration absorbers may be twisted. If this is the case, hold the motor with your thumbs under the base plate and fingers on the top carbon plate, and squeeze the plates together to make the vibration absorbers flat and parallel with the plates. © 2014 DJI. All Rights Reserved.

  • Page 26: Remounting The Landing Gear Servo

    If the “R” and “L” servo cables are reversed, travel will not be measured correctly. Fix the connections and recalibrate the landing gear using the above steps. Landing gear travel has been pre-calibrated. Mechanical adjustment of the gear travel is not recommended. © 2014 DJI. All Rights Reserved.

  • Page 27: Part List

    S1000+ Frame Arm CW - Black S1P010601CWB, S1P010602, S1P010603, S1P010604, M3x12.3 (cheese) S1000+ Frame Arm CW – Red S1P010701CWR, S1P010702, S1P010703, S1P010704, M3x12.3 (cheese) S1000+ Motor Damping Unit S1P010801, S1P010802, M3x10.3 S1000+ Motor Mount Carbon Board S1P011001, M3x4.5 © 2014 DJI. All Rights Reserved.
  • Page 28 S1000+ 4114 Motor with red Prop cover S1P012201R, S1P012202R, M3x4.5 S1000+ ESC with Red LED S1P012301R, S1P012302, M3x12.3 (cheese) S1000+ ESC with Green LED S1P012401G, S1P012402, M3x12.3 (cheese) S1000+ Propeller Pack S1P012501CCW, S1P012502CW, S1P012503, M3x12.3 (hexagan) Center Frame © 2014 DJI. All Rights Reserved.
  • Page 29 M3x6.5 S1000+ Center Frame Bottom Board S1P021401, M3x4.5 (cheese), M3x8 (self- tapping), M3x6.5, M3x5.5 S1000+ Center Frame Top Board S1P021501, S1P021502, S1P021503, M3x6.5, M2.5x8 (cheese) S1000+ Frame Arm Mounting Steel S1P021101 Shaft Landing Gear © 2014 DJI. All Rights Reserved.
  • Page 30 S1P032605, M2.5x8 (socket cap), M3x22 (socket cap) S1000+ Battery Tray S1P030201 S1000+ Gimbal S1P033301, S1P033302, S1P033303, S1P033304, Mounting S1P033305, S1P033306, S1P033307, S1P033308, Accessories S1P033309, S1P033310, S1P033311, S1P033312, S1P033313, S1P033314, M2.5x5, M2.5x13, M2.5x8 (cheese) Miscellaneous S1P020201 S1P020202 S1P032701 S1P032702 S1P020103 S1P020104 © 2014 DJI. All Rights Reserved.

  • Page 31: Fcc Statements

    Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. © 2014 DJI. All Rights Reserved.
  • Page 32 User manual is subject to change without prior notice. You may visit DJI offical website to obtain the latest version of user manual. http://www.dji.com/product/spreading-wings-s1000-plus © 2014 DJI. All Rights Reserved.
