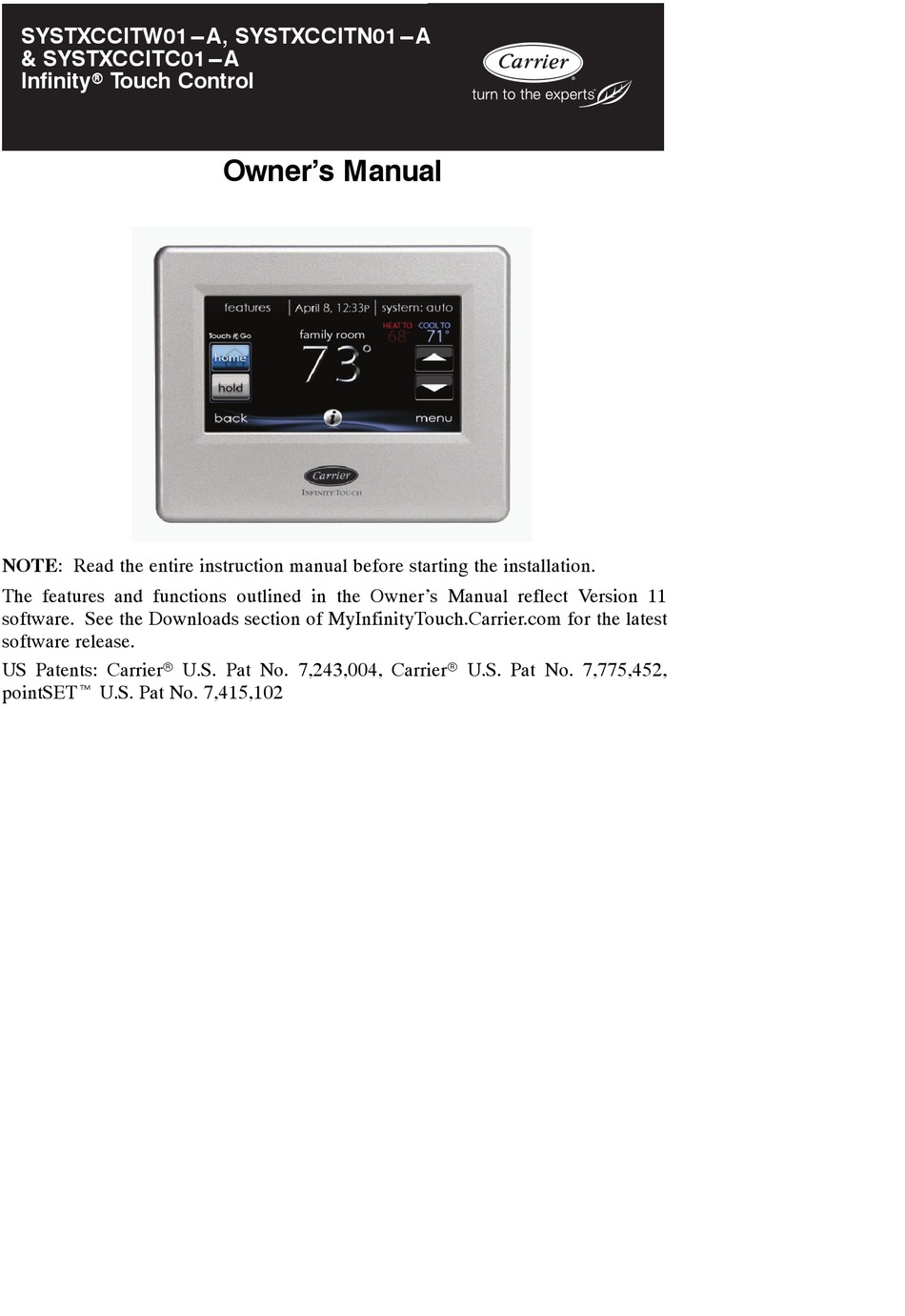

SYSTXCCITW01 ---A, SYSTXCCITN01 ---A
& SYSTXCCITC01 ---A

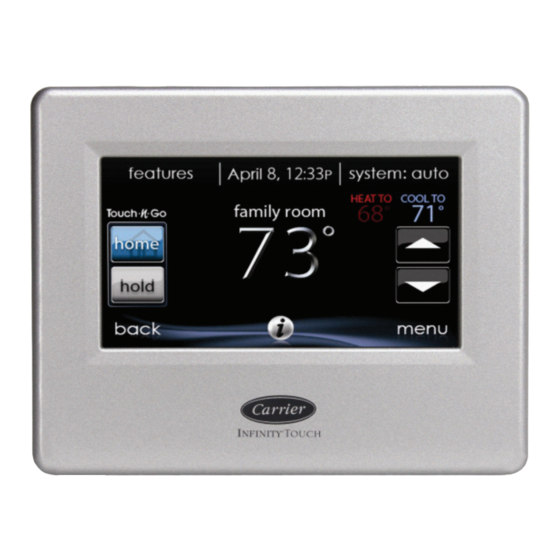

Infinityr Touch Control
NOTE: Read the entire instruction manual before starting the installation.
The features and functions outlined in the Owner's Manual reflect Version 11
software. See the Downloads section of MyInfinityTouch.Carrier.com for the latest
software release.
US Patents: Carrierr U.S. Pat No. 7,243,004, Carrierr U.S. Pat No. 7,775,452,
pointSETt U.S. Pat No. 7,415,102
Owner's Manual
