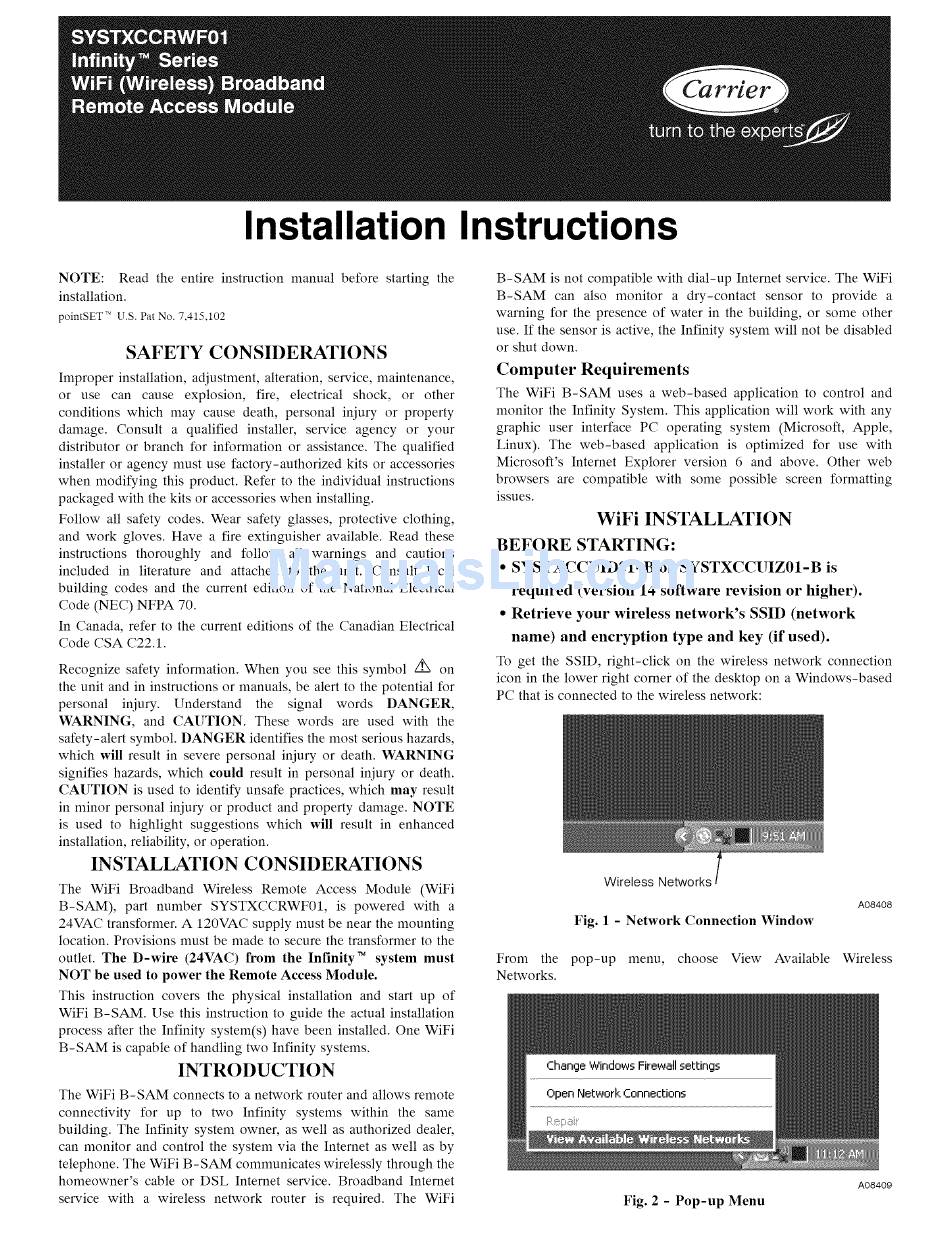

Installation Instructions
NOTE: Read the entire instruction manual before starting the
installation.
pointSET " U.S. Pat No. 7,415,102
SAFETY CONSIDERATIONS
Improper installation, adjustment, alteration, service, maintenance,
or use can cause explosion, fire, electrical shock, or other
conditions which may cause death, personal injury or property
damage. Consult a qualified installer, service agency or your
distributor or branch for information or assistance. The qualified
installer or agency nmst use factory-authorized kits or accessories
when modifying this product. Refer to the individual instructions
packaged with the kits or accessories when installing.
Follow all safety codes. Wear safety glasses, protective clothing,
and work gloves. Have a fire extinguisher available. Read these
instructions thoroughly and follow all warnings and cautions
included in literature and attached to the unit. Consult local
building codes and the current edition of the National Electrical
Code (NEC) NFPA 70.
In Canada, refer to the current editions of the Canadian Electrical
Code CSA C22.1.
Recognize safety information. When you see this symbol /_ on
the unit and in instructions or manuals, be alert to the potential for
personal injury. Understand the signal words DANGER,
WARNING, and CAUTION. These words are used with the
safety-alert symbol. DANGER identifies the most serious hazards,
which will result in severe personal injury or death. WARNING
signifies hazards, which could result in personal injury or death.
CAUTION is used to identify unsafe practices, which may result
in nfinor personal injury or product and property damage. NOTE
is used to highlight suggestions which will result in enhanced
installation, reliability, or operation.
INSTALLATION CONSIDERATIONS
The WiFi Broadband Wireless Remote Access Module (WiFi
B-SAM), part number SYSTXCCRWF01, is powered with a
24VAC transformer. A 120VAC supply nmst be near the mounting
location. Provisions nmst be made to secure the transformer to the
outlet. The D-wire (24VAC) from the Infinity
TM
system must
NOT be used to power the Remote Access Module.
This instruction covers the physical installation and start up of
WiFi B-SAM. Use this instruction to guide the actual installation
process after the Infinity system(s) have been installed. One WiFi
B-SAM is capable of handling two Infinity systems.
INTRODUCTION
The WiFi B-SAM connects to a network router and allows remote
connectivity for up to two Infinity systems within the same
building. The Infinity system owner, as well as authorized dealer,
can monitor and control the system via the Internet as well as by
telephone. The WiFi B-SAM conmmnicates wirelessly through the
homeowner's cable or DSL Internet service. Broadband Internet
service with a wireless network router is required. The WiFi
B-SAM is not compatible with dial-up Internet service. The WiFi
B-SAM can also monitor a dry-contact sensor to provide a
warning for the presence of water in the building, or some other
use. If the sensor is active, the Infinity system will not be disabled
or shut down.
Computer Requirements
The WiFi B-SAM uses a web-based application to control and
monitor the Infinity System. This application will work with any
graphic user interface PC operating system (Microsoft, Apple,
Linux). The web-based application is optinfized for use with
Microsofl's Internet Explorer version 6 and above. Other web
browsers are compatible with some possible screen formatting
issues.
WiFi INSTALLATION
BEFORE STARTING:
• SYSTXCCUID01-B or SYSTXCCUIZ01-B is
required (version 14 software revision or higher).
• Retrieve your wireless network's SSID
(network
name) and encryption type and key (if used).
To get the SSID, right-click on the wireless network connection
icon in the lower right corner of the desktop on a Windows-based
PC that is connected to the wireless network:
Wireless Networks
A08408
Fig. 1 - Network Connection Window
From the pop-up menu, choose View Available Wireless
Networks.
Fig. 2 - Pop-up Menu
A08409
