Sanyo DC-F170 Service Manual

Hide thumbs

Advertisement

Quick Links

m
Service Manual
Mini Component
System
.. . .
Specifications
TUNER
SECTION
Reception
frequency
.
FM : 87.5-108.0
MHz
MW :522-1,611
kHz
CASSETTE
DECK
SECTION
Track system
. . . . . . .
4 track, 2-channel
stereo
Frequency
response
. .
80 Hz -13,500
Hz
Signal to noise ratio
. .
50 dB
Wow & Flutter
. . . . . .
0.15 % (WRMS)
Tape speed
. . . . . . . .
4.75 cmlsec
Fast forward and
rewind time
. . . .
Approx.
110 sec. (C-60)
CD PLAYER
SECTION
Type
. . . . . . . . . . . . . .
Channels
. . . . . . . . . .
Sampling
frequency
. .
Pick-up
. . . . . . . . . . . .
Laser output
. . . . . . . .
Wavelength
. . . . . . . .
Frequency
response
. .
Wow & Flutter
. . . . . .
Changer,
3-disc
2-channel
stereo
44.1 kHz
Optical 3-beam semiconductor
laser
0.6 mW (Continuous
wave max.)
790 nm
20 Hz -20,000
t+Z
Below measurable
limits

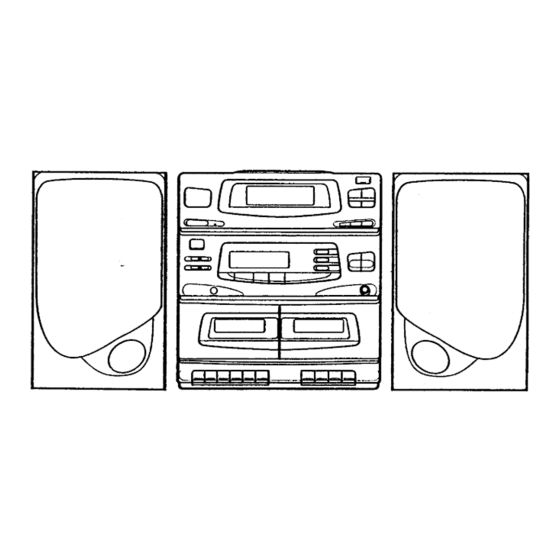

This service
manual
consists
of "'DC-F170U"(
main unit ),
"RB-D9"
( remote control ) & "SX-F170"
(speaker system)
DC-F170
(AU)
u'
..
.
PRODUCT
CODE
No.
129
502
05
AMPLIFIER
SECTION
'"""'" ' -'"
" "' '--" '- "'"
Output
power
. . . . . . .
Inputs
. . . . . . . . . . . . .
outputs
. . . . . . . . . . .
15WX2
( at 4 ohms, 10% distortion
)
VIDEO :400
mV /50k ohms
SPEAKER
:4 ohms
Power requirements
. .
Power consumption
. .
~mensions
(WXHXD)
.
Weight
. . . . . . . . . . . .
SPEAKER
SYSTEMS
Type
. . . . . . . . . . . . . .
LJnit used
. . . . . . . . . .
PHONES :8-32
ohms
AC :230-240
V, 50 Hz
45
w
Approx. 270 x 300 x 293 mm
Approx. 5.7 kg
2 way bass reflex
Woofer:
12 cm cone type
Tweeter
: piezoelectric
Maximum
power-handling
capacity
25 W (peak)
Nominal
impedance
. .
4 ohms
Dimensions
(WXHXD)
.
Approx.
180 x 300 x 207 mm
Weight
. . . . . . . . . . . .
Approx.
1.8 kg (per speaker)
Specifications
subject
to change
without
notice.
REFERENCE
No.
SM580751
