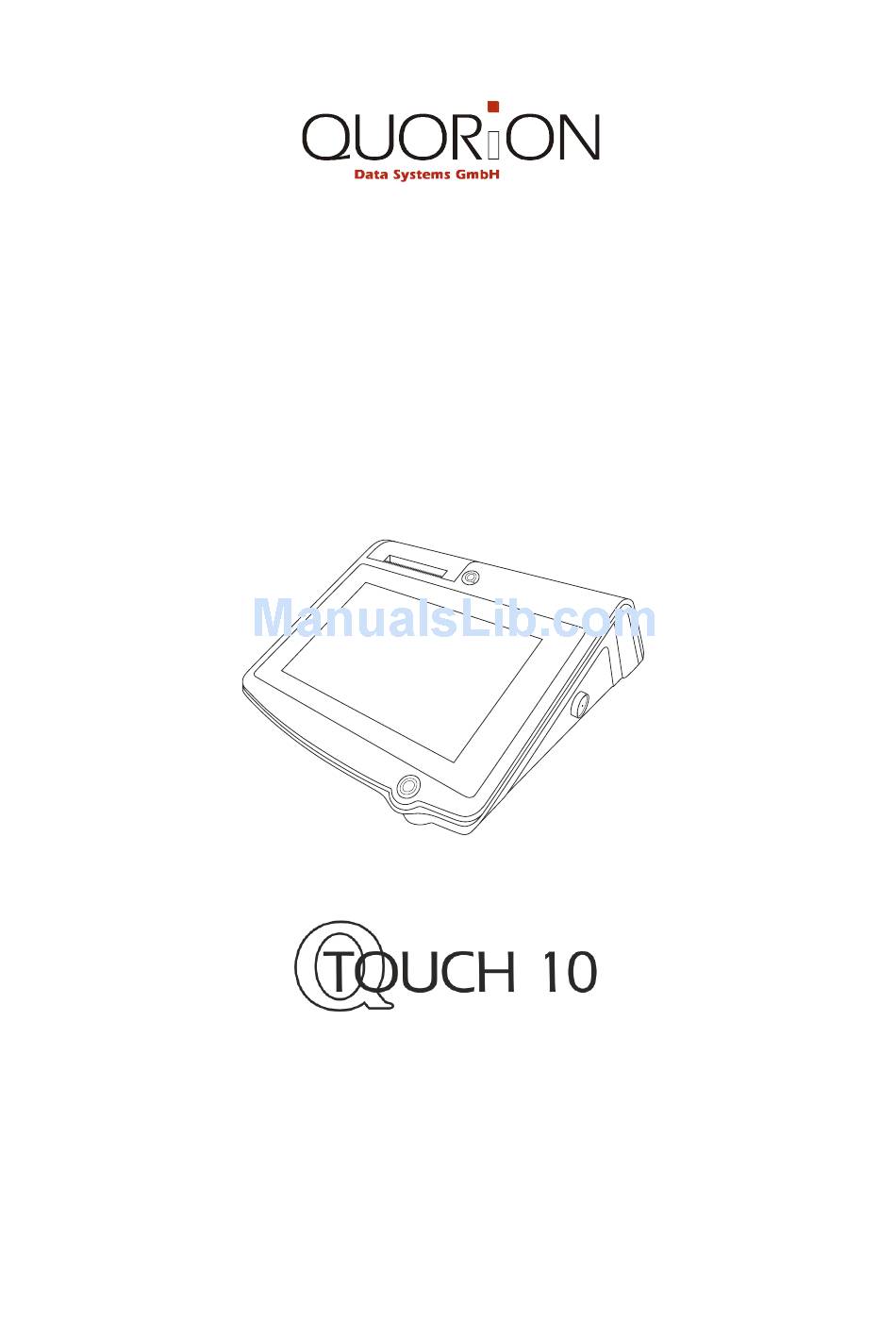

- Page 1 User Manual Service Center...
- Page 2 Dear valued customer! On behalf of our proud company we wish to welcome you to the QUORION family of fine business machines. We sincerely hope you will appreciate the many benefits of being associated with a distinguished product name that represents both quality and commitment to customer satisfaction.
- Page 3 TYPE button. (Refer to the following scheme of the user interface) 5343 TYPE The Service Center is loaded and you are attaining the main menu. Date: 21.12.2012 Time: 00:01 QTOUCH 10 Service Center X.XX Update Software Update Calib Touch Calibation Restart...
- Page 4 „Restart“ Button: restart the Cash Register „Shutdown“ Button: shutdown the Cash Register „Update“ Button: update the QTouch 10 with new software versions „Calib“ Button: calibration of the Touchscreen „Test“ Button: test the various hardware components (printer, TFT etc.) ...
- Page 5 The update menu: QTOUCH 10 Update Press ESC to Abort Make automatic update Update from USB Stick Select font for printer and Font display Set QTouch to factory Default defaults „ESC“ Button: cancel and return to main menu ...
- Page 6 The calibration: Touch Screen Calibration Press ESC to Abort Press Center of Cross: Top Left, Middle Right, Bottom Middle „ESC“ Button: cancel and return to main menu Please follow the instructions on the screen to complete the calibration.
- Page 7 The test menu: QTOUCH 10 Test Hardware Press ESC to Abort Print character font Test the operator display Printer Energy level: X Test for customer display Cutter Cut paper Contrast level: XX COM - Test Com Ports with loopback Drawer...
- Page 8 XXXX Display: XXXXX Application: QMP Version XXXX Serial number XXXX „ESC“ Button: cancel and return to main menu In this menu you receive all important informations about your QTouch 10 POS system. UM Service Center QTouch10 QUORION_ENG (Stand: 23.08.12)
Need help?
Do you have a question about the QTouch 10 and is the answer not in the manual?
Questions and answers
Hi. The screen isn’t showing a display. Just the power button lighting up
The screen on the QUORION QTouch 10 may not be displaying while only the power button lights up due to a hardware or connection issue. Based on the provided context, possible causes include:
1. Display Connection Issue – The TFT operator display or LCD customer display may not be properly connected or functioning.
2. Contrast Level Settings – The contrast level might be too low, making the display appear blank.
3. Power Supply Issue – The device may not be receiving sufficient power to fully operate the display.
4. Hardware Failure – A malfunction in the screen hardware or internal components could be preventing the display from turning on.
5. Test Mode or Calibration Issue – If the device is in a test or calibration mode, the screen may not show the expected interface.
To troubleshoot:
- Check cable connections.
- Adjust the contrast level in the test menu.
- Perform a display test from the test hardware menu.
- Ensure the power supply is stable and sufficient.
- If the issue persists, hardware repair may be required.
