Battery Status:

This function is used to check the life status of the battery.
Plug the fixture in and press the MODE button until "bXXX" is
displayed. "XXX" represents an number between "000" and
"100". The number that is displayed is the remaining battery
life. If "b---" is displayed, it means the battery is dead or you are
running the unit on AC power. Please do not let the battery
fully die, this severly shortens the life of the battery.
Example: If "b050" is displayed, the battery is at half life. If
"b025" is displayed, the battery is at 25% life.
NOTE: When the battery is charging or if the battery life is
below 30% the digital display will flash.
NOTE: After 20 seconds of inactivity, the display will revert
back to the battery life display.
Battery Recharge: To recharge the battery, plug the supplied
I.E.C. cord into the input on the side of the unit and plug the
other end into a matching power supply. It takes about 5 hours
to reach full charge. The display will STOP flashing when the
unit reaches 100% charge.
Note: When unplugging the unit from charging and then
applying power via battery, there will be a minimal charge
drop.
For a faster recharge, put the Load Switch in the "Off" position
and the Battery Switch in the "ON" position.
ADJ Products, LLC - www.adj.com - WiFly EXR HEX Par User Manual Page 28
Battery Status & Charging WiFly EXR HEX Par
WiFly EXR HEX Par
Dim m er
Dim m er Dim m er Dim m er
1 0 0 1 0 0 1 0 0 % % % % 1 0 0
5 0 5 0 5 0 5 0 % % % %
1 0 1 0 1 0 1 0 % % % %
0 0 0 0
T
ris e
DMX delay
Trise(ms)
Delay mode
dr-0
dr-1
dr-2
dr-3
dr-4
ADJ Products, LLC - www.adj.com - WiFly EXR HEX Par User Manual Page 29

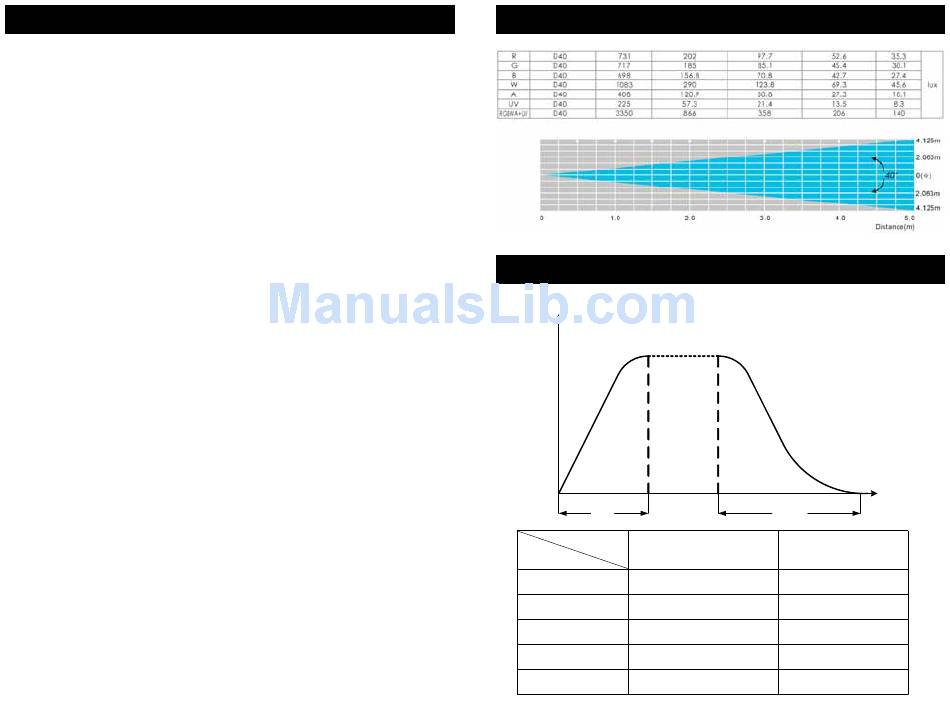

Photometric Chart

Dimmer Curve Chart
T
d o w n
Tdown(ms)
0 0
800 1300
1010 1560
1200 1950
1280 2600
t t t t
( ( ( ( m s m s ) ) ) ) m s m s
