Summary of Contents for ADJ WSM2

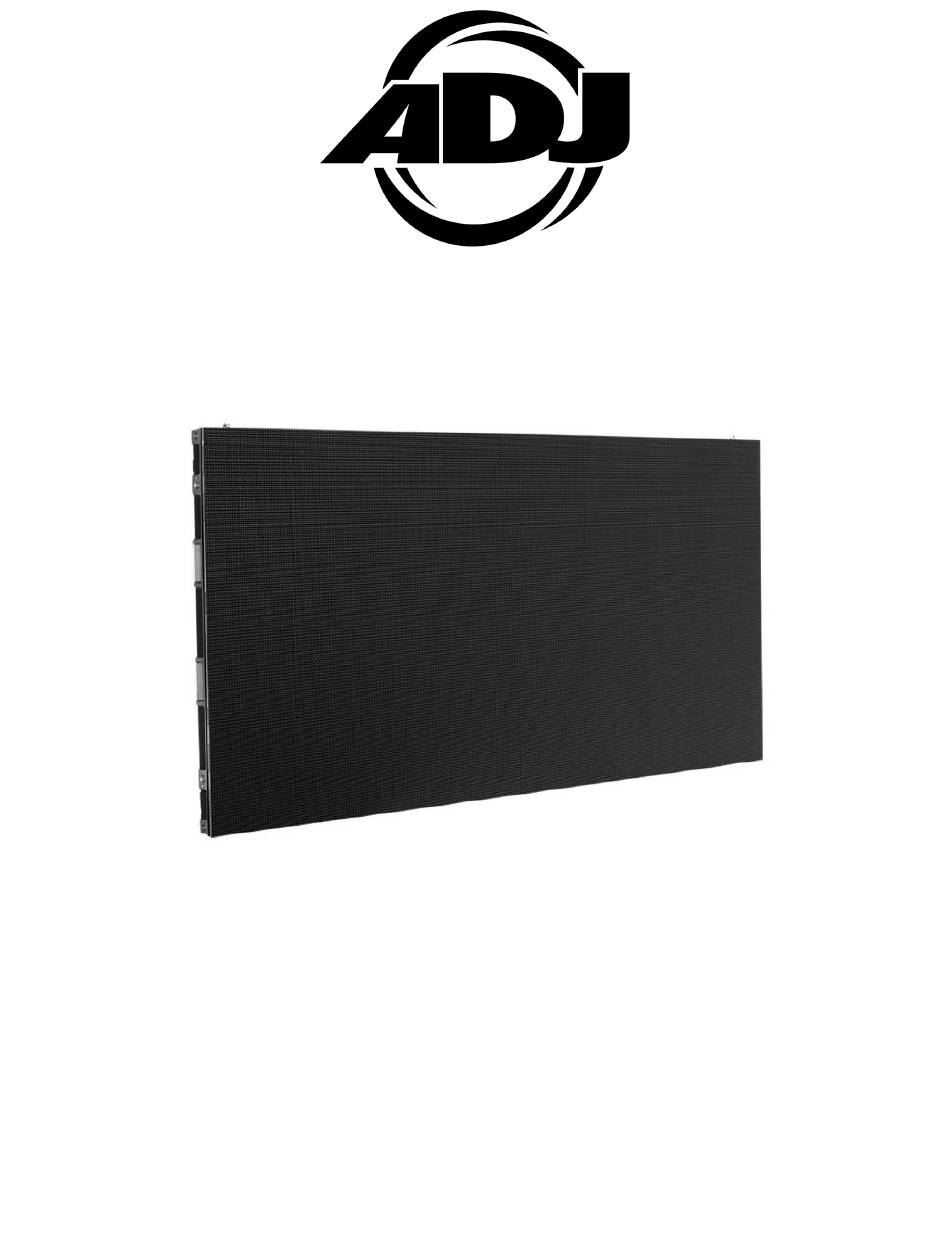

  • Page 1 WSM2 User Manual...
  • Page 2 ©2023 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
  • Page 3 C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Overview Handling and Transportation Vacuum Removal Tool Installation Wall Mounting Rigging Bar Wiring Diagrams Technical Specifications Dimensional Drawings Optional Components and Accessories...
  • Page 4 These instructions contain important safety and use information. Discover the cutting-edge ADJ WMS2 LED Video Panel – a pinnacle in high-resolution display technology designed for seamless integration into diverse projects. Expanding ADJ’s professional LED video panel portfolio, the WMS2 stands out as the company’s highest resolution offering to date.
  • Page 5 G E N E R A L I N F O R M AT I O N Customer Support: Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions. Parts: To purchase parts online visit: http://parts.adj.com...
  • Page 6 All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.
  • Page 7 This device is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ is not responsible for injury and/ or damages resulting from the misuse of this panel due to the disregard of the information printed in this manual.
  • Page 8 S A F E T Y G U I D E L I N E S • DO NOT touch panel housing during operation. Turn OFF power and allow approximately 15 minutes for panel to cool down before servicing. • DO NOT operate devices with covers open and/or removed.
  • Page 9 M A I N T E N A N C E G U I D E L I N E S • Careful and regular maintenance is necessary to optimize the potential functional lifespan of the video panels. • Read the installation and operation instructions for correct operation of the video panels. •...
  • Page 10 O V E R V I E W VIDEO PANEL Please note: Video panel is shown rotated 90 degrees in order to fit this page. During actual installation, the video panel should always be oriented so that the directional arrows are pointed upwards. Mounting Mounting Bolt...
  • Page 11 O V E R V I E W LED PANEL Directional Arrows Module Connector Module Magnets Safety Cable Module Connector Directional Arrows...
  • Page 12 H A N D L I N G A N D T R A N S P O R TAT I O N ELECTROSTATIC DISCHARGE (ESD) PRECAUTIONS Because these are ESD sensitive units, ESD precautions must be observed when removing the video panels from their flight case (ESD gloves, protective clothing, wrist straps, etc.).
  • Page 13 VA C U U M M O D U L E R E M O VA L T O O L A technician can use the optional Vacuum Module Removal Tool (ADJ part number EVSVAC, sold separately) to safely remove and reinstall any of the eight LED Modules in the video panel, and minimize potential damage from mishandling, ESD exposure, or other issues.
  • Page 14 I N S TA L L AT I O N DO NOT INSTALL THE PANEL IF YOU ARE NOT QUALIFIED TO DO SO! INSTALLATION BY QUALIFIED TECHNICIANS ONLY! INSTALLATIONS SHOULD BE CHECKED BY A QUALIFIED PERSON AT LEAST ONCE A YEAR! FLAMMABLE MATERIAL WARNING Keep panel(s) a minimum of 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics.
  • Page 15 I N S TA L L AT I O N : V I D E O PA N E L A S S E M B LY Each WMS2 video panel consists of a rigid rear shell that houses the unit’s electronic and mounting hardware, as well as 8 magnetically attached LED modules.
  • Page 16 I N S TA L L AT I O N : V I D E O PA N E L A S S E M B LY 2. Use a philips screwdriver to install the framing strips around any exposed edges of the video panel assembly.
  • Page 17 I N S TA L L AT I O N : V I D E O PA N E L A S S E M B LY 4. Install the video panel assembly via either wall mount or rigging bar, as detailed in the Wall Mount and Rigging Bar sections of this manual, then connect the panel assembly to external power and data signal.
  • Page 18 I N S TA L L AT I O N : WA L L M O U N T I N G The video panel is compatible with ADJ’s WMSWB1 Wall Mount Bracket (sold separately). Follow the steps below to wall mount your video panels. A qualified technician or trained professional is required to fly the WMS2 Video Panel assembly.
  • Page 19 I N S TA L L AT I O N : W A L L M O U N T I N G 3. Mount the video panel to the wall by hanging the downward-pointing flange of the video panel bracket into the upward-pointing flange of the wall mount bracket.
  • Page 20 I N S TA L L AT I O N : R I G G I N G B A R The video panel is compatible with ADJ’s WMSRB1 Rigging Bar (sold separately). To install the rigging bar, follow the steps below. A qualified technician or trained professional is required to fly the VSRB1 Rigging Bar/Video Panel assembly.
  • Page 21 I N S TA L L AT I O N : R I G G I N G B A R 3. Align the bottom hole of the plate bracket with the small mounting hole on the corner of the video panel.
  • Page 22 I N S TA L L AT I O N : W I R I N G D I A G R A M S For a simple vertical stack, it is a straight forward approach to connect to external power through the top or bottom, then link the panels together through each panel’s top and bottom pass-throughs.
  • Page 23 I N S TA L L AT I O N : W I R I N G D I A G R A M S For a 2x2 assembly, external power can be connected through the top or bottom edge, then link the panels together in a U-shaped pattern (or an inverted U-shape as shown below) using bottom, top, and side pass-throughs.
  • Page 24 W I R I N G D I A G R A M S In large assemblies, panels located near the center of the assembly may not be readily accessible, and cannot be fed daisy chained linkages from other panels due to limitations on power and data linking.
  • Page 25 W I R I N G D I A G R A M S Please note: all power sources in the diagram below are running 110V. EXTERNAL POWER SOURCE 2 EXTERNAL POWER EXTERNAL POWER SOURCE 1 SOURCE 3...
  • Page 26 T E C H N I C A L S P E C I F I C AT I O N S Specifications: • Pixel Pitch (mm): 2.6mm • Pixel Density (dot/m2): 147,456 • LED sealing Type: SMD1515 Kinglight Cooper •...
  • Page 27 D I M E N S I O N A L D R AW I N G S VIDEO PANEL RIGGING BAR 2.9in 16.1in (409mm) (75mm) 17.7in (451mm) 19.7in (500mm)
  • Page 28 D I M E N S I O N A L D R AW I N G S WALL MOUNT BRACKET VIDEO PANEL BRACKET 19.1in (485mm) 39.6in (1007mm) 0.8in 18.4in (468mm) 39.4in (1000mm) (22mm) 13.8in (350mm) M3M3 M3M3 LED MODULE 9.8in (245mm)
  • Page 29 O P T I O N A L C O M P O N E N T S A N D A C C E S S O R I E S SKU (US) SKU (EU) DESCRIPTION EVSVAC 1226300171 EVSVAC - Vacuum Tool for Module Removal WMS015 1226300169 WMSRB1 - Free Hang, 1-meter Rigging Bar...
