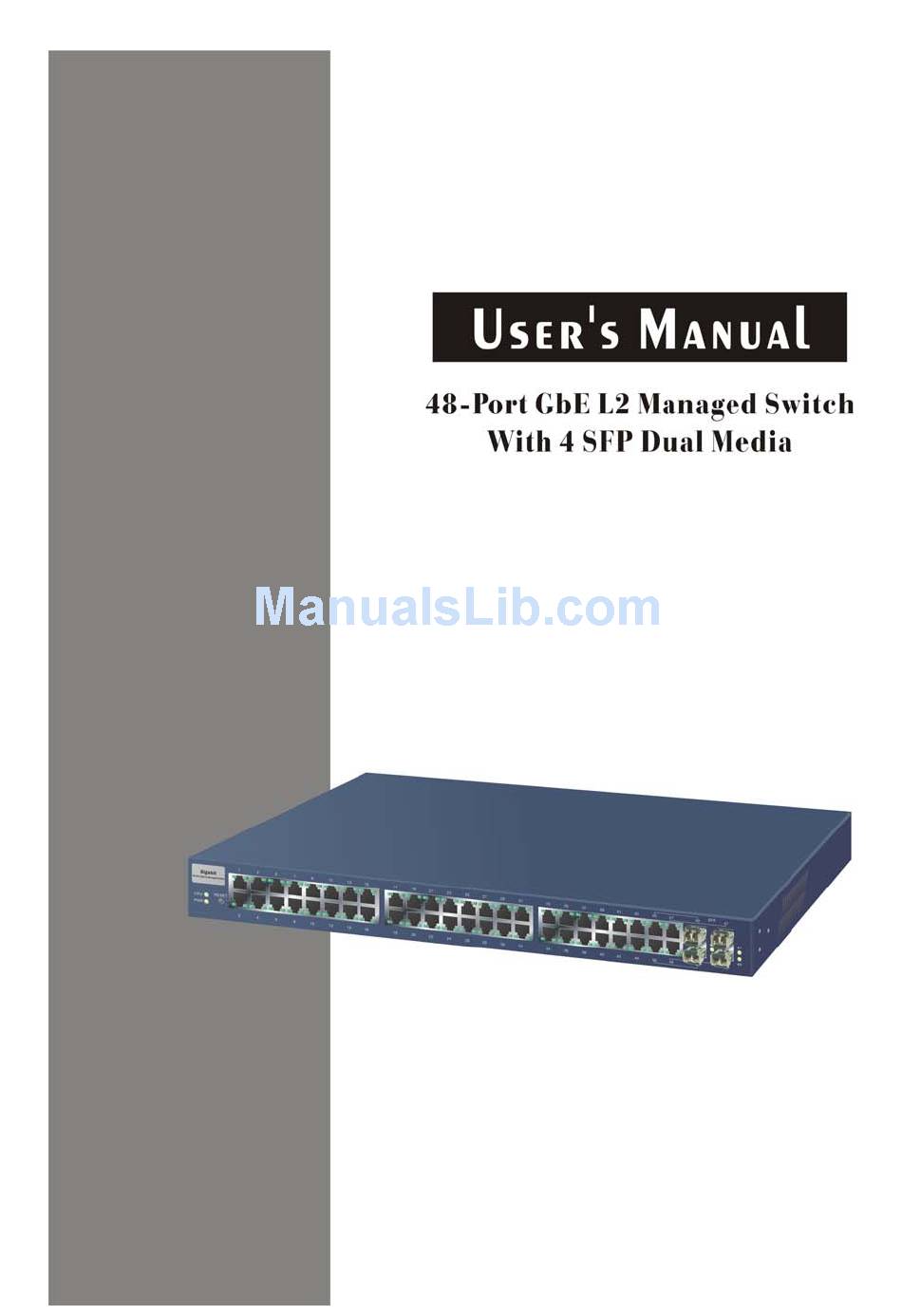

Page 3 User's Manual 48-Port GbE L2 Managed Switch with 4 SFP Dual Media Release 1.0...
Page 4: Table Of Contents
Table of Contents Caution ..........................vi Electronic Emission Notices ....................vi Introduction ........................2 1-1. Overview of the switch ....................2 1-2. Checklist.........................4 1-3. Features .........................4 1-4. View of the switch ......................6 1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs).......6 1-4-2.
Page 5 3-6-1. Priority........................64 3-6-2. Policer........................70 3-6-3. Shaper ........................71 3-6-4. Flow ........................72 3-6-5. Police-Flow ......................76 3-6-6. Mark........................77 3-6-7. Mark-enable......................78 3-7. ACL..........................79 3-7-1. ACL Mode ......................79 3-7-2. ACL/VLAN Mapping....................80 3-7-3. ACL Rule.......................81 3-8. ACL QoS Load ......................82 3-9. User Defined ........................83 3-10. SNMP Configuration ....................84 3-11.
Page 6 4-2. Commands of CLI ......................161 4-2-1. Global Commands of CLI ...................162 4-2-2. Local Commands of CLI ..................168 5. Maintenance ........................265 5-1. Resolving No Link Condition ..................265 5-2. Q&A..........................265 Appendix A Technical Specifications ................266 Appendix B Null Modem Cable Specifications ..............270...
Page 7: Revision History
Revision History Release Date Revision 02/21/2008...
Page 8: Caution
Caution Circuit devices are sensitive to static electricity, which can damage their delicate electronics. Dry weather conditions or walking across a carpeted floor may cause you to acquire a static electrical charge. To protect your device, always: • Touch the metal chassis of your computer to ground the static electrical charge before you pick up the circuit device.
Page 9 About this user’s manual This user’s manual provides instructions on how to install your switch. This guide also covers management options and detailed explanation about hardware and software functions. Overview of this user’s manual Chapter 1 “Introduction” describes the features of the switch Chapter 2 “Installation”...
Page 10: Introduction
User Manual 1. Introduction 1-1. Overview of the switch The 48-port Gigabit L2 Managed Switch is a L2 management switch that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet specifications. The switch has 44 10/100/1000Mbps TP ports and 4 Gigabit TP/SFP transceiver slots. It supports console, telnet, http and SNMP interface for switch management.
Page 11: User Manual
User Manual • Key Features in the Device QoS: Support Quality of Service by the IEEE 802.1P standard. There are two priority queue and packet transmission schedule. Spanning Tree: Support IEEE 802.1D, IEEE 802.1w (RSTP: Rapid Spanning Tree Protocol) standards. VLAN: Support Port-based VLAN and IEEE802.1Q Tag VLAN.
Page 12: Checklist
User Manual 1-2. Checklist Before you start installing the switch, verify that the package contains the following: ⎯ 48-port Gigabit L2 Managed Switch ⎯ Modules (optional) ⎯ Mounting Accessory (for 19” Rack Shelf) ⎯ This User's Manual in CD-ROM ⎯ AC Power Cord ⎯...
Page 13 User Manual • Supports 802.1Q VLAN • Supports user management and limits three users to login • Maximal packet length can be up to 9216 bytes for jumbo frame application • Supports DHCP Broadcasting Suppression to avoid network suspended or crashed •...
Page 14: View Of The Switch
User Manual 1-4. View of the switch Fig. 1-1 Full View of the switch 1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs) There are 44 TP Gigabit Ethernet ports and 4 SFP fiber ports for optional removable modules on the front panel of the switch. LED display area, locating on the left side of the panel, contains a Power LED, which indicates the power status and 48 ports working status of the switch.
Page 15: User Interfaces On The Rear Panel
User Manual • LED Indicators Color Function System LED POWER Green Lit when +5V DC power is on and good CPU LED Green Blinks when CPU is activity 10/100/1000Ethernet TP Port 1 to 44 LED Lit when connection with remote device is good LINK/ACT Green Blinks when any traffic is present...
Page 16: View Of The Optional Modules
User Manual 1-5. View of the Optional Modules In the switch, Port 45~48 include two types of media --- TP and SFP Fiber (LC, BiDi LC…); they support 10/100/1000Mbps TP or 1000Mbps SFP Fiber with auto-detected function. 1000Mbps SFP Fiber transceiver is used for high-speed connection expansion;...
Page 17: Installation
User Manual 2. Installation 2-1. Starting the switch Up This section will give users a quick start for: Hardware and Cable Installation - Management Station Installation - Software booting and configuration 2-1-1. Hardware and Cable Installation At the beginning, please do first: ⇒...
Page 18 User Manual • T P Port and Cable Installation ⇒ In the switch, TP port supports MDI/MDI-X auto-crossover, so both types of cable, straight-through (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 1, 2, 3, 6 in 10/100M TP; 1, 2, 3, 4, 5, 6, 7, 8 to 1, 2, 3, 4, 5, 6, 7, 8 in Gigabit TP) and crossed-over (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 3, 6, 1, 2) can be used.
Page 19: Installing Chassis To A 19-Inch Wiring Closet Rail
User Manual 2-1-2. Installing Chassis to a 19-Inch Wiring Closet Rail Fig. 2-2 Caution: Allow a proper spacing and proper air ventilation for the cooling fan at both sides of the chassis. ⇒ Wear a grounding device for electrostatic discharge. ⇒...
Page 20 User Manual 2-1-3-1. Cabling Requirements for TP Ports ⇒ For Fast Ethernet TP network connection ⎯ The grade of the cable must be Cat. 5 or Cat. 5e with a maximum length of 100 meters. ⇒ Gigabit Ethernet TP network connection ⎯...
Page 21 User Manual 2-1-3-3. Switch Cascading in Topology • Takes the Delay Time into Account Theoretically, the switch partitions the collision domain for each port in switch cascading that you may up-link the switches unlimitedly. In practice, the network extension (cascading levels & overall diameter) must follow the constraint of the IEEE 802.3/802.3u/802.3z and other 802.1 series protocol specifications, in which the limitations are the timing requirement from physical signals defined by 802.3 series specification of Media Access Control (MAC) and PHY, and timer from some...
Page 22 User Manual Case1: All switch ports are in the same local area network. Every port can access each other (See Fig. 2-3). Fig. 2-3 No VLAN Configuration Diagram If VLAN is enabled and configured, each node in the network that can communicate each other directly is bounded in the same VLAN area.
Page 23 User Manual Case 2b: Port-based VLAN (See Fig.2-5). Fig. 2-5 Port-based VLAN Diagram 1. VLAN1 members could not access VLAN2, VLAN3 and VLAN4 members. 2. VLAN2 members could not access VLAN1 and VLAN3 members, but they could access VLAN4 members. VLAN3 members could not access VLAN1, VLAN2 and VLAN4.
Page 24: Configuring The Management Agent Of The Switch
User Manual 2 -1-4. Configuring the Management Agent of the switch W e offer you three ways to startup the switch management function. They are RS- 232 console, CLI, and Web. Users can use any one of them to monitor and configure the switch.
Page 25 User Manual 2-1-4-1. Configuring the Management Agent of the switch through the Serial RS-232 Port To perform the configuration through RS-232 console port, the switch’s serial port must be directly connected to a DCE device, for example, a PC, through RS-232 cable with DB-9 connector.
Page 26 User Manual • Set IP Address, Subnet Mask and Default Gateway IP Address Please refer to Fig. 2-7 CLI Management for details. They are default setting of IP address. You can first either configure your PC IP address or change IP address of the switch, next to change the IP address of default gateway and subnet mask.
Page 27 User Manual 2-1-4-2. Configuring the Management Agent of the switch through the Ethernet Port There are three ways to configure and monitor the switch through the switch’s Ethernet port. They are CLI, Web browser and SNMP manager. The user interface for the last one is NMS dependent and does not cover here. We just introduce the first two types of management interface.
Page 28: Ip Address Assignment
User Manual Fig. 2-10 t he Login Screen for Web 2-1-5. IP Address Assignment For IP address configuration, there are three parameters needed to be filled in. They are IP address, Subnet Mask, Default Gateway and DNS. IP address: The address of the network device in the network is used for internetworking communication.
Page 29 User Manual With the classful addressing, it divides IP address into three classes, class A, class B and class C. The rest of IP addresses are for multicast and broadcast. The bit length of the network prefix is the same as that of the subnet mask and is denoted as IP address/X, for example, 192.168.1.0/24.
Page 30 User Manual Class D and E: Class D is a class with first 4 MSB (Most significance bit) set to 1-1-1-0 and is used for IP Multicast. See also RFC 1112. Class E is a class with first 4 MSB set to 1-1-1-1 and is used for IP broadcast.
Page 31 User Manual In this diagram, you can see the subnet mask with 25-bit long, 255.255.255.128, contains 126 members in the sub-netted network. Another is that the length of network prefix equals the number of the bit with 1s in that subnet mask. With this, you can easily count the number of IP addresses matched.
Page 32 User Manual For different network applications, the subnet mask may look like 255.255.255.240. This means it is a small network accommodating a maximum of 15 nodes in the network. Default gateway: For the routed packet, if the destination is not in the routing table, all the traffic is put into the device with the designated IP address, known as default router.
Page 33: Typical Applications
User Manual 2-2. Typical Applications The switch implements 48 Gigabit Ethernet TP ports with auto MDIX and two slots for the removable module supporting comprehensive fiber types of connection, including LC and BiDi-LC SFP modules. For more details on the specification of the switch, please refer to Appendix A.
Page 34 User Manual Fig. 2-14 Peer-to-peer Network Connection Fig. 2-15 Office Network Connection Publication date: Feb., 2008 Revision A1...
Page 35: Operation Of Web-Based Management
User Manual 3. Operation of Web-based Management T his chapter instructs you how to configure and manage the switch t hrough the web user interface it supports, to access and manage the 4 4-Port 10/100/1000Mbps TP and 4-Port Gigabit TP/SFP Fiber management Ethernet switch. With this facility, you can easily access and monitor through any one port of the switch all the status of the switch, including MIBs status, each port activity, Spanning tree status, port...
Page 36 User Manual In the switch, it supports a simple user management function allowing only one administrator to configure the system at the same time. If there are two or more users using administrator’s identity, the switch will allow the only one who logins first to configure the system.
Page 37: System
User Manual 3-1. System After you login, the switch shows you the system information as Fig. 3-2. This page is default and tells you the basic information of the system, including “Model Name”, “System Description”, “Location”, “Contact”, “Device Name”, “System Up Time”, “Current Time”, “BIOS Version”, “Firmware Version”, “Hardware-Mechanical Version”, “Serial Number”, “Host IP Address”, “Host Mac Address”, “Device Port”, “RAM Size”...
Page 38 User Manual • The Information of Page Layout ⎯ On the top side, it shows the front panel of the switch. In the front panel, the linked ports will display green; as to the ports, which are link off, they will be dark.
Page 39: System Information
You can configure this parameter through the device’s user interface or SNMP. Device name: The name of the switch. User-defined. Default is LGB1048A. System up time: The time accumulated since this switch is powered up. Its format is day, hour, minute, second.
Page 40 User Manual Host IP address: The IP address of the switch. Host MAC address: It is the Ethernet MAC address of the management agent in this switch. Device Port: Show all types and numbers of the port in the switch. RAM size: The size of the DRAM in this switch.
Page 41: Ip Configuration
User Manual 3-1-2. IP Configuration IP configuration is one of the most important configurations in the switch. Without the proper setting, network manager will not be able to manage or view the device. The switch supports both manual IP address setting and automatic IP address setting via DHCP server.
Page 42 User Manual IP address: Users can configure the IP settings and fill in new values if users set the DHCP function “Disable”. Then, click <Apply> button to update. When DHCP is disabled, Default: 192.168.1.1 If DHCP is enabled, this field is filled by DHCP server and will not allow user manually set it any more.
Page 43 User Manual DNS: It is Domain Name Server used to serve the translation between IP address and name address. The switch supports DNS client function to re-route the mnemonic name address to DNS server to get its associated IP address for accessing Internet.
Page 44: Time Configuration
User Manual 3-1-3. Time Configuration The switch provides manual and automatic ways to set the system time via NTP. Manual setting is simple and you just input “Year”, “Month”, “Day”, “Hour”, “Minute” and “Second” within the valid value range indicated in each item. If you input an invalid value, for example, 61 in minute, the switch will clamp the figure to NTP is a well-known protocol used to synchronize the clock of the switch system time over a network.
Page 45 User Manual NTP: NTP is Network Time Protocol and is used to sync the network time based Greenwich Mean Time (GMT). If use the NTP mode and select a built-in NTP time server or manually specify an user-defined NTP server as well as Time Zone, the switch will sync the time in a short after pressing <Apply>...
Page 46 User Manual Day Light Saving End : This is used to set when to stop performing the daylight saving time. Mth: Range is 1 ~ 12. Default: 1 Day: Range is 1 ~ 31. Default: 1 Hour: Range is 0 ~ 23. Default: 0 Fig.
Page 47: Account Configuration
User Manual 3-1-4. Account Configuration In this function, only administrator can create, modify or delete the username and password. Administrator can modify other guest identities’ password without confirming the password but it is necessary to modify the administrator-equivalent identity. Guest-equivalent identity can modify his password only. Please note that you must confirm administrator/guest identity in the field of Authorization in advance before configuring the username and password.
Page 48: Management Policy
User Manual 3-1-5. Management Policy Through the management security configuration, the manager can do the strict setup to control the switch and limit the user to access this switch. The following rules are offered for the manager to manage the switch: Rule 1) : When no lists exists, then it will accept all connections.
Page 49 User Manual Function name: Management Security Configuration Function description: The switch offers Management Security Configuration function. With this function, the manager can easily control the mode that the user connects to the switch. According to the mode, users can be classified into two types: Those who are able to connect to the switch (Accept) and those who are unable to connect to the switch (Deny).
Page 50 User Manual IP Range: The switch supports two kinds of options for managed valid IP Range, including “Any” and “Custom”. Default is “Any”. In case that” Custom” had been chosen, you can assigned effective IP range. The valid range is 0.0.0.0~255.255.255.255. Access Type: The switch supports two kinds of options for managed valid Access Type...
Page 51 User Manual Fig. 3-8 Parameter description: Name: A name is composed of any letter (A-Z, a-z) and digit (0-9) with maximal 8 characters. VID: The switch supports two kinds of options for managed valid VLAN VID, including “Any” and “Custom”. Default is “Any”. When you choose “Custom”, you can fill in VID number.
Page 52 User Manual Action: The switch supports two kinds of options for managed valid Action Type including “Deny” and “Accept”. Default is “Deny”. When you choose “Deny” action, you will be restricted and refused to manage the switch due to the “Access Type” you choose. However, while you select “Accept”...
Page 53: Port Configuration
User Manual 3-2. Port Configuration Four functions, including Port Status, Port Configuration, Simple Counter and Detail Counter are contained in this function folder for port monitor and management. Each of them will be described in detail orderly in the following sections.
Page 54 User Manual FUNCTION NAME: PORT STATUS FUNCTION DESCRIPTION: REPORT THE LATEST UPDATED STATUS OF ALL PORTS IN THIS SWITCH. WHEN ANY ONE OF THE PORTS IN THE SWITCH CHANGES ITS PARAMETER DISPLAYED IN THE PAGE, IT WILL BE AUTOMATICALLY REFRESHED THE PORT CURRENT STATUS ABOUT EVERY 5 SECONDS. PARAMETER DESCRIPTION: Port: Display the port number.
Page 55 User Manual parties must have the same setting of speed and duplex, otherwise, both of them will not be linked. In this case, the link result is “Down”. Default: Enabled Speed / Duplex Mode: Display the speed and duplex of all port. There are three speeds 10Mbps, 100Mbps and 1000Mbps supported for TP media, and the duplex supported is half duplex and full duplex.
Page 56 User Manual Parameter description: Link: Show that if the link on the port is active or not. If the link is connected to a working-well device, the Link will show the link “Up”; otherwise, it will show “Down”. This is determined by the hardware on both devices of the connection.
Page 57 User Manual Rx Byte: Received bytes on this port. Tx Packet: Transmitted packets on this port. Rx Packet: Received packets on this port. Tx Collision: Number of collisions transmitting frames experienced. Rx Error Packet: Number of fault packets received. Publication date: Feb., 2008 Revision A1...
Page 58: Port Configuration
User Manual 3-2-2. Port Configuration Port Configuration is applied to change the setting of each port. In this configuration function, you can set/reset the following functions. All of them are described in detail below. F ig. 3-11 F unction name: P ort Configuration F unction description: I t is used to set each port’s operation mode.
Page 59 User Manual through this port. Port State is configurable by the user. There are only two states “Enable” and “Disable” able to choose. If you set a port’s state “Disable”, then that port is prohibited to pass any traffic, even it looks Link up.
Page 60: Simple Counter
User Manual 3-2-3. Simple Counter The function of Simple Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad. In the Fig. 3-13, the window can show all ports’ counter information at the same time.
Page 61: Detail Counter
User Manual Tx Packet: The counting number of the packet transmitted. Rx Error Packet: Number of bad packets received. Tx Collision: Number of collisions transmitting frames experienced. 3-2-4. Detail Counter The function of Detail Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad.
Page 62 User Manual Rx Unicast: Show the counting number of the received unicast packet. Rx Multicast: Show the counting number of the received multicast packet. Rx Broadcast: Show the counting number of the received broadcast packet. Rx Pause: Rx Other Control: Show the counting number of the received other control packet.
Page 63 User Manual Tx Unicast: Show the counting number of the transmitted unicast packet. Tx Multicast: Show the counting number of the transmitted multicast packet. Tx Broadcast: Show the counting number of the transmitted broadcast packet. Tx Pause: Tx 64 Bytes: Number of 64-byte frames in good and bad packets transmitted.
Page 64: Storm
User Manual 3-3. Storm Function name: Storm Control Function description: Storm control function helps limit the broadcast and multicast packets once over pre-defined threshold, thus prevents from network outrage. Fig. 3-14 Parameter description: Storm: To enable or disable Storm Control function. Rate: The rate setting as packets per second for storm control function.
Page 65: Mirror
User Manual 3-4. Mirror Function name: Mirror Configuration Function description: Mirror Configuration is to monitor the traffic of the network. For example, we assume that Port A and Port B are Monitoring Port and Monitored Port respectively, thus, the traffic received by Port B will be copied to Port A for monitoring.
Page 66: Filter
User Manual T T T 3-5. Filter Filter function is used to drop specific packets to maintain a clean network environment. Filtering rules can be set by the following items: 1. Bad Length 2. Unknown Encapsulation 3. Unknown Ether-Type 4. Unknown IP Protocol 5.
Page 67: Unknown Encap
User Manual 3-5-2. Unknown Encap. Function name: Unknown Encapsulation Filtering Function description: If a received packet’s encapsulation is neither Ethernet V2 nor SNAP, then the packet would be discarded. Fig. 3-17 Publication date: Feb., 2008 Revision A1...
Page 68: Unknown Ether-Type
User Manual 3-5-3. Unknown Ether-Type Function name: Unknown Ether-Type Filtering Function description: If a received packet’s Ethernet type is not IPv4, IPv6, ARP or RARP, then the packet would be filtered. Fig. 3-18 Publication date: Feb., 2008 Revision A1...
Page 69: Unknown Ip Protocol
User Manual 3-5-4. Unknown IP Protocol Function name: Unknown IP Protocol Filtering Function description: Whenever unknown IP Protocol found, the packet would be filtered. The default allowed IP Protocol types are ICMP, IGMP, TCP, and UDP. Fig. 3-19 Publication date: Feb., 2008 Revision A1...
Page 70: Ipv4 Options
User Manual 3-5-5. IPv4 Options Function name: IPv4 Options Filtering Function description: Whenever IPv4 packet is found with options field included, the packet would be filtered. Fig. 3-20 Publication date: Feb., 2008 Revision A1...
Page 71: Unknown Source
User Manual 3-5-6. Unknown Source Function name: Unknown Source Address Filtering Function description: A received packet whose source MAC address not included in MAC address table would be filtered. Fig. 3-21 Publication date: Feb., 2008 Revision A1...
Page 72: Qos(Quality Of Service) Configuration
User Manual 3-6. QoS(Quality of Service) Configuration offers seven powerful QoS functions. Moreover, Priority switch Configuration function set for each port by different precedence is also provided. QoS enables you to provide better service to certain flows. This is done by either raising the priority of a flow or limiting the priority of another flow.
Page 73 User Manual Function name: Priority – IP Layer Priority State Setting Function description: Set Priority State by IP Layer or Not-IP Layer. If both Layer 2 (VLAN) and Layer 3 (IP) priority information are available in the receive packet, the Layer 3 information would take precedence unless the IP-Ignored of related port is enabled.
Page 74 User Manual Function name: Priority – Differentiated Service Code Point(DSCP) Function description: Set Priority State for every DSCP. IP packets utilize the DSCP field to assign priority. These 64-entry table are addressed by 6-bit DSCP field from the IP header. This table may be configured arbitrarily, however, it is recommended that lower-value entries relate to lower-priority levels.
Page 75 User Manual Function name: Priority – Port Priority Setting Function description: Set Priority State for every port. Upon reception, each packet is assigned a priority value. The most basic priority assignment comes from the receive port’s default priority. This default port priority is used whenever Layer 2 (VLAN) and Layer 3 (IP) priority information is not available.
Page 76 User Manual Function name: Priority – Shaper Queue Function description: Set Shaper Queue number for each Priority. The device supports 8 levels of internal priority representation. However, there are 4 queues available for each transmit port. This 8-entry table is used to map the 8 packet priority to one of the shaper queue.
Page 77 User Manual Function name: Priority – ACL Priority Override Function description: Set whether let ACL rule override the above priority settings. Parameter description: ACL-Override: Enable or Disable ACL rule override the above priority settings. Fig. 3-27 Publication date: Feb., 2008 Revision A1...
Page 78: Policer
User Manual 3-6-2. Policer Function name: Policer Configuration Function description: Policer provides the function to regulate Ingress network traffic flow. Policing (dropping) may drop some packets to bring a traffic stream into compliance with a traffic profile specified via policies. Fig.
Page 79: Shaper
User Manual 3-6-3. Shaper Function name: Shaper Setting Function description: T he primary purpose of Shaper is to control Egress access to available bandwidth. Fig. 3-29 Parameter description: State: To enable or disable Shaper function. Burst Limit: The limitation of traffic flow, the valid value is from 1 to 61440 bytes. Port: For selecting the port number.
Page 80: Flow
User Manual 3-6-4. Flow Fig. 3-30 Publication date: Feb., 2008 Revision A1...
Page 81 User Manual Function name: Flow – IP Flow ID Ignore Setting Function description: Set Priority State by IP Layer or Not-IP Layer for each port. Layer 3 priority information is ordinarily used of all IP packets while Layer 2 information is used of all non-IP packets for Flow ID selection. The device can be configured to always use Layer 2 priority information by enabling the IP-ignored field of related port.
Page 82 User Manual Function name: Flow – IP Flow ID Configuration Function description: Set IP Flow ID Configuration. Parameter description: IP address for flow Prefix: Mask for IP, valid value is from 0 to 32. Source Flow ID: Identifier for source flow set in Police-Flow ID Table. Destination Flow ID: Identifier for destination flow set in Police-Flow ID Table.
Page 83 User Manual Function name: Flow – Static Forwarding MAC Function description: Set IP Flow ID Configuration. Parameter description: MAC: MAC address for flow Port No: Port identifier number. Source Flow ID: Identifier for source flow set in Police-Flow ID Table. Destination Flow ID: Identifier for destination flow set in Police-Flow ID Table.
Page 84: Police-Flow
User Manual 3-6-5. Police-Flow Function name: Policer Flow ID Table Function description: Set Policer for each Priority according to Source Flow ID and Destination Flow ID. Fig. 3-34 Publication date: Feb., 2008 Revision A1...
Page 85: Mark
User Manual 3-6-6. Mark Function name: Mark Priority Function description: Mark Priority function allows to mark the priority according to Demoted or Not- Demoted tag from CoS and DSCP. Parameter description: Not-demoted: Priority setting according to Not-Demoted for CoS and DSCP. Demoted: Priority setting according to Demoted for CoS and DSCP.
Page 86: Mark-Enable
User Manual 3-6-7. Mark-enable Function name: Mark-enable CoS/DSCP Function description: Mark-enable offers the function to mark DSCP and COS for each port on the switch as desired. Just select the option you want and press <Apply> button to make the function effect. Fig.
Page 87: Acl
User Manual 3-7. ACL The switch includes 48 ACLs mainly used to filter packets. Each port or VID (256 Active VLAN matched with 48 ACL) maps an ACL, then decides which of the following actions would take according to the packet’s IP Source/Destination, EtherType, Protocol, TCP/UDP Source/Destination Port field (5 tuples): - packet denial or permission - priority reassignment...
Page 88: Acl/Vlan Mapping
User Manual 3-7-2. ACL/VLAN Mapping Function name: ACL/VLAN Mapping Function description: This function is used to select an ACL to match a VLAN ID. Once completing the setting, click <Apply> button, the setting takes effect. Parameters description: ACL Number: The number identifier of each ACL for mapping matched VLAN ID. Fig.
Page 89: Acl Rule
User Manual 3-7-3. ACL Rule Function name: ACL Rule Function description: This function is used to create, edit, or delete ACL rules by clicking <Create>, <Edit>, or <Delete> button. Parameters description: ACL Number: The number identifier for each ACL. Rule: Rule number.
Page 90: Acl Qos Load
User Manual 3-8. ACL QoS Load Function name: ACL QoS Load Function description: While finishing ACL or QoS settings, please click <Load> button to execute ACL Qos Load to make the setting takes effect. Fig. 3-40 Publication date: Feb., 2008 Revision A1...
Page 91: User Defined
User Manual 3-9. User Defined Function name: User Defined Function description: This function allows users to define three sets of Ether Type and IP Protocol for the application on ACL or Protocol VLAN settings in the future. Once completing the setting, click <Apply> button, the setting takes effect. Fig.
Page 92: Snmp Configuration
User Manual 3-10. SNMP Configuration Any Network Management System (NMS) running the Simple Network Management Protocol (SNMP) can manage the Managed devices equipped with SNMP agent, provided that the Management Information Base (MIB) is installed correctly on the managed devices. The SNMP is a protocol that is used to govern the transfer of information between SNMP manager and agent and traverses the Object Identity (OID) of the management Information Base (MIB), described in the form of SMI syntax.
Page 93 User Manual Parameters description: SNMP: The term SNMP here is used for the activation or de-activation of SNMP. Default is Enable. State: You may enable SNMP State by checking the box. Security: Select encryption or non-encryption. Version: You may choose V1, V2, or V3 Trap. Authentication Protocol: Select MD5 or SHA authentication.
Page 94 User Manual Function name: SNMP EngineID Function description: This function allows to set Engine ID, “Default” is suggested to select. Fig. 3-43 Publication date: Feb., 2008 Revision A1...
Page 95 User Manual Function name: SNMP Account Function description: This function lists all SNMP accounts’ settings. To create a new account, please click <Create New> button. Fig. 3-44 Publication date: Feb., 2008 Revision A1...
Page 96 User Manual Once completing the setting, click <Apply> button, the setting takes effect. Fig. 3-45 Parameters description: SNMP Version: You may choose SNMP V1, V2, or V3. View Type: User Name: Set user name for the SNMP account in this field. Group Name: Set group name for the SNMP account in this field.
Page 97 User Manual Fig. 3-46 Fig. 3-47 Publication date: Feb., 2008 Revision A1...
Page 98: Igmp Snooping
User Manual 3-11. IGMP Snooping The function, IGMP Snooping, is used to establish the multicast groups to forward the multicast packet to the member ports, and, in nature, avoids wasting the bandwidth while IP multicast packets are running over the network. This is because a switch that does not support IGMP or IGMP Snooping can not tell the multicast packet from the broadcast packet, so it can only treat them all as the broadcast packet.
Page 99 User Manual Parameter description: IGMP snooping: The switch supports two kinds of IGMP Snooping status, including “Enable”, and “Disable”. Disable: Set “Disable” mode to disable IGMP Snooping function. Default: Disable Enable: In “Enable” mode, IGMP snooping switch will gather the Membership report message to update the database of the Multicast table.
Page 100 User Manual Function name: Static IGMP Group Function description: The Allowed Group function allows the IGMP Snooping to set up the IP multicast table based on user’s specific conditions. IGMP report packets that meet the items you set up will be joined or formed the multicast group. Fig.
Page 101 User Manual Create: A new entry of configuration can be created after the allowed group parameters as mentioned above had been setup and then press <Add> button. Delete: Remove the existed entry of allowed group configuration from the allowed group. Edit: The existed entry also can be modified after pressing <Edit>...
Page 102: Trunk
User Manual 3-12. Trunk The Port Trunk Configuration is used to configure the settings of Link Aggregation. You can bundle more than one port with the same speed, full duplex and the same MAC to be a single logical port, thus the logical port aggregates the bandwidth of these ports.
Page 103 User Manual Per Trunking Group supports a maximum of 12 ready member-ports. Please note that some decisions will automatically be made by the system while you are configuring your trunking ports. Some configuration examples are listed below: 12 ports have already used Static Trunk Group ID 1, the 13th port willing to use the same Static Trunk Group ID will be automatically set to use the “None”...
Page 104 User Manual Function name: Port Setting/Status Function description: Port setting/status is used to configure the trunk property of each and every port in the switch system. Parameter description: Method: This determines the method a port uses to aggregate with other ports. None: A port does not want to aggregate with any other port should choose this default setting.
Page 105 User Manual Aggtr: Aggtr is an abbreviation of “aggregator”. Every port is also an aggregator, and its own aggregator ID is the same as its own Port No. We can regard an aggregator as a representative of a trunking group. Ports with same Group ID and using same trunking method will have the opportunity to aggregate to a particular aggregator port.
Page 106 User Manual Function name: Aggregator View Function description: To display the current port trunking information from the aggregator point of view. Parameter description: Aggregator: It shows the aggregator ID (from 1 to 48) of every port. In fact, every port is also an aggregator, and its own aggregator ID is the same as its own Port No..
Page 107 User Manual Function name: LACP Detail (LACP Aggregator Detailed Information) Function description: Show the detailed information of the LACP trunking group. Parameter description: Actor: The switch you are watching on. Partner: The peer system from this aggregator’s view. System Priority: Show the System Priority part of a system ID.
Page 108 User Manual Function name: LACP System Priority Function description: It is used to set the priority part of the LACP system ID. LACP will only aggregate together the ports whose peer link partners are all on a single system. Each system supports LACP w ill be assigned a globally unique System Identifier for this purpose.
Page 109: Stp Configuration
User Manual 3-13. STP Configuration The Spanning Tree Protocol (STP) is a standardized method (IEEE 802.1D) for avoiding loops in switched networks. When STP is enabled, ensure that only one path is active between any two nodes on the network at a time. User can enable Spanning Tree Protocol on switch’s web management and then set up other advanced items.
Page 110 User Manual Maximum Age time is assigned by root bridge in unit of seconds. Default is 20 seconds. Current Forward Delay: Show the current root bridge forward delay time. The value of Forward Delay time is set by root. The Forward Delay time is defined as the time spent from Listening state moved to Learning state or from Learning state moved to Forwarding state of a port in bridge.
Page 111: Stp Configuration
User Manual 3-13-2. STP Configuration The STP, Spanning Tree Protocol, actually includes RSTP. In the Spanning Tree Configuration, there are six parameters open for the user to configure as user’s idea. Each parameter description is listed below. Function name: STP Configuration Function description: User can set the following Spanning Tree parameters to control STP function enable/disable, select mode RSTP/STP and affect STP state machine...
Page 112 User Manual Forward Delay: You can set the root bridge forward delay time. This figure is set by root bridge only. The forward delay time is defined as the time spent from Listening state moved to Learning state and also from Learning state moved to Forwarding state of a port in bridge.
Page 113: Stp Port Configuration
User Manual 3-13-3. STP Port Configuration Function name: STP Port Setting Function description: In the STP Port Setting, one item selection and five parameters settings are offered for user’s setup. User can disable and enable each port by selecting each Port Status item. User also can set “Path Cost” and “Priority” of each port by filling in the desired value and set “Admin Edge Port”...
Page 114 User Manual 802.1w RSTP recommended value: (Valid range: 1 – 200,000,000) 10 Mbps : 2,000,000 100 Mbps : 200,000 1 Gbps : 20,000 Default: 0 Priority: Priority here means Port Priority. Port Priority and Port Number are mixed to form the Port ID. Port IDs are often compared in order to determine which port of a bridge would become the Root Port.
Page 115 User Manual M Check: Migration Check. It forces the port sending out an RSTP BPDU instead of a legacy STP BPDU at the next transmission. The only benefit of this operation is to make the port quickly get back to act as an RSTP port. Click <M Check>...
Page 116: Gvrp Configuration
User Manual 3-14. GVRP Configuration GVRP is an application based on Generic Attribute Registration Protocol (GARP), mainly used to automatically and dynamically maintain the group membership information of the VLANs. The GVRP offers the function providing the VLAN registration service through a GARP application. It makes use of GARP Information Declaration (GID) to maintain the ports associated with their attribute database and GARP Information Propagation (GIP) to communicate among switches and end stations.
Page 117 User Manual Function name: GVRP Config Function description: In the function of GVRP Config, it is used to configure each port’s GVRP operation mode, in which there are seven parameters needed to be configured described below. Parameter description: GVRP State Setting: This function is simply to let you enable or disable GVRP function.
Page 118 User Manual Normal: It is Normal Registration. The Registrar responds normally to incoming GARP messages. The default setting is Normal. Fixed: It is Registration Fixed. The Registrar ignores all GARP messages, and all members remain in the registered (IN) state. Forbidden: It is Registration Forbidden.
Page 119 User Manual Function name: GVRP Counter Function description: All GVRP counters are mainly divided into Received and Transmitted two categories to let you monitor the GVRP actions. Actually, they are GARP packets. Fig. 3-59 Parameter description: Received: Total GVRP Packets: Total GVRP BPDU is received by the GVRP application.
Page 120 User Manual LeaveEmpty Message Packets: Number of GARP BPDU with Leave Empty message is received by the GARP application. Empty Message Packets: Number of GARP BPDU with Empty message is received by the GARP application. Transmitted: Total GVRP Packets: Total GARP BPDU is transmitted by the GVRP application. Invalid GVRP Packets: Number of invalid GARP BPDU is transmitted by the GVRP application.
Page 121 User Manual Function name: GVRP Group Information Function description: To show the dynamic group member and their information. Parameter description: VID: VLAN identifier. When GVRP group creates, each dynamic VLAN group owns its VID. Valid range is 1 ~ 4094. Member Port: Those are the members belonging to the same dynamic VLAN group.
Page 122: Configuration
User Manual 3-15. 802.1X Configuration 802.1X port-based network access control provides a method to restrict users to access network resources via authenticating user’s information. This restricts users from gaining access to the network resources through a 802.1X- enabled port without authentication. If a user wishes to touch the network through a port under 802.1X control, he (she) must firstly input his (her) account name for authentication and waits for gaining authorization before sending or receiving any packets from a 802.1X-enabled port.
Page 123 User Manual The overview of operation flow for the Fig. 3-53 is quite simple. When Supplicant PAE issues a request to Authenticator PAE, Authenticator and Supplicant exchanges authentication message. Then, Authenticator passes the request to RADIUS server to verify. Finally, RADIUS server replies if the request is granted or denied.
Page 124 User Manual Authentication server Fig. 3-62 Authenticator Supplicant A The Fig. 3-55 shows the procedure of 802.1X authentication. There are steps for the login based on 802.1X port access control management. The protocol used in the right side is EAPOL and the left side is EAP. At the initial stage, the supplicant A is unauthenticated and a port on switch acting as an authenticator is in unauthorized state.
Page 125 User Manual If user ID and password is correct, the authentication server will send a Radius-Access-Accept to the authenticator. If not correct, the authentication server will send a Radius-Access-Reject. When the authenticator PAE receives a Radius-Access-Accept, it will send an EAP-Success to the supplicant. At this time, the supplicant is authorized and the port connected to the supplicant and under 802.1X control is in the authorized state.
Page 126 User Manual Only MultiHost 802.1X is the type of authentication supported in the switch. In this mode, for the devices connected to this port, once a supplicant is authorized, the devices connected to this port can access the network resource through this port.
Page 127 User Manual Function name: 802.1X Server Setting Function description: This function is used to configure the global parameters for RADIUS authentication in 802.1X port security application. Parameter description: Server IP: RADIUS server IP address for authentication. Default: 192.168.1.1 UDP Port: The port number to communicate with RADIUS server for the authentication service.
Page 128 User Manual Function name: 802.1X Configuration Function description: Set the operation mode of 802.1X for each port. In this device, it supports only Multi-host operation mode. Parameter description: Port Number: Indicate which port is selected to configure the 802.1X operation mode. Mode: 802.1X operation mode.
Page 129 User Manual Function name: 802.1X Status Function description: Shows each port status. In Multihost mode, it shows the port number and its status, authorized or unauthorized. Parameter description: Port: The port number to be chosen to show its 802.1X Port Status. The valid number is Port 1 –...
Page 130 User Manual Function name: 802.1X Statistics Function description: This function is used to display the parameters for each port in 802.1X port security application. Refer to the following parameters description for details. Parameter description: Port: It is the port number to be selected for configuring its associated 802.1X parameters which are Port control, reAuthMax, txPeriod, Quiet Period, reAuthEnabled, reAuthPeriod, max.
Page 131 User Manual reAuthEnabled: Choose whether regular authentication will take place in this port. Default: ON reAuthPeriod(1-65535 s): A non-zero number seconds between the periodic re-authentication of the supplicant. Default: 3600 max. Request(1-10): The maximum of number times that the authenticator will retransmit an EAP Request to the supplicant before it times out the authentication session.
Page 132: Alarm Configuration
User Manual 3-16. Alarm Configuration Alarm Configuration Events Configuration Email/SMS Configuration Function name: E vents Configuration Function description: T he Trap Events Configuration function is used to enable the switch to send out the trap information while pre-defined trap events occurred. The switch offers 24 different trap events to users for switch management.
Page 133 User Manual Fig. 3-68 Function name: E mail/SMS Configuration Function description: Alarm configuration is used to configure the persons who should receive the alarm message via either email or SMS, or both. It depends on your settings. An email address or a mobile phone number has to be set in the web page of alarm configuration.
Page 134 User Manual Parameter description: Email: Mail Server: the IP address of the server transferring your email. Username: your username on the mail server. Password: your password on the mail server. Email Address 1 – 6: email address that would like to receive the alarm message.
Page 135: Configuration
User Manual 3-17. Configuration The switch supports three copies of configuration, including the default configuration, working configuration and user configuration for your configuration management. All of them are listed and described below respectively. Default Configuration: This is default setting and cannot be altered. In Web UI, two restore default functions are offered for the user to restore to the default setting of the switch.
Page 136: Save/Restore
User Manual 3 -17-1. Save/Restore Function name: Save As Start Configuration Function description: Save the current configuration as a start configuration file in flash memory. Fig. 3-71 Publication date: Feb., 2008 Revision A1...
Page 137 User Manual Function name: Save As User Configuration Function description: Save the current configuration as a user configuration file in flash memory. Fig. 3-72 Publication date: Feb., 2008 Revision A1...
Page 138 User Manual Function name: Restore Default Configuration (includes default IP address) Function description: R estore Default Configuration function can retrieve default setting to replace the start configuration. And the IP address of the switch will also be restored to 192.168.1.1. Fig.
Page 139 User Manual Function name: Restore Default Configuration (excludes current IP address) Function description: R estore Default Configuration function can retrieve default setting to replace the start configuration. However, the switch’s current IP address that the user set up will not be changed and will NOT be restored to 192.168.1.1 as well. Fig.
Page 140 User Manual Function name: Restore User Configuration Function description: R estore User Configuration function can retrieve the previous confirmed working configuration stored in the flash memory to update start configuration. When completing to restore the configuration, the system’s start configuration is updated and will be changed its system settings after rebooting the system.
Page 141: Config Filet
User Manual 3 -17-2. Config File Function name: Config File Function description: With this function, user can back up or reload the config files of Save As Start or Save As User via TFTP. Parameter description: Export File Path: Export Start: Export Save As Start’s config file stored in the flash.
Page 142: Diagnostics
User Manual 3-18. Diagnostics Three functions, including Diagnostics, Loopback Test and Ping Test are contained in this function folder for device self-diagnostics. Each of them will be described in detail orderly in the following sections. Diagnostics Diagnostics Loopback Test Ping Test Function name: Diagnostics Function description:...
Page 143 User Manual Function name: Loopback Test Function description: In the Loopback Test function, there are two different loopback tests. One is Internal Loopback Test and the other is External Loopback Test. The former test function will not send the test signal outside the switch box. The test signal only wraps around in the switch box.
Page 144 User Manual Function name: Ping Test Function description: Ping Test function is a tool for detecting if the target device is alive or not through ICMP protocol which abounds with report messages. The switch provides Ping Test function to let you know that if the target device is available or not.
Page 145: Loop Detection
User Manual 3-19. Loop Detection Function name: Loop Detection Function description: Loop detection function helps alert the user when there is a loop formed inside the network Parameter description: Port: Check the ports you would like to apply the Loop Detection function to. Action Enable: Check this item to make Loop Detection function enabled.
Page 146: Tftp Server
User Manual 3-20. TFTP Server Function name: TFTP Server Function description: Set up IP address of TFTP server. Parameter description: Specify the IP address where the TFTP server locates. Fill in the IP address of your TFTP server, then press <Apply> button to have the setting taken effect. Fig.
Page 147: Log
User Manual 3-21. Log This function shows the log data. The switch provides system log data for users. There are 19 private trap logs, 5 public trap logs. The switch supports total 120 log entries. For more details on log items, please refer to the section of Trap/Alarm Configuration and SNMP Configuration.
Page 148 User Manual Upload Log: Upload log data through tftp. Clear Log: Clear log data. Publication date: Feb., 2008 Revision A1...
Page 149: Firmware Upgrade
User Manual 3-22. Firmware Upgrade Software upgrade tool is used to help upgrade the software function in order to fix or improve the function. The switch provides a TFTP client for software upgrade. This can be done through Ethernet. Function name: Firmware Upgrade Function description: The switch supports TFTP upgrade tool for upgrading software.
Page 150: Max. Packet Length
User Manual 3-23. Max. Packet Length Function name: Max. Packet Length Function description: The switch is capable of dealing with 9k Jumbo Frames, which suits the transmission for a large amount of data in the network environment. Parameter description: Jumbo Frame(bytes): Set up the maximum length of the packet that each port of the switch can accept.
Page 151: Mac Table
User Manual 3-24. MAC Table MAC Table Configuration gathers many functions, including MAC Table Information, MAC Table Maintenance, Static Forward, Static Filter and MAC Alias, which cannot be categorized to some function type. They are described below. Function name: MAC Table Information Function Description: Display the static or dynamic learning MAC entry and the state for the selected port.
Page 152 User Manual MAC Address: Display the MAC address of one entry you selected from the searched MAC entries table. Port: The port that exists in the searched MAC Entry. Type: Display the type for the searched MAC Entry. State: Display the method that this MAC Entry is built. It may show “Dynamic MAC”...
Page 153 User Manual Function Name: Aging Time Setting Function Description: This function can allow the user to set up the processing mechanism of MAC Table. An idle MAC address exceeding MAC Address Age-out Time will be removed from the MAC Table. The range of Age-out Time is 10-65535 seconds, and the setup of this time will have no effect on static MAC addresses.
Page 154 User Manual Function Name: Static Forward Function Description: Static Forward is a function that allows the user in the static forward table to access a specified port of the switch. Static Forward table associated with a specified port of a switch is set up by manually inputting MAC address and its alias name.
Page 155 User Manual Fig. 3-87 Publication date: Feb., 2008 Revision A1...
Page 156 User Manual Function name: Static Filter Function Description: Static Filter is a function that denies the packet forwarding if the packet’s MAC Address is listed in the filtering Static Filter table. User can very easily maintain the table by filling in MAC Address, VID (VLAN ID) and Alias fields individually.
Page 157: Vlan
User Manual 3-25. VLAN The switch supports Tag-based VLAN (802.1q) and Port-based VLAN Support 256 active VLANs and VLAN ID 1~4094. VLAN configuration is used to partition your LAN into small ones as your demand. Properly configuring it, you can gain not only improving security and increasing performance but greatly reducing VLAN management.
Page 158 User Manual Fig. 3-89 Publication date: Feb., 2008 Revision A1...
Page 159: Vlan Group
User Manual 3-25-2. VLAN Group Function name: VLAN Group Configuration Function description: It shows the information of existed Tag-based VLAN Groups, You can also easily create, delete and edit a Tag-based VLAN group by pressing <Create>, <Delete> and <Edit> function buttons. User can add a new VLAN group by inputting a new VLAN name and VLAN ID.
Page 160 User Manual Create Group: Create a new Tag-based VLAN. Input the VLAN name as well as VID, and choose the member ports by ticking the check box beside the port No., then, press the <Apply> button to have the setting taken effect. Fig.
Page 161 User Manual Delete Group: Just press the <Delete> button to remove the selected group entry from the Tag-based group table. Fig. 3-92 Publication date: Feb., 2008 Revision A1...
Page 162 User Manual Edit a group: Just select a group entry and press the <Edit> button, then you can modify a VLAN group’s settings. Fig. 3-93 Publication date: Feb., 2008 Revision A1...
Page 163: Port Protocol
User Manual 3-25-3. Port Protocol Function name: Port Protocol Setting Function description: It shows the information of the existed Port-based VLAN Groups. You can easily create, edit and delete a Port-based VLAN group by pressing <Add>, <Edit> and <Delete> function buttons. User can add a new VLAN group by inputting a new VLAN name.
Page 164: Port Vid
User Manual 3-25-4. Port VID Function name: VLAN Port PVID Setting Function description: It shows the information of the existed Port-based VLAN Groups. You can easily create, edit and delete a Port-based VLAN group by pressing <Add>, <Edit> and <Delete> function buttons. User can add a new VLAN group by inputting a new VLAN name.
Page 165: Reboot
User Manual 3-26. Reboot We offer you many ways to reboot the switch, including power up, hardware reset and software reset. You can press the RESET button in the front panel to reset the switch. After upgrading software, changing IP configuration or changing VLAN mode configuration, then you must reboot to have the new configuration taken effect.
Page 166: Logout
User Manual 3-27. Logout You can manually logout by performing Logout function. In the switch, it provides another way to logout. You can configure it to logout automatically. Function name: Logout Function description: The switch allows you to logout the system to prevent other users from the system without the permission.
Page 167: Operation Of Cli Management
User Manual 4. Operation of CLI Management 4-1. CLI Management Refer to Chapter 2 for basic installation. The following description is the brief of the network connection. -- Locate the correct DB-9 null modem cable with female DB-9 connector. Null modem cable comes with the management switch.
Page 168 User Manual Fig. 4-1 Fig. 4-2 Publication date: Feb., 2008 Revision A1...
Page 169: Commands Of Cli
User Manual 4-2. Commands of CLI To see the commands of the mode, please input “?” after the prompt, then all commands will be listed in the screen. All commands can be divided into two categories, including global commands and local commands. Global commands can be used wherever the mode you are.
Page 170: Global Commands Of Cli
When you enter this command, your current position would move to the top mode. If you use this command in the top mode, you are still in the position of the top mode. Argument: None. Possible value: None. Example: LGB1048A# alarm LGB1048A(alarm)# events LGB1048A(alarm-events)# end LGB1048A# exit Syntax: exit Description: Back to the previous mode.
Page 171 Argument: None. Possible value: None. Example: LGB1048A# ip LGB1048A(ip)# help Commands available: ------------<< Local commands >>------------ set ip Set ip,subnet mask and gateway set dns Set dns...
Page 172 [#]: show last number of history records. (optional) Possible value: [#]: 1, 2, 3, …., 256 Example: LGB1048A(ip)# history Command history: 0. trunk 1. exit 2. LGB1048A# trunk 3. LGB1048A(trunk)# exit 4. LGB1048A# 5. ? 6. trunk 7. exit 8. alarm 9. events 10.
Page 173 After rebooting, the entire startup configuration would reset to factory default. Argument: None. Possible value: None. Example: LGB1048A# restore default Restoring ... Restore Default Configuration Successfully Press any key to reboot system. Publication date: Feb., 2008 Revision A1...
Page 174 After rebooting, the entire startup configuration would replace as user defined one. Argument: None. Possible value: None. Example: LGB1048A# restore user Restoring ... Restore User Configuration Successfully Press any key to reboot system. save start Syntax: save start Description: To save the current configuration as the start one.
Page 175 To save the current configuration as the user-defined configuration. When you enter this command, the CLI would save your current configuration into the non-volatile FLASH as user-defined configuration. Argument: None. Possible value: None. Example: LGB1048A# save user Saving user... Save Successfully LGB1048A# Publication date: Feb., 2008 Revision A1...
Page 176: Local Commands Of Cli
<port range> : syntax 1,5-7, available from 1 to 24 <times>: max-times , range 1-10 Possible value: <port range> : 1 to 24 <times>: 1-10, default is 2 Example: LGB1048A(802.1X)# set max-request 2 2 set mode Syntax: set mode <port-range> <mode> Description: To set up the 802.1X mode of each port.
Page 177 2:Auto Possible value: <port range> : 1 to 24 <authorized> : 0, 1 or 2 Example: LGB1048A(802.1X)# set port-control 2 2 set quiet-period Syntax: set quiet-period <port-range> <sec> Description: A timer used by the Authenticator state machine to define periods of time during when it will not attempt to acquire a Supplicant.
Page 178 <max> : max. value , range 1-10 Possible value: <port range> : 1 to 24 <max> : 1-10, default is 2 Example: LGB1048A(802.1X)# set reAuthMax 2 2 set reAuthPeriod Syntax: set reAuthPeriod <port-range> <sec> Description: A constant that defines a nonzero number of seconds between periodic reauthentication of the supplicant.
Page 179 <secret-key> : set up the value of secret-key, and the length of secret-key is from 1 to 31 Possible value: <port-number> : 1~65535, default is 1812 Example: LGB1048A(802.1X)# set state 192.168.1.115 1812 WinRadius set suppTimeout Syntax: set suppTimeout <port-range> <sec> Description:...
Page 180 User Manual show mode Syntax: show mode Description: To display the mode of each port. Argument: None Possible value: None Example: LGB1048A(802.1X)# show mode Port Mode ====== ============ Disable Multi-host Disable Disable Disable Disable show parameter Syntax: show parameter Description: To display the parameter settings of each port.
Page 181 : 30 show security Syntax: show security Description: To display the status of each port. authentication Argument: None Possible value: None Example: LGB1048A(802.1X)# show security Port Mode Status ====== ============ ============== Disable Multi-host Unauthorized Disable Disable Disable Disable show state...
Page 182 To create a new guest user. When you create a new guest user, you must type in password and confirm password. Argument: <name> : new account name Possible value: A string must be at least 5 character. Example: LGB1048A(account)# add aaaaa Password: Confirm Password: Save Successfully LGB1048A(account)# Syntax: del <name>...
Page 183 To change the username and password of an existing account. Argument: <name> : existing user account Possible value: None. Example: LGB1048A(account)# modify aaaaa username/password: the length is from 5 to 15. Current username (aaaaa):bbbbb New password: Confirm password: Username changed successfully.
Page 184 <acl>: acl number, from 1 to 48 <rule>: rule number, from 1 to 8 Possible value: <acl>: 1 to 48 <rule>: 1 to 8 Example: LGB1048A(acl)# del rule 1 2 set << acl-vlan-mapping >> Syntax: set acl-vlan-mapping <vid> <#> Description: To set acl vlan mapping Argument: <vid>: vlan id...
Page 185 : 1 to 1024. permit : 0 or 1 priority : 0 to 8 Example: LGB1048A(acl)# set rule 1 2 3 192.168.1.0-24 192.168.2.230-28 4 5 6 1 7 show Syntax: Show <argument> Description: To display the configuration of acl. Argument:...
Page 186 To remove the configuration of E-mail address. Argument: <#>: email address number, range: 1 to 6 Possible value: <#>: 1 to 6 Example: LGB1048A(alarm-email)# del mail-address 2 del server-user Syntax: del server-user Description: To remove the configuration of server, user account and password.
Page 187 To set up the email address. Argument: <#> :email address number, range: 1 to 6 <mail address>:email address Possible value: <#>: 1 to 6 Example: LGB1048A(alarm-email)# set mail-address 1 abc@mail.abc.com H 9 2 H Publication date: Feb., 2008 Revision A1...
Page 188 Description: To set up the account and password of the email server. Argument: <username>: email server account and password Possible value: None. Example: LGB1048A (alarm-email)# set user admin show Syntax: show Description: To display the configuration of e-mail. Argument: None.
Page 189 To disable email, sms and trap of events. Argument: <range>:del the range of events, syntax 1,5-7 Possible value: <range>: 1~24 Example: LGB1048A(alarm-events)# del all 1-3 del email Syntax: del email <range> Description: To disable the email of the events. Argument: <range>:del the range of email, syntax 1,5-7...
Page 190 To disable the trap of the events. Argument: <range>:del the range of trap, syntax 1,5-7 Possible value: <range>: 1~24 Example: LGB1048A(alarm-events)# del trap 1-3 set all Syntax: set all <range> Description: To enable email, sms and trap of events. Argument: <range>:set the range of events, syntax 1,5-7...
Page 191 Description: To enable the sms of the events. Argument: <range>:set the range of sms, syntax 1,5-7 Possible value: <range>: 1~24 Example: LGB1048A(alarm-events)# set sms 1-3 set trap Syntax: set trap <range> Description: To enable the trap of the events. Argument: <range>:set the range of trap, syntax 1,5-7...
Page 192 User Manual Example: LGB1048A(alarm-events)# show Events Email SMS Trap ----------------------------------------- 1 Cold Start 2 Warm Start 3 Link Down 4 Link Up 5 Authentication Failure 6 User Login 7 User Logout 8 STP Topology Changed 9 STP Disabled 10 STP Enabled...
Page 193 To delete sms phone number. Argument: <#>: mobile phone number, range: 1 to 6 Possible value: <#>: 1 to 6 Example: LGB1048A(alarm-sms)# del phone-number 3 del server-user Syntax: del server-user Description: To delete sms server, user account and password. Argument: None.
Page 194 Argument: <#>: mobile phone number, range: 1 to 6 <phone-number>: phone number Possible value: <#>: 1 to 6 Example: LGB1048A(alarm-sms)# set phone-number 1 0968777777 set server Syntax: set server <ip> Description: To set up the IP address of sms server.
Page 195 To set up the timer of autologout. Argument: <time>: range 1 to 3600 seconds, 0 for autologout off, current setting is 180 seconds. Possible value: <time>: 0,1-3600 Example: LGB1048A# autologout 3600 Set autologout time to 3600 seconds Publication date: Feb., 2008 Revision A1...
Page 196 To cancel the egress-rate of the port. Argument: <range>:syntax 1,5-7, available from 1 to 24 Possible value: <range>: 1 to 24 Example: LGB1048A(bandwidth)# disable egress-rate 1-8 disable ingress-rate Syntax: disable ingress-rate <range> Description: To cancel the Ingress-rate of the port.
Page 197 <range>:syntax 1,5-7, available from 1 to 24 <data_rate>: 0-1000 Possible value: <range>: 1 to 24 <data_rate>: 0-1000 Example: LGB1048A(bandwidth)# enable egress-rate 1-16 200 enable ingress-rate Syntax: enable ingress-rate <range> <data_rate> Description: To set up the Ingress-rate of the ports. Argument: <range>:syntax 1,5-7, available from 1 to 24...
Page 198 Syntax: show Description: To display all current settings of the bandwidth. Argument: None Possible value: None Example: LGB1048A(bandwidth)# show Ingress Egress Port ================================================= ====================== All State All Rate Storm State Storm Rate All state All Rate ====== =========== ========== ============= ============ =========== ==========...
Page 199 Syntax: x port start Description: T o run the e xport start function. Argument: None Possible value: None Example: LGB1048A(config-file)# export start Export successful. export user-conf Syntax: export user-conf Description: To run the export user-conf function. Argument: None Possible value:...
Page 200 To set up the filepath and filename that will be exported. Argument: <filepath>:filepath and filename Possible value: <filepath>:filepath and filename Example: LGB1048A(config-file)# set export-path log/21511.txt set import-path Syntax: set import-path <filepath> Description: To set up the filepath and filename that will be imported.
Page 201 User Manual show Syntax: show Description: To display the config-file information. Argument: None Possible value: None Example: LGB1048A(config-file)# show TFTP Server IP Address: 192.168.3.111 Export Path and Filename: nmap/123.ts Import Path and Filename: user123.txt Publication date: Feb., 2008 Revision A1...
Page 202 To set up the delay time for DHCP Boot. Argument: <sec>:range syntax: 0, 1-30. The value “0” is to disable dhcp-boot delay Possible value: <sec>:0-30 Example: LGB1048A(dhcp-boot)# set dhcp-boot 30 show Syntax: show Description: To display the status of DHCP Boot.
Page 203 To confirm that whether the remote end-station or switch itself is alive or not. Argument: <ip> : ip address or domain name Possible value: IP address, e.g. 192.168.2.65 or domain name, e.g. tw.yahoo.com Example: LGB1048A(diag)# ping 192.168.1.115 Gateway : 192.168.1.253 192.168.1.115 is alive. Publication date: Feb., 2008 Revision A1...
Page 204 Description: To set bad length filtering Argument: <range>: badlength range Possible value: <range>: 1 – 48 Example: badlength 1 LGB1048A(fiilter)# set set ipv4 Syntax: set ipv4 <range> Description: To set IPv4 options filtering Argument: <range>: IPv4 options range Possible value: <range>: 1 –...
Page 205 Syntax: set upgrade-path <filepath> Description: To set up the image file that will be upgraded. Argument: <filepath>: upgrade file path Possible value: <filepath>: upgrade file path Example: LGB1048A(firmware)# set upgrade-path LGB1048A_v2.03.img show Publication date: Feb., 2008 Revision A1...
Page 206 Syntax: show Description: To display the information of tftp server and upgrade-path. Argument: None Possible value: None Example: LGB1048A(firmware)# show TFTP Server IP Address: 192.168.3.111 Path and Filename : LGB1048A_v2.03.img upgrade Syntax: upgrade Description: To run the upgrade function. Argument:...
Page 207 <group number>: enter which gvrp group you had created, using value is vid. Available range: 1 to 4094 Possible value: <group number>: 1~4094 Example: LGB1048A(gvrp)# show group GVRP group information Current Dynamic Group Number: 1 VID Member Port ---- -------------------------------------------------- Publication date: Feb., 2008...
Page 208 User Manual LGB1048A(gvrp)# group 2 LGB1048A(gvrp-group-2)# set applicant 1-6 non-participant LGB1048A(gvrp-group-2)# show GVRP group VID: 2 Port Applicant Registrar ---- --------------- --------- Non-Participant Normal Non-Participant Normal Non-Participant Normal Non-Participant Normal Non-Participant Normal Non-Participant Normal Normal Normal Normal Normal Normal Normal...
Page 209 <normal>: set applicant as normal mode <non-participant>: set applicant as non-participant mode Possible value: <range>: 1 to 24 <normal|non-participant>: normal or non-participant Example: LGB1048A(gvrp)# set applicant 1-10 non-participant set registrar Syntax: set registrar <range> <normal|fixed|forbidden> Description: To set default registrar mode for each port.
Page 210 <enable>: set restricted enabled <disable>: set restricted disabled Possible value: <range>: 1 to 24 <enable|disable>: enable or disable Example: LGB1048A(gvrp)# set restricted 1-10 enable LGB1048A(gvrp)# show config GVRP state: Enable Port Join Time Leave Time LeaveAll Time Applicant Registrar Restricted...
Page 211 Leave Time must equal double Join Time at least. Possible value: <range> : 1 to 24 <join>: 20 to 100 <leave>: 60 to 300 <leaveall>: 1000 to 5000 Example: LGB1048A(gvrp)# set timer 2-8 25 80 2000 show config Syntax: show config Description: To display the gvrp configuration. Argument:...
Page 212 Description: To display the counter number of the port. Argument: <port>: port number Possible value: <port>: available from 1 to 24 Example: LGB1048A(gvrp)# show counter 2 GVRP Counter port: 2 Counter Name Received Transmitted -------------------- -------- ----------- Total GVRP Packets...
Page 213 <port-range>: syntax 1,5-7, available from 1 to 24 Possible value: <ip-multicast>: ex: 224.1.1.1-225.2.3.3 or any <vid>: 0-4094 or any <port-range>: 1 to 24 Example: LGB1048A(igmp-snooping)# add allowed-group 224.1.1.1-225.2.3.3 100 1-10 del allowed-group Syntax: del allowed-group <index> Description: To remove the entry of allowed ip multicast group Argument: <index>: the index of the allowed-group.
Page 214 To set up the mode of IGMP Snooping. Argument: <status>: 0:disable, 1:active, 2:passive Possible value: <status>: 0,1or 2 Example: LGB1048A(igmp-snooping)# set mode 2 show igmp-snooping Syntax: show igmp-snooping Description: To display IGMP snooping mode and allowed IP multicast entry. Argument: None.
Page 215 LGB1048A(ip)# enable dhcp manual set dns Syntax: set dns <ip> Description: To set the IP address of DNS server. Argument: <ip> : dns ip address Possible value: 168.95.1.1 Example: LGB1048A (ip)# set dns 168.95.1.1 Publication date: Feb., 2008 Revision A1...
Page 216 Possible value: <ip> : 192.168.1.2 or others <mask> : 255.255.255.0 or others <gateway> : 192.168.1.253 or others Example: LGB1048A(ip)# set ip 192.168.1.2 255.255.255.0 192.168.1.253 show Syntax: show Description: To display the system’s DHCP function state, IP address, subnet mask, default gateway, DNS mode, DNS server IP address and current IP address.
Page 217 Jumbo frame : 16383 bytes clear Syntax: clear Description: To clear the log data. Argument: None. Possible value: None. Example: LGB1048A(log)# clear disable auto-upload Syntax: disable auto-upload Description: To disable the auto-upload function. Argument: Publication date: Feb., 2008 Revision A1...
Page 218 User Manual None. Possible value: None. Example: LGB1048A(log)# disable auto-upload enable auto-upload Syntax: enable auto-upload Description: To enable the auto-upload function. Argument: None. Possible value: None. Example: LGB1048A(log)# enable auto-upload Publication date: Feb., 2008 Revision A1...
Page 219 Argument: None. Possible value: None. Example: LGB1048A(log)# show Tftp Server : 0.0.0.0 Auto Upload : Disable 1) Wed Apr 13 12:13:27 2005 Link Up [Port 1] 2) Wed Apr 13 12:13:26 2005 Link Down [Port 1] 3) Wed Apr 13 11:58:31 2005 Login [admin]...
Page 220 Argument: <port-range>: port range <state>: 0: Disabled, 1: Enabled Possible value: <port-range>: 1 – 48 <state>: 0, 1 Example: LGB1048A(loop-detect)# set port 2 1 set state Syntax: set state <mode> Description: To set the loop detection state Argument: <mode>: 0: Disabled, 1: Enabled Possible value: <mode>: 0, 1...
Page 221 To set up the mac alias entry. Argument: <mac> : mac address, format: 00-02-03-04-05-06 <alias> : mac alias name, max. 15 characters Possible value: None Example: LGB1048A(mac-table-alias)# set 00-44-33-44-55-44 www show Syntax: show Description: To display the mac alias entry. Argument:...
Page 222 <vid> : vlan id, from 1 to 4094; '?' as don't care, 0 as untagged Possible value: <port> :1 to 24 <vid> : 0, 1 ~4094 Example: LGB1048A(mac-table-information)# search 1-24 ??-??-??-??-??-?? ? MAC Table List Alias MAC Address Port VID State...
Page 223 User Manual 00-40-f4-89-c9-7f 0 Dynamic 00-e0-18-2b-9d-e2 0 Dynamic 00-40-c7-d8-00-02 0 Dynamic Publication date: Feb., 2008 Revision A1...
Page 224 Argument: <#>: age-timer in seconds, 0, 10 to 65535. The value “0” means to disable aging Possible value: <#>: 0, 10 to 65535. Example: LGB1048A(mac-table-maintain)# set aging 300 set flush Syntax: set flush Description: To delete all of the MACs that is learned dynamically.
Page 225 [alias] : mac alias name, max. 15 characters Possible value: <mac> : mac address <port> : 0-24 <vid> : 0, 1-4094 [alias] : mac alias name Example: LGB1048A(mac-table-static-mac)# add 00-02-03-04-05-06 3 0 aaa LGB1048A(mac-table-static-mac)# Syntax: del <mac> <vid> Description: To remove the static mac entry. Argument: <mac>...
Page 226 Syntax: show filter Description: To display the static filter table. Argument: None Possible value: None Example: LGB1048A(mac-table-static-mac)# show filter Static Filtering Etnry: (Total 1 item(s)) 1) mac: 00-33-03-04-05-06, vid: -, alias: ccc LGB1048A(mac-table-static-mac)# show forward Syntax: show forward Description: To display the static forward table.
Page 227 [<type> <value>] For example, h(ttp),s(nmp),t(elnet) or any. <action> <value> No default and it must be set. Example: LGB1048A(management-add)# set name Mary vid 20 ip 192.168.1.1-192.168.1.90 port 2-5,8 type h,s action a LGB1048A(management-add)# show #: 1 Name : Mary VlanID : 20 IP : 192.168.1.1-192.168.1.90...
Page 228 Example: LGB1048A(management)# show #: 1 Name : Tom VlanID : 2 IP : 192.168.1.30-192.168.1.80 Type : SNMP Action : Deny Port : 1,2 LGB1048A(management)# delete 1 LGB1048A(management)# show Security rule list is empty now Publication date: Feb., 2008 Revision A1...
Page 229 For example, h(ttp),s(nmp),t(elnet) or any <action> <value> No default and it must be set. Example: LGB1048A(management)# edit 1 LGB1048A(management-edit-1)# set name Tom vid 2 ip 192.168.1.30- 192.168.1.80 port 1-2 type s action d LGB1048A(management-edit-1)# show #: 1 Name : Tom VlanID : 2 IP : 192.168.1.30-192.168.1.80...
Page 230 Description: To show the specific management policy record. Argument: None Possible value: None Example: LGB1048A(management)# show #: 1 Name : Tom VlanID : 2 IP : 192.168.1.30-192.168.1.80 Type : SNMP Action : Deny Port : 1,2 Publication date: Feb., 2008...
Page 231 <range>: port range, syntax 1,5-7, available from 1 to 24 <length (bytes)>: maximum packet length Possible value: <range> : 1 to 24 <length (bytes)>: 1518/1532/9216 Example: LGB1048A(max-pkt-len)# set len 1-8 9216 show Syntax: show Description: To show current setting of maximum packet length setting.
Page 232 : enable the mode of mirror(Only mirror the packets that is received) disable: end the function of mirror Possible value: <rx | disable>: rx or disable Example: LGB1048A(mirror)# set mirror-mode rx set monitored-port Syntax: set monitored-port <range> Description: To set up the port that will be monitored. The packets received by this port will be copied to the monitoring port.
Page 233 Description: To display the setting status of Mirror function. Argument: None Possible value: None Example: LGB1048A(mirror)# show Mirror Mode : rx Monitoring Port : 2 Monitored Port : 3 4 5 7 10 Publication date: Feb., 2008 Revision A1...
Page 234 To disable the flow control function of the port. Argument: <range>: syntax 1,5-7, available from 1 to 24 Possible value: <range>: 1 ~ 24 Example: LGB1048A (port)# disable flow-control 6 disable state Syntax: disable state <range> Description: To disable the communication capability of the port.
Page 235 To enable the flow control function of the port. Argument: <range>: syntax 1,5-7, available from 1 to 24 Possible value: <range>: 1 ~ 24 Example: LGB1048A (port)# enable flow-control 3-8 enable state Syntax: enable state <range> Description: To enable the communication capability of the port.
Page 236 To display the detailed counting number of each port’s traffic. Argument: <#>: port, available from 1 to 24 Possible value: <#>:1 ~ 24 Example: LGB1048A (port)# show detail-counter 5 show sfp Syntax: show sfp <port> Description: To display the SFP module information.
Page 237 Syntax: show simple-counter Description: To display the summary counting of each port’s traffic. Argument: None. Possible value: None. Example: LGB1048A (port)# show simple-counter show status Syntax: show status Description: To display the port’s current status. Argument: None. Possible value: None.
Page 238 <#>: 1-10 <tcp/udp port range>: 0-65535 <default>: 1 or 0 <match>: 1 or 0 Example: LGB1048A(qos)# set advance-layer4 5 2 80 1 0 set default Syntax: set default <class> Description: To set priority class of the packets that qos won’t affect.
Page 239 <ds-range>: dscp field, syntax 1,5-7, available from 0 to 63 <class>: class of service setting. 1: high, 0: low Possible value: <ds-range>: 0 to 63 <class>: 1or 0 Example: LGB1048A(qos)# set diffserv 0-20 1 set mode Syntax: set mode <port/pri_tag/tos/layer4/diffserv> Description: To set qos priority mode of the switch.
Page 240 <class>: class of service setting. 1: high, 0: low Possible value: <port-range>: 1 to 24 <tag-range>: 0 to 7 <class>: 1or 0 Example: LGB1048A(qos)# set pri-tag 1-15 1-2 1 set simple-layer4 Syntax: set simple-layer4 <#> Description: To set class of ports on simple mode of Layer 4 qos.
Page 241 <class>: class of service setting. 1: high, 0: low Possible value: <port-range>: 1 to 24 <tos-range>: 0 to 7 <class>: 1or 0 Example: LGB1048A(qos)# set tos 1-5 0-3 0 show Syntax: show Description: To display the information of the mode you choose.
Page 242 Description: The Disable here is used for the de-activation of snmp or set-community. Argument: None. Possible value: None. Example: LGB1048A(snmp)# disable snmp LGB1048A(snmp)# disable set-ability enable Syntax: enable set-ability enable snmp Description: The Enable here is used for the activation snmp or set-community.
Page 243 <community>:trap community name Possible value: <#>: 1 to 6 <port>:1~65535 Example: LGB1048A(snmp)# set get-community public LGB1048A(snmp)# set set-community private LGB1048A(snmp)# set trap 1 192.168.1.1 162 public show Syntax: show Description: The Show here is to display the configuration of SNMP. Argument: None.
Page 244 Argument: <version>: 2: SNMPv1/v2c, 3: SNMPv3 <name>: aBc, max. 32 chars Possible value: <version>: 2, 3 <name>: aBc, max. 32 chars Example: LGB1048A(snmp)# del account 2 account_1 del group Syntax: del group <version> <name> Description: To delete a group Argument: <version>: 2: SNMPv1/v2c, 3: SNMPv3...
Page 245 <group>: aBc, max. 32 chars <security>: 1 – 3 <auth>: 1, 2 <authpass>: aBc, max.32 chars <privpass>: aBc, max.32 chars Example: LGB1048A(snmp)# set account 2 1 account_1 group_1 set engine-id Syntax: set engine-id <flag> [<id>] Description: To set engine-id Argument: <flag>...
Page 246 <community>: community name, max. 32 chars <security>: <auth>: 1, 2 <authpass>: authetication password, max. 32 chars. <privpass>: privacy password, max. 32 chars Example: LGB1048A(snmp)# set trap 1 1 2 192.168.10.10 1 community_1 1 1 aaa bbb Publication date: Feb., 2008 Revision A1...
Page 247 Syntax: show account Description: To display account information for snmp Argument: None Possible value: None. Example: LGB1048A(snmp )# show account ---------------------------------------------------------------------------------------- SNMP Version : SNMPv1/v2c View Type : read-write User Name : account_1 Security Level : N/A Group Name...
Page 248 Syntax: show mode Description: To display mode status for snmp Argument: None Possible value: None. Example: LGB1048A(snmp )# show mode SNMP mode is enabled show trap Syntax: show trap Description: To display trap information for snmp Argument: None Possible value: None.
Page 249 User Manual <#>: syntax: 1, 5-7, available from 1 to 48 Possible value: <#>: 1 - 48 Example: LGB1048A(storm)# disable storm-discard 1 enable Syntax: enable storm-discard <#> Description: To enable multicast or broadcast storm Argument: <#>: syntax: 1, 5-7, available from 1 to 48 Possible value: <#>: 1 - 48...
Page 250 <state> Description: To set storm state Argument: <state>: 0: Disable, 1: Broadcast, 2: Broadcast & Multicast Possible value: <state>: 0 ~ 2 Example: LGB1048A(storm)# set storm 2 show Syntax: show Description: To display storm information Argument: None Possible value: None.
Page 251 User Manual LGB1048A(stp)# Mcheck 1-8 disable Syntax: disable Description: To disable the STP function. Argument: None. Possible value: None. Example: LGB1048A(stp)# disable enable Syntax: enable Description: To enable the STP function. Argument: None. Possible value: None. Example: LGB1048A(stp)# enable Publication date: Feb., 2008...
Page 252 <admin p2p>: Admin point to point, <auto|true|false> Possible value: <range>:1 to 24 <path cost>: 0, 1-200000000 <priority>: 0 to 240 <edge_port>: yes / no <admin p2p>: auto / true / false Example: LGB1048A(stp)# set port 1-16 0 128 yes auto Publication date: Feb., 2008 Revision A1...
Page 253 <stp|rstp> Description: To set up the version of STP. Argument: <stp|rstp>:stp / rstp Possible value: <stp|rstp>:stp / rstp Example: LGB1048A(stp)# set version rstp show config Syntax: show config Description: To display the configuration of STP. Argument: None. Possible value: None.
Page 254 To display the port information of STP. Argument: None. Possible value: None. Example: LGB1048A# stp LGB1048A(stp)# show port Port Port Status Path Cost Priority Admin Edge Port Admin Point To Point ==== =========== ========= ======== =============== ==================== 1 DISCARDING 2000000 Auto 2 DISCARDING...
Page 255 Syntax: show status Description: To display the status of STP. Argument: None. Possible value: None. Example: LGB1048A(stp)# show status STP Status : STP State : Enabled Bridge ID : 00:40:C7:D8:09:1D Bridge Priority : 61440 Designated Root : 00:40:C7:D8:09:1D...
Page 256 Argument: <contact>:string length up to 40 characters. Possible value: <contact>: A, b, c, d, ... ,z and 1, 2, 3, …. etc. Example: LGB1048A(system)# set contact Taipei set device-name Syntax: set device-name <device-name string> Description: To set the device name description of the switch.
Page 257 Syntax: show Description: To display the basic information of the switch. Argument: None. Possible value: None. Example: LGB1048A(system)# show Model Name : LGB1048A System Description : L2 Managed Switch Location Contact Device Name : LGB1048A System Up Time : 0 Days 0 Hours 4 Mins 14 Secs...
Page 258 To set up the IP address of tftp server. Argument: <ip>: the IP address of tftp server Possible value: <ip>: tftp server ip Example: LGB1048A(tftp)# set server 192.168.3.111 show Syntax: show Description: To display the information of tftp server. Argument: None.
Page 259 : -5 to +5 : (01-12) : (01-31) : (00-23) : (01-12) : (01-31) : (00-23) Example: LGB1048A(time)# set daylightsaving 3 10/12/01 11/12/01 Save Successfully set manual Syntax: set manual <YYYY/MM/DD> <hh:mm:ss> Description: To set up the current time manually. Argument:...
Page 260 To set up the current time via NTP server. Argument: <ip>: ntp server ip address or domain name <timezone>: time zone (GMT), range: -12 to +13 Possible value: <timezone>: -12,-11…,0,1…,13 Example: LGB1048A(time)# set ntp clock.via.net 8 Synchronizing...(1) Synchronization success show Syntax: show Description: To show the time configuration, including “Current Time”, “NTP Server”,”...
Page 261 : set the LACP to passive mode Possible value: <port-range> : 1 to 24 <method>: static / lacp <group>: 1-8. <active LACP>: active / passive Example: LGB1048A(trunk)# set trunk 1-4 lacp 1 active Publication date: Feb., 2008 Revision A1...
Page 262 To display the detailed information of the LACP trunk group. Argument: <aggtr>: aggregator, available from 1 to 24 Possible value: <aggtr>: 1 to 24 Example: LGB1048A(trunk)# show lacp-detail 2 Aggregator 2 Information: Actor Partner --------------------------------- --------------------------------- System Priority MAC Address...
Page 263 Description: To display the value of LACP Priority. Argument: None. Possible value: None. Example: LGB1048A(trunk)# show lacp-priority LACP System Priority : 32768 show status Syntax: show status Description: To display the aggregator status and the settings of each port. Argument: None.
Page 264 <value>: 1, 5-7, available from 1537 to 65536 Possible value: <group>: 1 to 3 <state>: 0, 1 <value>: 1537 to 65536 Example: LGB1048A(user-defined)# set ether-type 1 1 1537 set ip-protocol Syntax: set ip-protocol <group> <state> <value> Description: To set ip-protocol Argument: <group>: 1, 5-7, available from 1 to 3...
Page 265 Description: To delete the port-based vlan group. Argument: <name>: which vlan group you want to delete. Possible value: <name>: port-vlan name Example: LGB1048A(vlan)# del port-group VLAN-2 del tag-group Syntax: del tag-group <vid> Description: To delete the tag-based vlan group. Argument: <vid>: which vlan group you want to delete, available from 1 to 4094...
Page 266 To drop frames from the non-member port. Argument: <range>: which port(s) you want to set, syntax 1,5-7, available from 1 to 24 Possible value: <range>: 1 to 24 Example: LGB1048A(vlan)# disable sym-vlan 5-10 enable drop-untag Syntax: enable drop-untag <range> Description: To drop the untagged frames.
Page 267 <name> <range> Description: To add or edit a port-based VLAN group. Argument: <name>: port-vlan name <range>: syntax 1,5-7, available from 1 to 24 Possible value: <range>: 1 to 24 Example: LGB1048A(vlan)# set port-group VLAN-1 2-5,6,15-13 Publication date: Feb., 2008 Revision A1...
Page 268 <hybrid>: Tag all frames except a specific VID <vid>: untag-vid for hybrid port Possible value: <range>: 1 to 24 <vid>: 1 to 4094 Example: LGB1048A(vlan)# set port-role 5 hybrid 6 set pvid Syntax: set pvid <range> <pvid> Description: To set the pvid of vlan.
Page 269 <#>: sym/asym vlan setting. 1: symmetric vlan, 0: asymmetric vlan Possible value: <vid>: 1 to 4094 <range>: 1 to 24 <#>: 0 or 1 Example: LGB1048A(vlan)# set tag-group 2 VLAN-2 2-5,6,15-13 0 show group Syntax: show group Description: To display the vlan mode and vlan group.
Page 270 User Manual show pvid Syntax: show pvid Description: To display pvid, ingress/egress rule. Argument: None. Possible value: None. Example: LGB1048A(vlan)# show pvid Port PVID Rule1 Rule2 Port Rule Untag Vid ------ ------ --------- --------- ----------- ----------- Disable Disable Access Disable...
Page 271 To enable the virtual stack. Argument: None. Possible value: None. Example: LGB1048A(vs)# enable set gid Syntax: set gid <gid> Description: To set the group id. Argument: <gid>:Group ID Possible value: a-z,A-Z,0-9 <gid>: Example: LGB1048A(vs)# set gid group1 Publication date: Feb., 2008 Revision A1...
Page 272 Description: To set role. Argument: <master|slave>: master: act as master, slave : act as slave Possible value: <master|slave>: master or slave Example: LGB1048A(vs)# set role master show Syntax: show Description: To display the configuration of the virtual stack. Argument: None.
Page 273: Maintenance
User Manual 5. Maintenance 5-1. Resolving No Link Condition The possible causes for a no link LED status are as follows: The attached device is not powered on The cable may not be the correct type or is faulty The installed building premise cable is faulty The port may be faulty 5-2.
Page 274: Appendix A Technical Specifications
User Manual Appendix A Technical Specifications Features • 22 (10/100/1000Mbps) Gigabit Ethernet (TP) switching ports are compliant with IEEE802.3, 802.3u, 802.3z and 802.3ab. • 2 Gigabit TP/SFP fiber are dual media ports with auto detected function. • Non-blocking store-and-forward shared-memory Web-Smart switched. •...
Page 275 User Manual Hardware Specifications Standard Compliance: IEEE802.3/802.3ab / 802.3z / 802.3u / 802.3x Network Interface: Configuration Mode Connector Port 10/100/1000Mbps Gigabit TP NWay TP (RJ-45) 1 - 48 1000Base-SX Gigabit Fiber 45~48(Option) 1000 FDX *SFP 1000Base-LX Gigabit Fiber 45~48(Option) 1000 FDX *SFP 1000Base-LX Single Fiber WDM (BiDi) 1000 FDX 45~48(Option)
Page 276 User Manual Diagnostic LED: System LED : Power, CPU Per Port LED: 10/100/1000M TP Port 1 to 48 : LINK/ACT, 10/100/1000Mbps 1000M SFP Fiber Port 45 to 48 : SFP(LINK/ACT) Power Requirement AC Line Voltage 100∼240 V Frequency 50∼60 Hz Consumption Ambient Temperature 0°...
Page 277 User Manual Management Software Specifications Auto-negotiation support on 10/100/1000 Base- TX ports, Web browser or console interface can set transmission speed (10/100/1000Mbps) and System Configuration operation mode (Full/Half duplex) on each port, enable/disable any port, set VLAN group, set Trunk Connection. SNMP support;...
Page 278: Appendix B Null Modem Cable Specifications
User Manual Appendix B Null Modem Cable Specifications The DB-9 cable is used for connecting a terminal or terminal emulator to the Managed Switch’s RS-232 port to access the command-line interface. The table below shows the pin assignments for the DB-9 cable. Function Mnemonic Carrier...

Black Box LGB1048A User Manual

1 Introduction

2 Installation

3 Operation of Web-Based Management

4 Operation of CLI Management

5 Maintenance

Appendix A Technical Specifications

Appendix B Null Modem Cable Specifications

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Box LGB1048A

Summary of Contents for Black Box LGB1048A

Table of Contents
