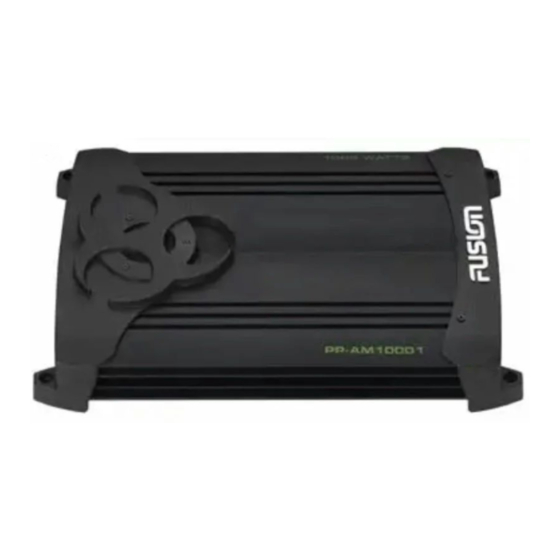

- Page 1 POWERPLANT AMPLIFIER MODELS PP–AM10001, PP–AM15001, PP–AM20001, PP–AM4002 PP–AM9002, PP–AM12002, PP–AM8004, PP–AM16004...
- Page 2 POWERPLANT Explore the limits of car audio and PowerPlant will get you there. FUSION PowerPlant delivers accurate clear sound reproduction with real power. Push sound further than it’s gone before, confident that PowerPlant products have been engineered, designed and manufactured to...
-
Page 3: Table Of Contents
TABLE OF CONTENTS • AMPLIFIER FEATURES ..........pg 4 •... -
Page 4: Amplifier Features
AMPLIFIER FEATURES FUSION has designed and engineered a full range of efficient amplifiers, featuring a black aluminium extrusion and black amplifier end caps with unique PowerPlant super graphic. The PowerPlant Amplifier range provides strength, style and great sound reproduction so you can be heard before you are seen. -
Page 5: Amplifier Specifications
AMPLIFIER SPECIFICATIONS PP-AM10001 PP-AM15001 PP-AM20001 PP-AM4002 Specifications MAX Power Rating 1000 1500 2000 (Watts/Channel) MAX Current 100A 100A Full Rated Power Distortion 0.11% 0.15% 0.45% 0.05% (Max) 1kHz THD @ Rated Power 0.1% 0.1% 0.3% 0.1% 1kHz/100Hz Channel Separation — —... -
Page 6: Amplifier Ratings
AMPLIFIER RATINGS PP-AM10001 – MONOBLOCK AMPLIFIER Power Ratings @ 14.4VDC 410 Watts RMS x 1 Channel @ 4 Ohms and 1%THD+N 555 Watts RMS x 1 Channel @ 2 Ohms and 1%THD+N PP-AM15001 – MONOBLOCK AMPLIFIER Power Ratings @ 14.4VDC 550 Watts RMS x 1 Channel @ 4 Ohms and 1%THD+N 850 Watts RMS x 1 Channel @ 2 Ohms and 1%THD+N PP-AM20001 –... -
Page 7: Amplifier Dimensions: Pp-Am10001
AMPLIFIER DIMENSIONS MONOBLOCK AMPLIFIER PP-AM10001 278mm (10 – 15/16") 270mm (10 – 5/8") -
Page 8: Amplifier Dimensions: Pp-Am15001
AMPLIFIER DIMENSIONS MONOBLOCK AMPLIFIER PP-AM15001 278mm (10 – 15/16") 270mm (10 – 5/8") -
Page 9: Amplifier Dimensions: Pp-Am20001
AMPLIFIER DIMENSIONS MONOBLOCK AMPLIFIER PP-AM20001 278mm (10 – 15/16") 270mm (10 – 5/8") -
Page 10: Amplifier Dimensions: Pp-Am4002
AMPLIFIER DIMENSIONS 2 CHANNEL AMPLIFIER PP-AM4002 278mm (10 –15/16") 270mm (10 – 5/8") -
Page 11: Amplifier Dimensions: Pp-Am9002
AMPLIFIER DIMENSIONS 2 CHANNEL AMPLIFIER PP-AM9002 278mm (10 – 15/16") 270mm (10 – 5/8") -
Page 12: Amplifier Dimensions: Pp-Am12002
AMPLIFIER DIMENSIONS 2 CHANNEL AMPLIFIER PP-AM12002 278mm (10 – 15/16") 270mm (10 – 5/8") -
Page 13: Amplifier Dimensions: Pp-Am8004
AMPLIFIER DIMENSIONS 4 CHANNEL AMPLIFIER PP-AM8004 278mm (10 – 15/16") 270mm (10 – 5/8") -
Page 14: Amplifier Dimensions: Pp-Am16004
AMPLIFIER DIMENSIONS 4 CHANNEL AMPLIFIER PP-AM16004 278mm (10 – 15/16") 270mm (10 – 5/8") -
Page 15: Installation
WARNING: Do not mount any amplifier on a subwoofer enclosure, as extended exposure to vibration may cause malfunction of the amplifier. To avoid scratching your new FUSION Amplifier, pre-drill the mounting holes with either a 3mm or 9/64" diameter drill bit and use the screws supplied in the accessory kit.. -
Page 16: Wiring
Make sure before any connection is made to the amplifier or source unit, ensure that you turn the audio system off. Failure to do so could result in either the stock system or your new FUSION product being damaged. FUSION does not warranty damaged amplifiers due to incorrect installation. -
Page 17: Connection
Use a fuse or circuit breaker of equal value as that found on the chassis of your FUSION amplifier. You may now connect the cable to the battery, but remember to leave the fuse out or circuit breaker off until all other cable connections are made. -
Page 18: Speaker Wiring
Keep in mind FUSION PowerPlant Amplifier series are high power amplifiers and not high current amplifiers. In other words, they require a minimum impedance of 2 ohms STEREO and 4 ohms bridged MONO to operate trouble free. Too low of impedance could send your FUSION amplifier into protection mode and/or damage the amplifier. -
Page 19: Low Level Inputs
Choose the correct length and style of RCA interconnects for your needs. The FUSION range of RCA’s gives you a variety of alternative solutions. These have multiple layers of shielding or are a twisted pair variety for better noise rejection (consult your FUSION dealer if unsure which to purchase). -
Page 20: Control Descriptions: Monoblock Amplifier
CONTROL DESCRIPTIONS MONOBLOCK AMPLIFIER PP-AM10001, PP-AM15001, PP-AM20001 9 10 11 POWER AND STATUS LED’S: This displays ‘Green’ if the amplifier has been correctly powered up and ‘Red’ if any faults are present. BASS BOOST: This is a variable control to increase the bass boost at 45Hz from 0 – +12dB of gain, adjust to suit. PHASE SWITCH: Select the phase switch to 0 or 180 degree to adjust the in phase or out of phase subwoofer direction to the vehicles system. - Page 21 SUBSONIC: This is a variable control that filters out all sub bass frequencies below the set point at 12dB/Octave. LEVEL: This allows level adjustment of the input signal. Use this control to correctly match the head unit to the amplifier. To set this control correctly, turn the amplifier level to MIN and the head unit to 3/4 volume, with the bass and treble on zero, then slowly turn up this amplifier level control towards the MAX end of the control.
