ENCOUNTER
AMPLIFIER MODELS
EN−AM6001, EN−AM8001, EN−AM3002
EN−AM4502, EN−AM6004, EN−AM10005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EN-AM8001 and is the answer not in the manual?

Questions and answers

Related Manuals for Fusion EN-AM8001

Summary of Contents for Fusion EN-AM8001

  • Page 1 ENCOUNTER AMPLIFIER MODELS EN−AM6001, EN−AM8001, EN−AM3002 EN−AM4502, EN−AM6004, EN−AM10005...
  • Page 2 Encounter puts that power in your hands. To optimise your FUSION experience, we recommend you have your FUSION product installed by an Authorised FUSION Dealer. Please read the warranty policy, keep your purchase receipt and original packaging.

  • Page 3: Table Of Contents

    • AMPLIFIER DIMENSIONS: EN-AM8001 ........pg 7 •...

  • Page 4: Amplifier Features

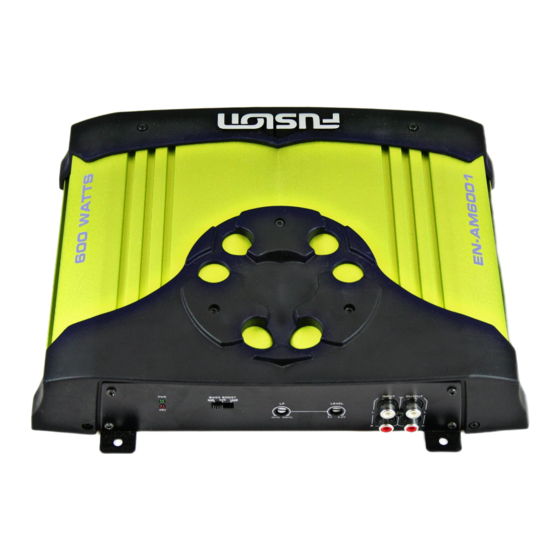

    AMPLIFIER FEATURES FUSION has designed and engineered a range of efficient amplifiers that display a unique Encounter green aluminium extrusion and black amplifier end caps with the Encounter super graphic. The Encounter amplifier range provide style and great sound reproduction from out of this world.

  • Page 5: Amplifier Specifications

    140 Watts RMS per Channel @ 2 Ohms and 1%THD+N 270 Watts RMS Bridged Channels @ 4 Ohms and 1%THD+N EN-AM6004 – 4 CHANNEL AMPLIFIER EN-AM8001 – MONOBLOCK AMPLIFIER Power Ratings @ 14.4VDC Power Ratings @ 14.4VDC 76 Watts RMS per Channel @ 4 Ohms and 1%THD+N...

  • Page 6: Amplifier Dimensions: En-Am6001

    AMPLIFIER DIMENSIONS MONOBLOCK AMPLIFIER EN-AM6001 278mm (10-15/16") 270mm (10 – 5/8")

  • Page 7: Amplifier Dimensions: En-Am8001

    AMPLIFIER DIMENSIONS MONOBLOCK AMPLIFIER EN-AM8001 278mm (10 –15/16") 270mm (10 – 5/8")

  • Page 8: Amplifier Dimensions: En-Am3002

    AMPLIFIER DIMENSIONS 2 CHANNEL AMPLIFIER EN-AM3002 278mm (10 – 15/16") 270mm (10 – 5/8")

  • Page 9: Amplifier Dimensions: En-Am4502

    AMPLIFIER DIMENSIONS 2 CHANNEL AMPLIFIER EN-AM4502 278mm (10-15/16") 270mm (10 – 5/8")

  • Page 10: Amplifier Dimensions: En-Am6004

    AMPLIFIER DIMENSIONS 4 CHANNEL AMPLIFIER EN-AM6004 278mm (10 –15/16") 270mm (10 – 5/8")

  • Page 11: Amplifier Dimensions: En-Am10005

    AMPLIFIER DIMENSIONS 5 CHANNEL AMPLIFIER EN-AM10005 278mm (10 –15/16") 270mm (10– 5/8")

  • Page 12: Installation

    WARNING: Do not mount any amplifier on a subwoofer enclosure as extended exposure to vibration may cause malfunction of the amplifier. To avoid scratching your new FUSION Amplifier, pre-drill the mounting holes with either a 3mm or 9/64” diameter drill bit and use the screws supplied in the accessory kit.

  • Page 13: Wiring

    FUSION product being damaged. FUSION will not warranty damaged amplifiers due to incorrect installation. When wiring the FUSION amplifiers, ensure that the wires are away from sharp objects and that rubber grommets and insulated bungs are used when wiring through door jams and any other steel panels.

  • Page 14: Connection

    Use a fuse or circuit breaker of equal value as that found on the chassis of your FUSION amplifier. You may now connect the cable to the battery, but remember to leave the fuse out or circuit breaker off until all other cable connections are made.
  • Page 15 GROUND When grounding your FUSION Amplifier locate a metal area close to the amplifier that is a good source of ground (preferably the floor pan). Once again, investigate the area you wish to use for electrical wires, vacuum lines, and brake or fuel lines. Use either a wire brush or sandpaper to eliminate unwanted paint.
  • Page 16 Keep in mind, FUSION Encounter series are high power amplifiers and not high current amplifiers. In other words they require a minimum impedance of 2 ohms STEREO and 4 ohms bridged MONO to operate trouble free. Too low an impedance could send your FUSION amplifier into protection mode and/or damage the amplifier.
  • Page 17 Choose the correct length and style of RCA interconnects for your needs. The FUSION range of RCA’s gives you a wide choice to suit your needs. These have multiple layers of shielding or are a twisted pair variety for better noise rejection (consult your FUSION dealer if unsure which to purchase).

  • Page 18: Control Descriptions: Monoblock Amplifier

    CONTROL DESCRIPTIONS MONOBLOCK AMPLIFIER EN-AM6001, EN-AM8001 POWER AND STATUS LED’S: This displays ‘green’ if the amplifier has been correctly powered up and ‘red’ if any faults are present. BASS BOOST: Set the bass boost switch to increase the bass at 45Hz. Selectable from 0dB, 6dB and 12dB gains LOW PASS: Ensure the crossover frequency is set at 100Hz or below.
  • Page 19 FUSES: Please ensure correct type of fuse is fitted, as specified in this manual. Note: EN-AM6001 has 1 x 30A fuse and the EN-AM8001 has 2 x 25A fuses. SPEAKER OUTPUT: See 2/1 channel installation diagrams on page 26 for correct speaker connection.

  • Page 20: Control Descriptions: 2 Channel Amplifier

    CONTROL DESCRIPTIONS 2 CHANNEL AMPLIFIER EN-AM3002, EN-AM4502 POWER AND STATUS LED’S: This displays ‘green’ if the amplifier has been correctly powered up and ‘red’ if any faults are present. CROSSOVER SELECTOR: Set the appropriate mode of operation. The three positions available are OFF, LP and HP. See points 3 and 4 below.
  • Page 21 HIGH PASS: Set the crossover switch 2 to HP and turn this control to 65Hz or above when using speakers smaller than 6 x 9”. This feature is designed to filter out all low bass frequencies that only subwoofers should produce. Note: Failure to do so could result in speaker damage.

  • Page 22: Control Descriptions: 4 Channel Amplifier

    CONTROL DESCRIPTIONS 4 CHANNEL AMPLIFIER EN-AM6004 14 15 POWER AND STATUS LED’S: This displays ‘green’ if the amplifier has been correctly powered up and ‘red’ if any faults are present. FRONT RCA INPUT: Connect these RCA connectors to the front low level output connection from the headunit. RCA OUTPUT: Use these RCA output connectors to connect to a secondary amplifier.
  • Page 23 CROSSOVER SELECTOR Set the appropriate mode of operation. The three positions available are OFF, LP and HP. See points 5 and 7. LOW PASS: Set the crossover switch 6 to LP when a subwoofer is connected. Ensure the crossover frequency is set at 100Hz or below.

  • Page 24: Control Descriptions: 5 Channel Amplifier

    CONTROL DESCRIPTIONS 5 CHANNEL AMPLIFIER EN-AM10005 11 12 14 15 POWER AND STATUS LED’S: This displays ‘green’ if the amplifier has been correctly powered up and ‘red’ if any faults are present. LOW PASS: Set the crossover switch 3 to LP when a subwoofer is connected. Ensure the crossover frequency is set at 160Hz or below.
  • Page 25 CROSSOVER SELECTOR: Set the appropriate mode of operation. The two positions available are OFF and HP (front channel). See points 5 and 7. LEVEL: This allows level adjustment of the input signal. Use this control to correctly match the head unit to the amplifier.

  • Page 26: Wiring Diagram Monoblock Amplifier

    WIRING DIAGRAM MONOBLOCK AMPLIFIER EN-AM6001, EN-AM8001 1 CHANNEL INST ALLA TION INTERNALLY LINKED CAUTION: INTERNALLY LINKED (4 Ohm)
  • Page 27 2 CHANNEL INST ALLA TION INTERNALLY LINKED CAUTION: INTERNALLY LINKED (4 Ohm) (4 Ohm)

  • Page 28: Wiring Diagram: 2 Channel Amplifier

    WIRING DIAGRAM 2 CHANNEL AMPLIFIER EN-AM3002, EN-AM4502 1 CHANNEL INST ALLA TION (4 Ohm)
  • Page 29 2 CHANNEL INST ALLA TION (4 Ohm) (4 Ohm)

  • Page 30: Wiring Diagram: 4 Channel Amplifier

    WIRING DIAGRAM 4 CHANNEL AMPLIFIER EN-AM6004 2 CHANNEL INST ALLA TION (4 Ohm)
  • Page 31 3 CHANNEL INST ALLA TION (4 Ohm) (4 Ohm) (4 Ohm)
  • Page 32 4 CHANNEL INST ALLA TION (4 Ohm) (4 Ohm) (4 Ohm) (4 Ohm)

  • Page 33: Wiring Diagram: 5 Channel Amplifier

    WIRING DIAGRAM 5 CHANNEL AMPLIFIER EN-AM10005 3 CHANNEL INST ALLA TION (4 Ohm) (4 Ohm) (4 Ohm)
  • Page 34 5 CHANNEL INST ALLA TION (4 Ohm) (4 Ohm) (4 Ohm) (4 Ohm) (4 Ohm)

  • Page 35: Tech Tips

    TECH TIPS BASIC TOOLS In any installation these basic tools may be required. For custom type installations, additional tools may be necessary. • Electric drill • Phillips screwdriver • Flat blade screwdrivers • Wire strippers • Crimping tool • Utility knife, sabre saw, jigsaw, nibbler •...
  • Page 36 SERIES AND PARALLEL SUBWOOFER WIRING FOR DUAL VOICE COIL SUBS Parallel Voice Coil Wiring To wire a DVC subwoofer in parallel in order to get 2 Ohms, use two short pieces of speaker wire and link the positive from one coil to the positive of the second coil and do the same for the negative as shown in fig 1.
  • Page 37 PARALLEL WIRING FORMULA FOR 2 SPEAKERS 4 Ohm 8 Ohm 2.67 Ohms R1 x R2 4 Ohms x 8 Ohms LOAD IMPEDANCE 2.67 Ohms R1 + R2 4 Ohms + 8 Ohms SERIES WIRING FORMULA FOR 2 SPEAKERS – – 4 Ohm 4 Ohm –...

  • Page 38: Trouble Shooting

    TROUBLE SHOOTING Before you contact your FUSION dealer or service centre FUSION requires that you do some simple trouble shooting to help to diagnose the problem. If the FUSION Amplifier has been installed by a professional installation company, then we recommend that you return to the company so that the technician can assess the problem and advise.
  • Page 39 YOU CAN HELP PROTECT THE ENVIRONMENT! PUBLISHED BY FUSION ELECTRONICS LIMITED: Please remember to respect the local regulations: © Copyright 2006 by FUSION Electronics Limited. Hand in the non-working electrical equipment All rights reserved. Specifications and design are to an appropriate waste disposal center.
  • Page 40 Specifications and design are subject to change without notice.

This manual is also suitable for:

En-am6001En-am3002En-am4502En-am6004En-am10005
