Xerox Phaser 3250 Service Manual

Hide thumbs Also See for Phaser 3250:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , User Manual
®
Phaser
3250

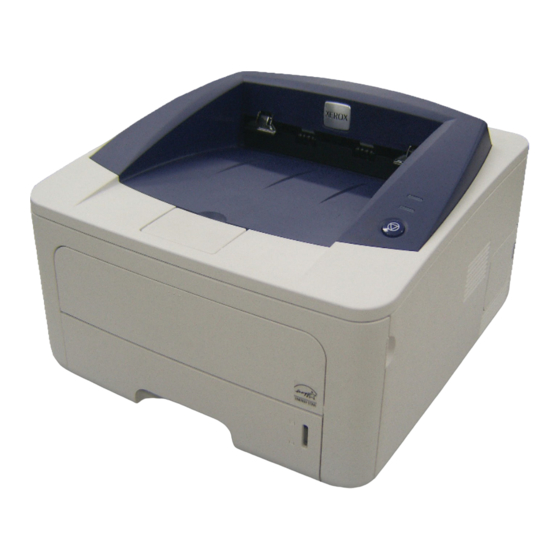

Black-and-White Laser Printer
Phaser

Service Manual

®
3250

Advertisement

Table of Contents
loading

Related Manuals for Xerox Phaser 3250

Summary of Contents for Xerox Phaser 3250

  • Page 1: Service Manual

    ® Phaser 3250 Black-and-White Laser Printer Phaser ® 3250 Service Manual...

  • Page 2: Parts List

    Parts List In this chapter... Serial Number Format ■ Using the Parts List ■ Print Engine Parts ■ Options ■ Xerox Supplies and Accessories ■ Chapter...

  • Page 3: Serial Number Format

    Parts List Serial Number Format Changes to Xerox products are made to accommodate improved components as they become available. It is important when ordering parts to include the following information: Component's part number ■ Product type or model number ■...
  • Page 4 Parts List Example MXV85501: Xerox Serial Number MVX: Product Code for the Phaser 3250, configuration D or DN, 110V printer 85501 = Serial Number for 3250_D Serial Number Label and Location Phaser™ 3250D Xerox Corporation Manufactured: JUNE 2008 CLASS 1 LASER PRODUCT Serial No.: MXV85501...

  • Page 5: Using The Parts List

    J2 is attached to the other end that is plugged into P2. Note Only parts showing part numbers are available for ordering by support. Parts not showing part numbers are available on the parent assembly. Abbreviations Abbreviation Meaning C-ring E-ring K-clip Screw Phaser 3250 Laser Printer Service Manual...

  • Page 6: Print Engine Parts

    Parts List Print Engine Parts Parts List 1.1 Main 14-2 14-1 16-3 16-1 16-2 16-4 s3250-056 Phaser 3250 Laser Printer Service Manual...
  • Page 7 MEA Unit Cassette 050N00521 ELA Unit SCF (Optional Tray 2) 098N02194 CBF-Power Cord, 110V 105N02072 CBF-Power Cord, 220V 117N01769 ELA HOU-DEVE (Print Cartridge - 3.5K) 106R01373 ELA HOU-DEVE (Print Cartridge - 5K) 106R01374 Cover Top Upper Phaser 3250 Laser Printer Service Manual...

  • Page 8: Parts List 2.1 Top Cover

    Parts List Parts List 2.1 Top Cover s3250-066 Phaser 3250 Laser Printer Service Manual...
  • Page 9 MEA Unit Cover Top (P3250DN) 002N02738 Cover Top Lower 002N02739 Stacker Large PMO Sub M-Stacker Stacker Small Cover Top Upper Badge Xerox Lens LED Spring CS Key On-Line Screw Taptite Sponge Cover Top (not shown) Phaser 3250 Laser Printer Service Manual...

  • Page 10: Parts List 3.1 Cover Assembly

    Parts List Parts List 3.1 Cover Assembly s3250-067 Phaser 3250 Laser Printer Service Manual...
  • Page 11 MEA Unit Cover Front 002N02735 MEA Unit Cover Left 002N02731 MEA Unit Cover Right (P3250D) 002N02733 MEA Unit Cover Right (P3250DN) 002N02733 3-1. Cover Right 3-2. Cover Right DIMM MEA Unit Cover Rear 002N02734 9-10 Phaser 3250 Laser Printer Service Manual...

  • Page 12: Parts List 4.1 Front Cover

    Parts List Parts List 4.1 Front Cover s3250-070 Phaser 3250 Laser Printer Service Manual 9-11...
  • Page 13 Parts List Parts List 4.1 Front Cover ID No. Name/Description Part Number MEA Unit Cover Front 002N02735 Cover Front Locker Latch Push Cover Manual Bracket Manual Screw Taptite 9-12 Phaser 3250 Laser Printer Service Manual...

  • Page 14: Parts List 5.1 Rear Cover

    Parts List Parts List 5.1 Rear Cover s3250-065 Phaser 3250 Laser Printer Service Manual 9-13...
  • Page 15 Parts List Parts List 5.1 Rear Cover ID No. Name/Description Part Number MEA Unit Cover Rear 002N02734 Cover Rear Guide Change DUP 9-14 Phaser 3250 Laser Printer Service Manual...

  • Page 16: Parts List 6.1 Frame

    Parts List Parts List 6.1 Frame 55 56 57 54-3 49 48 54-2 54-1 54-4 21-2 21-1 21-3 13-1 12 13 14 15 16 26-1 26-2 26-3 s3250-059 Phaser 3250 Laser Printer Service Manual 9-15...
  • Page 17 Parts List Parts List 6.1 Frame (continued) s3250-060 9-16 Phaser 3250 Laser Printer Service Manual...
  • Page 18 PMO Idle Pick-Up Shaft-P Pick-Up Stopper-M Pick-Up R2 MEA Unit Pick-Up 130N01540 26-1. Rubber Pick-Up 26-2. Housing-M Pick-Up 2-R2 26-3. Housing-M Pick-Up R2 Bush-M Pick-Up R Shaft Feed Gear Feed DR 16 Ground Guide TR Phaser 3250 Laser Printer Service Manual 9-17...
  • Page 19 Roller Exit Main 54-3. Roller Exit FR 54-4. Spring CS Gear-M Exit PMO Bearing Shaft Support Roller ----- Roller Exit F/Down ----- ----- ----- Shield Controller Shield SMPS (LVPS) Insulation SMPS (LVPS) Foot ML80 9-18 Phaser 3250 Laser Printer Service Manual...
  • Page 20 Shaft Feed Idle Bush-M Feed Idle Spring ETC-TR 100. Plate-P Push Bushing 101. PMO Plate Guide DEVE-L 102. Spring ETC-Guide DEVE 103. PMO-Plate Guide DEVE-R 104. Spring TR 105. Bush TR-L 106. Terminal Spring TR Phaser 3250 Laser Printer Service Manual 9-19...
  • Page 21 Spring ETC-ES (Guide Holder TR) 110. Holder Transfer 111. Link Cover Rear 112. Spring CS 113. ELA Unit Fuser (110V) 126N00295 ELA Unit Fuser (220V) 126N00296 114. MEA Unit Guide Rear 032N00491 115. Bush 4 9-20 Phaser 3250 Laser Printer Service Manual...

  • Page 22: Parts List 7.1 Main Drive

    Parts List Parts List 7.1 Main Drive s3250-064 Phaser 3250 Laser Printer Service Manual 9-21...
  • Page 23 Gear Pick Up Idle 31 Gear RDCN 52/18 Gear OPC Clutch 29 Gear Fuser DR OUT 37 Washer Plain Bracket Motor Motor BLDC Screw Taptite ----- ----- Ring C Hub Clutch Spring Clutch 9-22 Phaser 3250 Laser Printer Service Manual...

  • Page 24: Parts List 8.1 Rear Guide

    Parts List Parts List 8.1 Rear Guide s3250-062 Phaser 3250 Laser Printer Service Manual 9-23...
  • Page 25 Parts List Parts List 8.1 Rear Guide ID No. Name/Description Part Number MEA Unit Guide Rear 032N00491 Guide Rear Roller Idle Exit Bush TX Shaft Exit-F/Up Gear Exit Rubber Exit-F/Up 9-24 Phaser 3250 Laser Printer Service Manual...

  • Page 26: Parts List 9.1 Fuser

    Parts List Parts List 9.1 Fuser 24 27 s3250-061 Phaser 3250 Laser Printer Service Manual 9-25...
  • Page 27 Spring CS Ring-C Spring ES Lamp Halogen, 110V 122N00269 Lamp Halogen, 220V 122N00270 CAP Lamp-L CAP Lamp-R Gear Fuser RDCN 28-20 Gear MPF 5 Washer Plain Ring CS Photo Interrupter (Exit Sensor) 130N01274 9-26 Phaser 3250 Laser Printer Service Manual...

  • Page 28: Parts List 10.1 Duplex Unit

    Parts List Parts List 10.1 Duplex Unit 17 18 12-1 12-2 12-1 12-2 s3250-057 Phaser 3250 Laser Printer Service Manual 9-27...
  • Page 29 Gear Exit F/Down Belt Timing Gear Belt Timing Gear ELA Unit Roller-DUP 12-1. Roller Feed-DUP 12-2. Ring-C Bracket Duplex-Align Screw Tapping Guide Duplex-Upper Roller M-Idle-DUP PCT-SILP Washer Shaft Idle Roll, DUP Spring-TS Screw Taptite 9-28 Phaser 3250 Laser Printer Service Manual...
  • Page 30 Parts List Parts List 11.1 Tray 1 14-4 14-3 14-2 14-1 14-5 14-6 s3250-058 Phaser 3250 Laser Printer Service Manual 9-29...
  • Page 31 RPR-Friction Pad 14-3. Plate Pad 14-4. Sheet Pad 14-5. Ground Pad 14-6. Spring ETC Exit Roll FD Housing Holder Pad Cover Handle-Cassette Spring-ES Roller-M Idle Feed Screw Taptite Indicator Paper Sheet Guide-Side-Far Sheet Guide-Side-Near 9-30 Phaser 3250 Laser Printer Service Manual...
  • Page 32 11-31 11-28 11-8 11-25 11-9 11-27 11-10 11-7 11-26 11-20 11-30 11-11 11-9 11-21 11-5 11-29 10-1 11-19 11-18 10-2 11-22 11-10 11-13 11-18 11-23 10-3 11-15 11-14 11-24 11-19 11-17 11-12 s3250-063 Phaser 3250 Laser Printer Service Manual 9-31...
  • Page 33 Screw Taptite 11-5. PMO Locker CST 11-6. PMO Actuator Empty 11-7. Sheet Brush 11-8. MEC Brush Antistatic 11-9. Foot ML80 11-10. Foot Front 11-11. Cover Harness-SCF 11-12. Cover M-SIMM R2 11-13. PBA SCF 9-32 Phaser 3250 Laser Printer Service Manual...
  • Page 34 11-24. PMO Bushing Feed 11-25. CAM M Pick-Up 11-26. Spring-TS 11-27. Gear Feed 2 11-28. Ring CS; ID3, OD3, T0.25, Black, SU 11-29. PMO Gear Pick-Up B 11-30. Gear Pick-Up A 11-31. Spring-TS Phaser 3250 Laser Printer Service Manual 9-33...

  • Page 35: Xerox Supplies And Accessories

    128 MB DDR2 Memory (1x 128 MB) 098N02195 PL12.1.0 Optional 250-Sheet Feeder 098N02194 Power Cords Description Part Number CBF-Power Cord, 110V 105N02072 CBF-Power Cord, 220V 117N01769 Tools Parts List Part Number Reference Description Toner Vacuum 003-1496-00 9-34 Phaser 3250 Laser Printer Service Manual...
