Summary of Contents for Bryton Rider 50

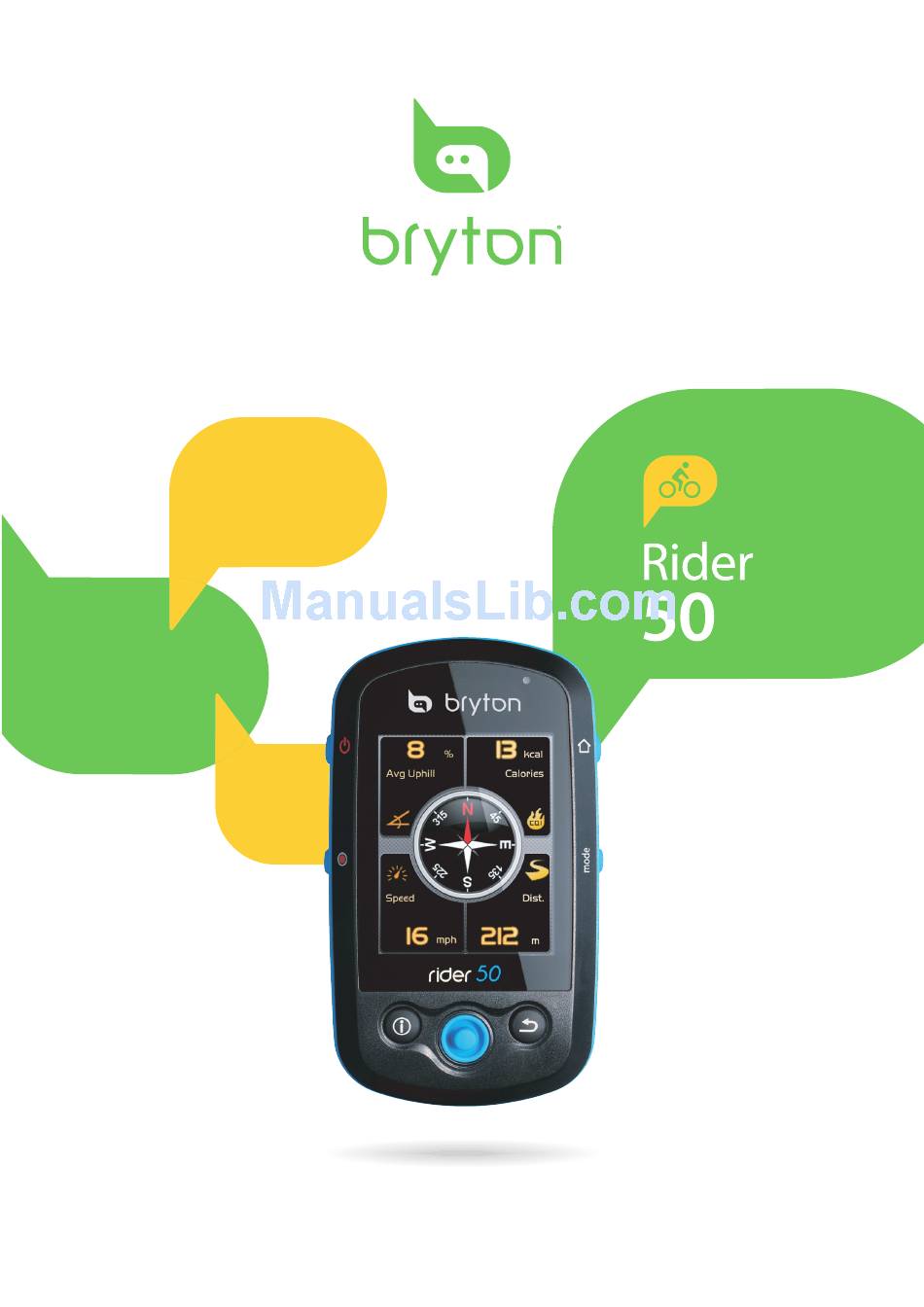

  • Page 1 User's Manual...

  • Page 3: Table Of Contents

    Acquire Satellite Signals ..... 8 My Buddy ........23 Initial Setup ......... 8 My Workout ....... 23 Ride your Bike with Rider 50! ..9 Test Workouts ......24 Manage Rider 50 Data via Your Stop Training ......25 Computer ........9 Step Counter ....
  • Page 4 Circumference ......47 Language ............34 Date Format ..........34 Heart Rate Zones ....... 48 Time Format ..........35 Basic Care For Your Rider 50 ..48 Unit Format ..........35 Adjust Date and Time ....36 Alert ........... 36 Cadence ............37 Distance ............37 Speed .............37...
  • Page 5 Always consult your physician before you begin or modify any training program. Please read the details in Warranty and Safety Information guide in the package. Product Registration Help us better support you by completing your device registration using Bryton Bridge. Go to http://support.brytonsport.com for more information. Bryton Software Go to http://brytonsport.com to download free software to upload your personal profile,...

  • Page 6: Getting Started

    Getting Started This section will guide you on the basic preparations before you start using your Rider 50. Your Rider 50 Power Step Overview (Displayed after enabled Step Counter), or Lap info • Press and hold to turn the Rider 50 on (Displayed after started a Lap training).

  • Page 7: Reset The Rider 50

    • Press to switch modes: Grid, Map, and My Buddy (Displayed after started a training). Reset the Rider 50 To reset the Rider 50, press and hold for five seconds. Accessories The Rider 50 comes with the following accessories: •...

  • Page 8: Charge The Battery

    Charge the Rider 50 for at least 4 hours before you start using it. • You can also charge the Rider 50 using your computer but recommended to turn off the Rider 50 to ensure the battery will be fully charged.

  • Page 9: Turn On The Rider 50

    Rider 50 on. Acquire Satellite Signals Once the Rider 50 is turned on, it will automatically search for satellite signals. It may take 30 to 60 seconds to acquire signals. The GPS signal icon turns blue when GPS is fixed.

  • Page 10: Ride Your Bike With Rider 50

    Manage Rider 50 Data via Your Computer 1. Turn on your Rider 50 and connect it to your computer by using USB cable. 2. Install the Bryton Bridge application from DVD. a. A pop-up installation window appears on the screen.

  • Page 11: Install Microsd Memory Card

    Insert a microSD card with the golden contact area facing downwards as shown on below illustration. NOTE: After you insert or remove the microSD card, the Rider 50 will automatically restart. Share Your Experience With Other Bikers To share your experiences with other bikers around the world, please visit http://Brytonsport.com.

  • Page 12: Find & Go

    Navigate Rides from Planned Trip You can navigate a ride uploaded to your Rider 50 from the Bryton Bridge application. 1. Prepare and download your trip via brytonsport.com and Bryton Bridge application. 2. Connect your Rider 50 with the computer using the USB cable.

  • Page 13: Find Location

    Select an option: - display the route. - delete the selected route from the Planned Trip list. In the Overview display, select an option: - switch the starting and ending points. - view the route on the map. - navigate to your selected destination. •...

  • Page 14: Enter A Location Name Using The On-Screen Keyboard

    Enter a Location Name Using the On-screen Keyboard 1. Move the 5-way navigator up/down/left/ right to select the character. 2. Press the center of the 5-way navigator to confirm the selection. • To toggle between upper and lower case letters, select •...

  • Page 15: Search Location

    Search Location 1. In the Find & Go menu, use the 5-way navigator to select Search > Address. 2. Enter an address (country-state, city, road name, and house number). 3. To start navigating to the destination, use the 5-way navigator to highlight and press the center of the 5-way navigator to confirm.

  • Page 16: My Poi

    After you have reached your destination or finished your ride, press the Menu button and use the 5-way navigator to select Find & Go > Back to Start. The Rider 50 navigates you back to your starting point. Find & Go 15...

  • Page 17: Stop Navigating

    The Rider 50 automatically saves the history as the timer starts. History includes date, time, distance, average speed, and altitude. After you have finished a ride, you can view the history data on the Rider 50. To view your history: 1.

  • Page 18: Use The Map

    Select an option: - display the route. - edit the name for selected History. - delete the selected route from the History list. NOTE: • The three icons are only displayed for the recorded log with GPS information. Otherwise, you will only see one icon •...
  • Page 19 When you are using the device for navigation, press the Info button to see the next turn (see image on the left), and press MORE to see the succeeding turns. Find & Go...

  • Page 20: Training

    Simple Workouts You can set simple workouts by entering your goals, and My Buddy will assist you to achieve them. The Rider 50 offers you with three types of simple workouts: By Time, By Distance, and By Calories. By Time 1.

  • Page 21: By Distance

    By Distance 1. In the Training menu, use the 5-way navigator to select To plan > Simple > By Distance. 2. Set your distance. 3. When finished, use the 5-way navigator to highlight Start and press the center of the 5-way navigator to confirm. 4.

  • Page 22: Basic Workouts

    Using the On-screen Keyboard 1. Move the 5-way navigator up / down / left / right to select the character. • Highlight to reset the data. • Highlight to erase the data. • Highlight to move the cursor location. • Highlight to toggle between upper and lower case letters.

  • Page 23: Interval Workouts

    Lap Workouts With the Lap feature, you can use your Rider 50 to automatically mark the lap at a specific location or after you have traveled as specific distance. You can also manually mark the lap at your preferences.

  • Page 24: My Buddy

    1. Choose a training plan from Planned Trip or History. 2. Go for a ride. The Rider 50 displays My Buddy, and it competes with you during the training. NOTE: You can customize the data fields on My Buddy mode. See “My Buddy Grid” on page 27.

  • Page 25: Test Workouts

    NOTE: Before starting with the test workout, you must have a Rider 50, a heart rate belt, and a power meter. The heart rate belt is used for measuring MHR and LTHR, and the power meter is used for measuring FTP and MAP.

  • Page 26: Stop Training

    Stop Training You can stop the current training after you have reached your goal, or you decide to end the current training. 1. Press and hold 2. A “Current training and recording will be stopped, would you like to execute?” message appears on the screen.

  • Page 27: Step Counter

    Bryton Bridge to see the detail analysis on brytonsport.com. • The device will keep a 7-day record of step counts. Please use Bryton Bridge to upload your steps before they are overwritten by new records. Step Counter...

  • Page 28: Settings

    Settings With the Settings feature, you can customize page settings, sensor settings, system settings, bike and user profile, alerts setup, and map setting. 1. Press the Menu button to open the menu. 2. Use the 5-way navigator to select Settings. •...

  • Page 29: Day/Night Mode

    4. Move the 5-way navigator up/down to select the item setting, and press the center to confirm. Move the 5-way navigator right/left to the next / previous page of the list. 5. Move the 5-way navigator up/down to select the desired setting. 6.

  • Page 30: Sensors

    CAUTION! When using the electronic compass, do not place the Rider 50 near objects that generate the magnetic fields, such as electric appliances, magnets, or buildings (high-voltage tower). These objects may cause the Rider 50 point to the wrong direction.

  • Page 31: Cadence

    Cadence 1. In the Settings menu, use the 5-way navigator to select Sensors > Cadence. 2. Move the 5-way navigator up/down to select the desired setting and press the center to confirm. • On: enable the sensor. • Off: disable the sensor. •...

  • Page 32: Speed

    Speed 1. In the Settings menu, use the 5-way navigator to select Sensors > Speed. 2. Move the 5-way navigator up/down to select the desired setting and press the center to confirm. • On: enable the sensor. • Off: disable the sensor. •...

  • Page 33: Auto Detect

    Auto Detect 1. In the Settings menu, use the 5-way navigator to select Sensors > Auto Detect. 2. Move the 5-way navigator up/down to select the desired setting and press the center to confirm. • Yes: automatically scan the sensors. •...

  • Page 34: Other Position Altitude

    NOTE: To ensure the data is accurate, it is highly recommended that you adjust the barometer every time before using your Rider 50. Change System Settings You can customize the Rider 50 system settings such as backlight off, brightness, on-screen display language, and time/unit data format. Backlight Off 1.

  • Page 35: Brightness

    Brightness 1. In the Settings menu, use the 5-way navigator to select System > Brightness. 2. Move the 5-way navigator up/down to adjust the brightness level and press the center to confirm. Language 1. In the Settings menu, use the 5-way navigator to select System >...

  • Page 36: Time Format

    Time Format 1. In the Settings menu, use the 5-way navigator to select System > Time/Unit > Time format. 2. Move the 5-way navigator up/down to select the desired time format and press the center to confirm. Unit Format 1. In the Settings menu, use the 5-way navigator to select System >...

  • Page 37: Adjust Date And Time

    • you reach a certain amount of time for the long workouts. NOTE: To use the heart rate, speed or cadence alerts, you must have a Rider 50, a heart rate belt, and a cadence sensor. Settings...

  • Page 38: Cadence

    Cadence 1. In the Settings menu, use the 5-way navigator to select Alert > By Cadence. 2. Move the 5-way navigator up/down to select the desired setting and press the center to confirm. • Alert: set the alert status. • Max Cadence: specify the fastest cadence amount in revolutions of the crank arm per minute (rpm).

  • Page 39: Time

    Time 1. In the Settings menu, use the 5-way navigator to select Alert > By Time. 2. Move the 5-way navigator up/down to select the desired setting and press the center to confirm. • Alert: set the alert status. • Time: specify the maximum riding time.

  • Page 40: View Gps Status

    View GPS Status You can view the information about the GPS signal the Rider 50 is currently receiving. The GPS signal icon turns blue when GPS is fixed. 1. In the Settings menu, use the 5-way navigator to select GPS Status.

  • Page 41: Personalize Bike Profile

    Personalize Bike Profile You can customize your bicycle(s) profile. 1. In the Settings menu, use the 5-way navigator to select Bike profile > Bike 1 or Bike 2. 2. Move the 5-way navigator up/down to select the desired setting and press the center to confirm.

  • Page 42: Data Management

    Data Management You can use the Rider 50 as a USB mass storage device, and you can purchase a separate micro SD card for additional external memory. Load Files Insert a microSD Card (optional) Insert a microSD card with the golden contact area facing downwards as shown on the illustration.

  • Page 43: Rider 50

    5-way navigator to confirm. NOTE: Bring both Rider 50 units within 4 m (or closer) range of each other. Receive Data 1. In the Knock Knock menu, use the 5-way navigator to select Receive Data.

  • Page 44: Stopwatch

    With the Stopwatch feature, you can measure the amount of time elapsed from the time the Rider 50 is activated and deactivated. You can switch between two modes: Countdown and Timer. Countdown is used to notify you when a set amount of time has passed. Timer is used to measure how long something takes.

  • Page 45: Timer

    Timer 1. In the Stopwatch menu, use the 5-way navigator to select Timer. 2. To start the timer running, press the center of the 5-way navigator to confirm. 3. To record a lap while the watch is running, move the 5-way navigator left/right to highlight and press the center of the 5-way navigator to confirm.

  • Page 46: Appendix

    Appendix Specifications Rider 50 Item Description Display 2.2” Color LCD Resolution 176 x 220 Physical size 54.7 x 96 x 21.6 mm (2.15” x 3.77” x 0.85”) Weight 106 g (3.73 oz) Operating C ~ 50 temperature Battery Charge C ~ 40...

  • Page 47: Battery Information

    Heart Rate Monitor Item Description Physical size 34.7 x 3.4 x 1.1 cm Weight 44 g Water Resistance 10 m Transmission range Battery life 1 hour per day for 16 months (480 hours) Operating temperature C ~ 40 2.4GHz / Dynastream ANT+ Sport wireless Radio frequency/protocol communications protocol Accuracy may be degraded by poor sensor contact, electrical interference, and receiver...

  • Page 48: Wheel Size And Circumference

    Wheel Size and Circumference The wheel size is marked on both sides of the tires. Wheel Size L (mm) Wheel Size L (mm) 24 x 1.75 1890 12 x 1.75 24 x 2.00 1925 14 x 1.5 1020 24 x 2.125 1965 14 x 1.75 1055...

  • Page 49: Heart Rate Zones

    Basic Care For Your Rider 50 Taking good care of your Rider 50 will reduce the risk of damage to your Rider 50. • Do not drop your Rider 50 or subject it to severe shock.
