Summary of Contents for Boss 610UA
-
Page 2: Table Of Contents
CONTENTS Precautions..............................1 ..........................1 Lithium Battery Cell Warnings Take Precaution ............................1 Installation ..............................2-3 Installation Procedures .......................... Installation Opening ..........................Wiring Connections..........................3 Removal of the Main Unit ........................3 Control Panel Button Locations ........................4 Operation ..............................4-5 Power / SRC ............................4 ........................ -
Page 3: Precautions
PRECAUTIONS Lithium Battery Cell Warnings Cell leakage may cause damage to the remote control. Do not throw cells into as this may cause an explosion. Keep battery cells out of reach of children. Take Precaution Some MP3/WMA files may not be playable. Be sure to lower the volume before switching off the unit or the ignition key. -
Page 4: Installation
INSTALLATION Installation Procedures First complete the electrical connections and then check for correctness. Installation Opening 2.05 inch 7.20 inch MOUNTING SLEEVE This unit can be installed in any dashboard Having an opening as shown above . Insert mounting collar into the dashboard and bend the mounting tabs out with a screwdriver. -
Page 5: Wiring Connections
INSTALLATION(CONT.) - Only use speakers with 4 ohms impedance. - Do not attach the control panel to the chassis before wiring is complete. - The maximum current of the auto antenna is 200mA. Wiring Connections WIRING DIAGRAM Radio Antenna White:Front Left PRE-AMP Output Red: Front Right PRE-AMP Output Red: Rear Right PRE-AMP Output White: Rear Left PRE-AMP Output... -

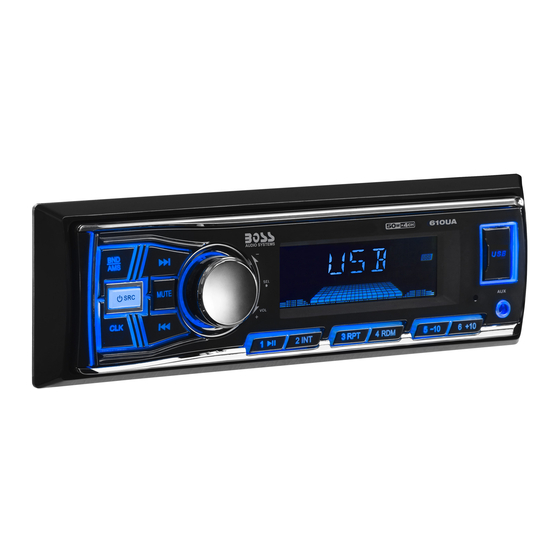

Page 6: Control Panel Button Locations
CONTROL PANEL BUTTON LOCATIONS OPERATION 1.POWER/SRC to turn off the unit. RADIO,USB&CARD , AUX IN,modes (if there are USB and SD card inside the unit). radio and Aux. When the user inserts a USB flash drive or SD Card, their respective logos will illuminate on the display. >|| During USB or SD card mode, press the ‘1/ ’... -
Page 7: Set The Clock (Clk)
OPERATION Finally press the CLK button to confirm the time adjustments. 9. USB Port / Micro SD Card Slot In the radio mode, rotate the volume knob to increase or decrese the volume level of the sound Rotate the knob on the front panel to adjust the selected item. At the radio status,press and hold the VOL button to enter switch state of the US(USA) and EU (EUROPE) frequency,then rotate the VOL knob to select US frequency or EU frequency,after selecting US or EU frequency,the system will switch to the selected frequency 3 seconds later. -
Page 8: Troubleshooting
TROUBLESHOOTING A lot of static in broadcast Connect the battery cable to the terminal that is always live. -
Page 9: Specifications
SPECIFICATIONS General Power supply Requirement : DC 12V Maximum power output : 50W X 4CH Speaker impedance : 4 - 8 Ohm Unit Dimensions(WxHxD) : 7.0 X 2.0 X 3.8 inch Weight : 1.54 Lb (0.7 kg) Fuse : 15 A RADIO Frequency Range USA / EUROPE: 87.5 MHz - 107.9 MHz / 87.5 MHz - 108.0MHz...
