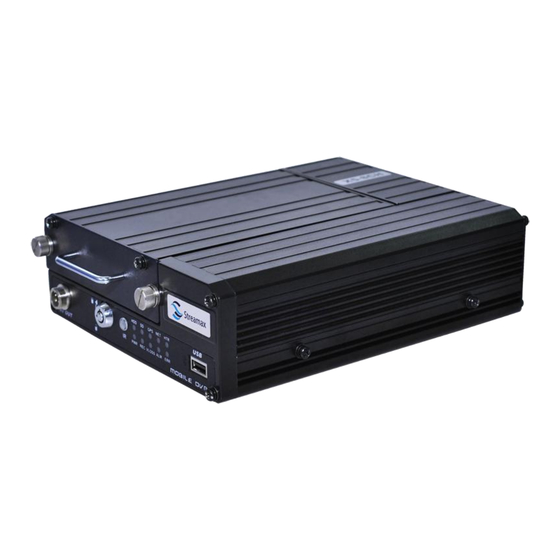

Summary of Contents for Streamax X5-8CH MDVR GUI

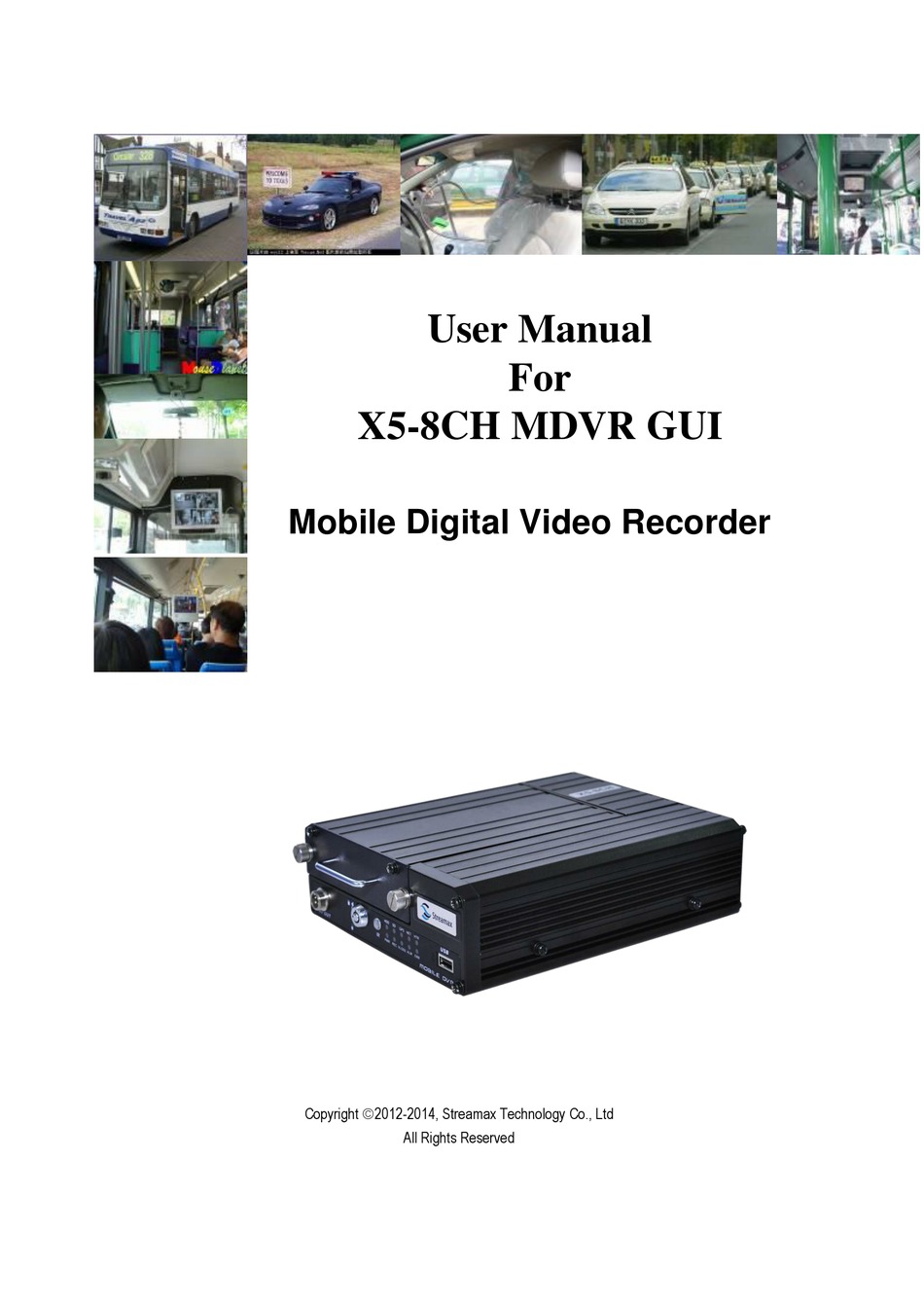

  • Page 1 User Manual X5-8CH MDVR GUI Mobile Digital Video Recorder Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved...
  • Page 2 Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Streamax Technology Co., Ltd Copyright 2012-2014 More information www.streamaxtech.com...

  • Page 3: Table Of Contents

    3.2.2.6 SCHEDULE 3.2.2.7 OTHER SETTINGS 3.2.3 NETWORK 3.2.3.1 LOCAL 3.2.3.2 SERVER NETWORK 3.2.3.3 MOBILE NETWORK 3.2.3.4 FTP SETTINGS More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.
  • Page 4 3.2.5 PERIPHERAL 3.2.5.1 PTZ 3.2.5.2 EXT.COM SETUP 3.3 INFORMATION 3.3.1 SYSTEM 3.3.2 DIAL STATUS 3.3.3 HISTORY 3.3.4 MODULES More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 5: Production Chracteristics And Overview

    Support CMS (Central Management System) for remote monitoring via built-in 3G module (HSPA or EVDO), Ceiba (Playback Analysis Software) for video playback, meta-data analysis. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 6: Remote Control

    Each MDVR includes a handheld Infra-Red (IR) controller that allows the user to transmit commands to More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.
  • Page 7 Quick search mode when you playback the record file in MDVR. Press GOTO  button and input the desired time, and the select SURE to jump to the specific time More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.
  • Page 8 Brush the glass screen BRUSH Please put the battery into the remote control as no battery in the standard package More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 9: Gui (Graphic User Interface) Tree

    M-X5-GUI-8CH-2013_Q3 1.3 GUI (GRAPHIC USER INTERFACE) TREE More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 10: System Start Up

    After setting, the ID number will appear automatically on the login screen. It’s the number in the bracket PASSWORD: Enter the admin password or user password. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 11: Gui Configuration

    The MDVR will stop recording when enter into the MDVR configuration GUI. You can input the letters and characters by software keyboard. 3.1 SEARCH More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 12: Rec. Search

    CHANNEL：As A5 support 4CH, so you have to choose the channels when you want to playback. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.
  • Page 13 Or you can export the file during certain period to thumb driver or any external storage device and backup to computer for playback (exe file). This exported .exe file can be playback easily by Streamax MINI player or Ceiba as following: By Mini player: More information www.streamaxtech.com...
  • Page 14 NO.: The file number which is being copied to external thumb drive. After successful backup, then the following screen will pop up. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 15: Event Search

    EVENT TYPE: The type of the alarm file including I&O ALARM/ACCELERATION/SPPED/TEMP ALARM/VL ALARM. You can please select different alarm type to search the log and playback the More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 16: Setup

    Move arrow key to select and press ENTER. The MDVR setup screen will show the menu as below: More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 17: System

    M-X5-GUI-8CH-2013_Q3 3.2.1 SYSTEM 3.2.1.1 DATE/TIME DATE FORMAT: Press 【ENTER】to select different format MM/DD/YYYY, DD/MM/YYYY,YYYY-MM-DD More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 18: General

    There are ignition, timer and ignition or timer three options. They are the modes to boot up the MDVR device (not for recording). For example the setting is timer from 5:00~12:00am, More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.
  • Page 19 OUTPUT MODE: This is the output mode for monitor. There are 4:3 and 9:6 two options, TRANSPARENCY: Setup the brightness for the screen display as you want. Scroll to【SAVE】to make the setting valid More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 20: Register Info

    Scroll to【SAVE】to make the setting valid. 3.2.1.4 FORMAT Select the devices to format: HDD, SD card or external storage device. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 21: Upgrade

    After format success, MDVR unit will restart automatically. 3.2.1.5 UPGRADE Upgrade to new firmware or MCU. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.
  • Page 22 4. During the firmware upgrade, then following screen will pop up. 5. After upgrade success, the MDVR system will restart automatically, as follow: More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 23: User Security

    If the FLASH is damaged or firmware crashes (The MDVR can boot up to System Initializing interface only and the POWER LED on the MDVR is ON. It cannot boot up to quad view interface). For this situation, please contact Streamax technical support trying to upgrade the firmware by TFTP upgrade 3.2.1.6 USER SECURITY Setup the password for user and admin.

  • Page 24: Config

    Remark: The user log mainly include: start recording and end recording time, event time, GPS module status, power on and power off time and so on. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 25: Geo-Fencing

    3.2.1.9 GEO-FENCING GEO-FENCING SWITCH: this is the enable switch for GEO-Fencing function. This switch is only for MDVR More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 26: Record

    Setup the related configuration for record 3.2.2.1 OPTION The menu is used to setup the basic parameters for MDVR recording. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.
  • Page 27 ALARM POST REC（30-1800）SEC: Alarm post recording time. BUZZER TIME: buzzer alarm duration time setup when alarm is triggered More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.
  • Page 28 ENABLE the switch for mirror recording on the MDVR GUI menu. External symbolize that you need to buy the fireproof box (SD card inside) from Streamax in case the vehicle is on fire. This fireproof box is specially design for the vehicle accident (like fire) and the maximum temperature can be 500 Celsus degree (can last 15 minutes) MIRROR REC.TO SD CARD: The enable switch for mirror recording...

  • Page 29: Osd Overlay

    GPS: Display the GPS information, fixed means it will display the information always, just like date/time. CHANNEL NAME: Display the channel name. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 30: Camera Settings

    But the precondition for this OSD is you must setup the OSD overlay menu to select which information you want to display on this screen. 3.2.2.3 CAMERA SETTINGS Setup record function and video for each channel. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 31: Record Setting

    LIVE AUDIO: enable or disable the live audio settings switch. 3.2.2.4 RECORD SETTING Make the configurations for resolution, frame rate, image quality parameter setting for each channel. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 32: Sub-Stream

    Sub-stream is the settings for 3G wireless transmission; you can setup the bandwidth and enable the channels. Otherwise, it can’t transmit the live video to PC software center server. The setup interface as follow: More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 33: Schedule

    Choose “Every” to apply a schedule to every day of the week Every Day:  Weekday: Schedule will only apply Weekdays (weekday is from Monday to More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 34: Other Settings

    INITIALIZE INTERFACE: This means after MDVR starts up, which default interface you prefer to show: CP3 menu interface or quad image interface. CP3 Interface: More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 35: Network

    CMS (Central Management Software) is the software to manage the vehicles real time via 3G Ceiba is the playback and analysis software More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 36: Local

    MAC Address: MAC address is uniquely and cannot change it. 3.2.3.2 SERVER NETWORK The sever IP and port setting for PC software. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 37: Mobile Network

    MDVR started up, the wireless module will always dial up and connect to message ALWAYS: server. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.
  • Page 38 DIAL PARAMETER settings for SIM Card please check the setup as follow form. INTERCOM SETTINGS: it's a switch for interphone function, which can realize speak to center via SIM card. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 39: Ftp Settings

    If the local IP of MDVR is 192.168.3.233, you can log in the MDVR FTP server as follow: ftp://192.168.3.233 and the recorded file save path is : ftp://192.168.3.233/stm/disk/0/p1/2012-11-23/ More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 40: Event

    The default login username is admin, password is: 88888888, if you can’t login at the first time, please try to relogin. 3.2.4 EVENT More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 41: Sensor

    3G ACT: means you can define a sensor to active the 3G module, as there is an active mode in 3G setup interface, they are corresponding options. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 42: Sensor Output

    M-X5-GUI-8CH-2013_Q3 3.2.4.2 SENSOR OUTPUT Streamax A5 MDVR supports 2 sensor outputs. All the alarm inputs can trigger the two sensor output, such as sensor1~8, over speed, temperature, video loss and so on, please enter into (GUI>>>>SETUP>>>EVENT>>>SENSOR OUTPUT, as follow: Remark: Sensor out means when there is an event triggered, the corresponding sensor out will give +12V/2A output, and the duration is the alarm time you have setup, so, you can associate different sensor to different alarm types.

  • Page 43: Speed

    SOURCE: MDVR is capable of capturing vehicle speed via GPS antenna or Vehicle--speedometer.  Browse between the settings of GPS or speedometer from the list. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 44: Acceleration

    This function only can be active when the MDVR connected with inertial sensor. 3.2.4.5 TEMPERATURE Inspection for temperature, there are high and low two kinds temperature inspection. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 45: Camera

    M.D.AREA: this option is for user to setup the detect area, as follow, blank square means the area is selected, please back to the setup interface to save the settings. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 46: Voltage

    INTERVAL TIME FOR CMS: means when MDVR in low voltage for so long time, device will disconnect to CMS server. SHUTDOWN DELAY: means when MDVR in low voltage for so long time, device will shutdown automatically. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 47: Peripheral

    VERIFY: there are None/Odd/Even/Mark/Space to select, the default setting is none. ADDRESS: Fill the code of respective PTZ More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 48: Ext.com Setup

    COM3 and COM4 is changeable. And 485BUS is switch for smart battery connection. 3.3 INFORMATION More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 49: System

    MDVR (like image quality, resolution, frame rate) with the free space. 3.3.2 DIAL STATUS The data for dial status information 3.3.3 HISTORY The data for history information More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.

  • Page 50: Modules

    M-X5-GUI-8CH-2013_Q3 Press 【CLEAR】to delete all the current data. 3.3.4 MODULES Display the GPS module information. More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.
  • Page 51 M-X5-GUI-8CH-2013_Q3 More information www.streamaxtech.com  Copyright 2012-2014, Streamax Technology Co., Ltd All Rights Reserved All specifications are therefore subject to change without notice.
