© 2015 CASIO COMPUTER CO., LTD.
MA1509-EA
Basic Operations
This section provides an overview of the watch
and explains operations that are common to
all modes.
Important!
This watch is not a special-purpose
●
measuring instrument.
Measurement function readings are
intended for general reference only.
Whenever using the Digital
●
Compass of this watch for serious
trekking, mountain climbing, or other
activities, be sure to always take
along another compass to confirm
readings. If the readings produced
by the Digital Compass of this watch
are different from those of the other
compass, perform bidirectional
calibration of the Digital Compass to
ensure better accuracy.
Compass readings and
ー
calibration will not be possible if
the watch is in the vicinity of a
permanent magnet (magnetic
accessory, etc.), metal objects,
high-voltage wires, aerial wires, or
electrical household appliances
(TV, computer, cellphone, etc.)
Digital Compass
l
The watch's Altimeter Mode
●
calculates and displays relative
altitude based on barometric
pressure readings produced by its
pressure sensor. Because of this,
altitude values displayed by the
watch may be different from your
actual elevation and/or sea level
elevation indicated for the area
where you are located. Regular
calibration in accordance with the
local altitude (elevation) indications
is recommended.
Altitude Measurement
l
Note
In this manual, the expression "time
●
signal" refers to a time calibration
signal. Time signals include time
information.
Note that the watch illustrations in
●
this manual are intended for
reference only. The actual watch
may appear somewhat different
than depicted in the illustrations.

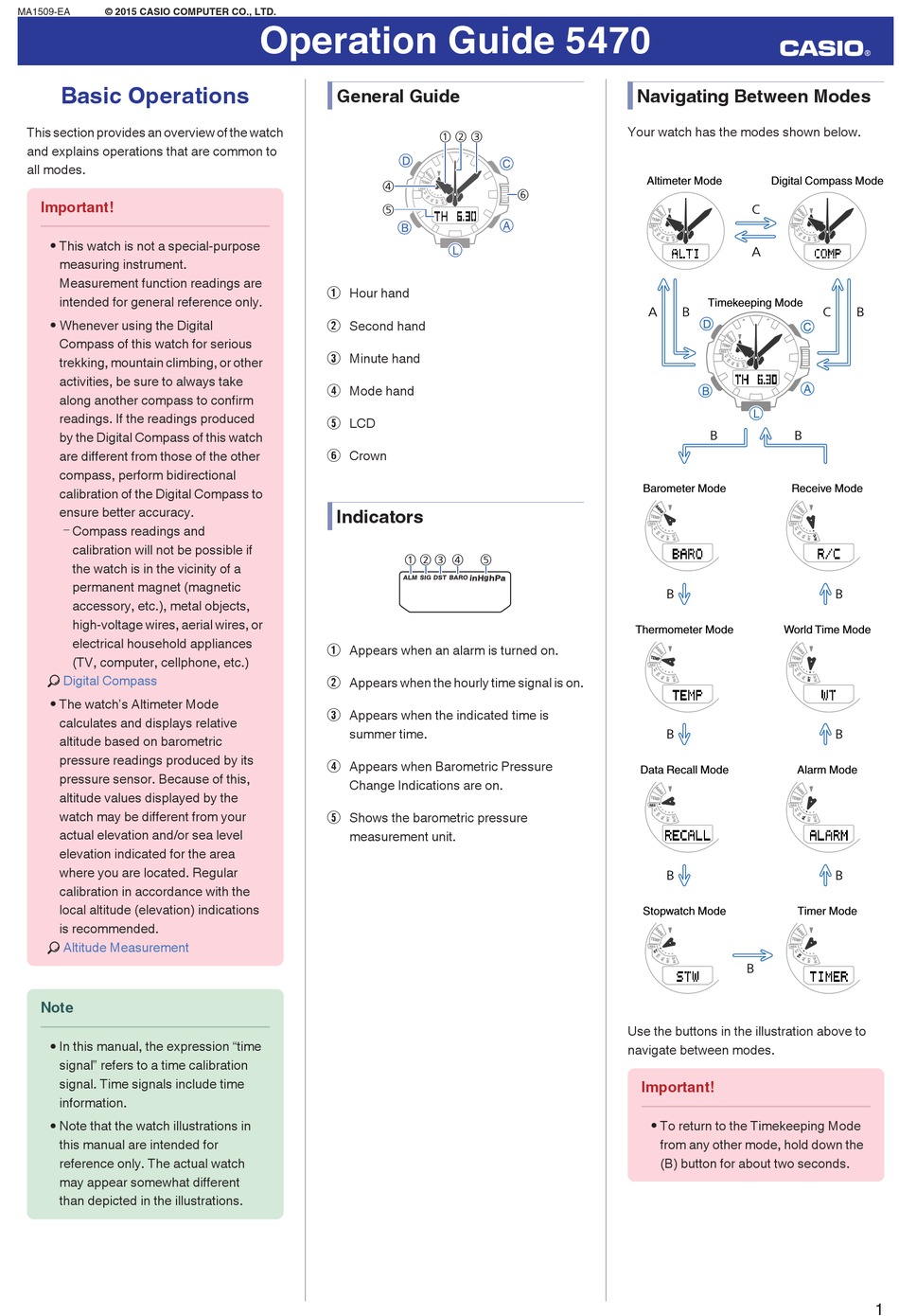

Operation Guide 5470

General Guide

④
⑤
A Hour hand
B Second hand
C Minute hand
D Mode hand
E LCD
F Crown
Indicators
① ② ③ ④
A Appears when an alarm is turned on.
B Appears when the hourly time signal is on.
C Appears when the indicated time is
summer time.
D Appears when Barometric Pressure
Change Indications are on.
E Shows the barometric pressure
measurement unit.
① ②
③
⑥
⑤
Navigating Between Modes
Your watch has the modes shown below.
Altimeter Mode
Digital Compass Mode
C
A
Timekeeping Mode
A
B
B
B
Barometer Mode
Receive Mode
B
Thermometer Mode
World Time Mode
B
Data Recall Mode
Alarm Mode
B
Stopwatch Mode
Timer Mode
B
Use the buttons in the illustration above to
navigate between modes.
Important!
To return to the Timekeeping Mode
●
from any other mode, hold down the
(B) button for about two seconds.
C
B
B
B
B
1
