Printed in Japan SEP 2007
VMA10003

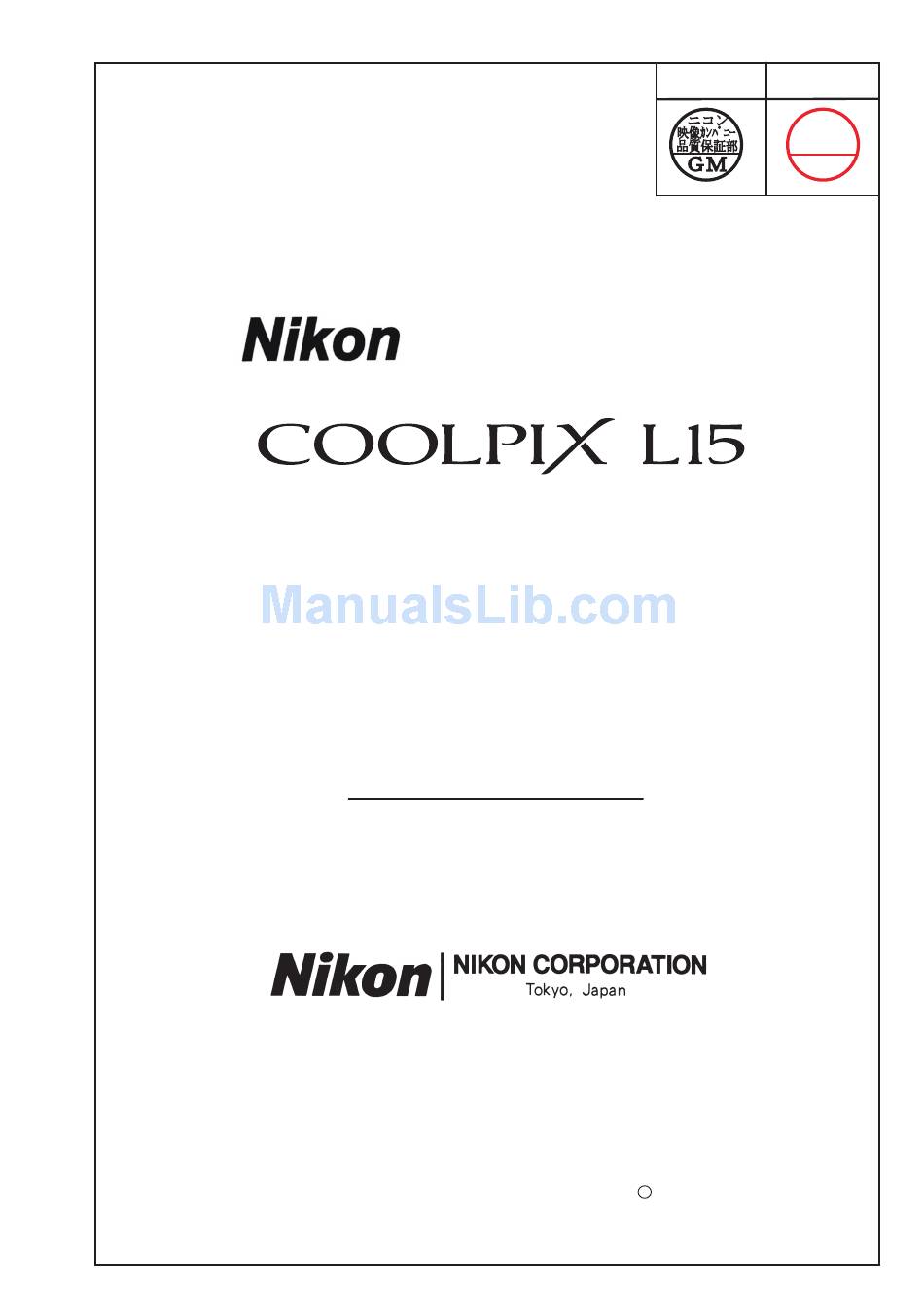

REPAIR MANUAL
VMA10003-R.3727.A
作成承認印
Copyrigh ｃ 2007 by Nikon Corporation.
All Rights Reserved.
無断転載を禁ず !!
INC
配布許可印
サービス
計画課
Ｍ
