Leviton 47611-WG4 User Manual

Leviton 47611-WG4 User Manual

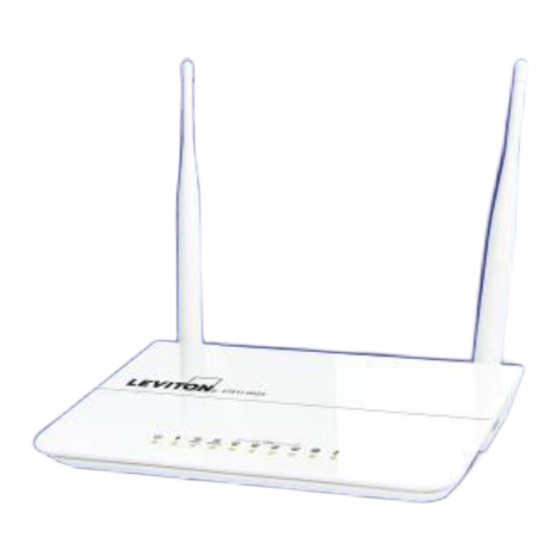

300mps dual-band 802.11n wireless gigabit router
Hide thumbs Also See for 47611-WG4:
Table of Contents

Advertisement

Quick Links

Download this manual
I

Advertisement

Table of Contents
loading

Related Manuals for Leviton 47611-WG4

Summary of Contents for Leviton 47611-WG4

  • Page 2: Federal Communication Commission Interference Statement

    Copyright Copyright  2014 by Leviton Manufacturing Co., Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of LEVITON.

  • Page 3: Canadian Department Of Communications

    Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision User Manual for LEVITON 300Mbps Dual Band 802.11n Wireless Gigabit Router Model: 47611-WG4 Rev: 1.2 (March, 2014)

  • Page 4: Table Of Contents

    CONTENTS Chapter 1. Product Introduction......................1 Package Contents ....................... 1 Product Description......................2 Product Features......................... 5 Product Specification ......................7 Chapter 2. Hardware Installation ......................9 Hardware Description ......................9 2.1.1 The Front Panel ......................10 2.1.2 LED Indications.......................10 2.1.3 The Rear Panel....................... 11 2.1.4 The Right Side Panel....................12 Chapter 3.
  • Page 5 Windows XP (Wireless Zero Configuration) ..............111 Windows 7 (WLAN AutoConfig)..................113 Mac OS X 10.x........................115 iPhone / iPod Touch / iPad ..................... 117 Appendix A: Leviton Smart Discovery Utility.................121 Appendix B: Troubleshooting......................122 Appendix C: Configuring the PC in Windows 7 ................124 Appendix D: Specifications......................128...

  • Page 6: Chapter 1. Product Introduction

    User Manual of 47611-WG4 Chapter 1. Product Introduction 1.1 Package Contents Thank you for choosing LEVITON 47611-WG4. Before installing the router, please verify the contents inside the package box. 47611-WG4 Wireless Router Quick Installation Guide CD-ROM (User Manual included) Power Adapter...

  • Page 7: Product Description

    5GHz for watching HD videos or playing online games additionally. At the same time, it enables other users still surf the Internet via the original radio frequency of 2.4 GHz. The 47611-WG4 is just like 2 totally independent Access Points in one device for you.

  • Page 8: Broadband Router

    LAN port. The IPTV feature makes it possible for users to enjoy online videos on the TV set via Set-Top-Box (STB) through the 47611-WG4 while surfing Internet. The IPTV port can also function as a LAN port if IPTV service is not enabled.

  • Page 9: Usb Port

    More Flexible File Sharing over USB port The 47611-WG4 is built-in with one USB 2.0 port which can be connected to a USB printer or storage device for file sharing. It can recognize the USB printer or storage automatically without user experience. Thus, all clients...

  • Page 10: Product Features

    The 47611-WG4 is equipped with 5dBi High-Gain antennas to provide strong signal and excellent performance even in the long range or bad environment. Besides essential wireless sharing for Wi-Fi clients, the 47611-WG4 provides WDS (Wireless Distribution System) bridge mode to facilitate wireless network deployments and range expanding.
  • Page 11 User Manual of 47611-WG4 Support Dual-SSID to allow users to access different networks through a single AP   Advanced Networking function for Specific Application Supports Bandwidth Control (QoS) based on different local IP addresses  Supports NTP, Virtual Server, UPnP, and DMZ for various networking applications ...

  • Page 12: Product Specification

    User Manual of 47611-WG4 1.4 Product Specification 47611-WG4 Product 300Mbps Dual-Band 802.11n Wireless Gigabit Router Hardware Specification WAN Port: 1 x 10/100/1000Mbps Auto MDI/MDI-X RJ45 port LAN Port: 3 x 10/100/1000Mbps Auto MDI/MDI-X RJ45 ports (LAN1~3) Interface IPTV Port: 1 x 10/100/1000Mbps Auto MDI/MDI-X RJ45 port (LAN4) USB Port : USB 2.0, Type-A, 5V DC/0.5A Output...
  • Page 13 User Manual of 47611-WG4 WEP (64/128-bit)  WPA-PSK (TKIP) / WPA2-PSK (AES)  Encryption Security WPA (TKIP) / WPA2 (AES)  Provide Wireless LAN ACL (Access Control List) filtering Wireless MAC address filtering Wireless Security Support WPS (WIFI Protected Setup ) Support Dual-SSID (2.4G &...

  • Page 14: Chapter 2. Hardware Installation

    User Manual of 47611-WG4 Chapter 2. Hardware Installation Please follow the instructions below to connect 47611-WG4 to the existing network devices and your computers. 2.1 Hardware Description  171.61 x 111.16 x 25.47mm (W x D x H) Dimension: ...

  • Page 15: The Front Panel

    47611-WG4. Front Panel 5GHz 2.4GHz Power WPS Figure 2-2 47611-WG4 Front Panel 2.1.2 LED Indications The LEDs on the front panel indicate instant status of port links, wireless data activity, system power; and help monitor and troubleshoot when needed. Figure 2-2...

  • Page 16: The Rear Panel

    Table 2-1 The LEDs indication 2.1.3 The Rear Panel The rear panel provides the physical connectors connected to the power adapter and any other network devices. Figure 2-3 shows the rear panel of 47611-WG4. Rear Panel Rear Panel 5 dBi Antenna...

  • Page 17: The Right Side Panel

    Table 2-2 The Interface indication 2.1.4 The Right Side Panel 47611-WG4 built-in with one USB 2.0 port can be connected to a USB printer or storage for file sharing. The USB port also output 5V DC power can charge any USB compliant devices.

  • Page 18: Chapter 3. Connecting To The Router

    Linux, UNIX or other platform compatible with TCP/IP protocols Above PC installed with WEB Browser  1. The Router in the following instructions means LEVITON 47611-WG4. 2. It is recommended to use Internet Explore 7.0 or above to access the Router. 3.2 Installing the Router Before installing the Router, make sure your PC is connected to the Internet through the broadband service successfully at this moment.
  • Page 19 User Manual of 47611-WG4 Power Power Adapter Figure 3-1 Hardware Installation-1 Step 5. Follow the figure below to connect the network devices. It depends on your network environment to connect the WAN port to a Cable/xDSL modem, or the Ethernet directly in your place.

  • Page 20: Chapter 4. Quick Installation Guide

    4.1 Manual Network Setup - TCP/IP Configuration The default IP address of the 47611-WG4 is 192.168.0.1. And the default Subnet Mask is 255.255.255.0. These values can be changed as you desire. In this guide, we use all the default values for description.
  • Page 21 User Manual of 47611-WG4 Figure 4-1 In the prompt window shown below, double click on the Internet Protocol (TCP/IP). Figure 4-2 The following TCP/IP Properties window will display and the IP Address tab is open on this window by default.

  • Page 22: Configure The Ip Address Manually

    User Manual of 47611-WG4 Setting IP address automatically Select Obtain an IP address automatically, Choose Obtain DNS server automatically, as shown in the Figure below: Figure 4-3 Now click OK to save your settings. 4.1.2 Configure the IP Address Manually Summary: Set up the TCP/IP Protocol for your PC.
  • Page 23 User Manual of 47611-WG4 Figure 4-4 Now click OK to save your settings. Now, you can run the Ping command in the command prompt to verify the network connection between your PC and the Router. The following example is in Windows XP OS. Please follow the steps below: Click on Start >...
  • Page 24 User Manual of 47611-WG4 Figure 4-5 In the run box type “cmd” and click OK. (Windows Vista users type “cmd” in the Start .Search box.)At the prompt. Figure 4-6 Open a command prompt, and type ping 192.168.0.1, and then press Enter.
  • Page 25 User Manual of 47611-WG4 Figure 4-7 Success result of Ping command If the result displayed is similar to Figure 4-8, it means the connection between your PC and the Router has failed. Figure 4-8 Failure result of Ping command If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your router. Some firewall software programs may block a DHCP request on newly installed adapters.
  • Page 26 User Manual of 47611-WG4 1. The 1/2/3/4 LEDs of LAN ports which you link to on the Router and LEDs on your PC's adapter should be lit. 2. If the Router's IP address is 192.168.0.1, your PC's IP address must be within the range of 192.168.0.2 ~ 192.168.0.254.

  • Page 27: Starting Setup In The Web Ui

    User Manual of 47611-WG4 4.2 Starting Setup in the Web UI It is easy to configure and manage the 47611-WG4 with the web browser. To access the configuration utility, open a web-browser and enter the default IP address Step 1.
  • Page 28 After entering the username and password, the Easy Quick Setup page screen appears as Figure 4-11. Figure 4-11 47611-WG4 Web UI Screenshot Choose the correct Internet Access method. Please refer to the instructions in the next chapter for Step 2.
  • Page 29 User Manual of 47611-WG4 Figure 4-12 Choose Internet Access Method Step 3. Please enter the User Name, Password and SSID security key and etc. Then click OK button to make the configuration take effect immediately. Figure 4-13 Step 4. For more detail network setting and functions configuration, you can click the Advanced button to configure your Router.
  • Page 30 User Manual of 47611-WG4 Figure 4-14 -25-...

  • Page 31: Chapter 5. Configuring The Router

    During operation, if you are not clear about a certain feature, you can simply click the “Help” button to read all related helpful info. 5.1 Device Info In this page, you can view information about the current running status of 47611-WG4, including WAN interface, LAN interface, Wireless interface settings and status, and firmware version information. ...
  • Page 32 User Manual of 47611-WG4 Figure 5-1-1 This section allows you to view the router’s WAN info listed below: Object Description Displays WAN connection status: Disconnected, Connecting or  WAN Status: Connected. Indicates that the Ethernet cable from your ISP side is / is not correctly connected to the WAN port on the router or the router is not ...
  • Page 33 User Manual of 47611-WG4  This section allows you to view the router’s LAN info listed below: Figure 5-1-2 LAN Information The page includes the following fields: Object Description Displays LAN IP address.  IP Address: Displays LAN subnet mask.
  • Page 34 User Manual of 47611-WG4 Figure 5-1-3 Wireless information The page includes the following fields: Object Description Displays whether wireless is enabled or not.  Wireless Radio:  Wireless MAC Displays MAC address of the router’s wireless interface address: Displays current SSID.
  • Page 35 User Manual of 47611-WG4 Figure 5-1-4 General System information The page includes the following fields: Object Description Displays current CPU usage status  CPU Usage: Displays current memory usage status.  Memory Usage: Displays uptime.  Up Time: Displays device’s time synchronized with Internet or manually ...

  • Page 36: Network

    User Manual of 47611-WG4 5.2 Network “Network” includes the following four submenus. Clicking any of them enters corresponding interface for configuration. Below explains, in details, each such feature. Figure 5-2-1 5.2.1 LAN Settings Figure 5-2-2 LAN settings web page screenshot...

  • Page 37: Wan Settings

    User Manual of 47611-WG4 5.2.2 WAN Settings The screen below displays WAN connection status and interface info. Figure 5-2-3 Click the “Config” button to enter WAN configuration interface. The router supports six Internet connection types, include:  Dynamic IP ...
  • Page 38 User Manual of 47611-WG4 The page includes the following fields: Object Description  Internet Displays a list of available Internet connection types connection Type: Maximum Transmission Unit.  MTU: The default value is1500. change the factory default MTU value unless necessary as an improper...
  • Page 39 User Manual of 47611-WG4 Enter WAN Subnet Mask provided by your ISP.  Subnet Mask: Enter the WAN Gateway address provided by your ISP.  Default Gateway:  Primary DNS Enter the necessary DNS address provided by your ISP. Server: Enter the other DNS address if your ISP provides you with 2 such ...
  • Page 40 User Manual of 47611-WG4 DO NOT change the factory default MTU value unless necessary as an improper MTU value may degrade your network performance or even lead to network malfunction.  PPTP The PPTP protocol allows you to connect your router to a VPN server.
  • Page 41 User Manual of 47611-WG4 you are not clear.  Subnet mask: Enter the subnet mask provided by your ISP. Enter the gateway provided by your ISP. Inquire your local ISP if you  Default Gateway: are not clear.  DNS Server: Enter the necessary DNS address provided by your ISP.
  • Page 42 User Manual of 47611-WG4  L2TP Server IP Enter the IP address of a L2TP server. Address: Enter Username/Password defined by the L2TP server.  Username/Password: Select “Dynamic” if you don’t get any IP info from the L2TP server  Address mode: side, otherwise select “Static”.
  • Page 43 User Manual of 47611-WG4  Username: Enter the PPPOE account provided by your ISP.  Password: Enter the PPPOE password provided by your ISP. Select “Dynamic” if you don’t get any IP info from the L2TP server side,  Address mode: otherwise select “Static”.

  • Page 44: Dhcp Settings

    User Manual of 47611-WG4 5.2.3 DHCP Settings “DHCP” includes 3 submenus: DHCP Server, Client List and Static Assignment. Clicking any of them enters corresponding interface for configuration. Below explains, in details, each such feature. The Dynamic Host Configuration Protocol (DHCP) is an automatic configuration protocol used on IP networks.
  • Page 45 User Manual of 47611-WG4  Secondary DNS Enter the other DNS address assigned to DHCP clients (optional). Server To benefit from the DHCP server feature, you must set all LAN PCs to DHCP clients by selecting the “Obtain an IP Address Automatically” radio buttons thereon.

  • Page 46: Wan Port

    User Manual of 47611-WG4 For example: To have a PC at the MAC address of 00:aa:bb:11:22:33 always receive the same IP address of 192.168.0.200, simply enter the IP and MAC addresses in corresponding fields and click “Add” and then the “Save”...
  • Page 47 User Manual of 47611-WG4  MAC Clone This section allows you to set router’s WAN MAC address. You can either manually enter a MAC or copy your PC’s MAC to the router. Figure 5-2-14 The page includes the following fields:...
  • Page 48 User Manual of 47611-WG4  Speed/Duplex This section allows you to config the router’s WAN port speed/duplex settings. Figure 5-2-14 You can select a WAN port speed/duplex mode that best suit your network environment from the drop-down list, which includes auto, 10M half-duplex, 10M full-duplex, 100M half-duplex, 100M full-duplex, 1000M half-duplex and 1000M full-duplex.

  • Page 49: Security Settings

    User Manual of 47611-WG4 5.3 Security Settings “Security Settings” includes the following 5 submenus. Clicking any of them enters corresponding interface for configuration. Below explains, in details, each such feature. 5.3.1 Group Settings “Group Settings” includes 2 submenus: Group Settings, User Group and Time Group. Clicking either tab enters corresponding interface for configuration.

  • Page 50: Time Group

    User Manual of 47611-WG4 Figure 5-3-2 Enter R_D in group name field. Enter R_D IP Range in group description field. Enter “192.168.0.200” and “192.168.0.250” in IP fields. Click “Add “and then the “Save “button; you will find Such entry in User Group list below: Figure 5-3-3 ...

  • Page 51: Port Filter

    User Manual of 47611-WG4 Figure 5-3-4 For example: If you want to set a period of time from 8：00 to 18：00 on working days from Monday to Friday to a time group, first click the “Add” button and then follow steps below: Figure 5-3-5 Enter “Working days”...
  • Page 52 User Manual of 47611-WG4 Figure 5-3-7 Click “Add” to enter page below: Figure 5-3-8 The page includes the following fields: Object Description Select Deny or Allow according to your own needs.  Filter Mode: Disallow specified packets to pass through the router; other packets are ...
  • Page 53 User Manual of 47611-WG4 Select an added user group from the drop-down list.  User Group:  Time Group: Select an added time group from the drop-down list. Enter port IDs. You can specify a range of ports or a single port.
  • Page 54 User Manual of 47611-WG4 Figure 5-3-10 Select “Allow” from the “Default” drop-down list and check “Enable” Port Filter feature. Figure 5-3-11 -49-...

  • Page 55: Url Filter

    User Manual of 47611-WG4 5.3.3 URL Filter To better control LAN PCs, you can use the URL filter functionality to allow or disallow such PC to access certain websites within a specified time range. Figure 5-3-12 Click “Add” to display page below:...
  • Page 56 User Manual of 47611-WG4 processed according to default rule. Internet: Allow specified packets to pass through the router; other packets are  Allow Access to processed according to default rule. Internet: Select an added user group from drop-down list.  User Group: Select an added time group from drop-down list.
  • Page 57 User Manual of 47611-WG4 Click “Save” to display page below: Figure 5-3-15 Select “Allow” from the “Default” drop-down list and check the “Enable” URL Filter feature. Figure 5-3-16 -52-...

  • Page 58: Mac Address Filter

    User Manual of 47611-WG4 5.3.4 MAC Address Filter To better manage PCs in LAN, you can use the MAC Address Filter function to allow/disallow such PCs to access to Internet. Figure 5-3-17 Click “Add” to display page below: Figure 5-3-18...
  • Page 59 User Manual of 47611-WG4 Enter the computer’s MAC address that you want to filter out in the MAC  MAC: address field or select one from the MAC address list. Select a time range for the new MAC address filter rule to take effect.

  • Page 60: Wan Access Control

    User Manual of 47611-WG4 5.3.5 WAN Access Control The WAN Access Control feature allows users to configure your router from Internet via a web browser. Figure 5-3-21 The page includes the following fields: Object Description Check or uncheck to enable or disable the WAN Access Control feature.
  • Page 61 User Manual of 47611-WG4 Figure 5-3-22 -56-...

  • Page 62: Advanced Settings

    User Manual of 47611-WG4 5.4 Advanced Settings “Advanced Settings” includes the following 6 submenus. Clicking any of them enters corresponding interface for configuration. Below explains, in details, each such feature. 5.4.1 Virtual Server The Virtual Server feature grants Internet users access to services on your LAN. It is useful for hosting online services such as FTP, Web, or game servers.
  • Page 63 User Manual of 47611-WG4 Figure 5-4-2 The page includes the following fields: Object Description Enter the WAN service port.  WAN Port: The “Well-Known Service Port” lists commonly used protocol ports such Leviton S&A Controller (4369)  DNS (53） ...

  • Page 64: Dmz Settings

    User Manual of 47611-WG4 Enter “4000” in WAN Port field, 80 in LAN port field and 192.168.0.100 in Private IP field, Select “Both” from protocol drop-down list. Check the “Enable” box. Click “Save” to save such settings. Figure 5-4-3 Setting WAN port hereon to the same value as that on WAN access control section will deactivate the virtual server feature.

  • Page 65: Upnp Settings

    User Manual of 47611-WG4 Figure 5-4-4 The page includes the following fields: Object Description Enter the IP address of a LAN computer which you want to set to a DMZ  DMZ Host IP host. Address: Check/uncheck to enable/disable the DMZ host.

  • Page 66: Routing

    User Manual of 47611-WG4 5.4.4 Routing This section talks about Routing Table and Static Routing features.  Routing Table This page displays the router’s core routing table which lists destination IP, subnet mask, gateway, hop count and interface. Figure 5-4-6 ...

  • Page 67: Bandwidth Control

    User Manual of 47611-WG4 Object Description  Destination Enter a destination IP address. Network: Enter a Subnet Mask that corresponds to the destination IP address you  Subnet Mask: entered.  Gateway: Next-hop IP address. 5.4.5 Bandwidth Control To better manage bandwidth allocation and optimize network performance, use the Custom Bandwidth Allocation feature.
  • Page 68 User Manual of 47611-WG4 Figure 5-4-11 The page includes the following fields: Object Description Check/uncheck to enable/disable current bandwidth entry  Enable: Enter a single IP or an IP range.  IP Range:  Upstream Max total upload bandwidth for a specified PC or a range of PCs.
  • Page 69 User Manual of 47611-WG4 Please note the bandwidth unit. If you enable the P2P Download Control feature, it will limit P2P download rate (smaller than the specified value) to ensure other applications such as web browsing a reserved and guaranteed share of bandwidth.

  • Page 70: Wireless Settings

    User Manual of 47611-WG4 5.5 Wireless Settings Wireless Settings includes 8 submenus as shown in the screenshot below. Clicking any tab enters corresponding interface for configuration. 5.5.1 Basic Settings This section allows you to manage your wireless network (2.4G or 5G). You can config country code, wireless network name (SSID), network mode and channel settings, etc the way you want.
  • Page 71 User Manual of 47611-WG4 The page includes the following fields: Object Description Select your country code from the drop-down list. There are 11 options  Country: available. Check/uncheck to enable/disable the 2.4GHz wireless feature. If  2.4GHz Wireless disabled, all 2.4GHz-based features will be disabled accordingly.
  • Page 72 User Manual of 47611-WG4  Basic Settings-- 5G Figure 5-5-2 The page includes the following fields: Object Description Select your country code from the drop-down list.  Country: There are 10 options available. Check/uncheck to enable/disable the 5GHz wireless feature. If disabled, ...

  • Page 73: Wireless Security

    User Manual of 47611-WG4 your network. Enabling this option may boost transmission capacity of wireless  WMM-Capable: multimedia data (such as online video play). Select to enable/disable the auto power saving mode.  ASPD Capable: 5.5.2 Wireless Security This section allows you to encrypt both 2.4GHz wireless and 5GHz wireless networks to block unauthorized accesses and malicious packet sniffing.
  • Page 74 User Manual of 47611-WG4 Figure 5-5-5 The page includes the following fields: Object Description  Security Mode: Select a proper security mode from the drop-down menu. Select one key from the 4 preset keys to encrypt wireless data on the ...
  • Page 75 User Manual of 47611-WG4 The page includes the following fields: Object Description Select one cipher type from:  Cipher Type: AES (Advanced Encryption Standard)  TKIP (Temporary Key Integrity Protocol)  Enter a security key, which must be between 8-63 ASCII characters.

  • Page 76: Wps Settings

    User Manual of 47611-WG4 5.5.3 WPS Settings Wi-Fi Protected Setup makes it easy for home users who know little of wireless security to establish a secure wireless home network, as well as to add new devices to an existing network without entering long passphrases or configuring complicated settings.
  • Page 77 User Manual of 47611-WG4 wireless client device during this time; if it succeeds, the wireless client device connects to your device, and the WPS LED turns off. Repeat steps mentioned above if y ou want to connect more wireless client devices to the device.

  • Page 78: Wds Settings

    User Manual of 47611-WG4 5.5.4 WDS Settings WDS (Wireless Distribution System) feature can be used to extend your existing 2.4G or 5G wireless network coverage. Here we present you how to configure such feature in 2.4GHz, which also apply to 5GHz.
  • Page 79 47611-WG4-2 respectively, then first select “Repeater Mode” and follow steps below: Figure 5-5-11 1. If you already know 47611-WG4-2’s MAC address, then you can manually enter it on 47611-WG4-1 and click “Save”. 2. Or you can use the Open Scan option.
  • Page 80 2) Save your settings. Figure 5-5-13 3. Repeat steps 1-2 on 47611-WG4-2. After the 2 devices have added each other’s MAC address the WDS feature can be implemented. WDS feature can only be implemented between 2 wireless devices that both support the WDS feature.

  • Page 81: Guest Network

    User Manual of 47611-WG4 WDS feature may not function. 5.5.5 Guest Network The Guest Network feature allows guests to access Internet and other users on the guest network while disallowing them to access device web manager, users on primary network and clients behind the LAN ports.

  • Page 82: Wireless Access Control

    User Manual of 47611-WG4 5.5.6 Wireless Access Control The MAC-based Wireless Access Control feature can be used to allow or disallow clients to connect to your 2.4G or 5G wireless network. Here we present you how to config such feature in 2.4GHz, which also apply to 5GHz.
  • Page 83 User Manual of 47611-WG4 Figure 5-5-16 Enter 00:aa:bb:11:22:33 in the MAC address box and click “Add”. Step 2. Click the “Save” button to save your settings and you can add more MAC addresses, if you like, Step 3. simply repeating the above steps.

  • Page 84: Connection Status

    User Manual of 47611-WG4 5.5.7 Connection Status This interface displays the information of currently connected 2.4G and 5G wireless clients (if any). Figure 5-5-18 Figure 5-5-19 5.5.8 Wireless –Advance Settings This section allows you to configure advanced settings, including Beacon interval, Fragment threshold, RTS threshold and DTIM interval, etc, for both 2.4G and 5G wireless networks.
  • Page 85 User Manual of 47611-WG4 Figure 5-5-20 The page includes the following fields: Object Description Isolates clients connecting to the private SSID.  AP Isolation: A time interval between any 2 consecutive Beacon packets sent by device.  Beacon Interval: Note: Do NOT change the default value of 100 unless necessary.

  • Page 86: Usb Applications

    5.6 USB Applications 47611-WG4 built-in with one USB 2.0 port can be connected to a USB printer or storage for file sharing. It can auto recognized the USB printer or storage automatically without user experience. Thus all clients on the network can share printer or mass storage on 47611-WG4 without complicated network configuration.
  • Page 87 User Manual of 47611-WG4 The page includes the following fields: Object Description Check/uncheck to enable/disable file sharing feature.  Enable: Define a meaningful name to you for the device.  Device Name: Define a work group name for the device.
  • Page 88 User Manual of 47611-WG4 Figure 5-6-3 Step 2. Set Access Right First select an account and click USB Device. And then select a proper access right from below for each entry. Access authority is classified into three levels: R/W, R, and N.

  • Page 89: Printing Service

    User Manual of 47611-WG4 Step 3. Access shared file To access resources on such storage device, double click “My Computer” on your PC and enter \\192.168.0.1. Figure 5-6-5 5.6.2 Printing Service The USB printer service allows you to connect a USB printer to the device and thus all clients on your network can print anything they want on their PCs.
  • Page 90 User Manual of 47611-WG4 Object Description  Enable Printer: Check/uncheck to enable/disable USB printer service. GDI interface printers are not supported. Multifunction printers are not supported. Operation Instructions Step 1. Correctly connect your USB printer to the USB port on the device.
  • Page 91 User Manual of 47611-WG4 Figure 5-6-8 Figure 5-6-9  Windows XP Users The following steps apply to Windows XP. Step 3. On your PC (connected to the device), click “Start”——“Settings”——“Printers and Faxes” -86-...
  • Page 92 User Manual of 47611-WG4 Figure 5-6-10 -87-...
  • Page 93 User Manual of 47611-WG4 Step 4. Select “Add a printer” on appearing window. Figure 5-6-11 Step 5. Click “Next”. Figure 5-6-12 -88-...
  • Page 94 User Manual of 47611-WG4 Step 6. Select “Local printer attached to this computer” and click “”Next. Figure 5-6-13 Step 7. Select “Create a new port”, Type of port: “Standard TCP/IP Port” and click “Next”. Figure 5-6-14 -89-...
  • Page 95 User Manual of 47611-WG4 Step 8. Click “Next”. Figure 5-6-15 Step 9. Enter device’s LAN IP address and click “Next”. (The default IP address of 47611-WG4 is 192.168.0.1) Figure 5-6-16 -90-...
  • Page 96 User Manual of 47611-WG4 Step 10. Click “Standard” under Device Type and select “Generic Network Card”, then click “Next”. Figure 5-6-17 Step 11. Click “Finish”. Figure 5-6-18 -91-...
  • Page 97 User Manual of 47611-WG4 Step 12. Select “Have Disk”. Select a suitable printer manufacturer and the printer model and click “Next”. If your printer is not in the list, click “Have Disk…” to install the driver of the printer. Figure 5-6-19 Step 13.
  • Page 98 User Manual of 47611-WG4 Step 14. Click “Next”. After installation, the printer model will be added to the list. Figure 5-6-21 Step 15. Define a name for the printer and click “Next”. Figure 5-6-22 -93-...
  • Page 99 User Manual of 47611-WG4 Step 16. Click “Finish". Now you have added the network printer to the Windows XP PC successfully. The information of the printer is displayed in the following windows. Figure 5-6-23 Figure 5-6-24 -94-...
  • Page 100 User Manual of 47611-WG4  Windows 7 Users The following steps apply to Windows 7. On your Windows 7 PC (connected to the device), click “Start”——“Device and Printer” and select Step 3. “Add a printer” on appearing window. Figure 5-6-25...
  • Page 101 User Manual of 47611-WG4 Click “Next”. Step 4. Select “Add a Local Printer” and click “”Next. Step 5. Figure 5-6-27 Select “Create a new port”, Type of port: “Standard TCP/IP Port” and click “Next”. Step 6. Figure 5-6-28 -96-...
  • Page 102 User Manual of 47611-WG4 Enter your 47611-WG4’s LAN IP address and click “Next”. Step 7. Figure 5-6-29 Figure 5-6-30 Click “Standard” under Device Type and select “Generic Network Card”, then click “Next”. Step 8. -97-...
  • Page 103 User Manual of 47611-WG4 Figure 5-6-31 Select “Have Step 9. Disk”. Figure 5-6-32 -98-...
  • Page 104 User Manual of 47611-WG4 Step 10. Click “Browse”, select corresponding drive file and click “Open”. At last click “OK”. Figure 5-6-33 Step 11. Click “Next”. After installation, the printer model will be added to the list. Choose the right printer and click “Next”.
  • Page 105 User Manual of 47611-WG4 Step 12. Define a name for the printer and click “Next”. Figure 5-6-35 Step 13. You can choose to share the printer or not. Then click “Next". Figure 5-6-36 -100-...
  • Page 106 Step 14. After installing the correct printer driver, the windows wizard shows the model name of the new network printer. You can choose to print a test page or click “Finish” to exit the wizard. Figure 5-6-37 The new network printer that attached to the 47611-WG4 is now available for printing. Figure 5-6-39 -101-...

  • Page 107: Iptv Settings

    User Manual of 47611-WG4 5.7 IPTV Settings The IPTV feature makes it possible to enjoy online videos on your TV set via a set-top box while surfing Internet. See below for the topology: Common Router Connection without IPTV Pass-though Set-Top Box...
  • Page 108 User Manual of 47611-WG4 Figure 5-7-1 The page includes the following fields: Object Description Check/uncheck to enable/disable the IPTV feature.  Enable IPTV:  Enable IPTV STB Check/uncheck to enable/disable the IPTV-specific port. Port: Note: If you enabled both options mentioned above, then note below: (a).

  • Page 109: Tools

    User Manual of 47611-WG4 5.8 Tools System tools include the following 8 submenus. Clicking any of them enters corresponding interface for configuration. Below explains, in details, each such feature. 5.8.1 Time Settings This section assists you in setting the device’s system time; you can either select to set the time and date manually or automatically obtain the GMT time from Internet.

  • Page 110: Firmware Upgrade

    User Manual of 47611-WG4 The page includes the following fields: Object Description  Sync with Internet Time and date will be updated automatically from Internet. time servers: Determines a time length when device periodically updates its time and  Sync Interval: date info from Internet.

  • Page 111: Backup/Restore Settings

    User Manual of 47611-WG4 5.8.3 Backup/Restore Settings This section allows you to backup current settings or to restore the previous settings configured on the device. Figure 5-8-3 The page includes the following fields: Object Description Once you have configured the device the way you want it, you can save...

  • Page 112: Change Password/User Name

    User Manual of 47611-WG4 Factory Default Settings: User Name: admin Password: admin IP Address: 192.168.0.1 Subnet Mask: 255.255.255.0 To activate your settings, you need to reboot the device after you reset it. 5.8.5 Change Password/User Name This section allows you to change login password and user name for accessing device’s Web-based interface.

  • Page 113: Reboot

    User Manual of 47611-WG4 For the sake of security, it is highly recommended that you change default login password and user name. 5.8.6 Reboot This section allows you to reboot the device. Figure 5-8-6 To restart your device, click the “Reboot” button.

  • Page 114: Statistics

    User Manual of 47611-WG4 5.8.7 Statistics Statistics displays current traffic of PCs on your LAN. You can view the bandwidth usage on your LAN using the statistics feature, for better management of network resources. Figure 5-8-9 The page includes the following fields:...
  • Page 115 User Manual of 47611-WG4 Figure 5-8-10 -110-...

  • Page 116: Chapter 6. Quick Connection To A Wireless Network

    User Manual of 47611-WG4 Chapter 6. Quick Connection to a Wireless Network Windows XP (Wireless Zero Configuration) Step 1: Right-Click on the wireless network icon displayed in the system tray Figure 6-1 Step 2: Select [View Available Wireless Networks] Figure 6-2...
  • Page 117 User Manual of 47611-WG4 Figure 6-3 Step 4: Enter the encryption key of the Wireless Router (1) The Wireless Network Connection box will appear (2) Enter the encryption key that configured in section 5.6.2 (3) Click the [Connect] button Figure 6-4 Step 5: Check if “Connected”...

  • Page 118: Windows 7 (Wlan Autoconfig)

    User Manual of 47611-WG4 Figure 6-5 Some laptops are equipped with an “Wireless ON/OFF” switch for the internal wireless LAN, make sure the hardware wireless switch is switch to “ON” position. 6.2 Windows 7 (WLAN AutoConfig) WLAN AutoConfig service is built-in in Windows 7 that can be used to detect and connect to wireless network.
  • Page 119 User Manual of 47611-WG4 Figure 6-7 If you will be connecting to this Wireless Router in the future, checking [Connect automatically]. Step 4: Enter the encryption key of the Wireless Router (1) The Connect to a Network box will appear (2) Enter the encryption key that configured in section 5.6.2...

  • Page 120: Mac Os X 10.X

    User Manual of 47611-WG4 Figure 6-9 Step 5: Check if “Connected” is displayed Figure 6-10 6.3 Mac OS X 10.x Step 1: Right-Click on the network icon displayed in the system tray The AirPort Network Connection menu will appear Figure 6-11...
  • Page 121 User Manual of 47611-WG4 Figure 6-12 Step 4: Enter the encryption key of the Wireless Router (1) Enter the encryption key that configured in section 5.6.2 (2) Click the [OK] button Figure 6-13 If you will connect this Wireless Router in the future, check [Remember this network].

  • Page 122: Iphone / Ipod Touch / Ipad

    User Manual of 47611-WG4 Figure 6-14 6.4 iPhone / iPod Touch / iPad Step 1: Tap the [Settings] icon displayed in the home screen Figure 6-15 Step 2: Check Wi-Fi setting and select the available wireless network (1) Tap [General] \ [Network] (2) Tap [Wi-Fi] If this is the first time to connect to the Wireless Router, it should shows “Not Connected”.
  • Page 123 User Manual of 47611-WG4 Figure 6-16 Figure 6-17 Step 3: Tap the target wireless network (SSID) in “Choose a Network…” (1) Turn on Wi-Fi by tapping “Wi-Fi” (2) Select SSID [LEVITON] -118-...
  • Page 124 User Manual of 47611-WG4 Figure 6-18 Step 4: Enter the encryption key of the Wireless Router (1) The password input screen will be displayed (2) Enter the encryption key that configured in section 5.6.2 (3) Tap the [Join] button Figure 6-19...
  • Page 125 User Manual of 47611-WG4 Step 5: Check if the iDevice is connect to the selected wireless network. If “Yes”, then there will be a “check” symbol in the front of the SSID. Figure 6-20 -120-...

  • Page 126: Appendix A: Leviton Smart Discovery Utility

    The following installation instructions guide you to running the Smart Discovery Utility. Step 1: Deposit the Leviton Smart Discovery Utility in administrator PC. Step 2: Run this utility and the following screen appears. Step 3: Press “Refresh” button for current connected devices in the discovery list as shown in the following screen: Step 4: Press “Connect to Device”...

  • Page 127: Appendix B: Troubleshooting

    Appendix B: Troubleshooting If you found the router is working improperly or stop responding to you, please read this troubleshooting first before contacting the Leviton Tech Support for help,. Some problems can be solved by yourself within very short time.
  • Page 128 User Manual of 47611-WG4 but can’t use hostname, please check DNS setting. a. ‘Broadcast ESSID’ set to off? I can’t locate my router by my b. All two antennas are properly secured. wireless device. c. Are you too far from your router? Try to get closer.

  • Page 129: Appendix C: Configuring The Pc In Windows 7

    User Manual of 47611-WG4 Appendix C: Configuring the PC in Windows 7 In this section, we’ll introduce how to configure the TCP/IP correctly in Windows 7. First make sure your Network Adapter is working, refer to the adapter’s manual if needed.
  • Page 130 User Manual of 47611-WG4 Figure B-2 In the prompt page shown below, double click on the Internet Protocol Version 4 (TCP/IPv4). Figure B-3 -125-...
  • Page 131 User Manual of 47611-WG4 The following TCP/IP Properties window will display and the IP Address tab is open on this window by default. Now you have two ways to configure the TCP/IP protocol below: Setting IP address automatically  Select Obtain an IP address automatically, Choose Obtain DNS server address automatically, as shown in...
  • Page 132 User Manual of 47611-WG4 type the DNS server IP address which has been provided by your ISP Figure B-5 Now click OK to keep your settings. -127-...

  • Page 133: Appendix D: Specifications

    User Manual of 47611-WG4 Appendix D: Specifications 47611-WG4 Product 300Mbps Dual-Band 802.11n Wireless Gigabit Router Hardware Specification WAN Port: 1 x 10/100/1000Mbps Auto MDI/MDI-X RJ45 port LAN Port: 3 x 10/100/1000Mbps Auto MDI/MDI-X RJ45 ports (LAN1~3) Interface IPTV Port: 1 x 10/100/1000Mbps Auto MDI/MDI-X RJ45 port (LAN4) USB Port : USB 2.0, Type-A, 5V DC/0.5A Output...
  • Page 134 User Manual of 47611-WG4 Support WPS (WIFI Protected Setup ) Support Dual-SSID (2.4G & 5G) AP Isolation: Enable it to isolate each connected wireless client. Wireless Advanced Support 802.11e WMM (Wi-Fi Multimedia) Max. Supported Wire: 15 Wireless: 10 Clients Router Features...

  • Page 135: Appendix E: Glossary

    User Manual of 47611-WG4 Appendix E: Glossary 802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input  multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased data throughput via spatial multiplexing and increased range by exploiting the spatial diversity, perhaps through coding schemes like Alamouti coding.
  • Page 136 User Manual of 47611-WG4 SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key identifying a  wireless local area network. For the wireless devices in a network to communicate with each other, all devices must be configured with the same SSID. This is typically the configuration parameter for a wireless PC card.

Table of Contents
