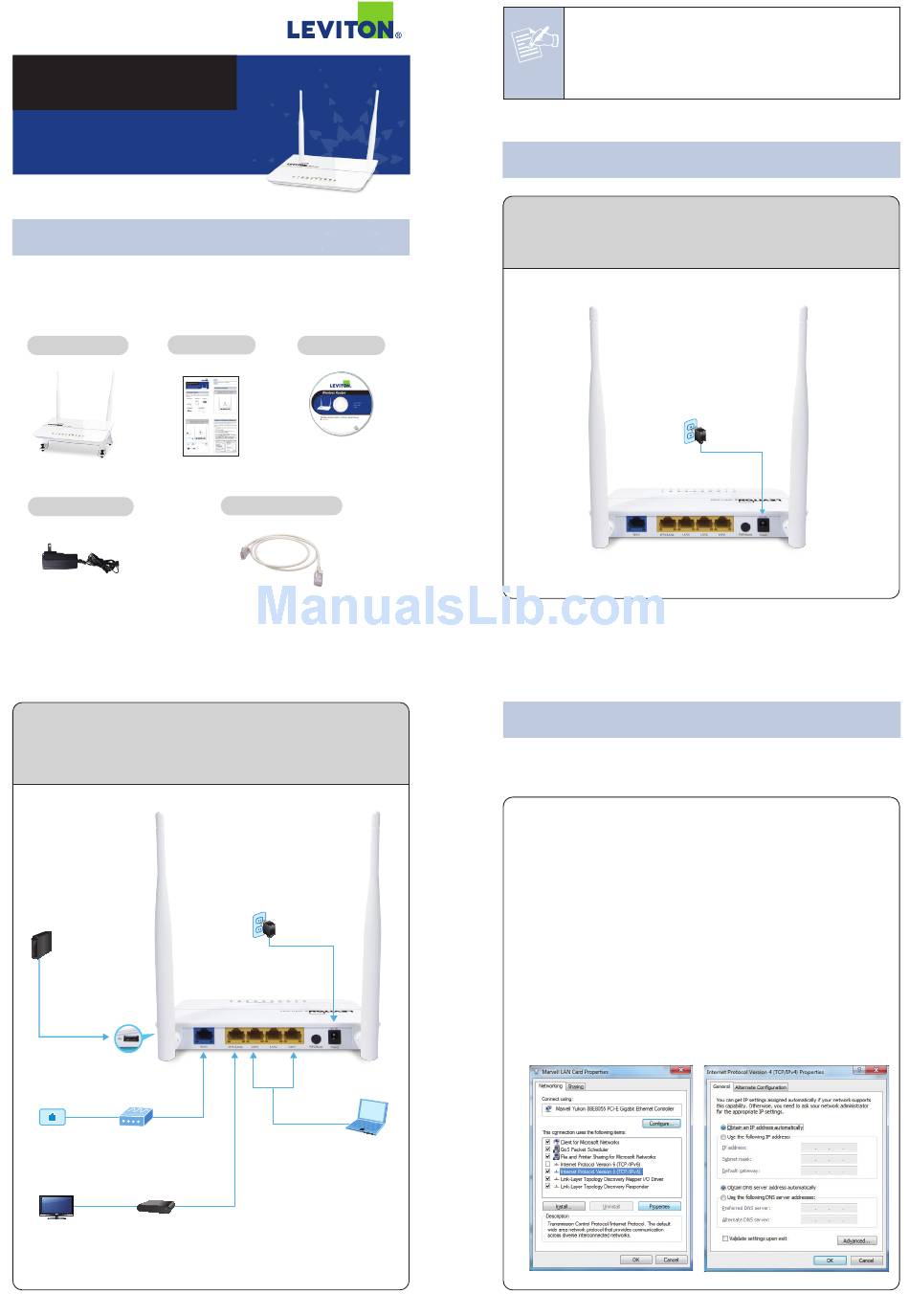

Quick Installation Guide
47611-WG4
300Mbps Dual-Band 802.11n
Wireless Gigabit Router

1. Package Contents

Thank you for choosing Leviton 47611-WG4. Before
installing the router, please verify the contents inside the
package box.
Quick Guide
Wireless Router
Power Adapter
STEP 2: Follow the figure below to connect the network
devices. It depends on your network environment
to connect the WAN port to a Cable/xDSL modem,
or the Ethernet directly in your place.
USB Storage
USB Line
RJ-45
RJ-11
Phone
Cable /xDSL
Jack
Modem
A/V
STB
TV
CD-ROM
Ethernet Cable
– 1 –
Power
Power Adapter
RJ-45
PC/Laptop
RJ-45
– 3 –
If there are any items missing, please contact
Leviton immediately.
Note

2. Hardware Installation

STEP 1: Connect the Power Adapter provided in the
package to the 47611-WG4. The Power LED on
the front panel shall turn on accordingly.
Power Adapter
3. Network Configuration (Windows 7)
A computer with a wired Ethernet connection is required for
the first-time configuration of the Wireless Router.
Set your computer to get an IP address from the Wireless
Router:
1. Click "Start" button located at lower-left corner of the
screen.
2. Click "Control Panel".
3. Double click "Network and Sharing Center" icon.
4. Click "Change adapter settings".
5. Double click "Local Area Connection" icon.
6. Select "Internet Protocol Version 4 (TCP/IPv4)"
and click "Properties" button.
7. Select "Obtain an IP address automatically" and
"Obtain DNS server address automatically", then
click "OK" button twice to save the configuration.
Power
– 2 –
– 4 –
