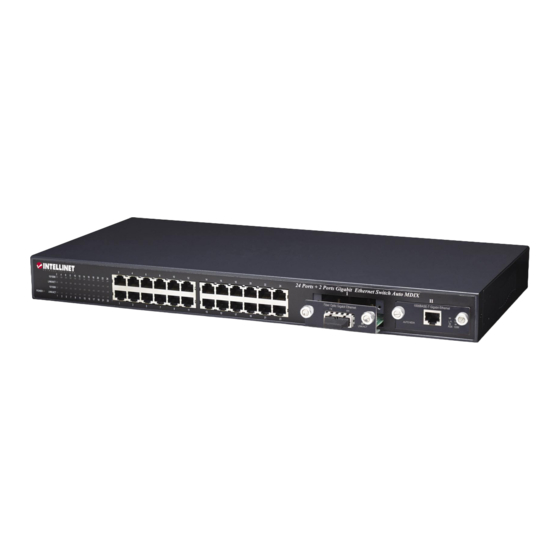

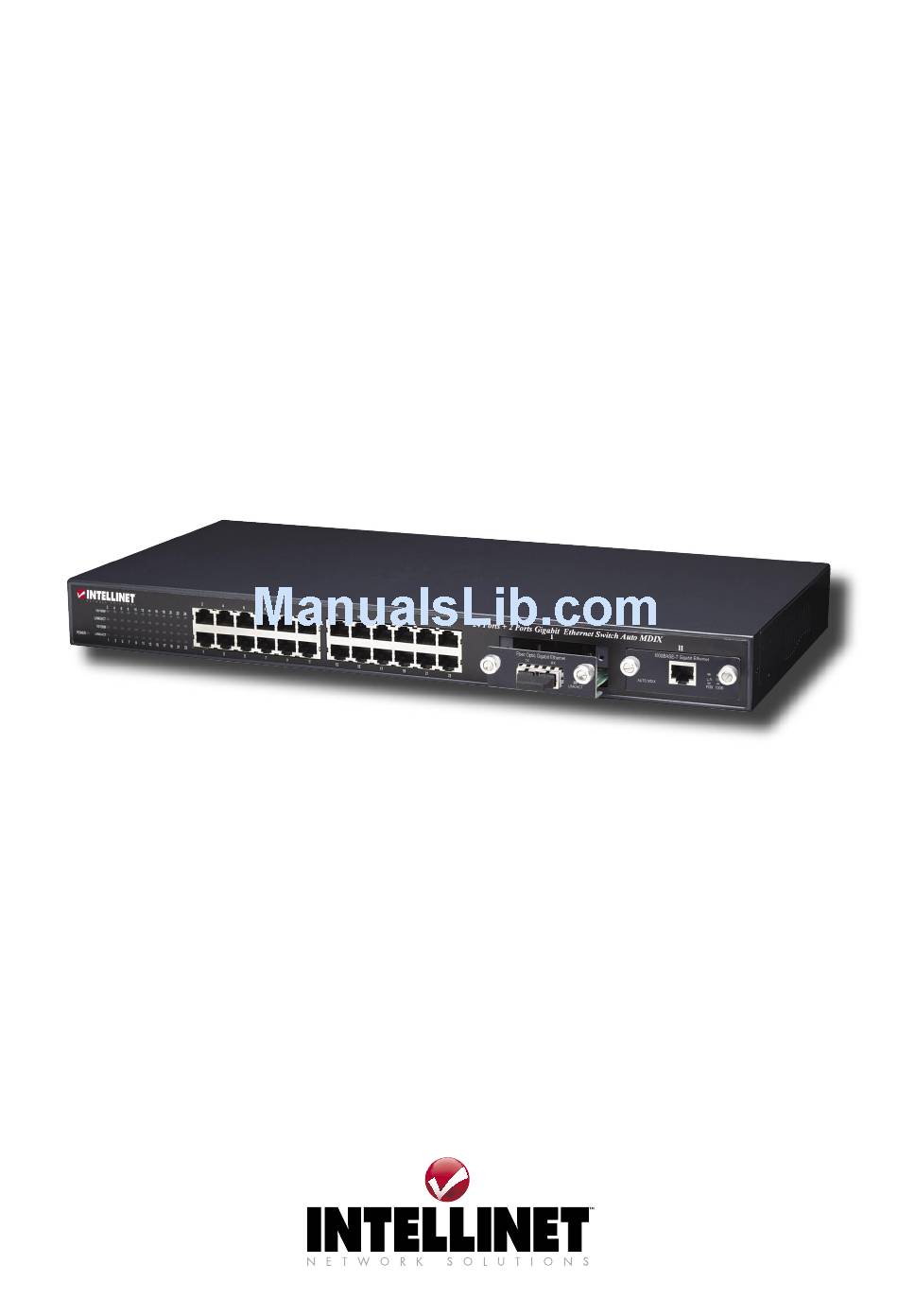

FAST ETHERNET
RACKMOUNT
WEB-SMART
SWITCH
WITH OPTIONAL GIGABIT PORTS

USER MANUAL

MODEL 505093
INT-505093-UM-0906-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 505093 and is the answer not in the manual?

Questions and answers

Related Manuals for Intellinet 505093

Summary of Contents for Intellinet 505093

  • Page 1: User Manual

    FAST ETHERNET RACKMOUNT WEB-SMART SWITCH WITH OPTIONAL GIGABIT PORTS USER MANUAL MODEL 505093 INT-505093-UM-0906-01...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS section page 1. Introduction & Features ............3 2. Hardware Installation ............3 3. Software Settings .............4 4. Functions & Configurations ..........6 Port Status ................6 Port Configuration ..............6 Trunk Configuration ..............6 VLAN Configuration ..............7 Port Monitoring Configuration ............7 QoS Configuration ..............8 Bandwidth Control ..............8 Miscellaneous Operations ............8 5.

  • Page 3: Introduction & Features

    Thank you for your purchase of the INTELLINET NETWORK SOLUTIONS ™ Fast Ethernet Rackmount Web-Smart Switch with Optional Gigabit Ports, Model 505093. Following is an introductory overview of the Web-Smart Switch features. • Supports real-time status read/write operation. • Provides online link status.

  • Page 4: Software Settings

    3. SOFTWARE SETTINGS To open the HyperTerminal program, follow the steps below. 1. Click “Start,” then “Programs,” then “Accessories,” then “Communications,” then “HyperTerminal.” 2. Enter any name you care to on the New Connection screen, then click “OK.” 3. In the “Connect using” field, enter the serial port where you connected the null modem cable to the PC.
  • Page 5 4. On the Properties page, fill in the fields as shown below, then click “OK.” Bits per second: 9600 Data bits: 8 Parity: None Stop bits: 1 Flow control: None 5. When you see the blinking cursor on the next screen, press any key for the default settings of “admin”...

  • Page 6: Functions & Configurations

    4. FUNCTIONS & CONFIGURATIONS Port Status This screen displays the current status of each of the ports: enabled/disabled, link up/down, speed/duplex and flow control. Port Configuration On this screen, you’re able to configure the enable state, auto- negotiation, speed/ duplex and flow control for each port.

  • Page 7: Vlan Configuration

    Cascaded Connection By utilizing a combination of three 24-port Fast Ethernet Rackmount Web-Smart Switches and a single 4-port server (as shown in the figure at right), Server with 4 trunk ports each 24-port Smart Switch is able to support two trunks, with each trunk allowing as many as four ports to be available for use in a cascaded connection.

  • Page 8: Qos Configuration

    QoS Configuration On this screen, you’re able to configure the QoS (Quality of Service) mode, static port priority and 802.1p priority. Bandwidth Control On this screen, you’re able to configure the input rate or the output rate of each port. If, for example port 1 is 10 Mbps, you can set its effective output rate to 1 Mbps and its input rate...

  • Page 9: Web Login

    5. WEB LOGIN Setting IP Addresses by Console Port Logging in Web pages requires setting the proper IP address. If using the default IP address — 192.168.1.1 — first be sure that this IP will work in your network environment. Otherwise, the IP address, subnet mask and default gateway need to be...

  • Page 10: Specifications

    6. SPECIFICATIONS Standards IEEE 802.3 (10Base-T Ethernet) IEEE 802.3u (100Base-TX Fast Ethernet) IEEE 802.3x (flow control and back-pressure) IEEE 802.1q (tag-based VLAN) IEEE 802.1v (port-based VLAN) General ANSI/IEEE 802.3 NWay auto-negotiation Non-blocking, store-and-forward switching architecture Connectors: 24 10/100 Mbps RJ-45 ports, SMII/GMII interface for optional Gigabit modules, RS-232 console port Switch architecture: store-and-forward switch technology Network cables: Cat3, 4, 5 (UTP/STP)
  • Page 11 Environmental Dimensions: 440 (W) x 184 (D) x 44 (H) mm (17 .32 x 7 .3 x 1.75 in.) Weight: 2.3 kg (5.1 lbs.) Operating temperature: 0 – 45°C (32 – 113°F) Operating humidity: 10 – 90%, non-condensing Safety & EMI certificates: FCC Class A; CE Mark Class A SPECIFICATIONS...
  • Page 12 Are you completely satisfied with this product? Please contact your INTELLINET NETWORK SOLUTIONS dealer ™ with comments or questions. Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
