- Page 1 Operating Guide EPIA LT-Series Mini-ITX Mainboard January 18, 2012 Version 1.04...
-
Page 2: Table Of Contents
VIA EPIA LT-Series Layout Diagram & Mounting Holes ....................... 7 VIA EPIA LT-Series Layout Diagram & Height Distribution ......................8 Power Consumption....................................9 VIA EPIA LT15000G..................................9 VIA EPIA LT10000EG ................................... 11 Power Specifications ....................................13 VIA EPIA LT-Series Microsoft and Linux Driver Support......................14 ................................ -
Page 3: Via Epia Lt-Series Overview
EPIA LT-Series Operating Guide VIA EPIA LT-Series Overview The VIA EPIA LT-Series Mini-ITX Mainboard is an ultra compact native x86 platform optimized for today's demanding embedded and productivity applications. The mainboard is based on the VIA CX700 chipset featuring an embedded hardware MPEG-2 accelerator and integrated VIA UniChrome™... -

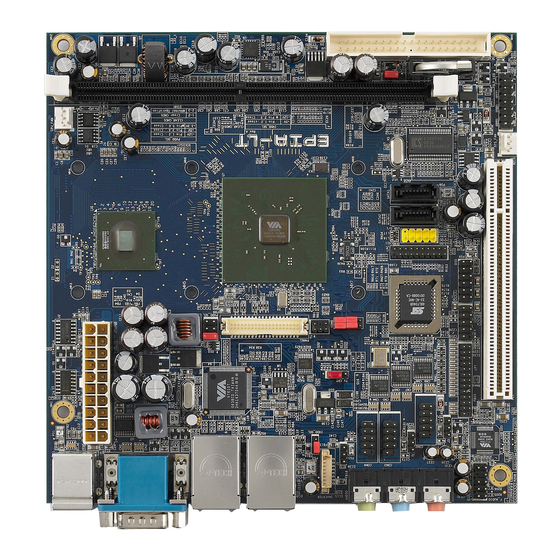

Page 4: Via Epia Lt-Series Layout
EPIA LT-Series Operating Guide VIA EPIA LT-Series Layout January 18, 2012 - 2 - Version 1.04... -
Page 5: Via Epia Lt-Series Specifications
EPIA LT-Series Operating Guide VIA EPIA LT-Series Specifications Model Name - EPIA - LT15000G - EPIA LT10000EG ® ® Processor - VIA C7 1.5GHz NanoBGA2 - VIA C7 1.0GHz NanoBGA2 processor processor Chipset - VIA CX700 Advanced All-in-One system processor System Memory - 1 DDR2 533 DIMM slot - Up to 1GB memory size... -
Page 6: Via Epia Lt Processor Skus
EPIA LT-Series Operating Guide VIA EPIA LT Processor SKUs The VIA EPIA LT-Series is available in two speed grades as follows: • ® 1.5 GHz VIA C7 NanoBGA2 Processor • ® 1.0 GHz VIA C7 NanoBGA2 Processor January 18, 2012 - 4 - Version 1.04... -
Page 7: Via Cx700 Chipset Overview
EPIA LT-Series Operating Guide VIA CX700 Chipset Overview The VIA CX700 Chipset is designed to enable high quality digital video streaming and DVD playback in a new generation of fanless, small form factor PCs and IA devices. The CX700 features the embedded VIA UniChrome™ Pro 2D / 3D MPEG-2 acceleration, DDR2 533 / 400MHz support, motion compensation and duo-view support to ensure a rich overall entertainment experience. -
Page 8: Via Epia Lt-Series I/O Back Panel Layout
EPIA LT-Series Operating Guide VIA EPIA LT-Series I/O Back Panel Layout The EPIA LT’s ultra compact 17cm x 17cm, integrated design supports all the standard legacy x86 connectivity options as well as PS/2 Mouse port, PS/2 Keyboard port, COM port, VGA port, RJ45 LAN ports, USB 2.0 ports, and audio jacks. -
Page 9: Via Epia Lt-Series Layout Diagram & Mounting Holes
EPIA LT-Series Operating Guide VIA EPIA LT-Series Layout Diagram & Mounting Holes January 18, 2012 - 7 - Version 1.04... -
Page 10: Via Epia Lt-Series Layout Diagram & Height Distribution
EPIA LT-Series Operating Guide VIA EPIA LT-Series Layout Diagram & Height Distribution January 18, 2012 - 8 - Version 1.04... -
Page 11: Power Consumption
EPIA LT-Series Operating Guide Power Consumption Power consumption tests were carried out comparing the VIA EPIA LT15000G and EPIA LT10000EG. The following tables are a comprehensive breakdown of the EPIA platform’s voltage, amp and wattage values while running common system applications. - Page 12 EPIA LT-Series Operating Guide E. Running Network Application – Files Copy (VT6107-2) MEAN Measured Voltage Measure Amp Watts Main Board +3.3V 3.317 1.389 4.607 Main Board +5V 5.004 1.532 7.666 Main Board 5VSB 5.007 0.111 0.556 Main Board +12V 12.138 0.246 2.986 Total Power Consumption...
-
Page 13: Via Epia Lt10000Eg
EPIA LT-Series Operating Guide VIA EPIA LT10000EG A. IDLE Status MEAN Measured Voltage Measure Amp Watts Main Board +3.3V 3.341 1.282 4.283 Main Board +5V 5.009 1.322 6.622 Main Board 5VSB 4.937 0.056 0.276 Main Board +12V 11.974 0.098 1.173 Total Power Consumption 12.354 B. - Page 14 EPIA LT-Series Operating Guide E. Running Network Application – Files Copy (VT6107-2) MEAN Measured Voltage Measure Amp Watts Main Board +3.3V 3.332 1.316 4.385 Main Board +5V 4.992 1.619 8.082 Main Board 5VSB 4.930 0.073 0.360 Main Board +12V 11.979 0.084 1.006 Total Power Consumption...
-
Page 15: Power Specifications
EPIA LT-Series Operating Guide Power Specifications The EPIA LT utilizes an industry standard 20-pin ATX main connector to the power supply. Due to the EPIA LT platform’s ultra low power requirements a 90 – 120 Watt ATX power supply is ample for even the heaviest of multimedia system applications. -12V PS_ON PW_OK... -
Page 16: Via Epia Lt-Series Microsoft And Linux Driver Support
EPIA LT-Series Operating Guide VIA EPIA LT-Series Microsoft and Linux Driver Support Microsoft Driver Support VIA EPIA LT series offers full support for the complete range of Microsoft operating systems. For standard operating systems, Windows 98/Me/2000/XP latest drivers downloads can be found in the VEPD website at www.viaembedded.com. -
Page 17: Contact
EPIA LT-Series Operating Guide Contact For more information on the VIA EPIA LT-Series Mini ITX Mainboard contact your sales representative or visit our website at www.viaembedded.com Taiwan Headquarters Europe 1F, 531 Zhong-Zheng Road 940 Mission Court In den Dauen 6 Xindian District, New Taipei City Fremont, CA 94539 53117 Bonn...
