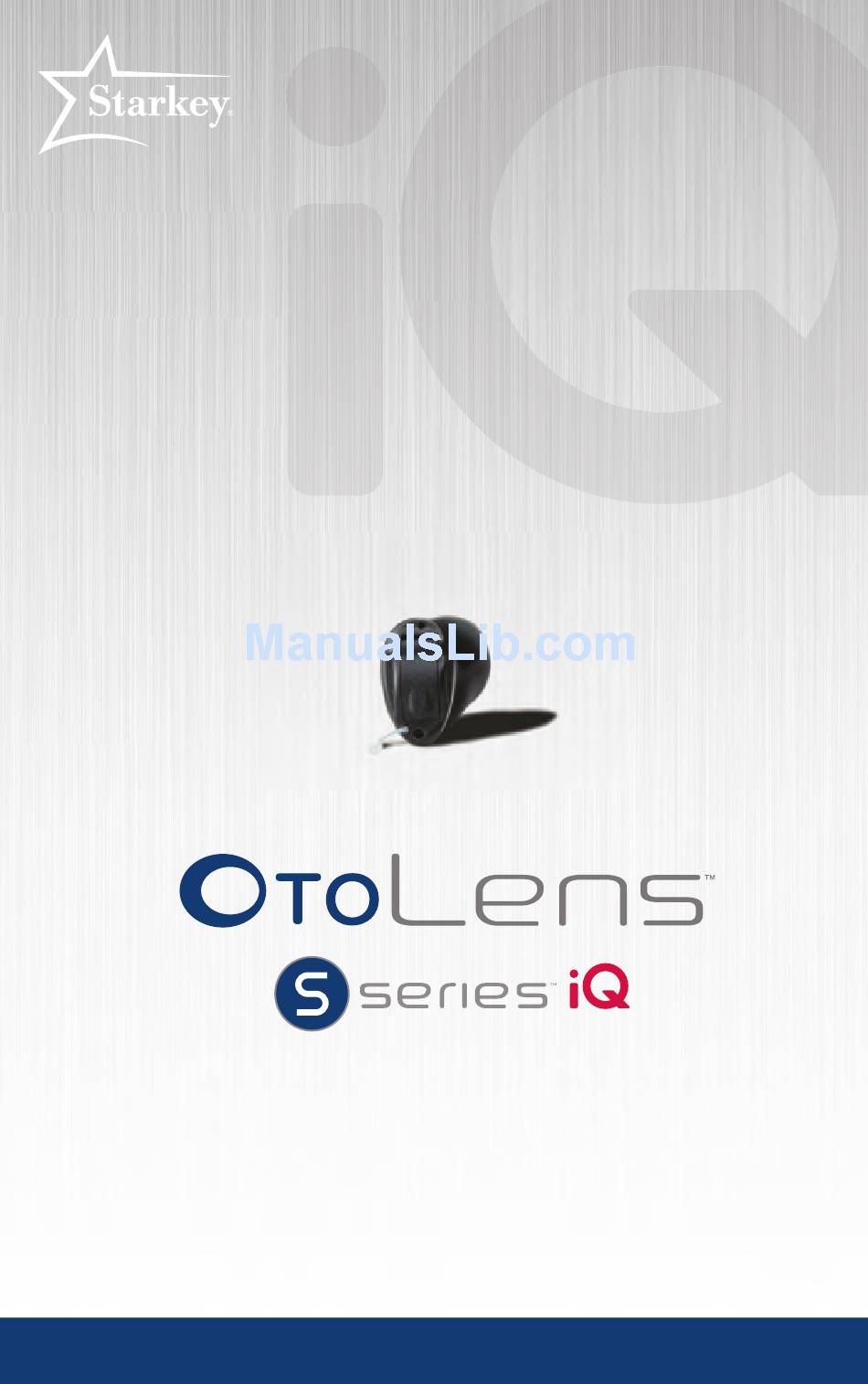

- Page 1 IIC (Invisible-In-The-Canal) O P e R AT I O N S M A N u A L...
-
Page 2: Table Of Contents
Table of Contents Overview Features, Controls and Identification . . . . . . . . . . . . . 3 Preparation Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Battery Indicators . -
Page 3: Features, Controls And Identification
IIC Overview Features, Controls and Identification Your hearing system controls include: 1 . Microphone opening 2 . Sound outlet (receiver) 3 . Battery compartment (on/off control) 4 . Removal handle 5 . Vent (optional) Your hearing system can be identified by the white R for the right ear and L for the left ear and the serial number: 6 . -
Page 4: Preparation
Preparation Batteries Your hearing system uses a battery as its power source . This battery size can be identified by the yellow (10) color code on the packaging . To insert or replace the battery: 1 . Use the nail grip on the battery door . 2 . - Page 5 Preparation...
-
Page 6: Battery Indicators
Preparation Battery Indicator Tones An indicator will sound when the battery voltage is low . You have approximately 5 minutes* to replace the battery . An indicator will sound just before the battery stops working . * Actual time between low battery indicator and shut down will vary depending on environmental noise levels and brand of battery used. -
Page 7: Insertion And Removal
Preparation Insertion and Removal It is very important that you work closely with your hearing professional to develop an insertion technique that is specific for the shape and contours of your ear . Improper insertion will result in unsatisfactory performance and comfort . To insert the hearing instrument: 1) D etermine Left or Right by locating the side marker on the hearing instrument . - Page 8 Preparation To remove the hearing instrument: Grasp the removal handle found at the bottom of the ear canal and gently remove the hearing instrument from the ear .
-
Page 9: Helpful Hints
Preparation Helpful Hints • It is not unusual for the hearing aid to feel quite foreign in the ear canal initially, but very natural over time as your ear adapts . It may be necessary to adopt a wearing schedule that gradually increases the time that you wear your hearing aids . Work with your hearing professional to develop a wearing schedule appropriate for your needs . -
Page 10: Operation
Operation On & Off To turn ON: Insert a battery and completely close the battery door . To turn OFF: Open the battery door until the battery is no longer touching the battery contacts . Some hearing instruments are programmed to have a Power-On delay . -
Page 11: Multimemory Settings
Operation Volume Control My hearing instrument uses T for volume control . See page 12 . Your hearing system has been set to a specific volume level by your hearing care professional . If sounds are generally too loud or too soft, please contact your hearing care professional for advice and adjustment . -
Page 12: T 2 (Touch-Tone) Function
Operation (touch-tone) Function My hearing instrument has T capability . Please read the section below . My hearing instrument does not have capability . See page 14 . You may use a cell phone, cordless telephone, or corded telephone to adjust your hearing system . The telephone MUST “beep”... -
Page 13: Troubleshooting Guide
Operation Troubleshooting Guide SYMPTOM POSSIBLe CAuSeS SOLuTIONS Consult telephone Telephone keys not operator’s manual to emitting beep tones enable beep tones T² not unlocked prior Press ** and listen for to command unique T² indicator Hearing system Bring telephone closer not responding Telephone too far to hearing system to telephone... -
Page 14: Telephone Use
Operation Telephone use Your hearing instruments are equipped with tools to help you effectively communicate on the telephone . Your hearing professional will check the box/boxes that represent the telephone settings in your instruments . My hearing instruments have the following telephone setting(s): A beep or indicator tone is enabled on my instruments to signal when the device switches... - Page 15 Operation General Telephone use Some hearing instruments work best by holding the phone close to, but not fully covering your ear . In some instances, if you encounter whistling (feedback), tilt the receiver at an angle until the whistling stops . Your hearing professional can provide instructions and techniques for your specific needs .
- Page 16 Operation The immunity of this hearing aid is at least M2/ T2. The equipment performance measurements, categories and system classifications are based upon the best information available but cannot guarantee that all users will be satisfied. NOTE: The performance of individual hearing aids may vary with individual cell phones.
-
Page 17: Reminder
Operation Reminder Some hearing systems have been programmed with a Reminder indicating that it is time to schedule an appointment . Your hearing care professional will check the box below if this feature is activated . My Reminder feature is activated . My Reminder indicator is a: Speech Indicator (“Make Appointment”) Tone Indicator... -
Page 18: Summary Of Settings
Operation Summary of Settings Indicator Indicator environment Tone Type Tone On Speech Program 1 Normal 1 Tone Speech Program 2 2 Tones Tone Series Speech Program 3 3 Tones Tone Series Speech Program 4 4 Tones Tone Series Speech Low Battery —... -
Page 19: Instrument Care
Operation Instrument Care Because of the variability of individual ear canal physiology, maintenance needs vary . Work with your hearing professional to develop a maintenance routine best for you . General maintenance guidelines: a . Inspect your hearing aid with good light and a magnifying glass if necessary, and become familiar with the look of a properly maintained hearing aid . -
Page 20: Hearing System Care
Hearing System Care Helpful Hints • When not wearing your hearing instruments, open the battery door to allow any moisture to evaporate • When not in use, remove the batteries completely; place your hearing system in the storage container and store: – In a dry, safe place – Away from direct sunlight or heat to avoid extreme temperatures –... -
Page 21: Service And Repair
Hearing System Care Service and Repair If, for any reason, your hearing system does not operate properly, do NOT attempt to fix it yourself . Not only are you likely to violate any applicable warranties or insurance, you could easily cause further damage . -
Page 22: Tips For Better Communication
Tips for Better Communication Your hearing care professional will recommend an appropriate schedule to help you adapt to your new hearing system . It will take practice, time and patience for your brain to adapt to the new sounds that your hearing system provides. Hearing is only part of how we share thoughts, ideas and feelings . -
Page 23: For Your Family And Friends
Tips for Better Communication • Let others know what you need; keep in mind that people cannot “see” your hearing loss • Develop realistic expectations of what your hearing instruments can and cannot do • Better hearing with hearing instruments is a learned skill combining desire, practice and patience For Your Family and Friends Your family and friends are also affected by your hearing loss . -
Page 24: Fda Information
FDA Information Required Information The following additional information is provided in compliance with U.S. Food and Drug Administration (FDA) regulations: WARNING TO HEARING INSTRUMENT DISPENSERS. A hearing instrument dispenser should advise a prospective hearing instrument user to consult promptly with a licensed physician (preferably an ear specialist) before dispensing a hearing instrument if the hearing instrument dispenser determines through inquiry, actual observation, or review of any other available information concerning the prospective user, that the... - Page 25 FDA Information Following the medical evaluation, the physician will give you a written statement that states that your hearing loss has been medically evaluated and that you may be considered a candidate for a hearing instrument . The physician will refer you to an audiologist or hearing instrument dispenser, as appropriate, for a hearing instrument evaluation .
-
Page 26: Limited Warranty
(30) days of discovering the defect . There will be no cost to you for Starkey’s repair or replacement of the instrument itself, but the hearing professional may charge a fee for services he or she provides . - Page 27 This warranty gives you specific legal rights . You may also have other rights which vary from State to State . This warranty is valid only in the United States . Starkey World Headquarters 6700 Washington Avenue South Eden Prairie, MN 55344 Wm. F. Austin House, Bramhall Technology Park...
- Page 28 A global hearing technology company headquartered in Eden Prairie, Minnesota, U.S.A. Starkey Laboratories, Inc. 6700 Washington Avenue South Eden Prairie, MN 55344-3476 800.328.8602 www.starkey.com © 2010 Starkey Laboratories, Inc. All Rights Reserved. 84507-000 5/10 BKLT0191-01-EE-ST Rev. B...
