Removing the Base

NOTE: Always remove the Base when shipping the LCD.

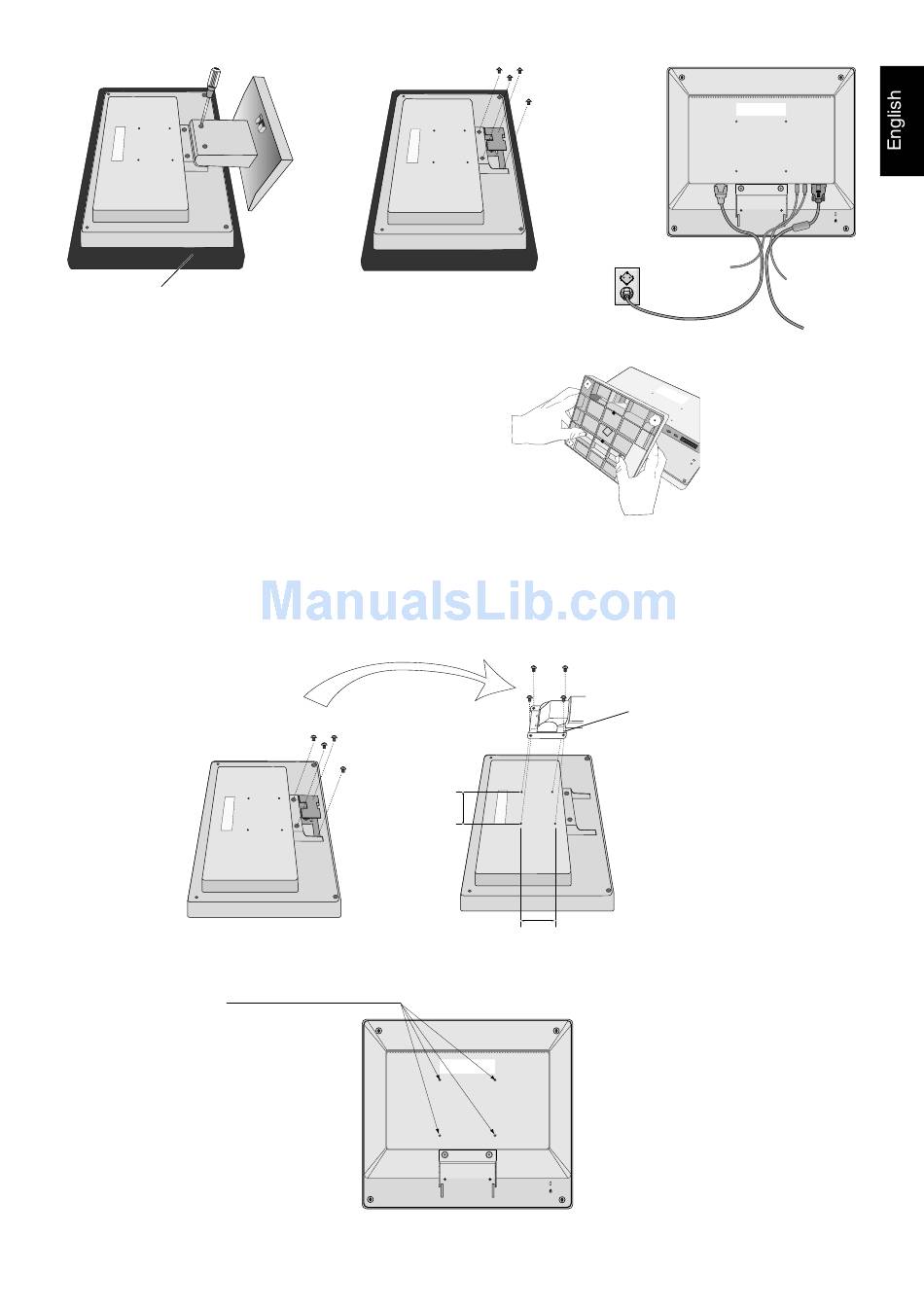

1. Place monitor face down on a non-abrasive surface (Figure R.1).
2. While using your thumbs, press the bottom tabs upward to unlock.
3. Press the top tabs down to unlock and pull off the stand.
Connecting a Flexible Arm
This LCD monitor is designed for use with a flexible arm.
Please use the attached screws (4pcs) as show in the picture when installing. To meet the safety requirements, the monitor
must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor.
The LCD monitor shall only be used with an approved arm (e.g. GS mark).

Specifications

4-SCREWS (M4)
(MAX depth: 8.5 mm)
If use other
screw, check
depth of hole.
Figure R.2
Replace screws
75 mm (LCD51VM)
100 mm (LCD71VM)
75 mm (LCD51VM)
100 mm (LCD71VM)
Weight of LCD assembly: 2.6 kg - LCD51VM (MAX)
4.0 kg - LCD71VM (MAX)
English-5
Figure R.3
Thickness of Bracket
(Arm) 2.0 ~ 3.2 mm
Tighten all screws
