Date of
Installation:
Heater Serial Number:
Heater Model:
19)

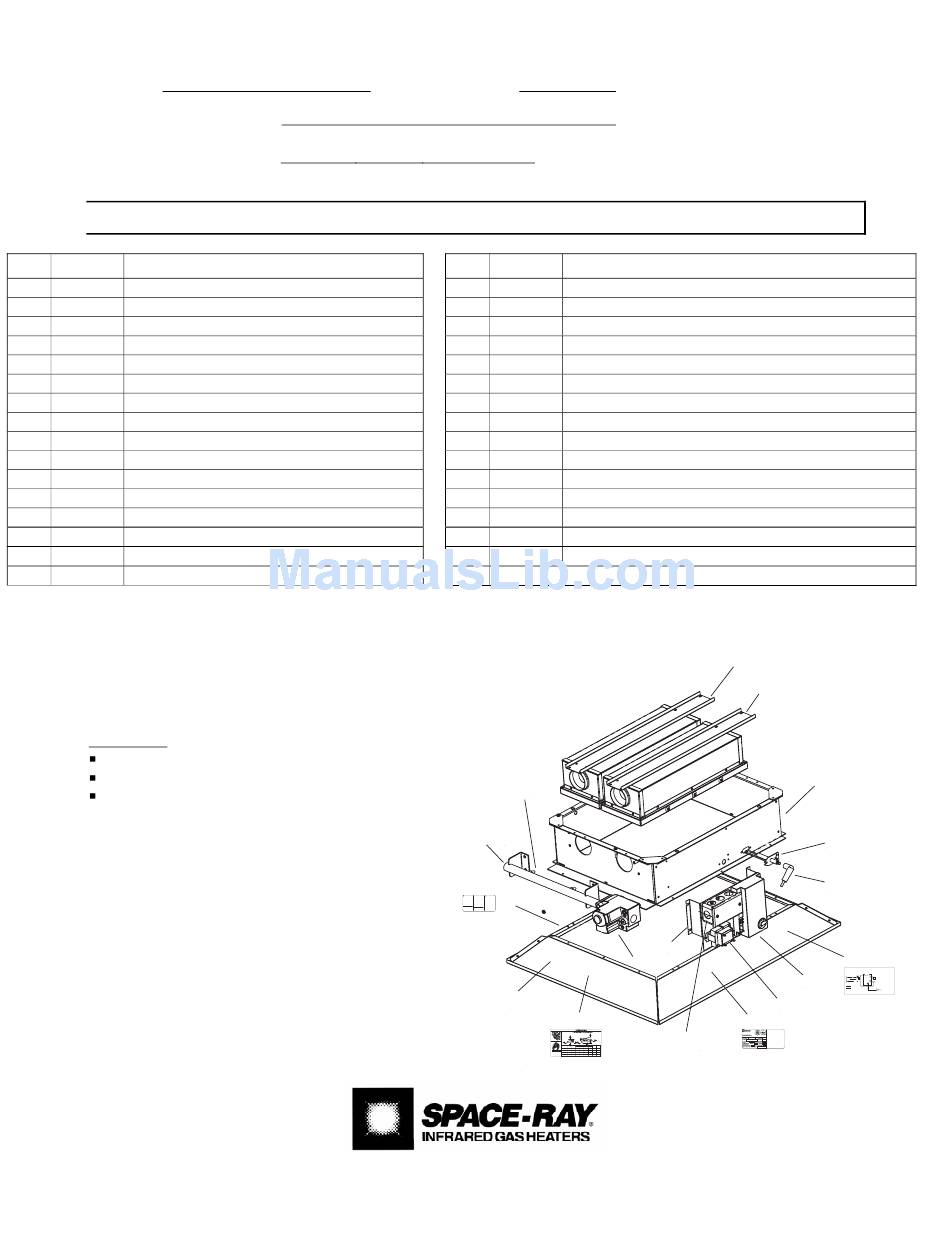

REPLACEMENT PARTS GUIDE

ITEM# PART # DESCRIPTION
1 30333040 Valve VR8205A-2081 @ 10" W.C. – Propane Gas
2 30333050 Valve VR8205A-2123 @ 6" W.C. – Natural Gas
3 30279000 Transformer AT120B1051
4 30632030 Spark Module, Fenwal #35605-950-0150
5 30295020 Electrode PSE-GF9
6 30314100 Ignition Cable 10"
7 43856029 Burner Assembly Kit (Ignition Unit)
8 43856039 Burner Assembly Kit (2
9 43862010 Manifold for DK33, DK35, DK40
10 43862020 Manifold for DK60, DK66, DK70, DK80
11 43862030 Manifold for DK100, DK120
12 43862040 Manifold for DK132, DK140, DK160
13 43847010 Reflector for DK33, DK35, DK40
14 43847020 Reflector for DK60, DK66, DK70, DK80
15 43847030 Reflector for DK100, DK120
16 43847040 Reflector for DK132, DK140, DK160
IMPORTANT:
Please order by Part Number, not by Item Number.
Refer to complete Model Number when ordering.
All replacement parts available when ordering.
Screws, nuts and washers are standard hardware
items and can be purchased at any local hardware
store.
ALL ILLUSTRATIONS ARE INTENDED TO GIVE THE
GENERAL IMPRESSION OF UNITS ONLY.
RESERVE THE RIGHT TO ALTER ANY SPECIFICATION
WITHOUT NOTICE
Number of
Heaters in System:
DK
, 3 , and 4 Unit)
nd rd th
WE
N = Natural Gas
L = Propane Gas
ITEM# PART # DESCRIPTION
17 43908010 Frame Assembly
18 43908020 Frame Assembly
19 43908030 Frame Assembly
20 43908040 Frame Assembly
21 03548000 Junction Box, 2 x 4 x 1½
22 03606000 Cover Plate
23 43849000 Ignition Control Bracket
24 43872380 Orifice #38 for DK40, DK80, DK120, DK160 – Natural Gas
25 43872410 Orifice #41 for DK35, DK70, DK100, DK140 – Natural Gas
26 43872980 Orifice 3/32" for DK30, DK60 – Natural Gas
27 43872520 Orifice #52 for DK33, DK66, DK100, DK132 – Propane Gas
28 43219010 Installation and Operation Manual (Not Shown)
29 42052030 Label - Connection Wire Diagram
30 42849000 Label - Nameplate
31 43247020 Label – Clearances to Combustibles
32 42875000 Label - General Warnings
24, 25, 26, 27
9, 10, 11, 12
WARNING: Improper AVERTISSEMENT: Une WARNING: If not 32
installation, adjustment, installation, un réglage, une installed, operated and
alteration, service or modification, une réparation maintained in accordance
property damage, injury maintenance can cause ou un entretien incorrect peut with the manufacturer’s
or death. Read the entraîner des dommages matérials, des blessures ou could expose you to instructions, this product
Installation, Operating la mort. Lisez attentivement substances in fuel or from
and Maintenance les instructions d’installation, fuel combustion which can
Instruction thoroughly de fonctionnement et cause death or serious
before servicing this d’entretien avant de procéder illness and which are
equipment. à l’installation ou à l’entretien known to the State of
This heater can be de cet équipment. California to cause cancer,
installed in various WARNING: This product birth defects or other
configurations as shown contains a chemical known reproductive harm.
in the heater layout to the state of California to
section of the instructions cause cancer. 42875000 Rev. E 10/04
13, 14, 15, 16
31
Combustible material must be located outside the clearance dimensions listed.
Failure to do so may result in death, serious injury or property damage
CEILING IMPORTANT!
Gas Manifold Gas Valve When angle
CEILING Assembly mounting, the control side
must be down.
FRONT
ANGLE
SIDE SIDE REAR
BELOW BELOW
w/Standard w/Reflector w/Standard w/Reflector ANGLE
Reflector Extension Reflector Extension MTG.
MODEL NO. SIDES CEILING BELOW FRONT REAR (degree)
DK30, DK35, 30” 36” 72” 100” 36” 50” 30” 0 min.
DK33, DK40 (76cm) (91cm) (183cm) (254cm) (91cm) (127cm) (76cm) 35 max.
DK60, DK70, 48” 48” 98” 137” 48” 68” 36” 0 min.
DK66, DK80 (122cm) (122cm) (249cm) (348cm) (122cm) (173cm) (91cm) 35 max.
DK100, DK120 48” 64” 128” 180” 60” 84” 48” 0 min.
122cm) (163cm) (325cm) (457cm) (145cm) (213cm) (122cm) 35 max.
DK132, DK160, 60” 64” 136” 190” 64” 90” 48” 10 min.
43247020 Rev. C 8/05 DK140 (145cm) (163cm) (345cm) (483cm) (163cm) (229cm) (122cm) 35 max.
17
(1 Burner Unit)
(2 Burner Unit)
(3 Burner Unit)
(4 Burner Unit)
8
7
23
1, 2
4
3
30
LIGHTING & SHUTDOWN INSTRUCTIONS
1. Turn on gas & electrical supply.
HIGH INTENSITY INFRARED RADIANT 3. If ignition fails, the unit will spark for approximately 21 seconds 2. Set thermostat to call for heat.
CERAMIC HEATER RADIATEUR CÉRAMIQUE À INFRAROUGES & go into safety lockout. Turn thermostat (or power) off for 60
21, 22 UNVENTED 4. If heater does not light, shut off gas completely for 5 minutes seconds to take out of lockout.
SANS AÉRATION 5. To shut down the heater, turn off the gas & electrical supply. before attempting to relight.
Gas Fired products Inc. Charlotte, NC
ANSI Z83.19b / CSA 2.35b-2007 Tel: 1800 438 4936 e-mail info@spaceray.com INSTRUCTIONS D’ALLUMAGE ET DE FERMETURE
1. mettre la valve a gaz et l’interrupteur a “ON”. 2. Creer une demande de chauffage au thermostat.
3. Si l’allumage ne se fait pas, le controle d’allumage continu de produire des etincelles sur une periode de 21 sec. et ensuite
tomber en securite. Mettre le thermostat (ou le courant) en
position d’arret (OFF) pour une periode de 60 sec. a fin d’interrompre le processus de securite.
4. Si l’appareil ne s’allume pas, fermez le gaz completement pour une period de 5 min. avant d’effectuer une nouvelle tentative
d’allumage.
5. Pour fermer l’appareil, fermez le gaz et le courant electrique.
1. Aircraft hangers must be in accordance with the Installation in:
standard for Aircraft Hangers. ANSI/NFPA 409 (latest edition).
2. Public garages must be in accordance with the standard for parking structures, ANSI/NFPA 88a (latest edition), or with the
42849000 Rev. H 2/08 standard for repair garages, ANSI/NFPA 88b (latest edition)
17, 18, 19, 20
5
6
29
Rev. A 3/05 42052030 120V PRIMARY TRANSFORMER CONNECTION WIRING DIAGRAMS If any of the original wire as supplied with the
24V SECONDARY chéma de circuit de connexion appliance must be replaced. It must be replaced with wiring material having a
Transformateur Ignition Module AWG. - UL / CSA 600V Type TEW) temperature rating of at least 105oC. (18
bobine primaire 120ÊV Bloc d'allumage
bobine secondaire 24ÊV R TH heater, wiring material having a minimum size When connecting the supply circuit to the
of 14 AWG and a temperature rating of at
Hot Chaud Thermostat V1 BL MV GAS VALVE least 90oC shall be used.
Neutral Neutre 24VAC BL Robinet à gaz S'il faut remplacer un fil de l'appareil d'origine, utiliser exclusivement des fils à température
120 Fenwal No. MV de service nominale d'au moins 105C (18
VAC 2460D AWG. - UL / CSA 600ÊV Type TEW).
Ground Terre V2 Pour raccorder le circuit d'alimentation au
GND W radiateur, utiliser des fils de calibre 14 AWG
FC+ ou plus à température de service nominale d'au moins 90C.
FC-
FACTORY WIRING W ELECTRODE WIRE LEGEND
Circuit d'origine GAP 3/16” W WHITE ENGLISH BLANC FRANCAIS
FIELD WIRING d'électrode Écartement R RED ROUGE
Connexions client HIGH VOLTAGE CABLE 4,7Êmm G BL GREEN BLUE VERT BLEU
Haute tension
Form #43219010
June 09
