3.3.1. AV-source(s)

The c.LOGiC interface has the possibility to connect and remotely control by navigation
buttons up to 2 pre-programmed devices. The device list in the device control table
(Appendix A) shows the pre-programmed remote channels and the related IR-remote cables
STA-xxx which must be ordered separately for the control of the device.

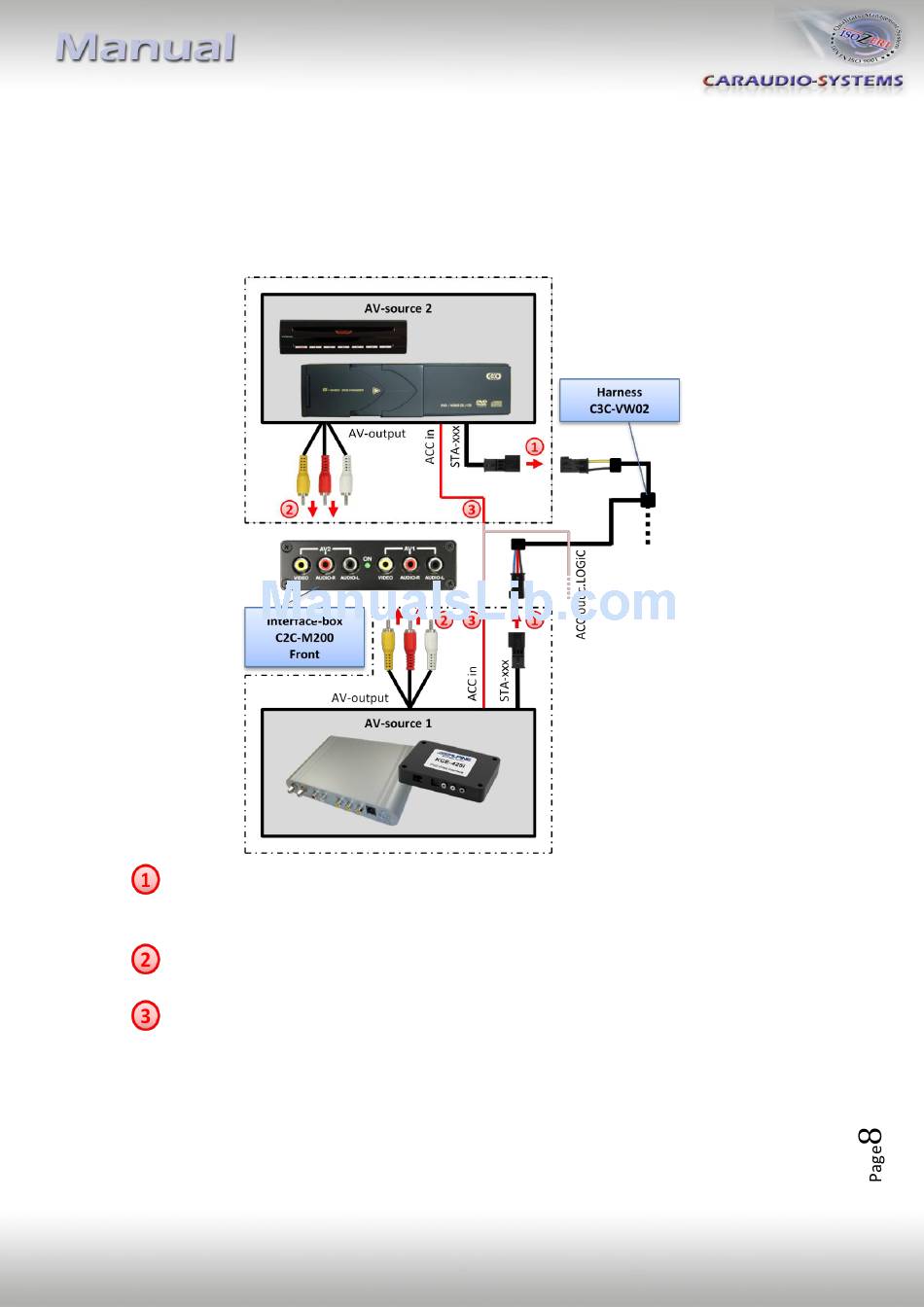

Using the respective STA-xxx IR-control cable, interconnect the blue (yellow) female
3pin AMP connector of harness C3C-VW02 and the IR-port of the AV-source 1 (AV-
source 2).
Using an RCA-cable, interconnect the female RCA-port AV1 (AV2) of the Interface-box
C2C-M200 with the AV-output of the AV-source 1 (AV-source 2).
The pink ACC-output wire (+12V max 1A) of harness C3C-VW02 can be connected to
the ACC-input wires of the connected device to switch it on. It carries +12V when the
head-unit is running.
