usbLOGiC USB-AV-Player
USB-MK-CD
for BMW Professional navigation systems
without iDrive (MK2-MK4)

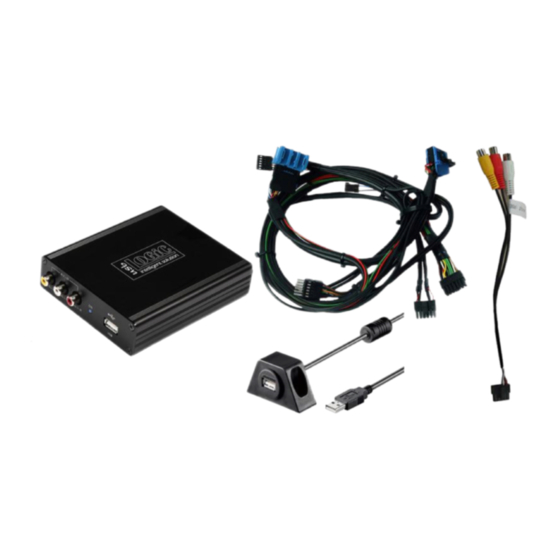

Product features
• USB-port for media up to 2 TB (2000GB)
• supports FAT32 and NTFS formatted media
• multi partition capable
• compatible with MP3, AVI, VOB, MOV, RMVB, JPG and many more
• last position memory
• integrated into and controllable by vehicle infotainment
• AV-input with IR-control channel
• control of after-market devices by OEM buttons, e.g. DVD-player, USB/iPod devices, ...
• after-market rear-view camera input
• automatic switching to rear-view camera input
• rear-view camera power (+12V max 1A)
• rear-seat-entertainment AV-output
• optional remote control for full USB functions/rear-seat-entertainment
• power on remote out trigger signal (+12V max 1A) to switch on connected devices
• video-in-motion
Version 10.05.2012
USB-MK-CD
Advertisement
Table of Contents
Related Manuals for Caraudio-Systems usbLOGiC USB-MK-CD
Summary of Contents for Caraudio-Systems usbLOGiC USB-MK-CD
- Page 1 usbLOGiC USB-AV-Player USB-MK-CD for BMW Professional navigation systems without iDrive (MK2-MK4) Product features • USB-port for media up to 2 TB (2000GB) • supports FAT32 and NTFS formatted media • multi partition capable • compatible with MP3, AVI, VOB, MOV, RMVB, JPG and many more •...
-
Page 2: Table Of Contents
Contents 1. Prior to Installation 1.1. Delivery contents 1.2. Check compatibility of vehicle and accessories 2. Connection schema 3. Installation 3.1. Interconnecting USB-box and harnesses 3.2. Connections to navigation computer 3.3. Connections to radio module 3.3.1. Exceptional Case – Vehicles with factory DSP amplifier 3.3.2. -
Page 3: Prior To Installation
Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product. This product should only be used while standing or to display fixed menus or rear-view-camera video when the vehicle is moving, for example the MP3 menu for DVD upgrades. -
Page 4: Check Compatibility Of Vehicle And Accessories
1.2. Check compatibility of vehicle and accessories Requirements Vehicle 3series (E46), 5series (E39), 7series (E38), X5 (E53), X3 (E83), Z4 (E85/86) without AUX-input at the radio module (till approx 09/2002), Land Rover Range Rover (Vogue) L322 model years 2002-2005 Navigation Navigation system Professional without iDrive (MK2-MK4) Navigation system Professional MK3 in Land Rover Limitations... -
Page 5: Connection Schema
2. Connection schema Version 10.05.2012 USB-MK-CD... -
Page 6: Installation
3. Installation Switch off ignition and disconnect the vehicle’s battery! If according to factory rules disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a resistor lead. -
Page 7: Interconnecting Usb-Box And Harnesses
3.1. Interconnecting USB-box and harnesses Plug harness C3C-AV into 6pin Molex of USB-box USBC-M570. Plug harness C3C-BMW701 into 14pin of USB-box USBC-M570. Plug female 18pin AMP connector of C3C-BMW701 into male 18pin AMP connector of USB-box USBC-M570. Version 10.05.2012 USB-MK-CD... -
Page 8: Connections To Navigation Computer
3.2. Connections to navigation computer Disconnect blue female 18pin connector of vehicle harness from the back of the navigation computer. Plug blue male 18pin AMP connector of harness C3C-BMW701 into blue female 18pin AMP connector of vehicle harness. Plug blue female 18pin AMP connector of harness C3C-BMW701 into blue male 18pin AMP connector of navigation computer. -
Page 9: Exceptional Case - Vehicles With Factory Dsp Amplifier
3.3.1. Exceptional case – Vehicles with factory DSP amplifier If the vehicle is with factory DSP amplifier, it is possible, that the CD-changer sound is not connected to the analogue input of the radio module, but to the digital input (44.1khz) of the factory DSP amplifier. -
Page 10: Radio Module With Quadlock Connector Without Factory Cd-Changer
3.3.3. Radio module with Quadlock connector WITHOUT factory CD-changer Installation is analogue to system with factory CD-changer. Only there is no female 12pin connector on the vehicle harness. The male 12pin connector of harness C3C-BMW701 is not used and should be isolated. 3.3.4. -
Page 11: Radio Module With Round-Pin Connector Without Factory Cd-Changer
3.3.5. Radio module with round-pin connector WITHOUT factory CD-changer Installation is analogue to system with factory CD-changer installed. Only there is no female 10pin connector on the vehicles harness. Shorten the female 12pin connector for two chambers (after expelling all the pins). Obeying the above pin-configuration, pin the female pins of the audio cable of harness C3C-BMW701 into the 10pin shortened female connector. -
Page 12: Usb And Optional Ir-Remote Control Set
3.4. USB and optional IR-remote control set Connect USB-connector of USB-installation socket USBC-EXT to USB-socket of USB- box USBC-M570 and install the USBC-EXT socket in a well accessible location, e.g. the glove-box. Make sure there is enough space to load USB-media. Installation socket for the connection of USB-media. -
Page 13: Av-Source
3.5.1. AV-source The usbLOGiC has the possibility to connect and remotely control by navigation buttons a pre-programmed device. The device list in the device control table shows the pre- programmed remote channels and the related IR-remote cables STA-xxx which must be ordered separately for the control of the device. -
Page 14: After-Market Rear-View Camera
3.5.3. After-market rear-view camera Connect the video RCA of the after-market rear-view camera to the female RCA connector R-CAM IN of USB-box USBC-M570. Connect the green wire of C3C-BMW701 to the camera power supply (+12V max. 1A) The green wire is high (+12V) when reverse gear is engaged. Note: BMW vehicles compatible with NTSC cameras only. -
Page 15: System Settings/Vi Settings
3.6. System settings/VI SETTINGS You must make some settings in the “VI SETTINGS“ menu to enable the usbLOGiC’s functions. Press 3x the “MENU“ key to access the “VI SETTINGS“ menu of the usbLOGiC. Use the right knob to make changes within the “VI SETTINGS“... -
Page 16: Rear-View Camera Function
3.6.3. Rear-view camera function Set the rear-view camera setting to “RVC: ON“ to use the rear-view camera input of the usbLOGiC. After the setting the automatic switching to rear-view camera input is activated when reverse gear is engaged. Note: After the reverse gear is disengaged, the monitor stays on camera video until the vehicle reaches a speed of 10 km/h. -
Page 17: Picture Settings
4.5. Picture settings The usbLOGiC has its own picture setting mode. In order to enter this mode, set to “Video Set:ON“ in the “VI SETTINGS“ menu. After switching to the Video/Audio level the keys "1 <> 4" , "2 <> 5" , "3 <> 6" can be used for picture settings. (each with short keypress). - Page 18 Button assignment table usbLOGiC USB-MK-CD Station button Internal DVB-T DVD-player DVD-changer iPod®-control Analog-tuner tuners SOURCE Display 1 long Selection Selection Selection Selection TV/ Selection TV/ Selection TV/ image format image format image format image image image format format format OK / PLAY...
-
Page 19: Specifications
-30°C to +80°C Weight 312g Measurements (box only) B x H x T 135 x 30 x 105 mm 6. Connections (USB-box) 7. Technical Support Caraudio-Systems Vertriebs GmbH NavLinkz GmbH manufacturer/distribution corporate sales/tech dealer-support Rheinhorststr. 22 Eurotec-Ring 45 D-67071 Ludwigshafen am Rhein...
