Caraudio-Systems c.LOGiC C2-CCC Manual

For bmw professional navigation systems with idrive and 6.5”/8.8” monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

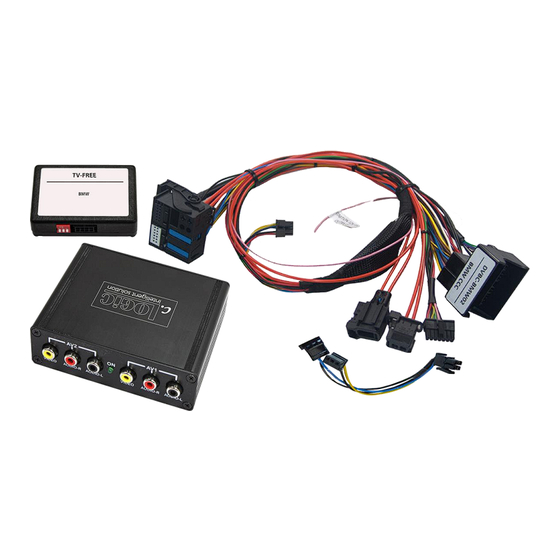

c.LOGiC interfaces
C2-CCC
C2-CIC
for BMW Professional navigation systems
with iDrive and 6.5"/8.8" monitor
Product features
• Full plug and play multimedia interface
• 2 AV-inputs with separate IR-control channels
• control of after-market devices, e.g. DVB-T tuner, DVD-player, DVD-changer, ...
• after-market rear-view camera input
• automatic or manual switching to after-market rear-view camera input (only from
interface mode)
• rear-view camera power (+12V max 1A)
• rear-seat-entertainment video output
• power-on remote-out trigger-signal (+12V max 1A) to switch on connected devices
• video-in-motion
Version 22.03.2011
C2-CCC/C2-CIC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the c.LOGiC C2-CCC and is the answer not in the manual?

Questions and answers

Related Manuals for Caraudio-Systems c.LOGiC C2-CCC

Summary of Contents for Caraudio-Systems c.LOGiC C2-CCC

  • Page 1 c.LOGiC interfaces C2-CCC C2-CIC for BMW Professional navigation systems with iDrive and 6.5”/8.8” monitor Product features • Full plug and play multimedia interface • 2 AV-inputs with separate IR-control channels • control of after-market devices, e.g. DVB-T tuner, DVD-player, DVD-changer, … •...

  • Page 2: Table Of Contents

    Contents 1. Prior to Installation 1.1. Delivery contents 1.2. Check compatibility of vehicle and accessories 1.3. Setting the dip switches of the CAN-box TV-436 1.4. Setting the dip switches of the MOST®-box C2C-M336 1.4.1. Rear-view camera 1.4.2. Deactivating c.LOGiC AV2 input 2.

  • Page 3: Prior To Installation

    1. Prior to installation Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the SW-version and HW-version of the interface boxes, and store this manual for support purposes.

  • Page 4: Setting The Dip Switches Of The Can-Box Tv-436

    1.3. Setting the dip switches of the CAN-box TV-436 Vehicles with CIC dip 1 ON, dip 2 OFF, dip 3 OFF Vehicles with CCC dip 1 OFF, dip 2 OFF, dip 3 OFF 1.4. Setting the dip switches of the MOST®-box C2C-M336 The default dip switch settings of the MOST®-box need to be changes ONLY if an after-market rear-view camera shall be connected or if AV2 of...

  • Page 5: Connection Schema

    2. Connection schema Version 22.03.2011 C2-CCC/C2-CIC...

  • Page 6: Installation

    3. Installation Switch off ignition and disconnect the vehicle’s battery! If according to factory rules disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a resistor lead.

  • Page 7: Removal Of Navigation Computer Ccc/Cic

    3.2. Removal of navigation computer CCC/CIC Example 5series (E60/61). Remove trim strip step by step using a plastic wedge. Do not proceed to quickly to avoid breaking clamps of the trim strip. Remove screws 1 and 2 (see picture). Remove climate control panel. Remove CD/DVD drive trim.

  • Page 8: Quadlock Connector

    3.3. Quadlock connector Disconnect female Quadlock connector from the back of the navigation computer. Remove MOST® insert from the factory harness female Quadlock connector. Plug MOST® insert into male MOST® connector shell of harness C3C-BMW0x. Plug male Quadlock socket of harness C3C-BMW0x into female Quadlock connector of vehicle harness Plug male MOST®...

  • Page 9: Av-Source(S)

    3.4.1. AV-source(s) The c.LOGiC interface has the possibility to connect and remotely control by navigation buttons up to 2 pre-programmed devices. The device list in the device control table shows the pre-programmed remote channels and the related IR-remote cables STA-xxx which must be ordered separately for the control of the device.

  • Page 10: Installing Av-Source's Ir-Sensor Additionally

    3.4.2. Installing AV-source’s IR-sensor additionally Additionally to the control via OEM navigation, it is possible to install the original IR-sensor of a connected device. By using the respective Y-adapter (e.g. STA-Y35MM or STA-RJ12) for the IR-Port of the connected device, the controls of navigation AND device’s IR-sensor can be connected and used simultaneously.

  • Page 11: Operation

    4. Operation 4.1. Activation of the video-in-motion function On vehicles with CIC (8-button iDrive) the video-in-motion function is permanently active without disturbing the navigation performance. On vehicles with CCC or E65 navigation (1 or 2 button iDrive) press the menu-button or the iDrive wheel for about 3 seconds while in main menu.

  • Page 12: Button Assignment Table Idrive

    4.5. Button assignment table iDrive The button assignment table shows which functions of the connected devices can be executed by iDrive. Once an AV-input is activated the iDrive action in the left column will execute the function described in the corresponding device column. The function description equals the remote control buttons of the device’s remote control.

  • Page 13: Specifications

    Temperature range -30°C to +80°C Weight 202g Measurements (box only) B x H x T 90 x 30 x 105 mm 6. Technical Support Caraudio-Systems Vertriebs GmbH NavLinkz GmbH manufacturer/distribution corporate sales/tech dealer- support Rheinhorststr. 22 Eurotec-Ring 45 D-67071 Ludwigshafen am Rhein...

This manual is also suitable for:

C.logic c2-cic
