Model Loading And Insertion - FUTUR3D 3Dwarf User Manual

23.3

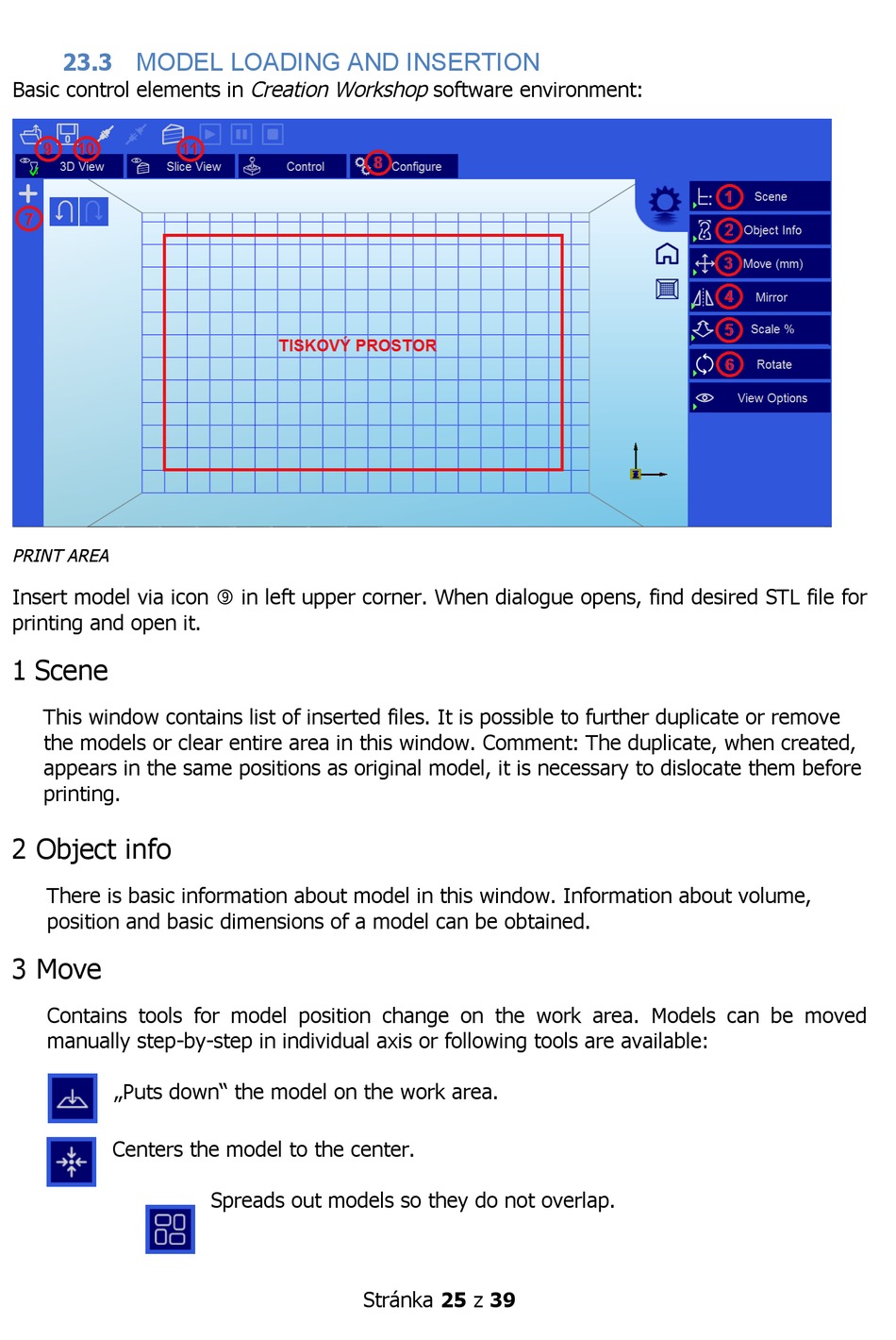

MODEL LOADING AND INSERTION

Basic control elements in Creation Workshop software environment:
PRINT AREA
Insert model via icon ‰ in left upper corner. When dialogue opens, find desired STL file for
printing and open it.
1 Scene
This window contains list of inserted files. It is possible to further duplicate or remove
the models or clear entire area in this window. Comment: The duplicate, when created,
appears in the same positions as original model, it is necessary to dislocate them before
printing.
2 Object info
There is basic information about model in this window. Information about volume,
position and basic dimensions of a model can be obtained.
3 Move
Contains tools for model position change on the work area. Models can be moved
manually step-by-step in individual axis or following tools are available:
„Puts down" the model on the work area.
Centers the model to the center.
Spreads out models so they do not overlap.
Stránka 25 z 39
