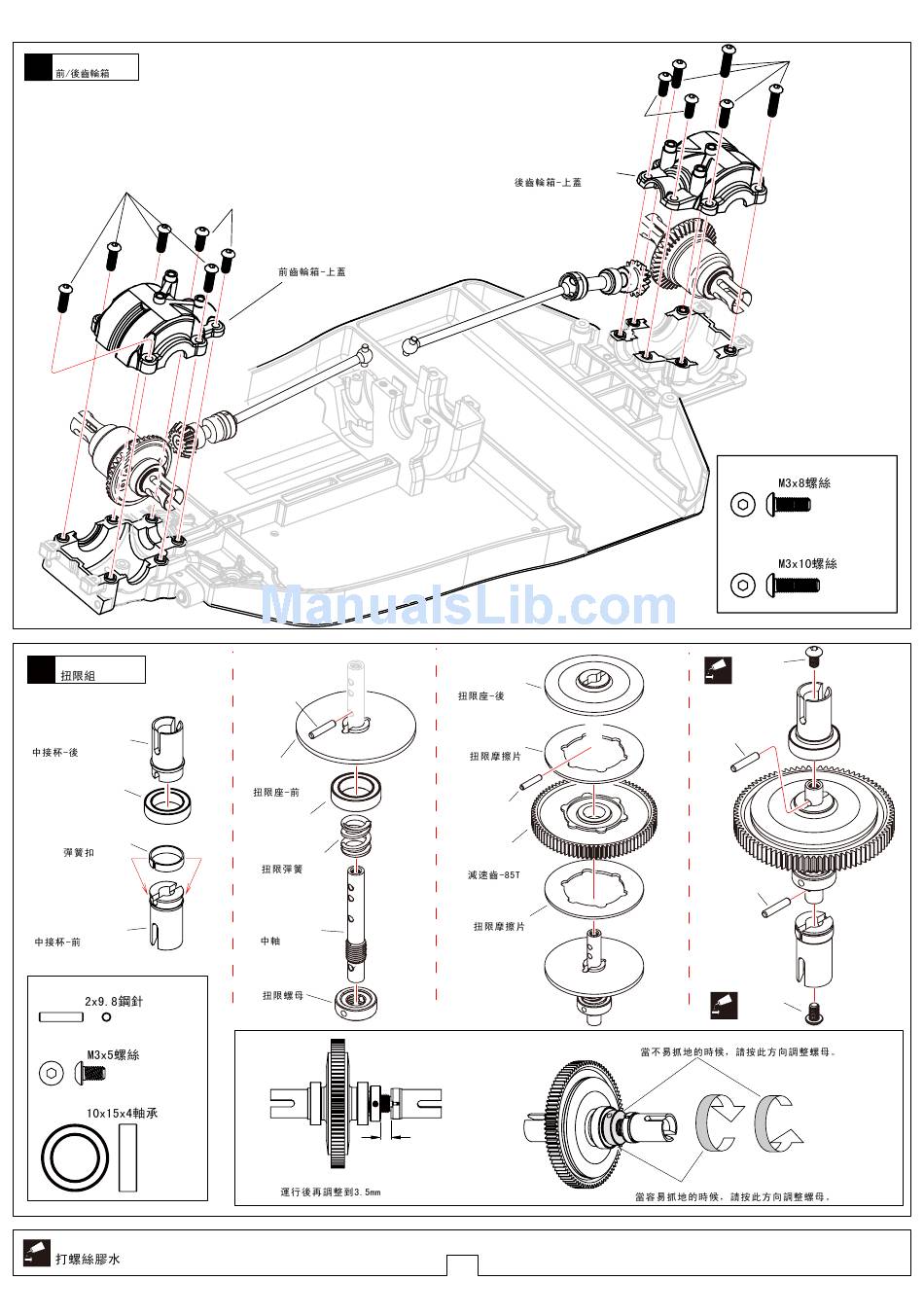

Team C TRO4 Pro User Manual page 6

B
-
F/R Gear-Box
Bag
5
TR4059 M3x10
B
-
Slipper set
Bag
6
T04021
Mid Connecting Hub-R
T02099
TR4022
Spring Buckle
T04021
Mid Connecting Hub-F
T04032 2x9.8 Pin
...............4
TR4059 M3x5 Screw
..................2
T02099 10x15x4 Ball Bearing
............2
Apply threadlocker(screw cement)
Screw
Cement
TR4059 M3x8
TR4002
Front Gear-box-cover
T04032
T04020
Slipper Hub-F
T02099
T04019
Slipper Spring
T04023
Center Shaft
T04018
Slipper Nut
Aften first run, re-adjust to around 3.5mm
TR4059 M3x8
TR4003
Rear Gear-box-cover
T04020
Slipper Hub-R
T04036
Slipper pad
T04032
TR4027
Supr Gear-85T
T04036
Slipper pad
3.5mm
3
TR4059
M3x10
TR4059 M3x8 Screw
TR4059 M3x10 Screw
TR4059
Screw
M3x5
Cement
T04032
T04032
TR4059
Screw
M3x5
Cement
Loosen for more slippage
Tighten for less slippage when traction grip
...............4
...............8
