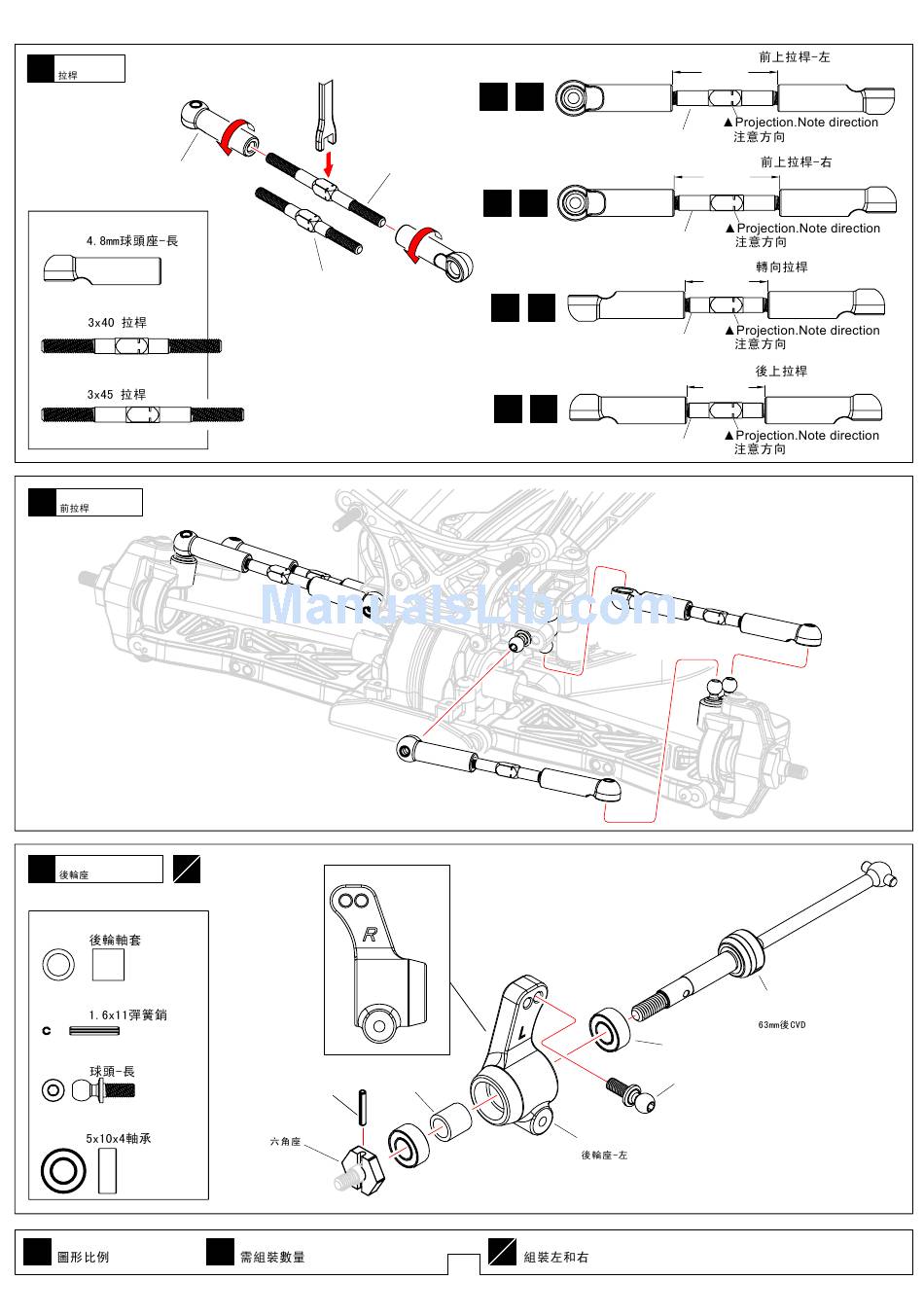

Team C TRO4 Pro User Manual page 14

-D
Bag
Turnbuckle
21
T04014
T04014 4.8mm Ball End-Long
......12
T04024 3x40 Turnbuckle
............4
T04024 3x45 Turnbuckle
............2
Front Turnbuckle
22
Rear Hub Carrier L
23
R
T04028 Rear bearing collar
...............2
TR4011 1.6x11 Spring Pin
...............2
T02092 Ball stud-Long
............2
T02100 5x10x4 Ball Bearing
...............4
Ture-to -scale diagram
1:1
4.0mm
T04024 3x45
T04024 3x40
-D
Bag
T04028
T04011 1.6x11
T04011
Hex Mount
Assemble as many times as specified
x2
1:1 x1
1:1 x1
1:1 x2
1:1 x2
< R >
Assemble both Left and Right
L
R
11
Front upper Rod-L
23.5mm
3x45 Turnbuckle
Front upper Rod-R
23.5mm
3x45 Turnbuckle
Steering Rod
18.5mm
3x40 Turnbuckle
Rear upper Rod
17.5mm
3x40 Turnbuckle
T02100
T02092
TR4011
Rear Hub Carriers-L
T04027
63mm Rear CVD
