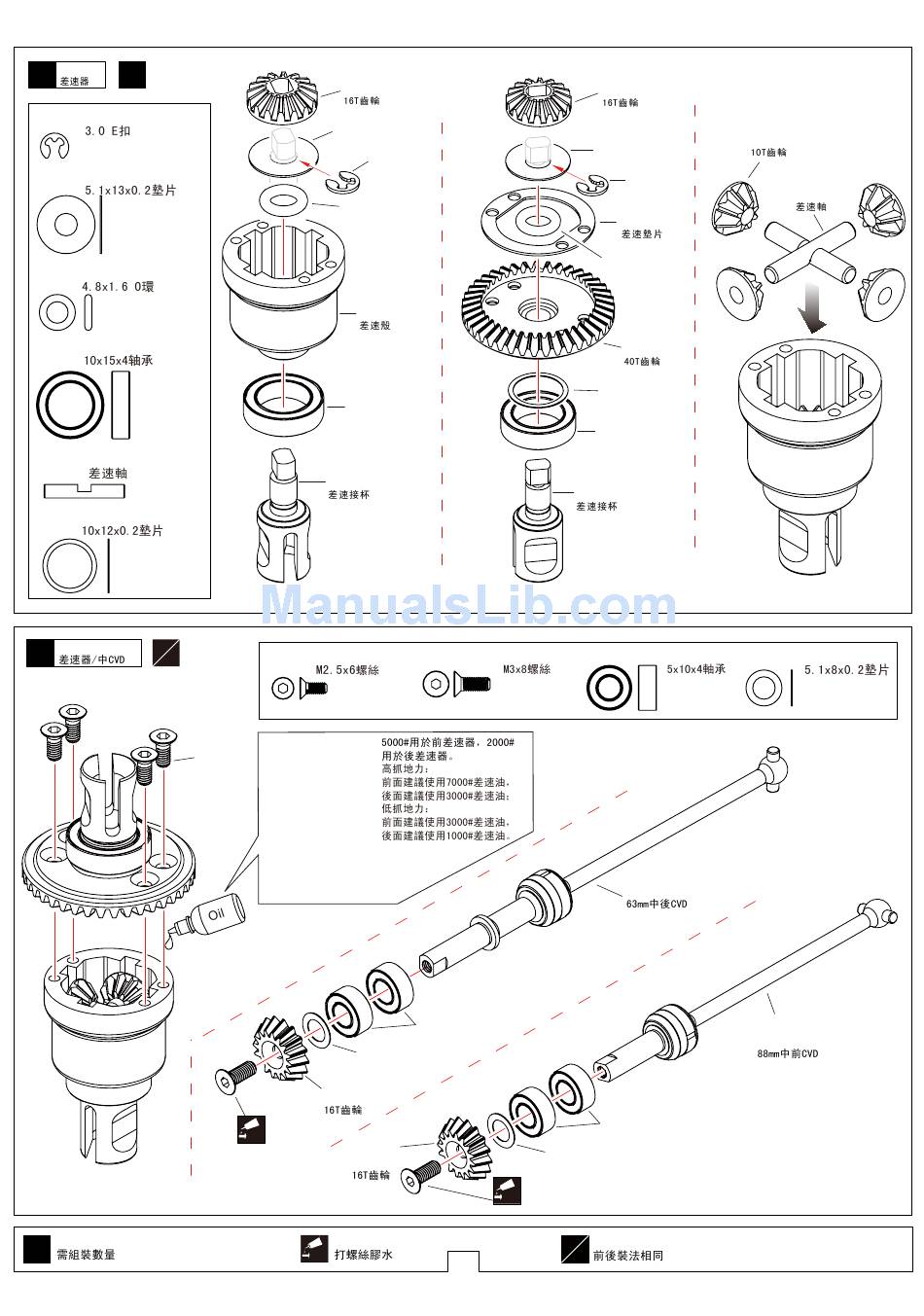

Team C TRO4 Pro User Manual page 5

B
-
Diff
Bag
3 x2
TS4040 3.0 E-ring
...........................4
TS4039 5.1x13x0.2 Washer
.....................4
T04040 4.8x1.6 O-ring
........................4
T02099 10x15x4 Ball Bearing
...............4
TS4039 Diff shaft
...............4
T04041 10x12x0.2 Washer
..................2
Diff / Mid CVD Bag
F
4
R
T04040
M2.5x6
Assemble as many times as specified
x2
TS4039
16T gear
TS4039
5.1x13x0.2
TS4040
T04040
4.8x1.6
T04040
Diff housing
T02099
10x15x4
TS4040
Diff connecting cup
B
-
T04040 M2.5x6 Screw
............8
5000# for Front diff，
2000# for Rear diff．
High grip:
Suggest using 7000#
differential oil for front,
Suggest using 3000#
differential oil for rear;
Low grip:
Suggest using 3000#
differential oil for front,
Suggest using 1000#
differential oil for rear.
86000
5.1x8x0.2
T04041
16T gear
TR4066
Screw
M3x8
Cement
T04041
16T gear
Apply threadlocker(screw cement)
Screw
Cement
TS4040
Diff connecting cup
TR4066/T04046 M3x8 Screw T02100 5x10x4 Ball Bearing
...............2
T02100 5x10x4
86000
5.1x8x0.2
T04046
Screw
M3x8
Cement
F
R
2
TS4039
16T gear
TS4039
TS4039
10T gear
5.1x13x0.2
TS4040
T04040
Diff pads
T04041
4.8x1.6
T04041
40T gear
T04041
10x12x0.2
T02099
10x15x4
86000 5.1x8x0.2 Washer
...............4
TR4066
63mm center rear CVD
T04046
88mm center front CVD
T02100 5x10x4
Assemble front and rear sides the same way
TS4039
Diff shaft
..................2
