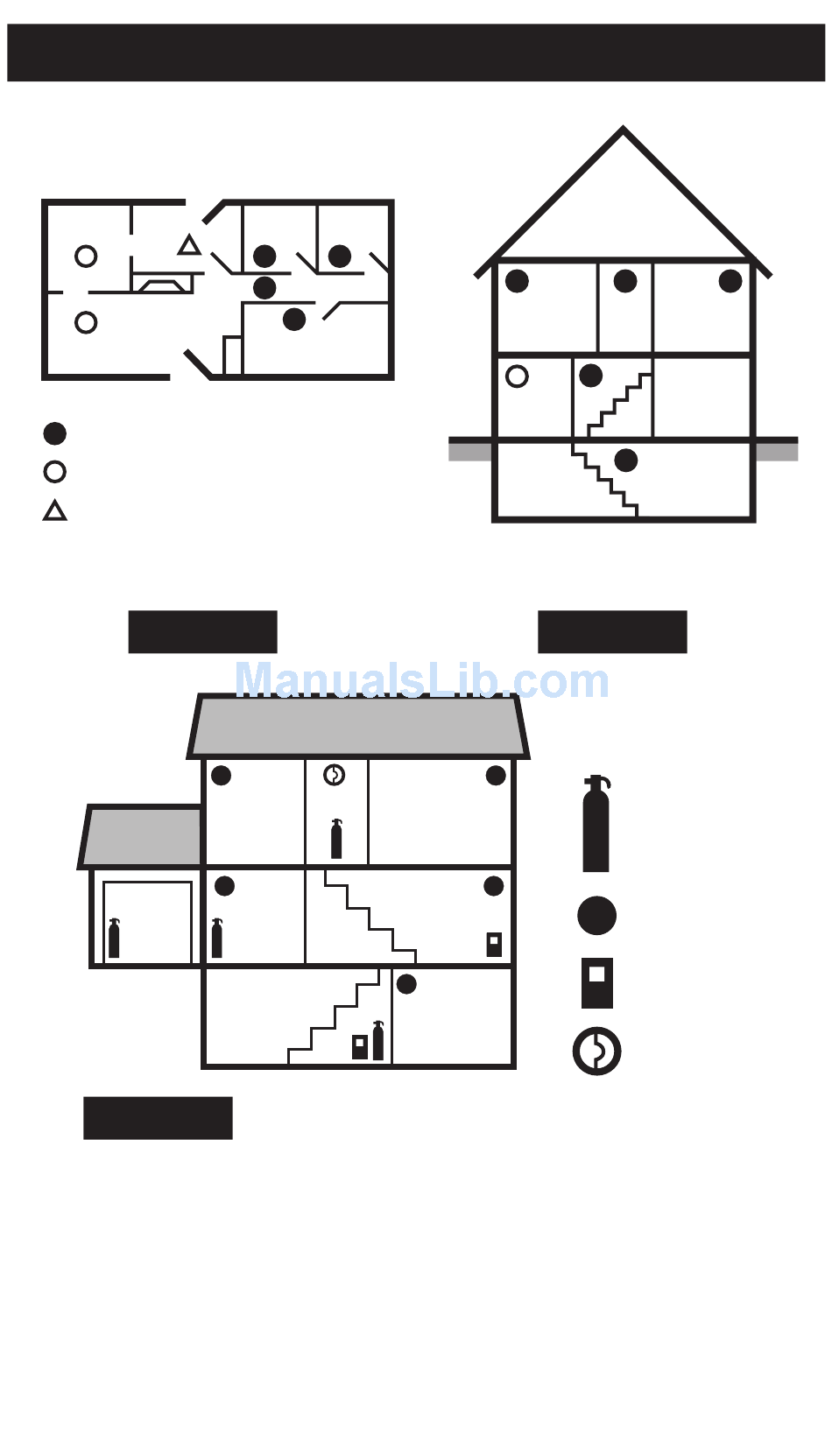

4. Recommended Locations
DINING KITCHEN
ROOM
LIVING
ROOM
Required Smoke or Smoke / CO Alarms
Smoke Alarms for Additional Protection
Ionization Type Smoke Alarm with
Hush Control or Photoelectric Type
®
SINGLE FLOOR PLAN
FIGURE 1A
GARAGE
FIGURE 1C
•
Install smoke alarms on sloped, peaked or cathedral ceilings
following the mounting guidelines outlined in Figure 2B and
2C. Smoke alarms in rooms with ceiling slopes greater than
0.3 m in 2.4 m (1 foot in 8 feet) horizontally shall be located
on the high side of the room (Figure 2B and 2C).
•
Install Smoke Alarms on tray-shaped ceilings (coffered ceilings)
on the highest portion of the ceiling or on the sloped portion
of the ceiling within 30.5 cm (12") vertically down from the
highest point (Figure 2D).
BEDROOM BEDROOM
BEDROOM
HALL
BEDROOM
KITCHEN LIVING ROOM
BASEMENT
TOTAL HOME PROTECTION
BEDROOM
LIVING
ROOM
BASEMENT
MULTIPLE FLOOR PLAN
FIGURE 1B
MASTER
BEDROOM
WORKSHOP
HALL BEDROOM
KITCHEN
FIRE
EXTINGUISHERS
SMOKE
ALARMS
CARBON
MONOXIDE
ALARMS
SMOKE/CO
ALARM
