IntellIgent WIre-free
Smoke and Carbon Monoxide Alarm User guide
Combination Photoelectric Smoke & Carbon Monoxide Alarm
with Voice and Wireless Interconnect – Battery Operated

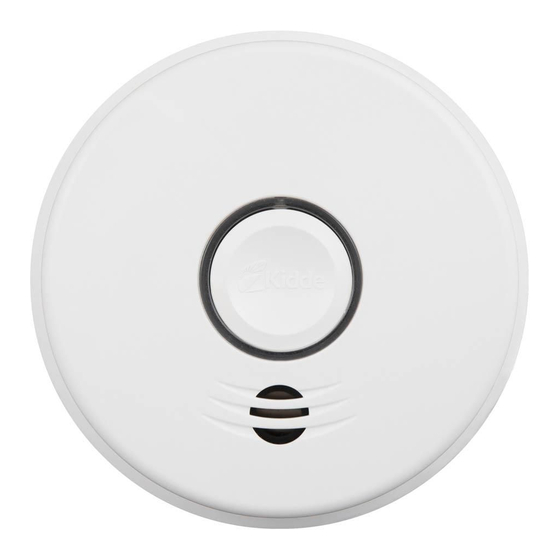

Model P4010DCSCO-W
WIre-free InterConneCt:
You do NOT need a home wi-fi system to use
these units. Multiple wireless units create their
own independent wireless alarm network.
CoMbInAtIon AlArM
10-yeAr SeAled
lIthIUM bAttery
WIre-free InterConneCt
VoICe AlArM
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kidde P4010DCSCO-W
Summary of Contents for Kidde P4010DCSCO-W
- Page 1 Smoke and Carbon Monoxide Alarm User guide Combination Photoelectric Smoke & Carbon Monoxide Alarm with Voice and Wireless Interconnect – Battery Operated Model P4010DCSCO-W WIre-free InterConneCt: You do NOT need a home wi-fi system to use these units. Multiple wireless units create their own independent wireless alarm network.
- Page 2 Thank You for Purchasing this Kidde Alarm This model is powered by a non-replaceable, long-life sealed lithium battery system. It also contains a voice message system and SMART Hush® Control to temporarily silence nuisance alarms. It is capable of Wireless Interconnect.
- Page 3 Contents 1. Smoke Alarm: What To Do When The Alarm Sounds ... . 4 2. Carbon Monoxide Alarm: What To Do When The Alarm Sounds ..5 3.
-
Page 4: Smoke Alarm: What To Do When The Alarm Sounds
1. Smoke Alarm: What To Do When the Alarm Sounds Smoke alarm pattern is three long beeps with voice “Fire!,” a 1.5 second pause, and three long beeps repeating. The red LED blinks in time with alarm pattern. The smoke alarm takes precedence when both smoke and carbon monoxide are present. •... -
Page 5: Carbon Monoxide Alarm: What To Do When The Alarm Sounds
2. Carbon Monoxide Alarm: What To Do When the Alarm Sounds 2. Carbon Monoxide Alarm: What To Do When the Alarm Sounds Carbon monoxide (CO) alarm pattern is four quick beeps with voice “Warning! Carbon Monoxide” repeating every 5 seconds. The red LED blinks in time with alarm pattern. Warning: CarbOn MOnOxiDE aLarM aCTivaTiOn inDiCaTEs ThE prEsEnCE Of CarbOn MOnOxiDE (CO) aT high COnCEnTraTiOns WhiCh Can kiLL yOu. -
Page 6: Other Alarm Visual And Audible Indicators
3. Other Alarm Visual and Audible Indicators Operational Mode Visual Indications Audible Indications Action/Note: normal (standby) Green LED blink approx every 60 sec. test (button press when • 4 patterns of Red/Amber/Green. • Button press sound Perform Test/Hush button no alarm condition is •... -
Page 7: Troubleshooting Guide
Voice “Temporarily (after button push Silenced.” during network error) If you require further information please contact Product Support at 1-800-880-6788 or write us at: Kidde, 1016 Corporate Park Drive, Mebane, NC 27302. Our internet address is www.kidde.com. -
Page 8: Introduction, Product Features & Specifications
5. Introduction, Product Features and Specifications Introduction This alarm detects products of combustion using photoelectric technology and carbon monoxide using an electro- chemical cell. Many times throughout this User Guide, we will refer to Carbon Monoxide as “CO.” Ten (10) years after the unit was installed, this unit will automatically alert you that it is time to replace the unit. This is called “End of Unit Life”... -
Page 9: Limitations Of Smoke And Carbon Monoxide Alarms
6. Limitations of Smoke and Carbon Monoxide Alarms WArnIng: PleASe reAd CArefUlly And thoroUghly • Life safety from fire in residential occupancies is based primarily on early notification to occupants of the need to escape, followed by the appropriate egress actions by those occupants. •... - Page 10 WArnIng: PleASe reAd CArefUlly And thoroUghly • IMPORTANT: This alarm is designed to detect carbon monoxide gas from ANY source of combustion. It is NOT designed to detect any other gas. CAUtIon: This alarm will only indicate the presence of carbon monoxide gas at the sensor. Carbon monoxide gas may be present in other areas.
-
Page 11: Recommended Locations For Smoke Alarms
7. Recommended Locations for Smoke Alarms ANYWHERE ALONG THIS BOLD SURFACE • Locate smoke alarms in all sleeping areas. Try to monitor the exit path as the bedrooms are usually farthest from the exit. If more than one sleeping area exists, locate additional alarms in each sleeping area. Locations permitted for smoke ANYWHERE ALONG alarms and smoke detectors... - Page 12 • For mobile home installation, select locations carefully to avoid thermal barriers that may form at the ceiling. For more details, see MOBILE HOME INSTALLATION section. • When mounting an alarm on the ceiling, locate it at a minimum of 4” (10 cm) from the side wall. •...
-
Page 13: Locations To Avoid
8. Locations to Avoid • In the garage. Products of combustion are present when you start your automobile. • Normal cooking may cause nuisance alarms. If a kitchen alarm is desired, it should have an alarm silence feature or be a photoelectric type. •... -
Page 14: Activation And Wireless Alarm Network
These models have wireless alarm interconnect CoMPAtIble WIreleSS InterConneCt UnItS AC Models: P4010ACSCO-W, P4010LACS-W, P4010ACS-W capability. When one interconnected unit sounds dC Models: P4010LDCS-W, P4010DCS-W, P4010DCSCO-W an alarm, all other compatible wireless units in the wireless alarm network will alarm. -
Page 15: Setting Up A Wireless Alarm Network
• A maximum of 24 Kidde Safety devices may be interconnected in a multiple station arrangement. The intercon- nect system should not exceed the NFPA interconnect limit of 12 smoke alarms and/or 18 alarms total (smoke, CO, Smoke/ CO Combination, heat, etc.). With 18 alarms interconnected, it is still possible to interconnect up to a total of 6 remote signaling devices and / or relay modules. - Page 16 C. PICk one deVICe Press and hold the button on only ONE device until you hear two beeps. “Searching for other devices.” Release button. You will hear “Searching for other devices”. • The light will pulse and device will sound a continuous “Sonar” ping until step E is complete.
- Page 17 The alarm is now activated! After installation / activation, test your alarm as described in Operation and Testing section. WArnIng: fAIlUre to ProPerly InStAll And ACtIVAte thIS AlArM WIll PreVent ProPer oPerAtIon of thIS AlArM And WIll PreVent ItS reSPonSe to fIre hAzArdS. 9.2 Adding Another Wireless Device to an Existing Wireless Alarm Network For various reasons, you might want to add additional units to your existing wireless alarm network.
- Page 18 d. relAx And WAIt “Success, now connected!” Wait until the new device has connected to the network. Once connected, the new device will speak, “Success now connected!” • Once connected, the light ring will glow green. Figure 9.2-D e. PICk the InStAlled deVICe “Setup Press and hold the button on the INSTALLED device for 5 SECONDS until you complete!”...
-
Page 19: Resetting A Device's Wireless Settings
9.3 Resetting a Device’s Wireless Settings If you encounter an issue at any point during the wireless network setup process, you may reset the device by following the directions below. A. begIn reSet “Resetting wireless Press and hold the button on the device for 8-9 seconds until you hear 3 settings.”... -
Page 20: Operation And Testing
10. Operation and Testing operation The alarm is operating once it is activated and testing Co AlArM SenSor reSPonSe tIMeS is complete. When products of combustion (smoke or At 70 PPM, the unit must alarm within 60-240 minutes. At 150 PPM, the unit must alarm within 10-50 minutes. CO) are sensed, the unit sounds a loud alarm with voice At 400 PPM, the unit must alarm within 4-15 minutes. - Page 21 Ambient light Sensing This unit samples the ambient light conditions of the alarm’s location and, if possible, determines a Night / Day cycle. A valid Night / Day cycle will delay unit chirps during the night until the next Day cycle begins. Chirping PoSSIble ChIrPIng reASonS When chirping begins during the next Day cycle, you can temporarily...
-
Page 22: Recognizing Nuisance Alarms
11. Recognizing Nuisance Alarms Smoke nuisance hUSh®: If you know why the alarm is sounding, and you can verify that it is not a life threatening situation, you can push the button on the initiating unit (green LED flashing every second) to silence the alarm for 8-10 minutes. If the smoke is not too dense, that unit, and all interconnected units will silence. - Page 23 locate In an interconnected system (all units will be alarming together), a unit that detects smoke or CO and initiates an alarm is called the “initiating alarm unit.” Initiating alarm units will be flashing the Green LED every second during alarm. De- pending on unit locations, and the location of the source of smoke or CO, it is possible to have more than one initiating unit.
-
Page 24: Battery
12. Battery note: This alarm is powered by a non-replaceable, sealed lithium battery system. No battery installation or replacement is necessary for the life of the alarm. IMPortAnt: Constant exposure to high or low humidity or temperatures may reduce battery life. WArnIng: no SerVICeAble PArtS InClUded. -
Page 25: Permanently Disable Alarm / Discharge Battery
13. Permanently Disable Alarm / Discharge Battery WArnIng: fAIlUre to dISChArge AlArM bAttery AS InStrUCted PrIor to dISPoSAl MAy CreAte PotentIAl for lIthIUM bAttery relAted fIre or hAzArd. WArnIng: dISChArgIng the AlArM bAttery IS PerMAnent • Once the alarm battery has been discharged, it cannot be reactivated! •... -
Page 26: General Carbon Monoxide (Co) Information
14. General Carbon Monoxide (CO) Information Carbon monoxide (CO) is a colorless, odorless, and tasteless poison gas that can be fatal when inhaled. CO inhibits the blood’s capacity to carry oxygen. Possible Sources of Co Inside your home, appliances used for heating and cooking are the most likely sources of CO. Vehicles running in attached garages can also produce dangerous levels of CO. - Page 27 HVAC contractors will perform CO inspections. Some contractors may charge for this service. It’s advisable to inquire about any applicable fees prior to having the service performed. Kidde will not pay for, or reimburse the owner or user of this product, for any repair or dispatch calls related to the alarm sounding.
-
Page 28: Cleaning Your Alarm
15. Cleaning Your Alarm your Alarm Should be Cleaned at least once a year You can clean the interior of your alarm (sensing chamber) by using compressed air or a vacuum cleaner hose and blow- ing or vacuuming through the openings around the perimeter of the alarm. The outside of the alarm can be wiped with a damp cloth. -
Page 29: Good Safety Habits
16. Good Safety Habits develop and Practice a Plan of escape Prepare and practice a home escape plan twice a year, including drills at night. Know two ways out of every room (door & window) and identify a meeting place outside the home where everyone will gather once they have exited the resi- dence. - Page 30 nfPA (national fire Protection Association) For your information, the National Fire Protection Association’s Standard 72 reads: Where required by other Fire Safety in the Home: NFPA 72 is intended to governing laws, codes, or standards for a specific type of occupancy, approved single and multiple-station smoke provide reasonable safety for persons in family alarms shall be installed as follows:...
- Page 31 fCC (fCC Id: SAk25569999) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 32: Service And Warranty
Kidde warrants that the enclosed alarm will be free from defects in material and workmanship or design under normal use and service for a period of ten years from the date of purchase. The obligation of Kidde under this warranty is limited...
