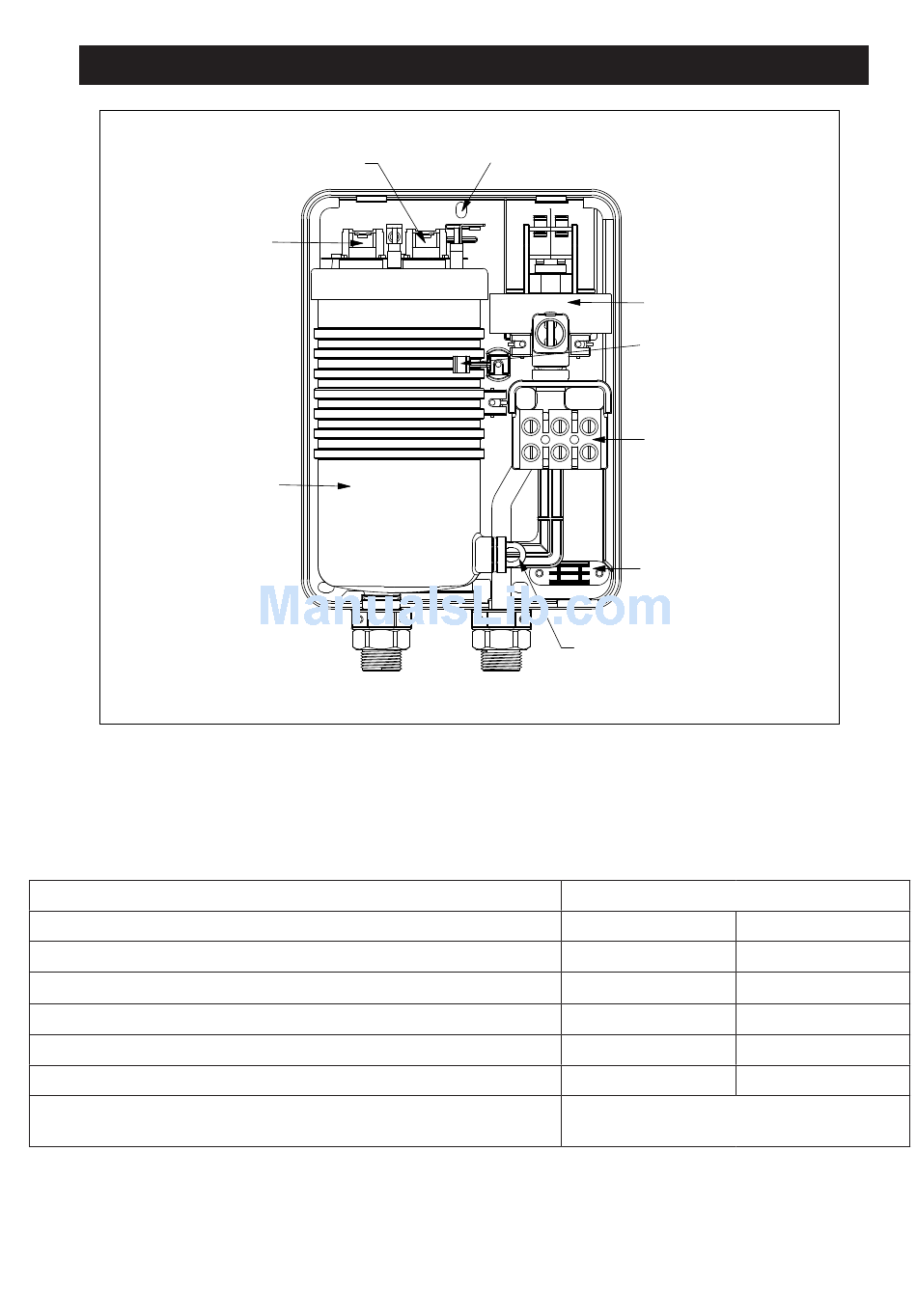

1.0 INTERNAL COMPONENTS

TEMPERATURE
LIMITER 1
(ONE SHOT
OVER TEMP
CUT-OUT)
WATER CONTAINER
ASSEMBLY
Figure 2
Supplier's name or trade mark
Supplier's model identifier
The declared load profile
The water heating energy efficiency class of the model
The water heating energy efficiency in %
The annual electricity consumption in kWh
Daily fuel consumption in kWh
Specific precautions that shall be taken when the water heater is
assembled, installed or maintained and disposed of at end of life
Table: Technical parameters in accordance with European Commision regulations 814/2013
and 812/2013
4
TEMPERATURE LIMITER 2
(OVER TEMP CUT-OUT)
FIXING HOLES (3 NOS.)
DIFFERENTIAL PRESSURE
SWITCH ASSEMBLY
NEON
MAINS CONNECTOR BLOCK
CABLE GRIP
DRAIN PLUG
Santon PowerPack
7kW
XXS
A
38.5
479
2.206
9kW
XXS
A
38.5
479
2.206
See sections 3 - 8
