Thank you for purchasing this LITECRAFT product. For your own safety, please read
the instruction manual carefully before turn on the product for the first time.
SAFETY NOTES
• Each person which is responsible for the installation, the use or service of this
unit must be:
- qualified
- has to follow the instructions in this manual.
• WARNING! Be careful when using the device. You risk an electrical shock
from high voltage, if you touch the wires!
• The device has left our company in manufacturer proofed state. To maintain
this status and to ensure a safe operation, it is absolutely necessary to follow
the safety instructions and warnings in this manual.
• IMPORTANT: Errors, caused by not following these instructions are not
covered by the warranty. The dealer will not accept liability for any resulting
defects or problems.
• Keep the unit away from radiators or other heat sources!
• If the unit has been exposed to tremendous temperature changes (e.g. after
transportation), do not turn it on immediately. The resulting condensation could
damage the unit. Don`t switch unit on until the device reaches room
temperature.

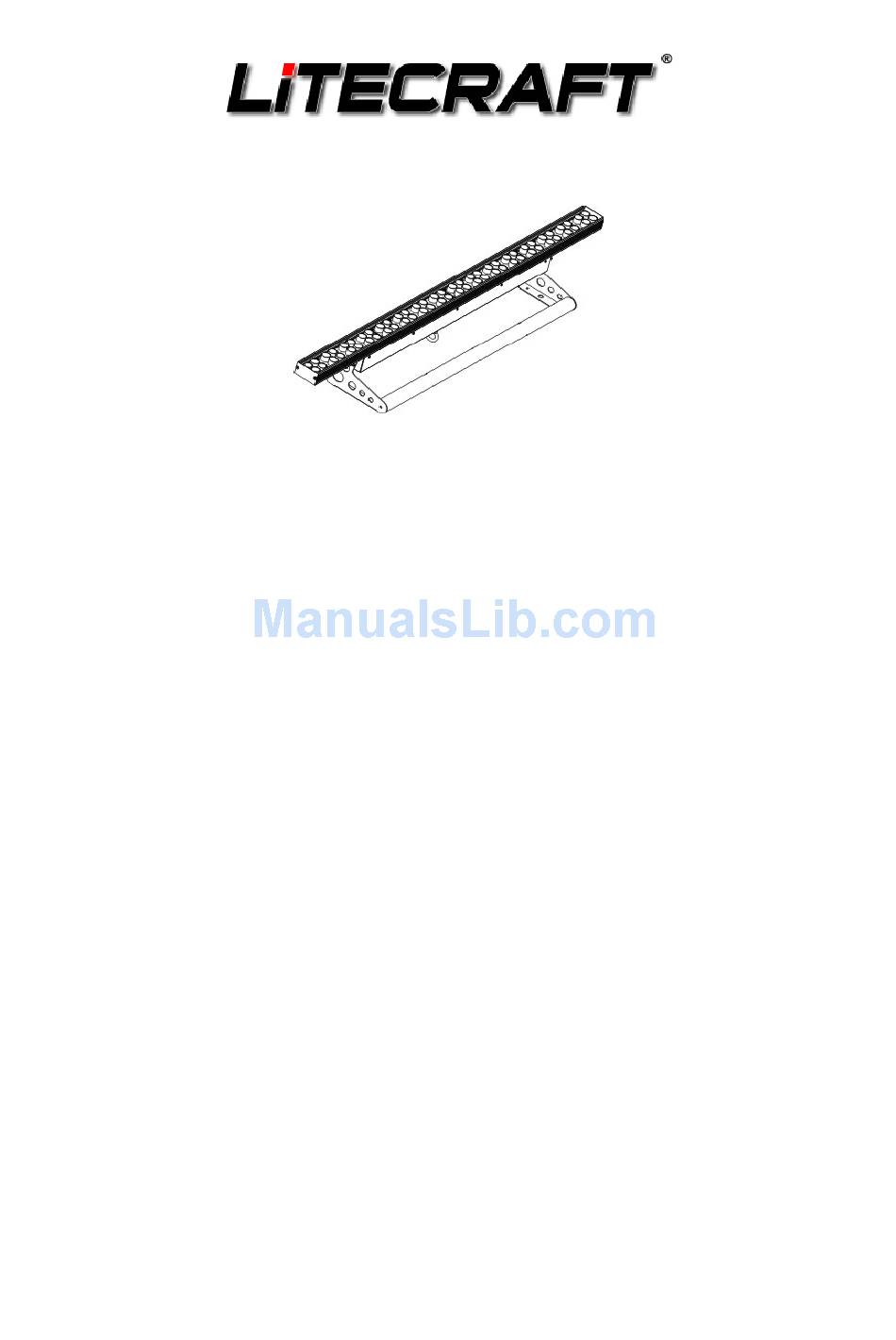

PowerBar 4
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the PowerBar 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Litecraft PowerBar 4

  • Page 1 PowerBar 4 Manual Thank you for purchasing this LITECRAFT product. For your own safety, please read the instruction manual carefully before turn on the product for the first time. SAFETY NOTES • Each person which is responsible for the installation, the use or service of this...
  • Page 2 • This device belongs to protection class I. Therefore, it is imperative that the green/yellow wire is connected to the earth contact of the plug. The electrical connection must be made by a qualified person. • Make sure that the cable is never never squeezed or damaged by sharp objects.
  • Page 3: Operation

    OPERATION: • This device has several DMX, manual and audio modes. In DMX mode, multiple devices can be connected and controlled by a controller. The device accepts the settings of the DMX-controller, as soon as the corresponding start address is set. •...
  • Page 4 CONTROL MODES/DMX DESCRIBTION: mode display function display permanent 0***,***1 = display permanent on mode permanent automatic 0***,***2 = display switches off after 10 s and switches on switch off automatic by pressing any button 4 channel mode 1***, *** = DMX adress ch1 = dimmer red mode ch2 = dimmer green...
  • Page 5: Technical Specification

    Technical Specification: Voltage: 100-240 V, 47-63 Hz Power Consumption: 0,35 A @ 230 V Measurements: 1070 x 185 x 160 mm Weight: 4,74 kg Fuse: T3.15 A @ 250 V...
